RS0BI–07

RS–42

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

3325

REPLACEMENT

REPLACEMENT REQUIREMENTS
In the following cases, replace the front passenger airbag assembly, instrument panel or instrument panel
reinforcement with a new one.

Case

Replacing part

The airbag has been deployed.

Front passenger airbag assembly

The front passenger airbag assembly has been found to be faulty in trouble-

shooting.

Front passenger airbag assembly

The front passenger airbag assembly has been found to be faulty while

checking items

(see page

RS–35

).

Front passenger airbag assembly

The instrument panel has been found to be faulty while checking items

(see page

RS–35

).

Instrument panel

The instrument panel reinforcement has been found to be faulty while check-

ing items

(see page

RS–35

).

Instrument panel reinforcement

The front passenger airbag assembly has been dropped.

Front passenger airbag assembly

CAUTION:
For replacement of the front passenger airbag assembly, see page

RS–33

 and

RS–43

, Be sure to fol-

low the correct procedure.

RS0T8–03

H23212

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

RS–43

3326

INSTALLATION

NOTICE:

If the front passenger airbag assembly has been
dropped, or there are cracks, dents or other defects
in the case or connector, replace the front passenger
airbag assembly with a new one.

When installing the front passenger airbag assembly,
take care it is not pinched between other parts.

Never use airbag parts from another vehicle. When
replacing parts, replace them with new ones.

1.

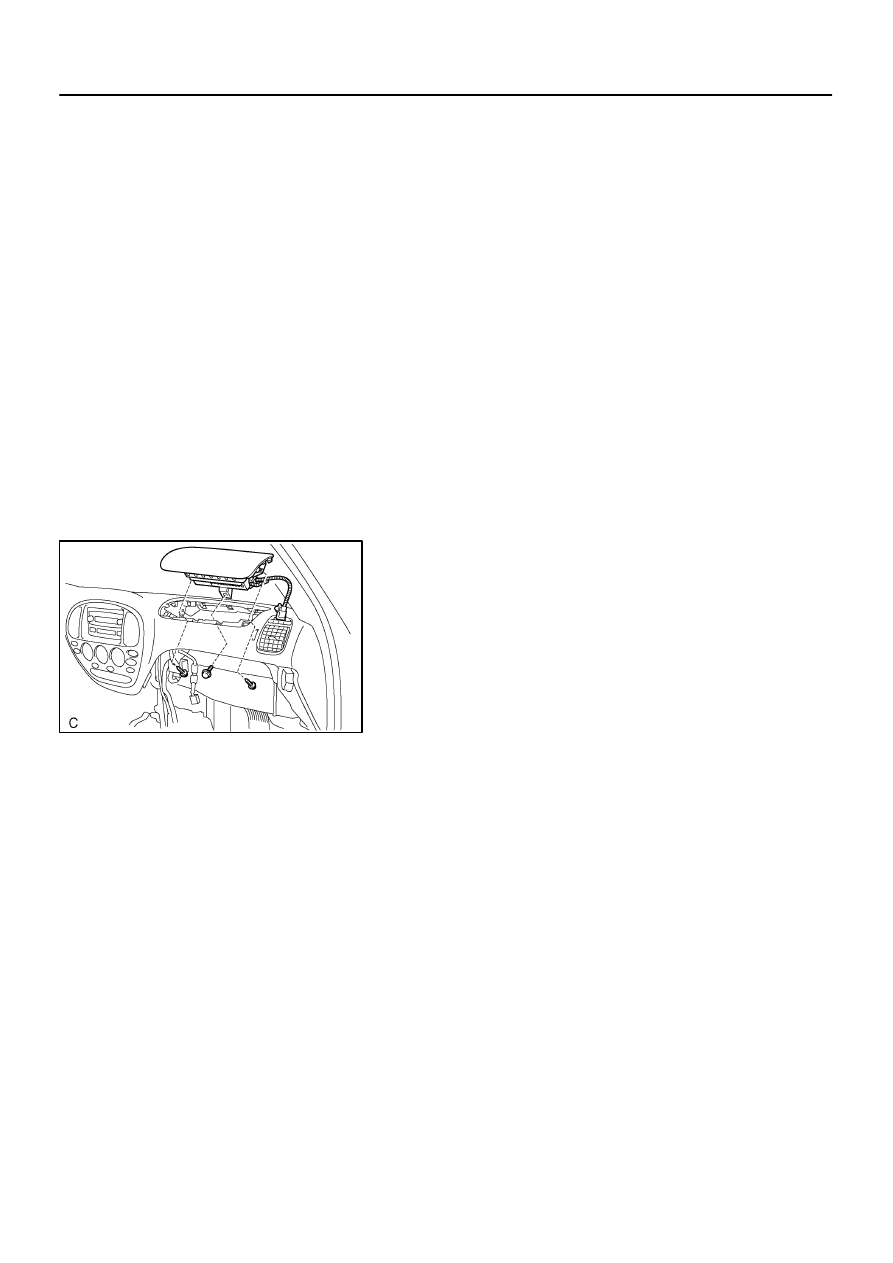

INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

(a)

Install the bolt to hold the front passenger airbag assem-
bly and instrument panel reinforcement.
Torque: 20 N·m (204 kgf·cm, 15 ft·lbf)

(b)

Install the 2 bolts to hold the front passenger airbag as-
sembly and instrument panel.
Torque: 5.0 N·m (51 kgf·cm, 44 in.·lbf)

2.

INSTALL LOWER INSTRUMENT COVER
(SEE PAGE

BO–97

)

3.

INSTALL FRONT CONSOLE BOX
(SEE PAGE

BO–97

)

4.

INSTALL REAR CONSOLE BOX
(SEE PAGE

BO–97

)

5.

INSTALL UPPER CONSOLE PANEL
(SEE PAGE

BO–97

)

6.

INSTALL SHIFTING HOLE COVER
(SEE PAGE

BO–97

)

7.

INSTALL LOWER NO. 2 FINISH PANEL
(SEE PAGE

BO–97

)

8.

INSTALL GLOVE COMPARTMENT DOOR
(SEE PAGE

BO–97

)

9.

INSTALL LOWER FINISH PANEL
(SEE PAGE

BO–97

)

10.

INSTALL SIDE PANELS (SEE PAGE

BO–97

)

H23211

RS–44

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

3327

11.

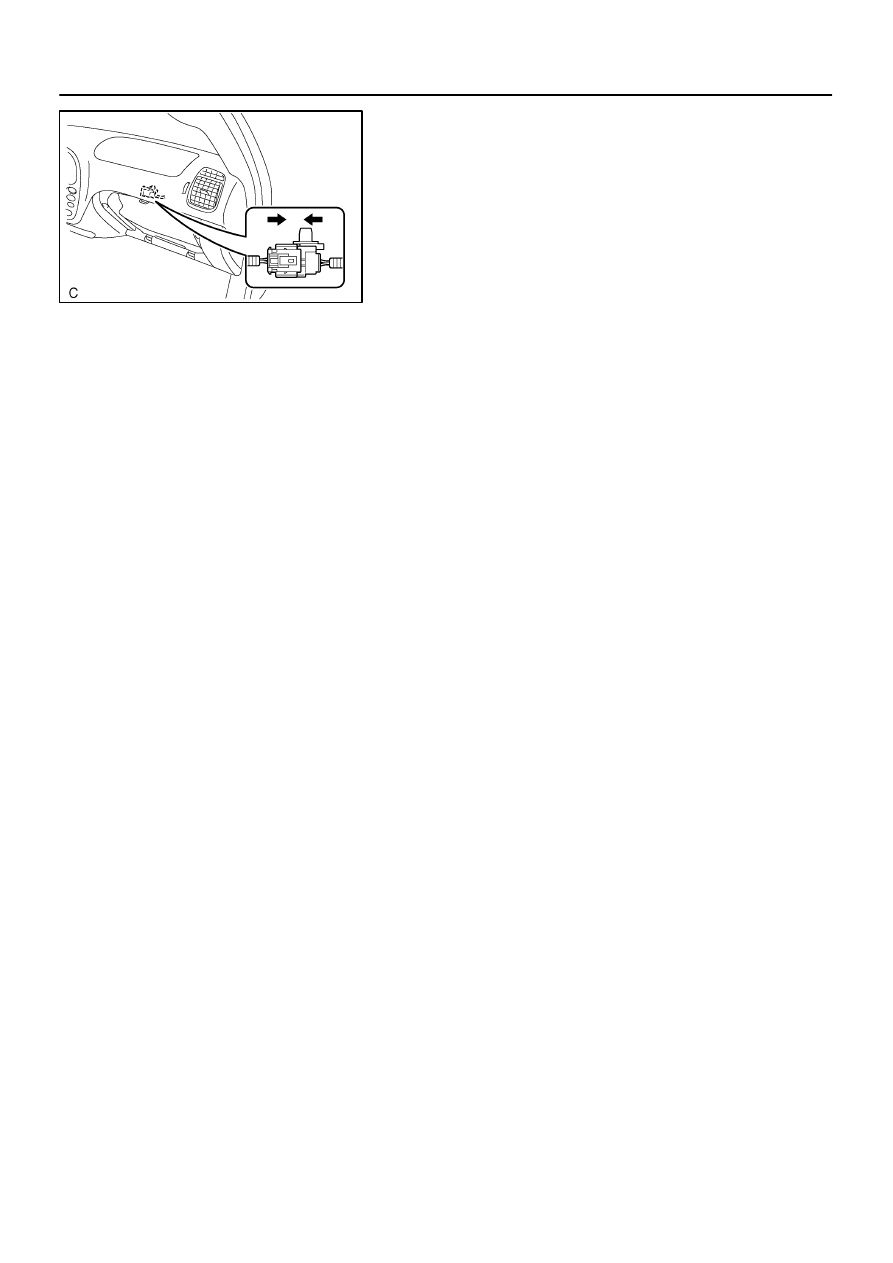

CONNECT AIRBAG CONNECTOR

(a)

Connect the airbag connector as shown in the illustration.

(b)

Attach the connector clamp to the reinforcement.

12.

INSTALL COWL TRIM BOARDS
(SEE PAGE

BO–97

)

13.

INSTALL FRONT DOOR SCUFF PLATES
(SEE PAGE

BO–97

)

14.

CONNECT CABLE TO NEGATIVE BATTERY TERMI-
NAL

15.

PERFORM INITIALIZATION (SEE PAGE

BE–77

)

Some system need initialization when disconnecting the cable
from the negative battery terminal.
16.

INSPECT SRS WARNING LIGHT (SEE PAGE

DI–1137

)

RS0T9–06

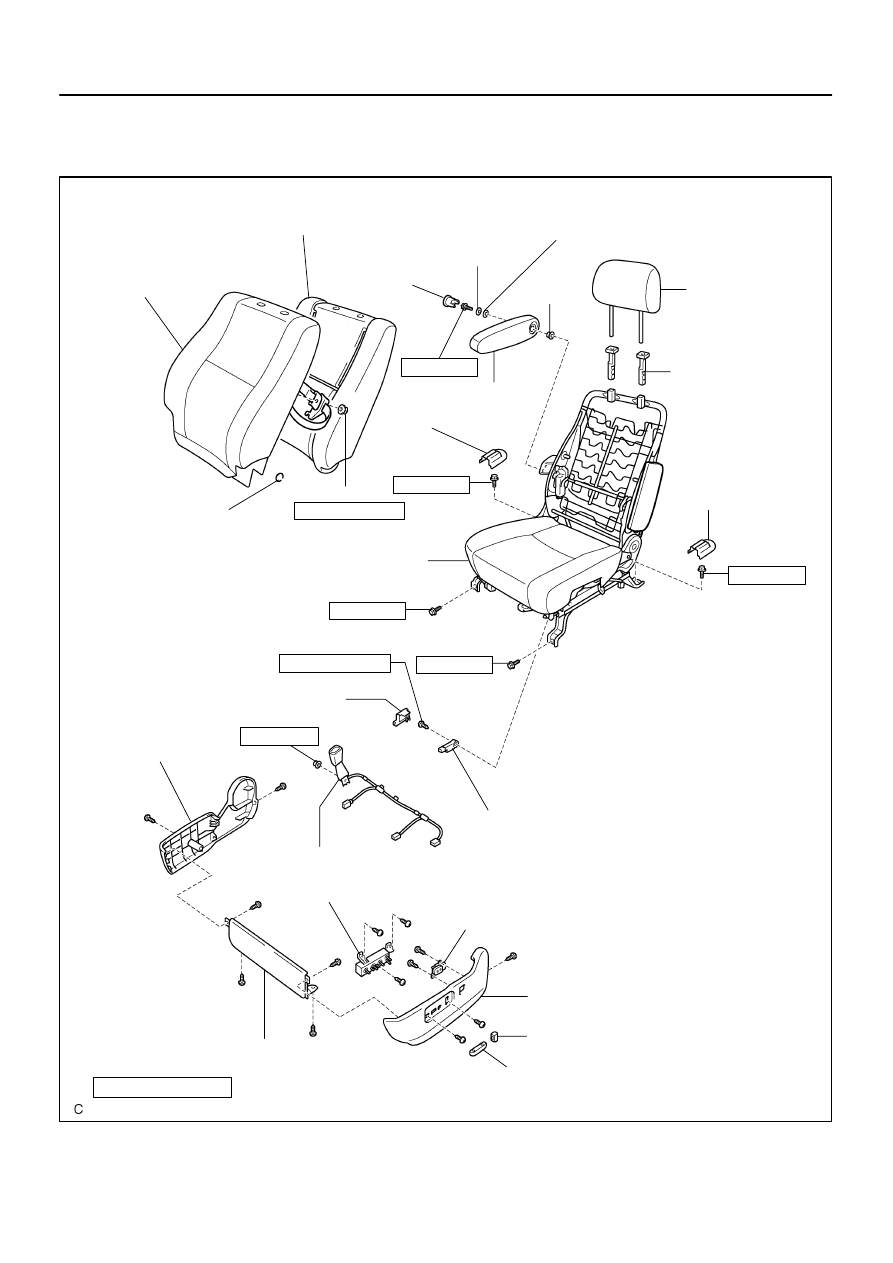

H23932

37 (377, 27)

37 (377, 27)

37 (377, 27)

37 (377, 27)

37 (377, 27)

42 (428, 31)

N·m (kgf·cm, ft·lbf) : Specified torque

Non–reusable part

Seat Cushion Outer Shield

Slide Knob

Reclining Knob

Lumbar Switch

Power Seat Switch

Seat Cushion Lower Shield

Seat Position Sensor

Seat Cushion Inner Shield

Driver’s seat:

Torx



 Screw

Seat Position
Sensor Protector

Driver’s seat:

Hog Ring

Front Seat Inner Belt

Headrest Support

Seat Frame Assembly

Seatback Cover

Seatback Pad

Spacer

Seat Track Cover

Seat Track Cover

Armrest Assembly

Armrest Cap

Armrest Spacer

Armrest Lock Plate

Headrest

8.0 (82, 72 in.·lbf)

w/ Side Airbag:

5.5 (56, 49 in.·lbf)

–

SUPPLEMENTAL RESTRAINT SYSTEM

SIDE AIRBAG ASSEMBLY (Power Adjuster Type)

RS–45

3328

SIDE AIRBAG ASSEMBLY (Power Adjuster Type)

COMPONENTS
