RS–34

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

3317

(e)

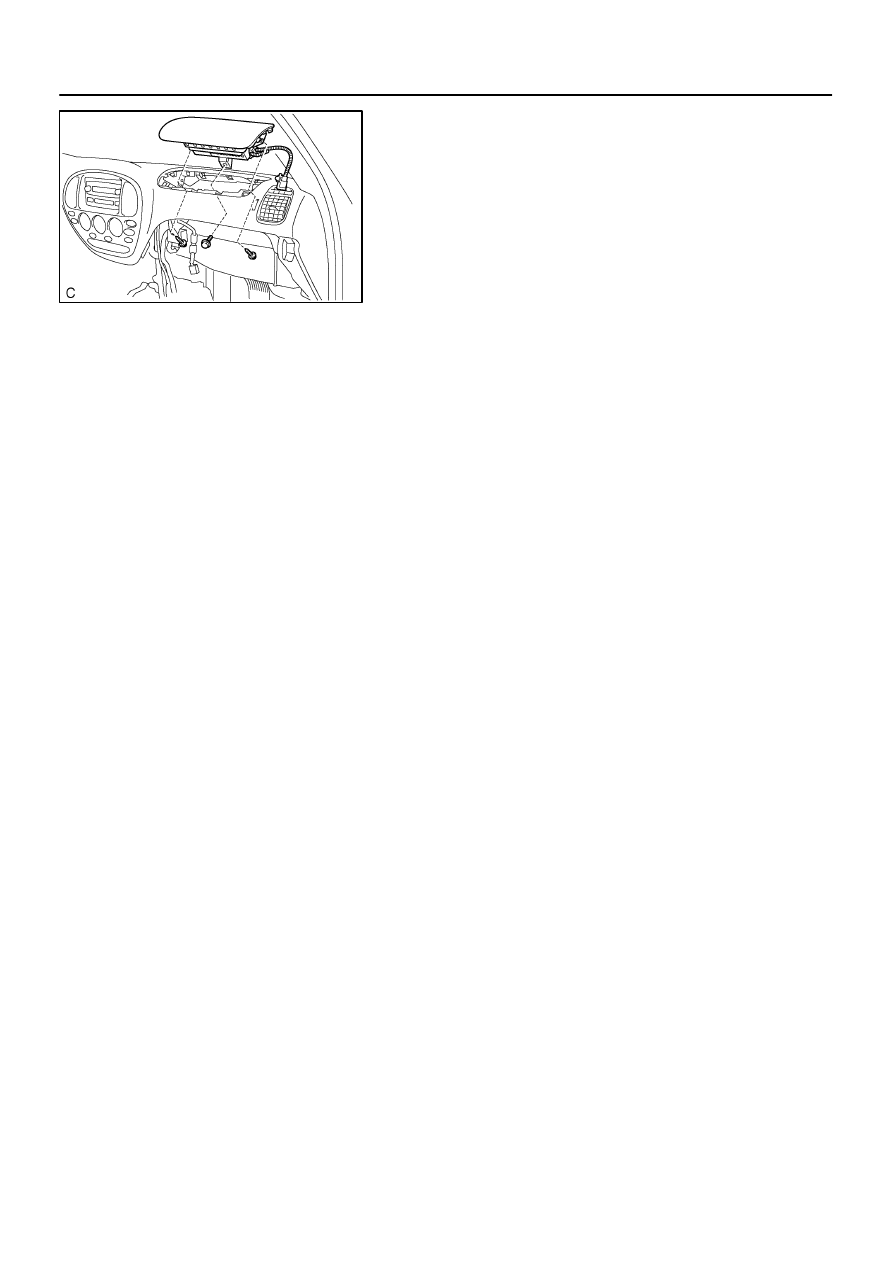

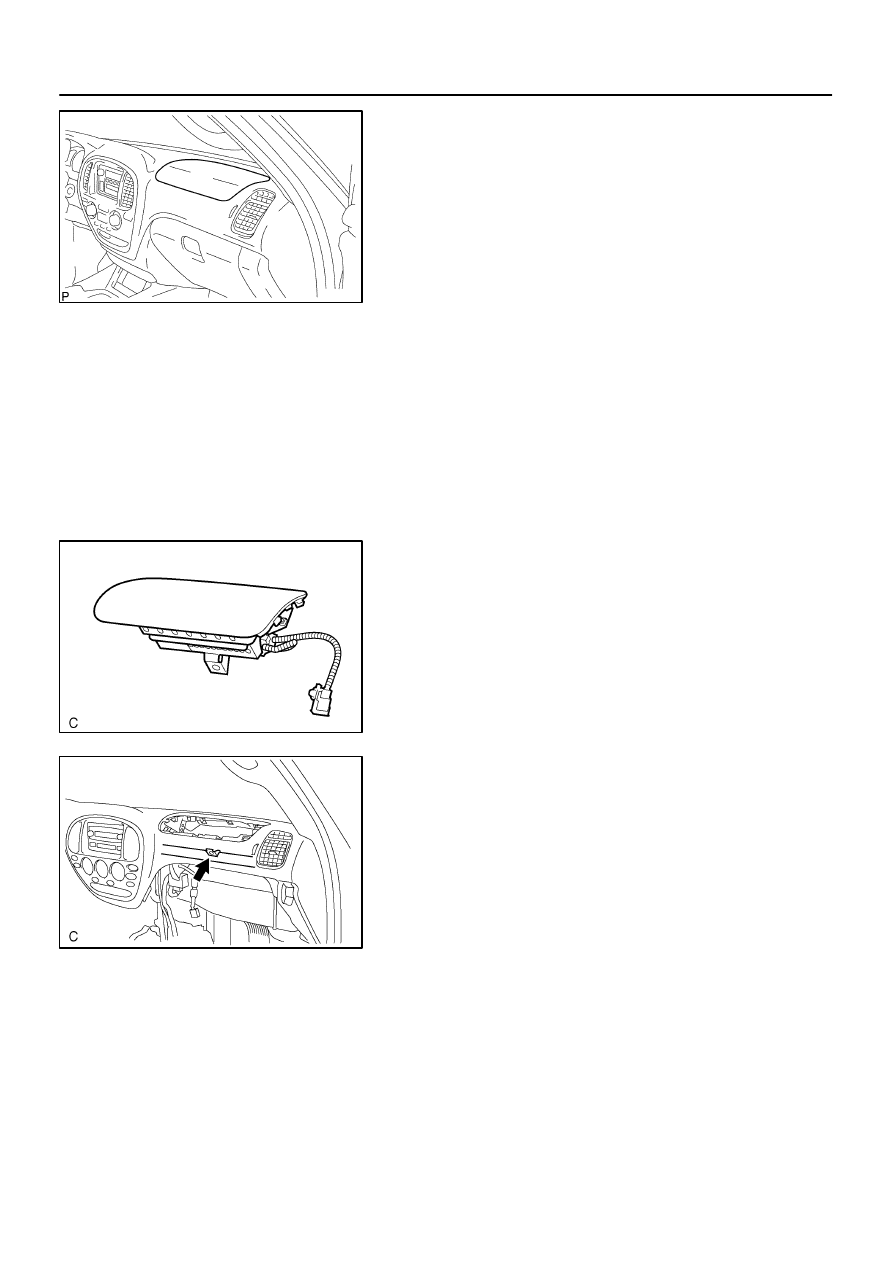

Remove the front passenger airbag assembly.

CAUTION:

Do not store the front passenger airbag assembly
with the airbag deployment side facing downward.

Never disassemble the front passenger airbag as-
sembly.

RS119–01

H16182

H23213

H23214

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

RS–35

3318

INSPECTION

1.

VEHICLE NOT INVOLVED IN COLLISION

(a)

Perform a diagnostic system check (see page

DI–1147

).

(b)

With the front passenger airbag assembly installed on the
vehicle, perform a visual check. If there are any defects
as mentioned below, replace the front passenger airbag
assembly with a new one:
Cuts, minute cracks or marked discoloration on the instru-
ment panel around the front passenger airbag assembly.

2.

VEHICLE INVOLVED IN A COLLISION AND AIRBAG IS
NOT DEPLOYED

(a)

Perform a diagnostic system check (see page

DI–1147

).

(b)

With the front passenger airbag assembly removed from
the vehicle, perform a visual check. If there are any de-
fects as mentioned below, replace the front passenger
airbag assembly, instrument panel or instrument panel re-
inforcement with a new one:

Cuts, minute cracks or marked discoloration on the
front passenger airbag assembly.

Cracks or other damage to the connectors.

Deformation or cracks on the instrument panel or
instrument panel reinforcement.

CAUTION:
For removal and installation procedures of the front pas-
senger airbag assembly, see page

RS–33

 and

RS–43

. Be

sure to follow the correct procedure.

RS11A–01

AB0152

SST

RS–36

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

3319

DISPOSAL

HINT:
When scrapping a vehicle equipped with the SRS or disposing
of the front passenger airbag assembly, be sure to deploy the
airbag first in accordance with the procedure described below.
If any abnormality occurs with the airbag deployment, contact
the SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A.,
INC.
CAUTION:

Never dispose of a front passenger airbag assembly
that has an undeployed airbag.

The airbag produces an exploding sound when it is
deployed, so perform the operation outdoors and
where it will not create a nuisance to nearby resi-
dents.

When deploying the airbag, always use the specified
SST (SRS Airbag Deployment Tool). Perform the op-
eration in a place away from electrical noise.

When deploying the airbag, perform the operation at
least 10 m (33 ft) away from the front passenger air-
bag assembly.

The front passenger airbag assembly becomes ex-
tremely hot when the airbag is deployed, so do not
touch it for at least 30 minutes after deployment.

Use gloves and safety glasses when handling a front
passenger airbag assembly with a deployed airbag

Do not apply water, etc. to a front passenger airbag
assembly with a deployed airbag.

Always wash your hands with water after completing
the operation.

HINT:
Prepare a battery as the power source to deploy the airbag.

AB0158

SST

Battery

H23215

H23216

SST

R13455

10 m (33 ft) or more

SST

Battery

–

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

RS–37

3320

1.

AIRBAG DEPLOYMENT WHEN SCRAPPING VE-
HICLE

(a)

Check the function of the SST (see step 1–(a) on page

RS–23

).

(b)

Precaution (see page

RS–1

 and

RS–3

).

(c)

Disconnect the cable from the negative battery terminal.

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.
(d)

Remove the glove compartment door (see page

BO–89

).

(e)

Remove the lower No. 2 finish panel (see page

BO–89

).

(f)

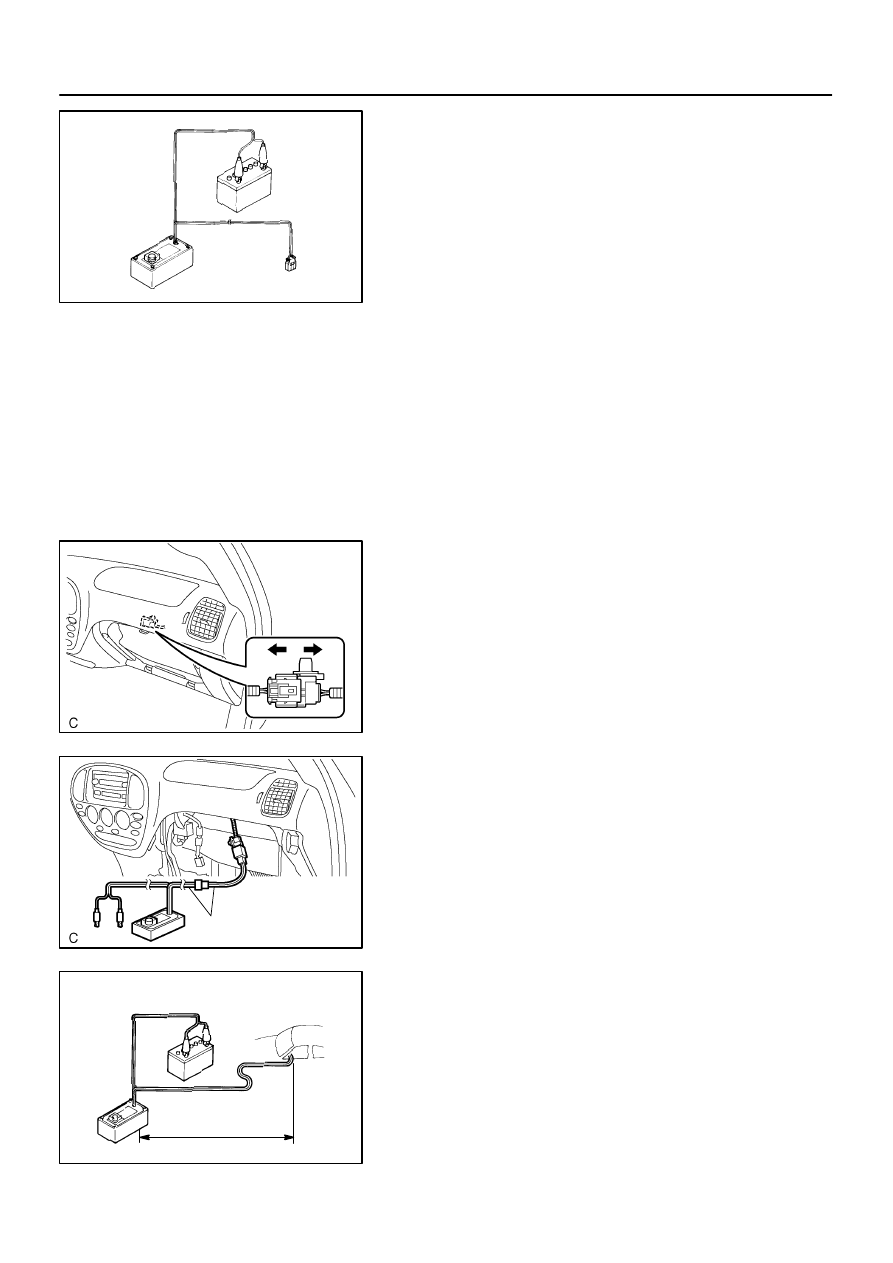

Disconnect the airbag connector (yellow colored one)
from the front passenger airbag assembly.
(1)

Using a clip remover, disengage the connector
clamp.

(2)

Disconnect the airbag connector.

NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.

(g)

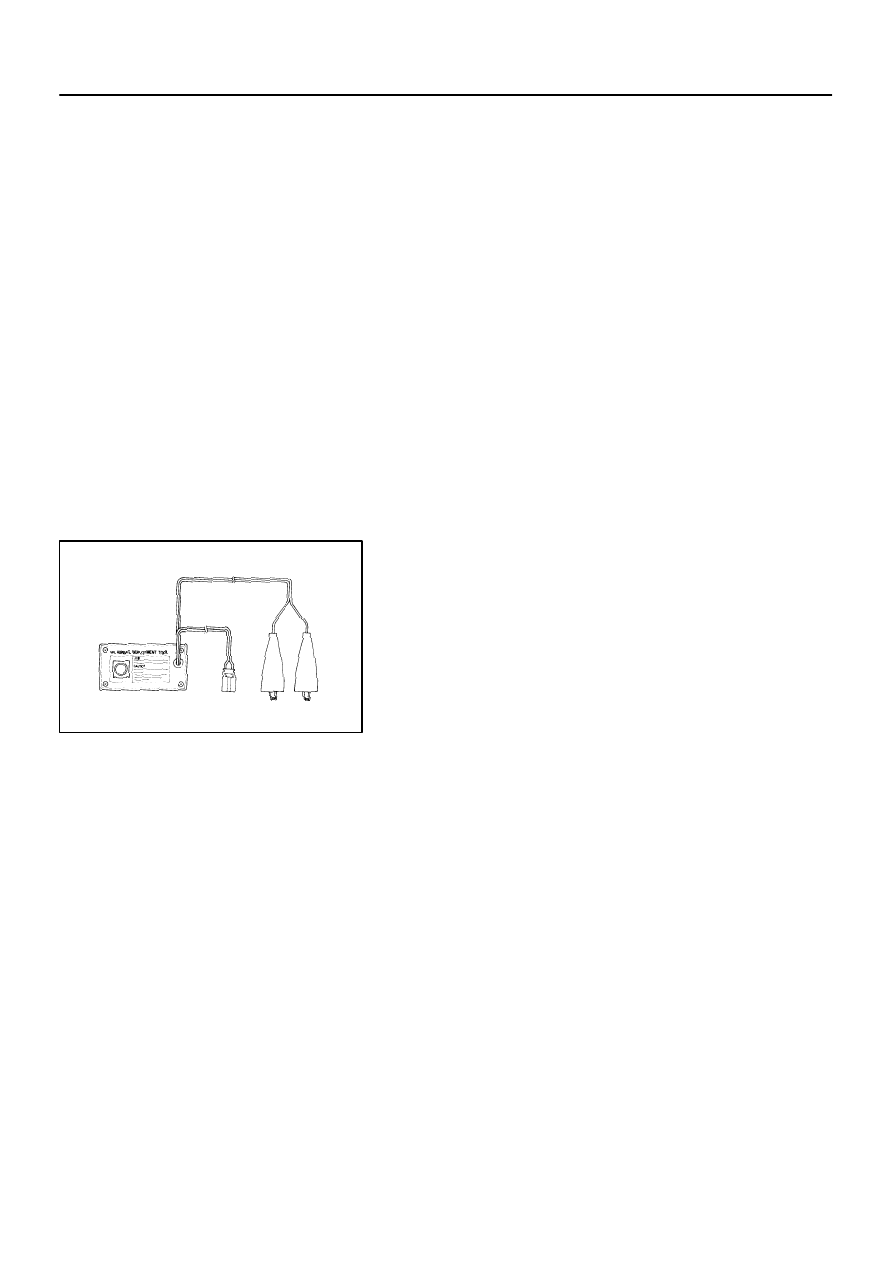

Install the SST.
(1)

Connect the SST connector to the front passenger
airbag assembly.

SST

09082–00700, 09082–00780

NOTICE:
To avoid damaging the SST connector and wire harness,
do not lock the secondary lock of the twin lock.

(2)

Move the SST at least 10 m (33 ft) away from the ve-
hicle side window.

(3)

Maintaining enough clearance for the SST wire har-
ness in the front side window, close all doors and
windows of the vehicle.

NOTICE:
Take care not to damage the SST wire harness.

(4)

Connect the red clip of the SST to the battery posi-
tive (+) terminal and the black clip of the SST to the
negative (–) terminal.
