Toyota Sequoia (2005). Manual - part 831





RS0BC–08

RS–30

SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

3313

REPLACEMENT

REPLACEMENT REQUIREMENTS
In the following cases, replace the steering wheel pad, steering wheel or spiral cable with a new one.

Case

Replacing part

The airbag has been deployed.

Steering wheel pad

The steering wheel pad has been found to be faulty in troubleshooting.

Steering wheel pad

The spiral cable has been found to be faulty in troubleshooting.

Spiral cable

The steering wheel pad has been found to be faulty while checking items.

(see page

RS–22

)

Steering wheel pad

The steering wheel has been found to be faulty while checking items.

(see page

RS–22

)

Steering wheel

The spiral cable has been found to be faulty while checking items.

(see page

RS–22

)

Spiral cable

The steering wheel pad has been dropped.

Steering wheel pad

CAUTION:
For removal and installation of the steering wheel pad, see page

SR–14

 and

SR–23

. Be sure to follow

the correct procedure.

RS0BD–11

SUPPLEMENTAL RESTRAINT SYSTEM

STEERING WHEEL PAD AND SPIRAL CABLE

RS–31

3314

INSTALLATION

CAUTION:



If the steering wheel pad has been dropped, or there are cracks, dents or other defects in the
case or connector, replace the steering wheel pad with a new one.



When installing the steering wheel pad, take care it is not pinched between other parts.



Never use airbag parts from another vehicle. When replacing parts, replace them with new
ones.

1.

INSTALL SPIRAL CABLE (SEE PAGE

SR–23

)

2.

INSTALL STEERING COLUMN COVER LOWER (SEE PAGE

SR–23

)

3.

INSTALL STEERING WHEEL (SEE PAGE

SR–23

)

4.

INSTALL STEERING WHEEL PAD (SEE PAGE

SR–23

)

5.

CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

6.

PERFORM INITIALIZATION (SEE PAGE

SR–23

)

Some system need initialization when disconnecting the cable from the negative battery terminal.
7.

INSPECT SRS WARNING LIGHT (SEE PAGE

DI–1137

)

RS0BE–11

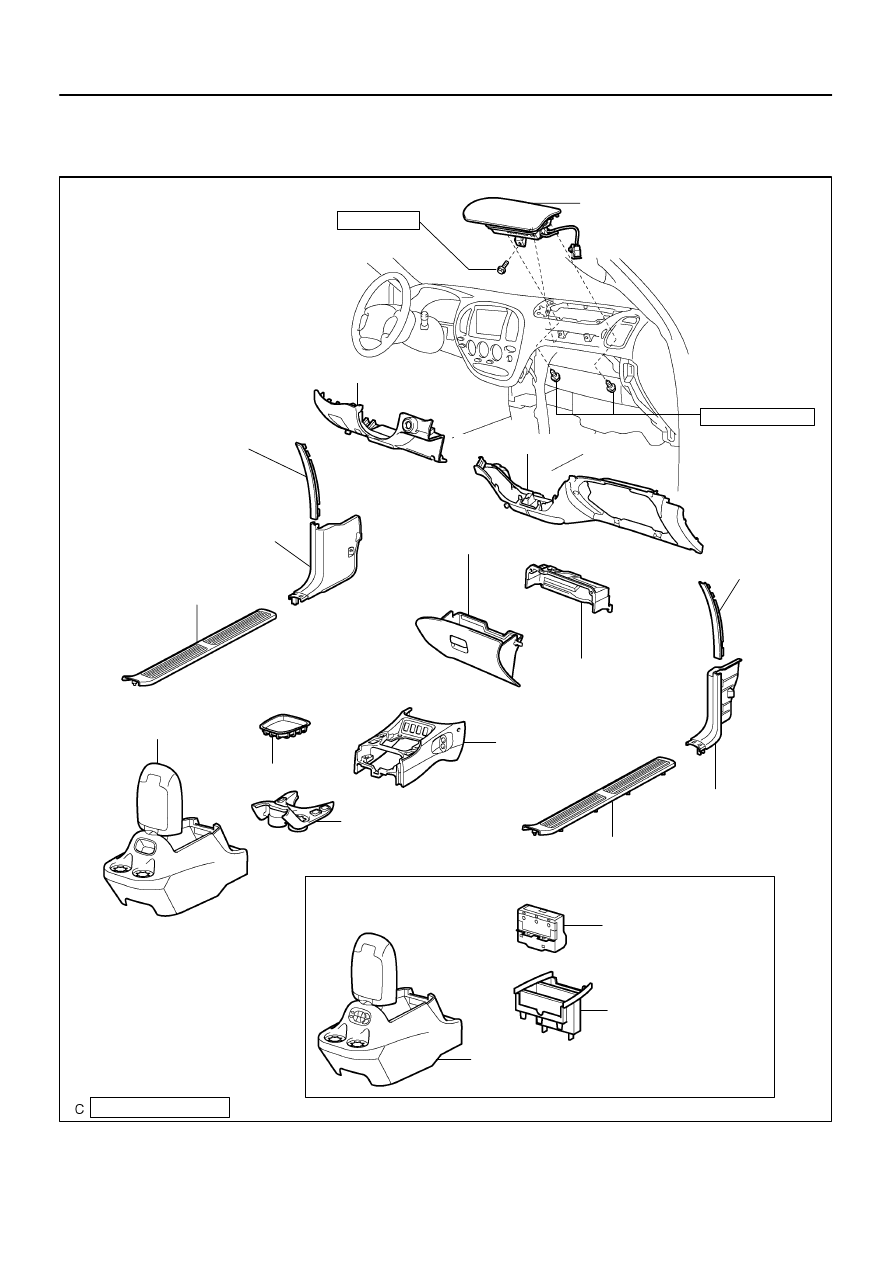

H23930

Front Passenger
Airbag Assembly

N·m (kgf·cm, ft·lbf) : Specified torque

20 (204, 15)

Lower Finish Panel

Cowl Side Trim Board

Lower No. 2
Finish Panel

Front Door
Scuff Plate

Glove Compartment Door

Front Door Scuff Plate

Cowl Side Trim Board

Front Console Box

Lower Instrument Cover

Upper Console Panel

Rear Console Box

Side Panel

Side Panel

5.0 (51, 44 in.·lbf)

Shifting Hole Cover

Rear Console Box

Disc Player Cover

Disc Player

w/ Rear seat audio or Rear seat entertainment:

RS–32

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

3315

FRONT PASSENGER AIRBAG ASSEMBLY

COMPONENTS

RS0T6–03

H23215

SUPPLEMENTAL RESTRAINT SYSTEM

FRONT PASSENGER AIRBAG ASSEMBLY

RS–33

3316

REMOVAL

NOTICE:



If the wiring connector of the SRS is disconnected
and the ignition switch is in the ON or ACC position,
DTCs will be recorded.



Never use airbag parts from another vehicle. When
replacing parts, replace them with new ones.

1.

PRECAUTION (SEE PAGE

RS–1

 and

RS–3

)

2.

DISCONNECT CABLE FROM NEGATIVE BATTERY
TERMINAL

Wait for 90 seconds after disconnecting the cable to prevent the
airbag working.
3.

REMOVE FRONT DOOR SCUFF PLATES
(SEE PAGE

BO–89

)

4.

REMOVE COWL SIDE TRIM BOARDS
(SEE PAGE

BO–89

)

5.

REMOVE SIDE PANELS (SEE PAGE

BO–89

)

6.

REMOVE LOWER FINISH PANEL
(SEE PAGE

BO–89

)

7.

REMOVE GLOVE COMPARTMENT DOOR
(SEE PAGE

BO–89

)

8.

REMOVE LOWER NO. 2 FINISH PANEL
(SEE PAGE

BO–89

)

9.

REMOVE SHIFTING HOLE COVER
(SEE PAGE

BO–89

)

10.

REMOVE UPPER CONSOLE PANEL
(SEE PAGE

BO–89

)

11.

REMOVE REAR CONSOLE BOX
(SEE PAGE

BO–89

)

12.

REMOVE FRONT CONSOLE BOX
(SEE PAGE

BO–89

)

13.

REMOVE LOWER INSTRUMENT COVER
(SEE PAGE

BO–89

)

14.

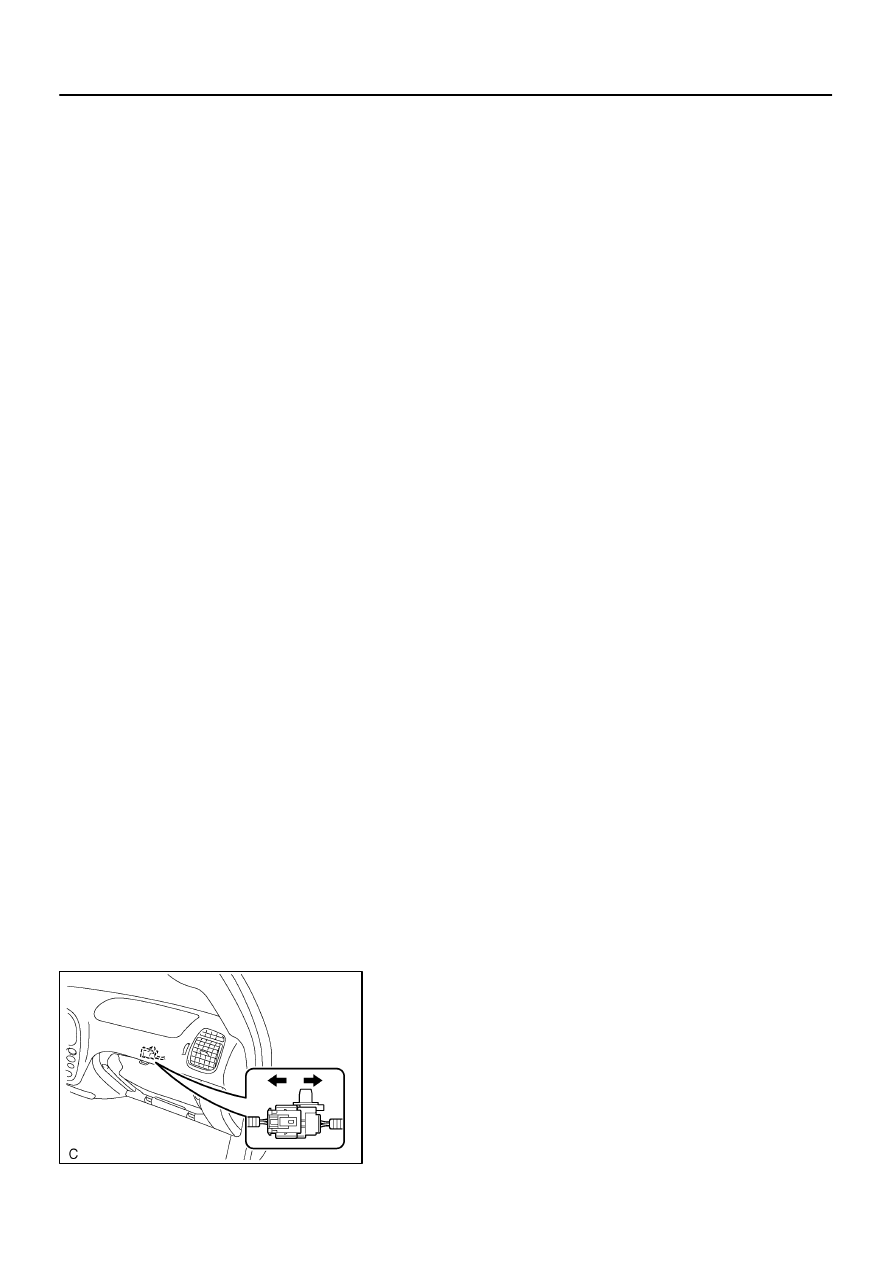

REMOVE FRONT PASSENGER AIRBAG ASSEMBLY

(a)

Using a clip remover, disengage the connector clamp.

(b)

Disconnect the airbag connector.

NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(c)

Remove the bolt holding the front passenger airbag as-
sembly and instrument panel.

(d)

Remove the 2 bolts holding the front passenger airbag
assembly and instrument panel reinforcement.
