BR–26

–

BRAKE

FRONT BRAKE PAD

3193

HINT:
Apply disc brake grease to both sides of inner anti–squeal
shims (See page

BR–24

).

(d)

Install new pads.

NOTICE:
Do not allow oil or grease to get on the rubbing face.
7.

INSTALL ANTI–RATTLE SPRING AND 2 PINS

8.

INSTALL CLIP

9.

INSTALL FRONT WHEEL
Torque: 110 N·m (1,122 kgf·cm, 81 ft·lbf)

10.

DEPRESS BRAKE PEDAL SEVERAL TIMES

11.

CHECK THAT FLUID LEVEL IS AT MAX LINE

BR10L–03

F07751

Bleeder Plug

11 (110, 8)

Brake Caliper

15 (155, 11)

123 (1,250, 90)

Piston Seal

Piston

Boot

Set Ring

Clip

Inner Pad

Outer Pad

Anti–squeal Shim

Anti–rattle
Spring

Inner Anti–squeal Shim

Pin

: Specified torque

N·m (kgf·cm, ft·lbf)

Lithium soap base glycol grease

Disc brake grease

–

BRAKE

FRONT BRAKE CALIPER

BR–27

3194

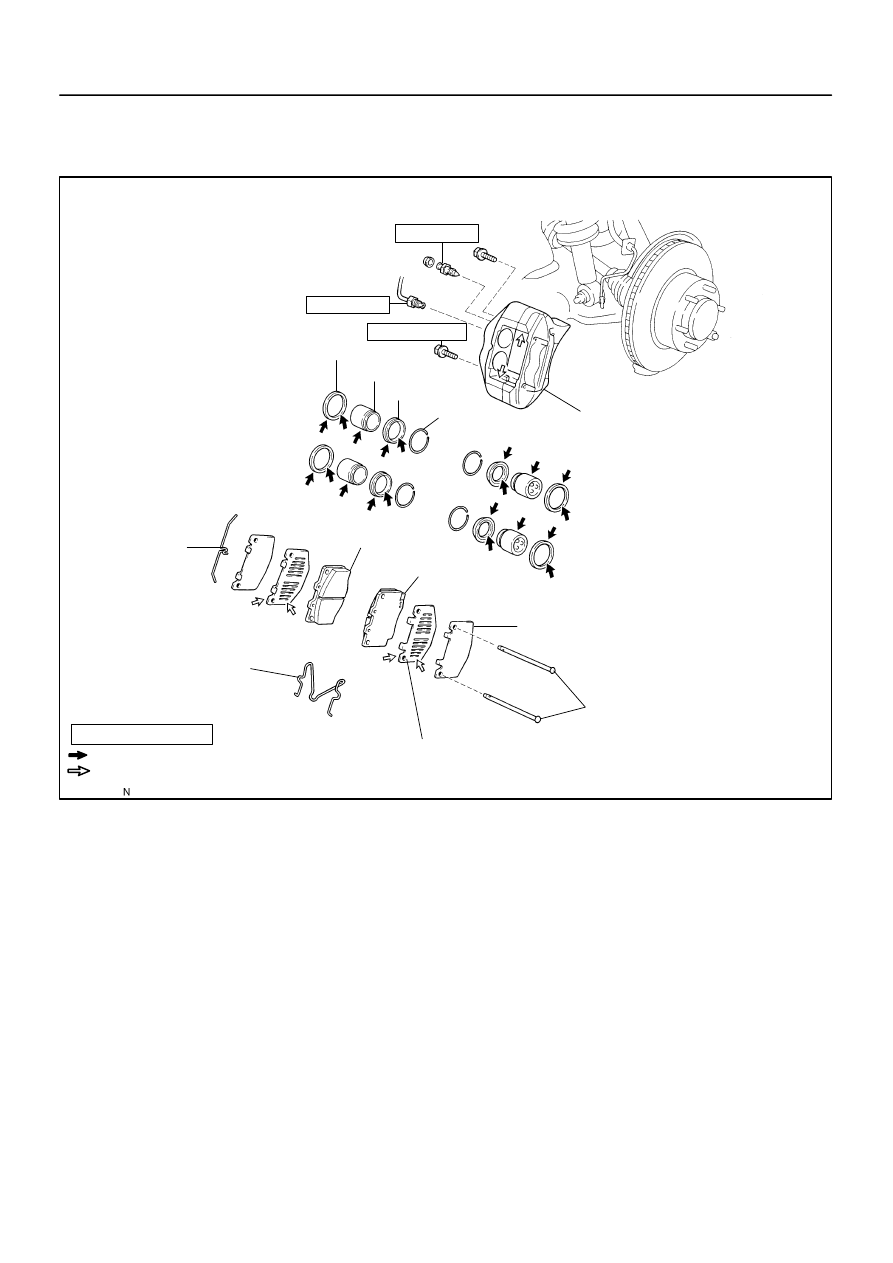

FRONT BRAKE CALIPER

COMPONENTS

BR10M–03

F07752

SST

F07753

BR–28

–

BRAKE

FRONT BRAKE CALIPER

3195

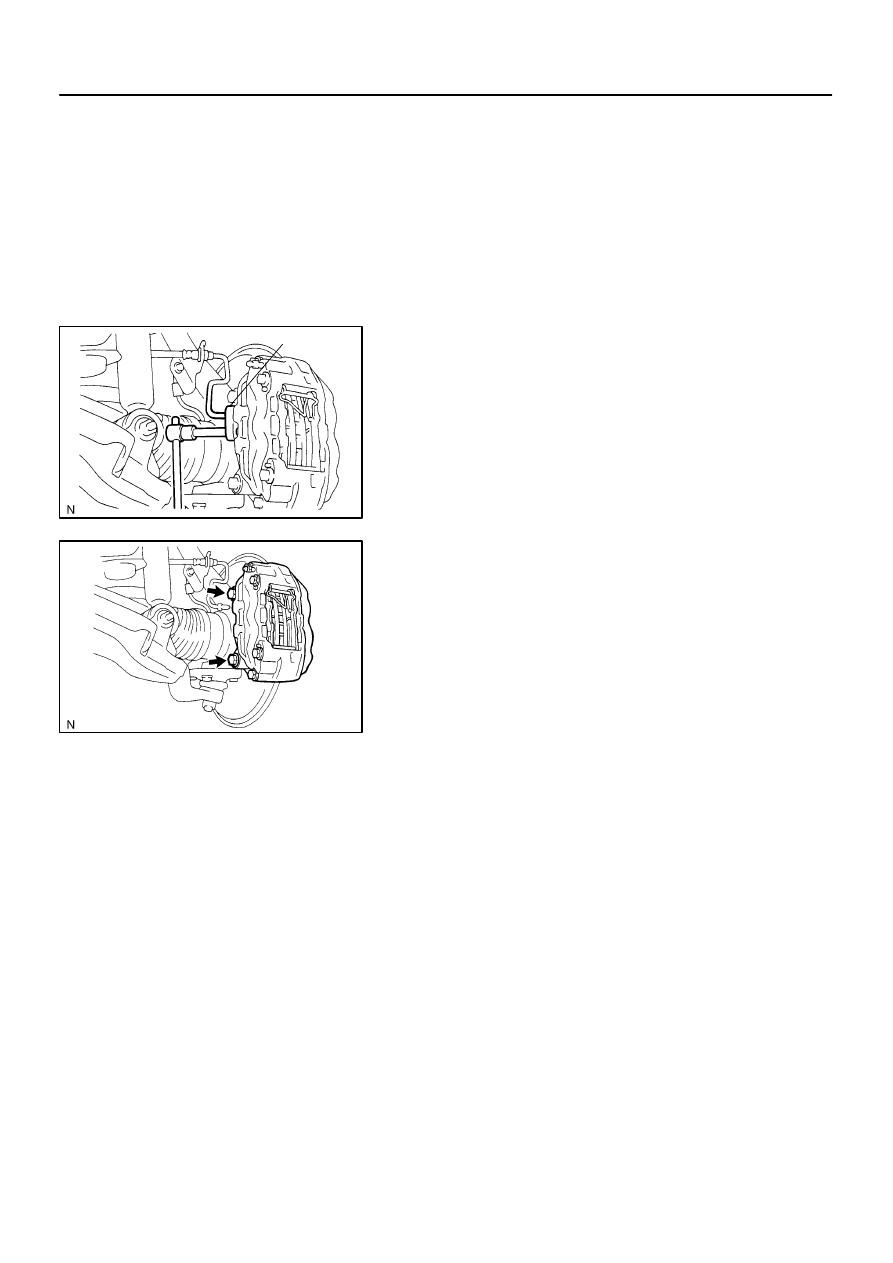

REMOVAL

1.

REMOVE FRONT WHEEL
Torque: 110 N·m (1,122 kgf·cm, 81 ft·lbf)

2.

DISCONNECT BRAKE LINE

Using SST, disconnect the brake line. Use a container to catch
the brake fluid.

SST

09023–00101

Torque: 15 N·m (155 kgf·cm, 11 ft·lbf)

3.

REMOVE CALIPER

Remove the 2 mounting bolts and caliper.

Torque: 123 N·m (1,250 kgf·cm, 90 ft·lbf)

4.

REMOVE CLIP, 2 PINS AND ANTI–RATTLE SPRING

5.

REMOVE 2 PADS WITH 4 ANTI–SQUEAL SHIMS

BR10N–03

R13540

Z08697

170 mm

(6.70 in.)

28 mm

(1.10 in.)

(1.97 in.)

50 mm

R13541

R13542

–

BRAKE

FRONT BRAKE CALIPER

BR–29

3196

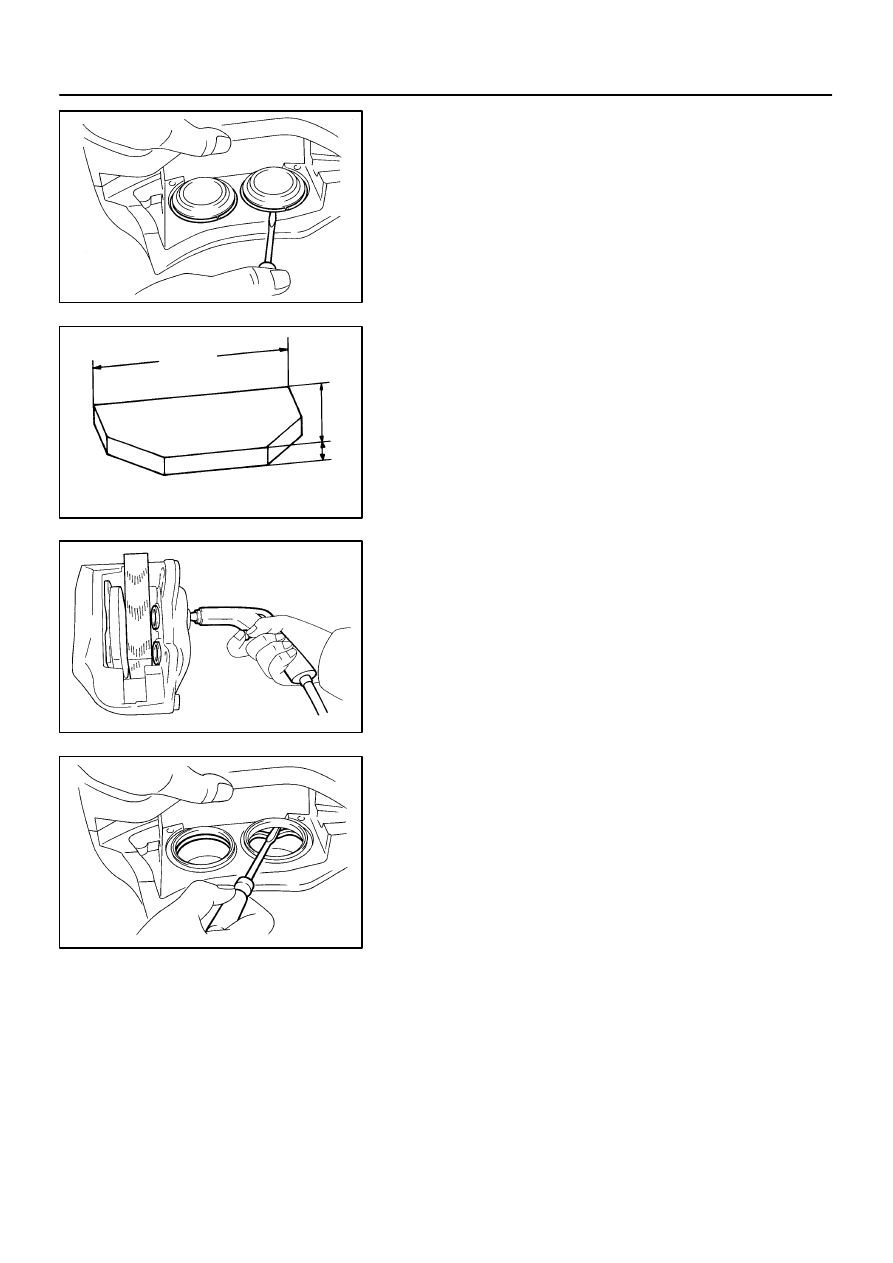

DISASSEMBLY

1.

REMOVE CYLINDER BOOT SET RINGS AND BOOTS

Using a screwdriver, remove the 4 cylinder boot set rings and
boots.

2.

REMOVE PISTONS FROM CYLINDER

(a)

Prepare the wooden plate to hold the pistons.

(b)

Place the plate between the pistons and insert a pad at
one side.

(c)

Use compressed air to remove the pistons alternately
from the cylinder.

CAUTION:
Do not place your fingers in front of the pistons when using
compressed air.

3.

REMOVE PISTON SEALS

Using a screwdriver, remove the 4 piston seals from the cylin-
der.
