Select an adjusting washer that will bring the
drive pinion closer to the ring gear.

Select an adjusting washer that will shift the
drive pinion away from the ring gear.

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–125

3121

86

2.86 (0.1126)

18

3.18 (0.1252)

–

88

2.88 (0.1134)

20

3.20 (0.1260)

–

11.

INSTALL BEARING CAP

(a)

Align the matchmarks on the cap and carrier.

(b)

Install and torque the 4 bolts.
Torque: 113 N·m (1,150 kgf·cm, 83 ft·lbf)

HINT:
After giving the ring gear 5 rotations or more, recheck the back
lash.

12.

MEASURE TOTAL PRELOAD

Using a torque wrench, measure the total preload with the teeth
of the drive pinion and ring gear in contact.

Total preload (at starting):
Drive pinion preload plus 0.4 – 0.6 N·m (4 – 6 kgf·cm,
3.5 – 5.2 in.·lbf)

13.

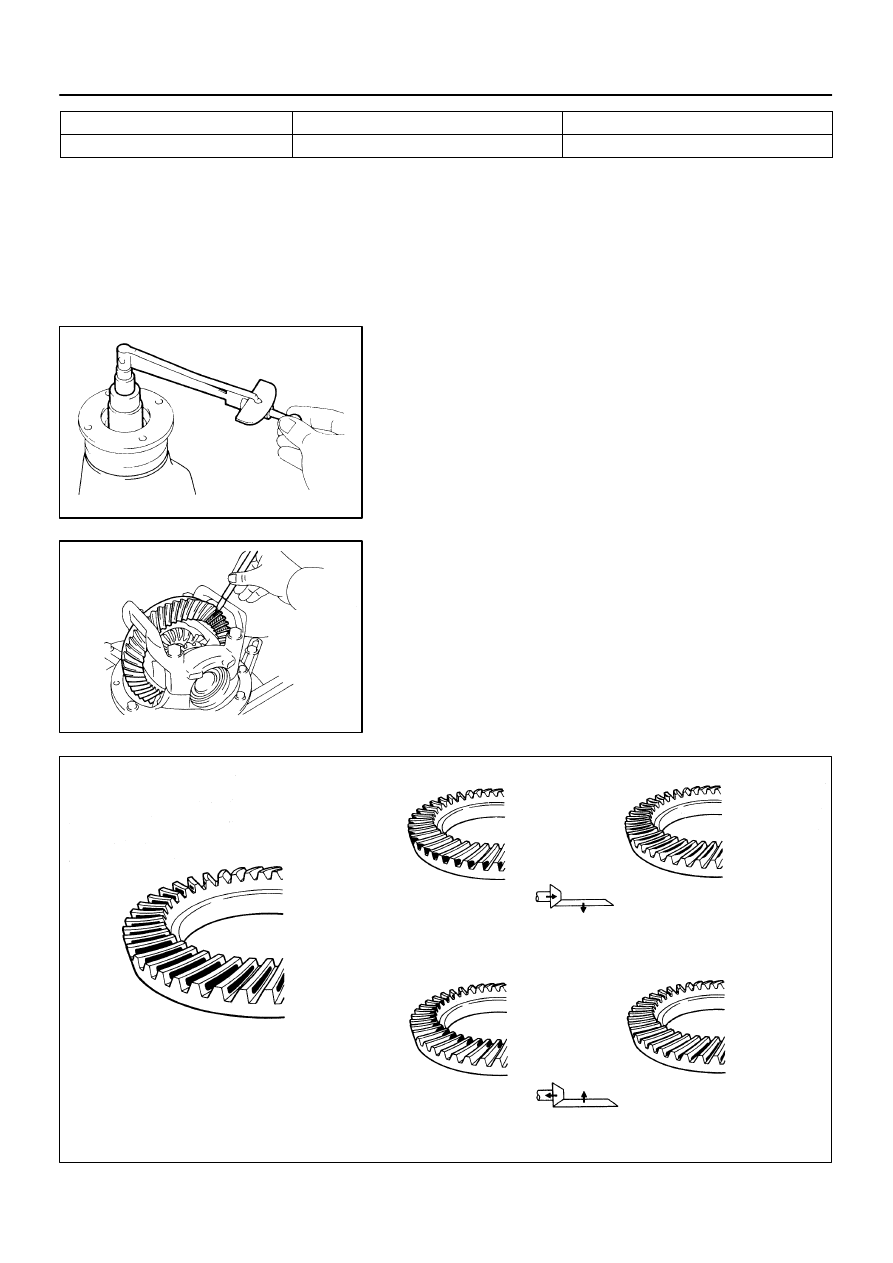

INSPECT TOOTH CONTACT BETWEEN RING GEAR
AND DRIVE PINION

(a)

Coat 3 or 4 teeth at three different positions on the ring
gear with red lead primer.

(b)

Hold the companion flange firmly and rotate the ring gear
in both directions.

(c)

Inspect the teeth pattern.

R04554

R11163

SST

SA–126

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

3122

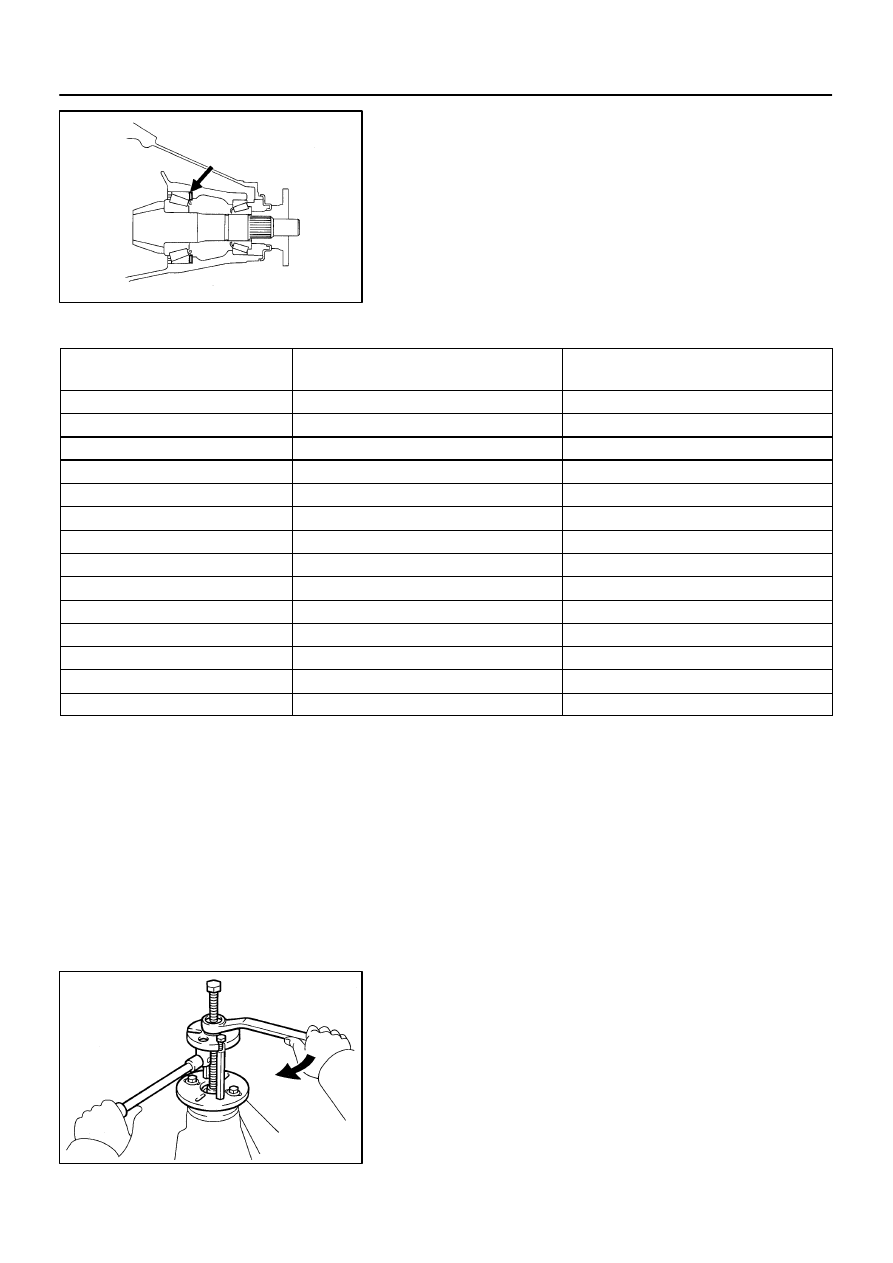

If the teeth are not contacting properly, use the following table
to select a proper washer for correction.

Washer thickness:

Thickness

Mark

mm (in.)

Thickness

Mark

mm (in.)

Thickness

Mark

mm (in.)

87

1.87 (0.0736)

01

2.01 (0.0791)

15

2.15 (0.0846)

88

1.88 (0.0740)

02

2.02 (0.0795)

16

2.16 (0.0850)

89

1.89 (0.0744)

03

2.03 (0.0799)

17

2.17 (0.0854)

90

1.90 (0.0748)

04

2.04 (0.0803)

18

2.18 (0.0858)

91

1.91 (0.0752)

05

2.05 (0.0807)

19

2.19 (0.0862)

92

1.92 (0.0756)

06

2.06 (0.0811)

20

2.20 (0.0866)

93

1.93 (0.0760)

07

2.07 (0.0815)

21

2.21 (0.0870)

94

1.94 (0.0764)

08

2.08 (0.0819)

22

2.22 (0.0874)

95

1.95 (0.0768)

09

2.09 (0.0823)

23

2.23 (0.0878)

96

1.96 (0.0772)

10

2.10 (0.0827)

24

2.24 (0.0882)

97

1.97 (0.0776)

11

2.11 (0.0831)

25

2.25 (0.0886)

98

1.98 (0.0780)

12

2.12 (0.0835)

26

2.26 (0.0890)

99

1.99 (0.0783)

13

2.13 (0.0839)

27

2.27 (0.0894)

00

2.00 (0.0787)

14

2.14 (0.0843)

28

2.28 (0.0898)

14.

REMOVE COMPANION FLANGE (See page

SA–113

)

15.

REMOVE FRONT BEARING (See page

SA–113

)

16.

INSTALL NEW BEARING SPACER, 2 WASHERS AND
FRONT BEARING

(a)

Install a new bearing spacer and 2 washers, and place the
front bearing.

(b)

Using SST and the companion flange, install the front
bearing then remove the companion flange.
SST

09950–30012 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03050)

17.

INSTALL NEW OIL SEAL

(a)

Coat a new oil seal lip with MP grease.

R13340

SST

Vinyl Tape

F14486

40 mm

(1.57 in.)

F14485

SST

F14522

SST

SA2351

SST

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–127

3123

(b)

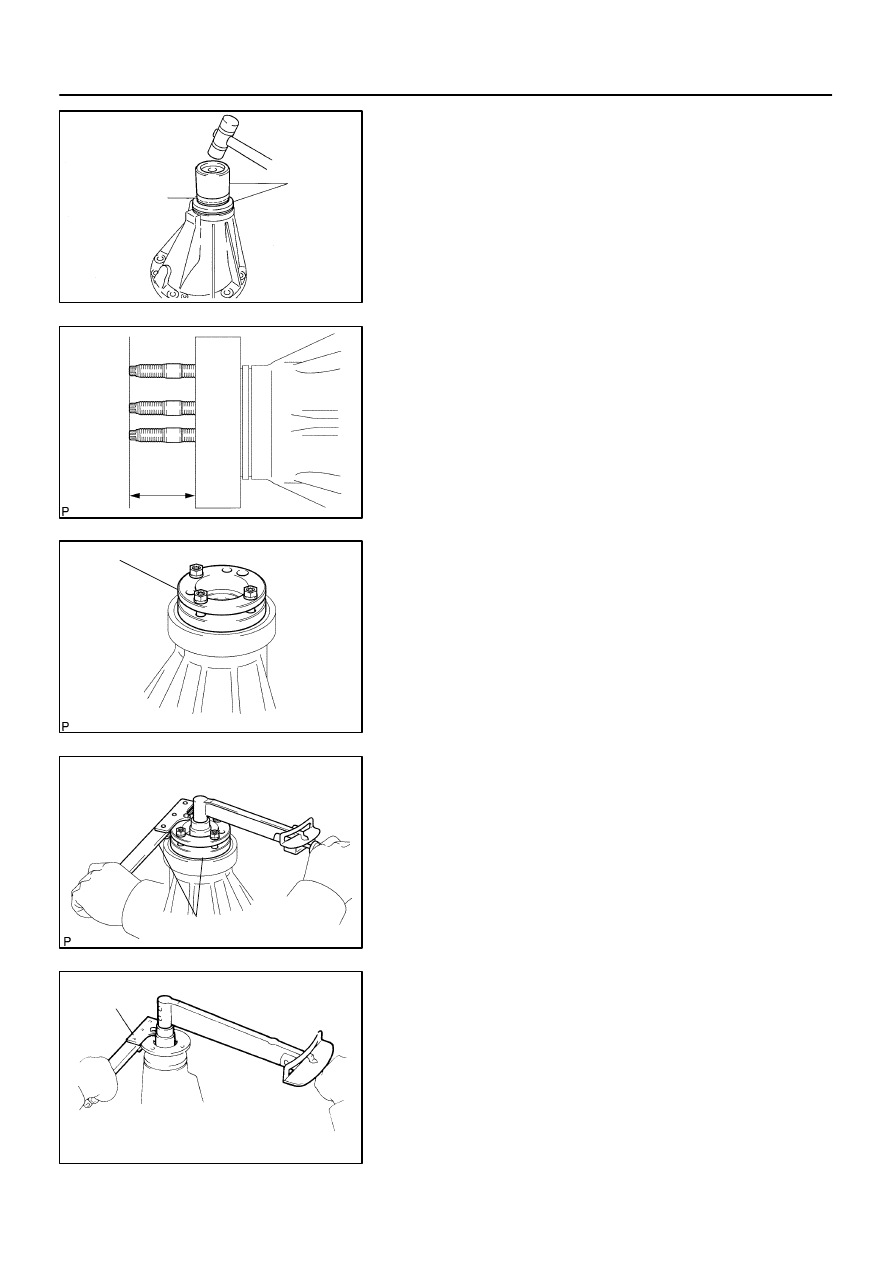

Using SST and a plastic hammer, install the oil seal until
its surface is flush with the differential carrier end.
SST

09316–12010, 09649–17010

HINT:
Connect 2 SST with vinyl tape.
18.

INSTALL COMPANION FLANGE

(a)

Place the companion flange.

(b)

Coat the threads of a new nut with hypoid gear oil.

(c)

2WD:
Torque the companion flange nut.
(1)

Install the 3 stud bolts so that the heads come out
40 mm (1.57 in.).

(2)

Set the SST and install the 3 nuts to the companion
flange.

SST

09213–58013

(3)

Using SST to hold the flange, torque the nut.

SST

09330–00021

Torque: 147 N·m (1,500 kgf·cm, 109 ft·lbf)

(d)

4WD:
Using SST to hold the flange, torque the nut.
SST

09330–00021

Torque: 147 N·m (1,500 kgf·cm, 109 ft·lbf)

SA2352

SA2352

SA–128

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

3124

19.

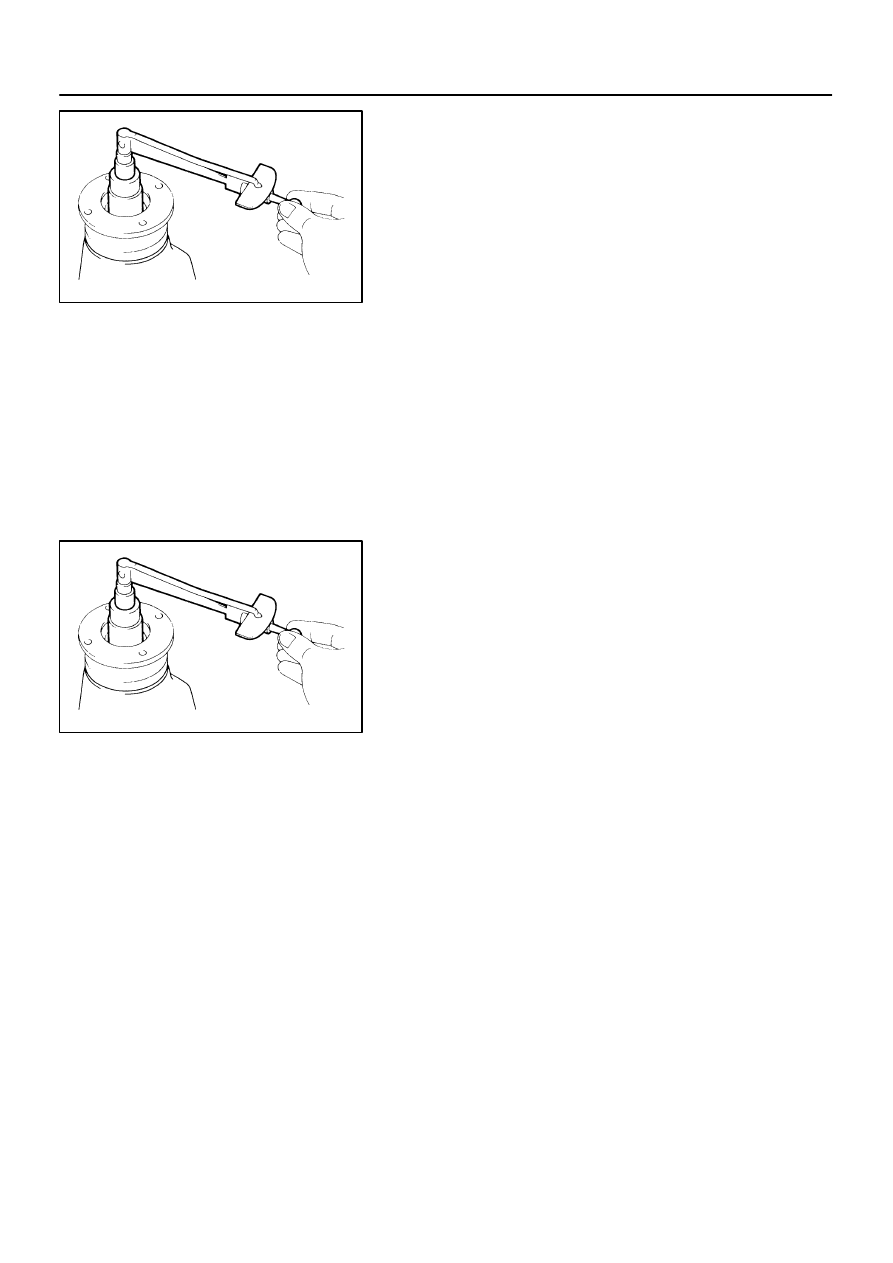

ADJUST DRIVE PINION PRELOAD

Using a torque wrench, measure the preload of the drive pinion
using the backlash between the drive pinion and ring gear.

Preload (at starting):
New bearing
1.3 – 1.9 N·m (13 – 19 kgf·cm, 11.4 – 16.7
 in.·lbf)
Reused bearing
0.8 – 1.1 N·m (8 – 11 kgf·cm, 7.0 – 9.7 in.·lbf)

If the preload is greater than the specified value, replace the
bearing spacer.
If the preload is less than the specified value, retighten the nut
with a force of 13 N·m (130 kgf·cm, 9 ft·lbf) until the specified
preload is reached.

Torque: 451 N·m (4,600 kgf·cm, 333 ft·lbf) or less

If the maximum torque is exceeded while retightening the nut,
replace the bearing spacer and repeat the preload procedure.
Do not loosen the pinion nut to reduce the preload.

20.

CHECK TOTAL PRELOAD

Using a torque wrench, measure the total preload with the teeth
of the drive pinion and ring gear in contact.

Total preload (at starting):
Drive pinion preload plus 0.4 – 0.6 N·m (4 – 6 kgf·cm,
3.5 – 5.2 in.·lbf)

21.

CHECK RING GEAR BACKLASH

Using a dial indicator, measure the ring gear backlash.

Backlash: 0.13 – 0.18 mm (0.0051 – 0.0071 in.)

22.

RECHECK TOOTH CONTACT BETWEEN RING GEAR
AND DRIVE PINION (See step 13.)

23.

CHECK COMPANION FLANGE RUNOUT
(See page

SA–113

)

24.

STAKE DRIVE PINION NUT
