Toyota Sequoia (2005). Manual - part 782

R00055

SST

R11163

SST

F14486

40 mm

(1.57 in.)

F14485

SST

–

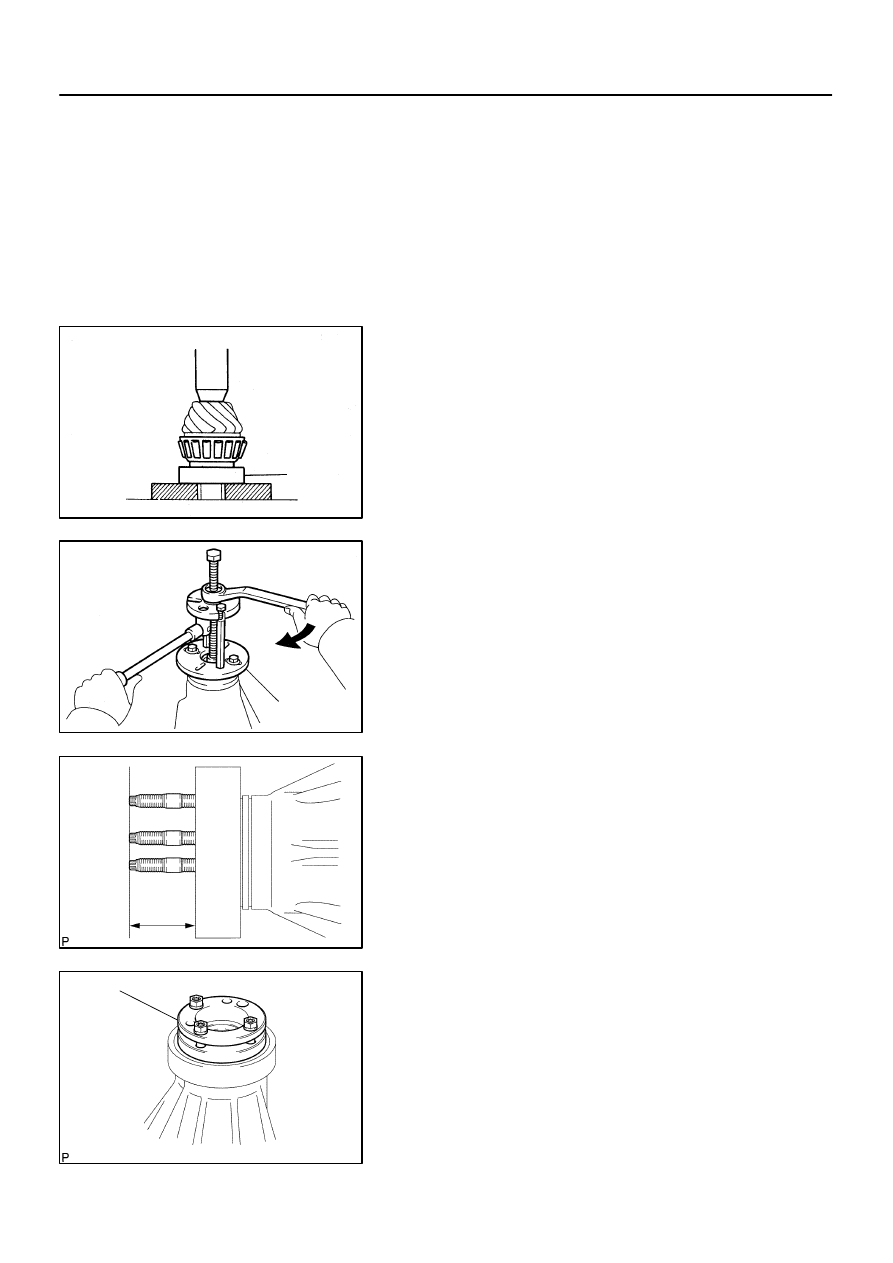

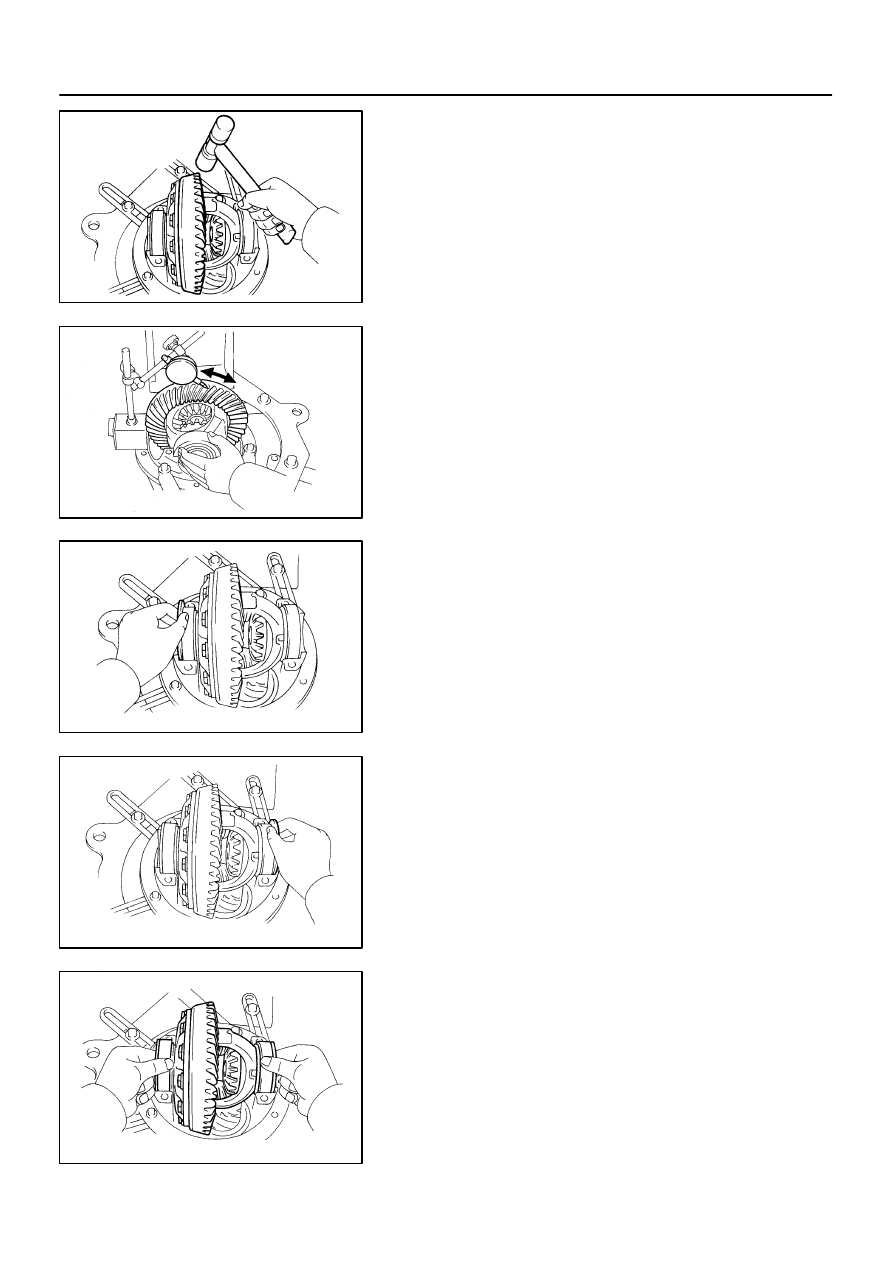

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–121

3117

HINT:
First fit a washer with the same thickness as the washer which
was removed, then after checking the tooth contact pattern, re-
place the washer with a different thickness if necessary.

6.

INSTALL DRIVE PINION REAR BEARING

Using SST and a press, install the rear bearing onto the drive
pinion.

SST

09506–35010

7.

TEMPORARILY ADJUST DRIVE PINION PRELOAD

(a)

Install the drive pinion and front bearing.

HINT:
After adjusting the ring gear tooth contact pattern, assemble the
spacer, washers and oil seal.

(b)

Using SST, install the companion flange.
SST

09950–30012 (09951–03010, 09953–03010,
09954–03010,  09955–03030, 09956–03050)

(c)

Coat the threads of a new nut with hypoid gear oil.

(d)

2WD:
Install the conpanion flange nut.
(1)

Install the 3 stud bolts so that the heads come out
40 mm (1.57 in.).

(2)

Set the SST and install the 3 nuts to the companion
flange.

SST

09213–58013

F14520

SST

SA2347

SST

SA2446

R04453

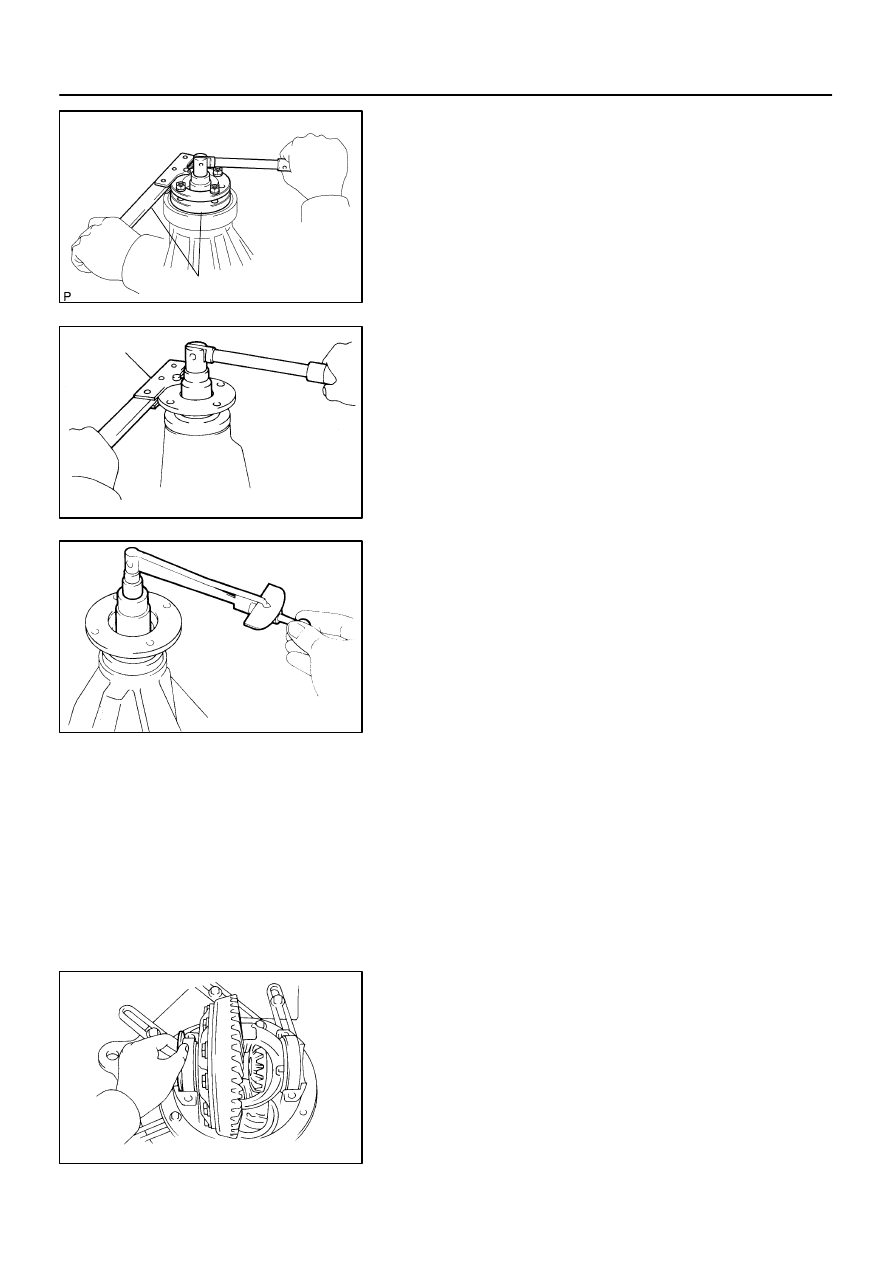

SA–122

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

3118

(3)

Adjust the drive pinion preload by tightening the
companion flange nut.

HINT:
Using SST to hold the flange, torque the nut.

SST

09330–00021

NOTICE:
As there is no spacer, tighten the nut a little at a time and
be careful not to overtighten it.

(4)

Remove the 3 nuts and SST.

(e)

4WD:
Adjust the drive pinion preload by tightening the compan-
ion flange nut.

HINT:
Using SST to hold the flange, torque the nut.

SST

09330–00021

NOTICE:
As there is no spacer, tighten the nut a little at a time and
be careful not to overtighten it.

(f)

Using a torque wrench, measure the preload of the drive
pinion using the backlash between the drive pinion and
ring gear.
Preload (at starting):
New bearing
1.3 – 1.9 N·m (13 – 19 kgf·cm, 11.4 – 16.7 in.·lbf)
Reused bearing
0.8 – 1.1 N·m (8 – 11kgf·cm, 7.0 – 9.7 in.·lbf)

(g)

2WD:
Remove the stud bolts from the companion flange.

8.

INSTALL DIFFERENTIAL CASE IN CARRIER

(a)

Place the 2 bearing outer races on their respective bear-
ings. Make sure the right and left races are not inter-
changed.

(b)

Install the differential case in the carrier.

9.

ADJUST RING GEAR BACKLASH

(a)

Install the plate washer on the ring gear back side.

HINT:
Make sure that the ring gear has backlash.

R04535

R04558

R04453

R04455

R04338

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

SA–123

3119

(b)

Tap on the ring gear with a plastic hammer so that the
washer fits to the bearing.

(c)

Using a dial indicator, while holding the companion
flange, measure the ring gear backlash.
Backlash (reference):
0.13 – 0.18 mm (0.0051 – 0.0071 in.)

(d)

Select a plate washer for the back side of the ring gear us-
ing the backlash as a reference.

(e)

Select a ring gear teeth side plate washer so that there is
no clearance between the outer race and case.

(f)

Remove the 2 plate washers and differential case.

(g)

Install the plate washer into the ring gear back side of the
carrier.

(h)

Place the other plate washer onto the differential case to-
gether with the outer race, and install the differential case
with the outer race into the carrier.

(i)

Tap on the ring gear with a plastic hammer so that the
washers fit to the bearing.

R04456

RA0090

R04456

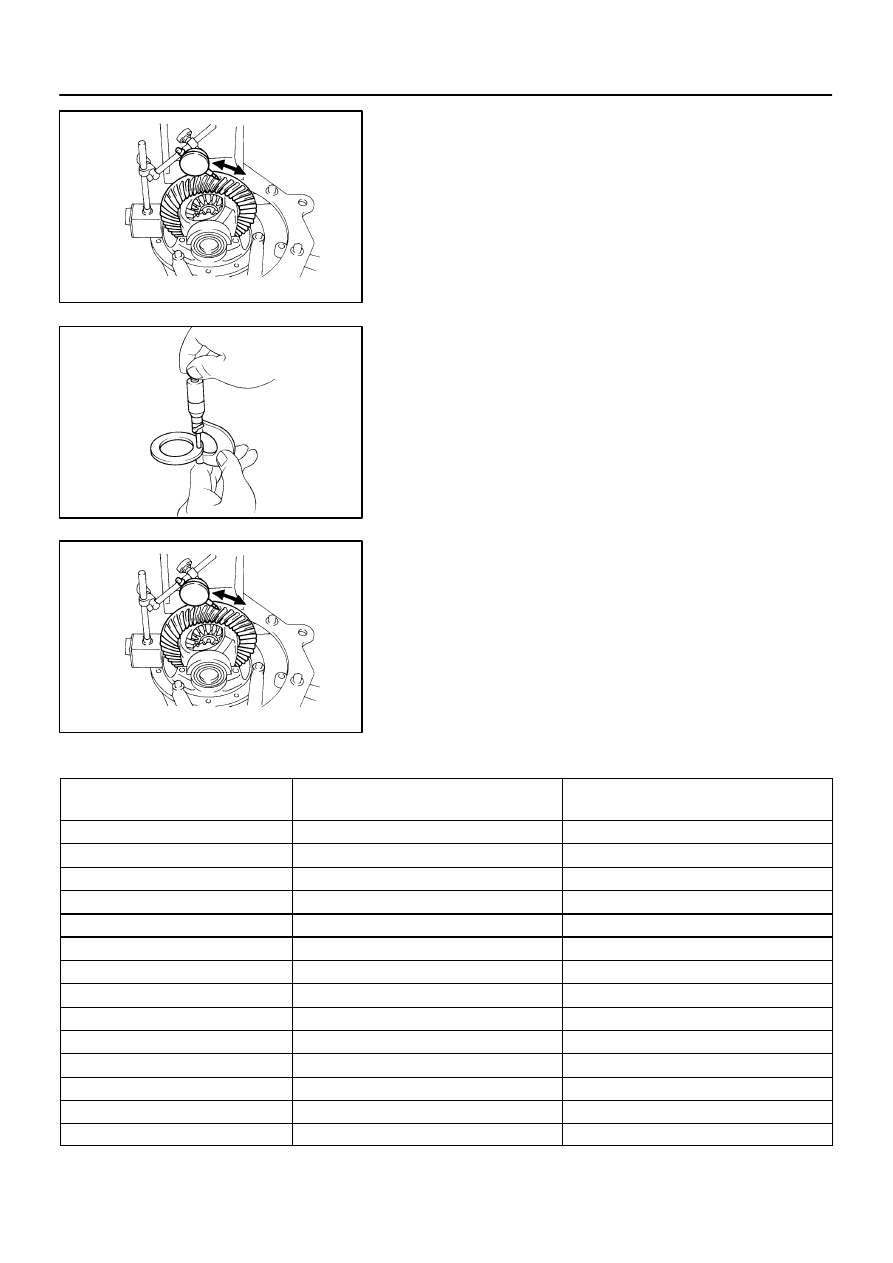

SA–124

–

SUSPENSION AND AXLE

REAR DIFFERENTIAL CARRIER

3120

(j)

Using a dial indicator, while holding the companion flange
measure the ring gear backlash.
Backlash: 0.13 – 0.18 mm (0.0051 – 0.0071 in.)

If the backlash is not within the specified value, adjust it by ei-
ther increasing or decreasing the thickness of washers on both
sides by an equal amount.
HINT:
There should be no clearance between the plate washer and
the case.
Make sure that there is a ring gear backlash.
10.

ADJUST SIDE BEARING PRELOAD

(a)

Remove the ring gear teeth side plate washer and using
a micrometer, measure the thickness.

(b)

Using the backlash as a reference, install a new washer
that is 0.05 – 0.20 mm (0.0019 – 0.0078 in.) thicker than
the washer removed.

HINT:
Select a washer which can be pressed in 2/3 of the way with
your finger.
(c)

Using a plastic hammer, install the plate washer.

(d)

Recheck the ring gear backlash.
Backlash: 0.13 – 0.18 mm (0.0051 – 0.0071 in.)

If the backlash is not within the specified value, adjust it by ei-
ther increasing or decreasing the thickness of washers on both
sides by equal amount.
HINT:
The backlash will change by about 0.02 mm (0.0008 in.) corre-
sponding to 0.03 mm (0.0012 in.) change in the plate washer.

Washer thickness:

Thickness

Mark

mm (in.)

Thickness

Mark

mm (in.)

Thickness

Mark

mm (in.)

58

2.58 (0.1015)

90

2.90 (0.1142)

22

3.22 (0.1268)

60

2.60 (0.1024)

92

2.92 (0.1150)

24

3.24 (0.1276)

62

2.62 (0.1031)

94

2.94 (0.1157)

26

3.26 (0.1283)

64

2.64 (0.1039)

96

2.96 (0.1165)

28

3.28 (0.1291)

66

2.66 (0.1047)

98

2.98 (0.1173)

30

3.30 (0.1299)

68

2.68 (0.1055)

00

3.00 (0.1181)

32

3.32 (0.1307)

70

2.70 (0.1063)

02

3.02 (0.1189)

34

3.34 (0.1315)

72

2.72 (0.1071)

04

3.04 (0.1197)

36

3.36 (0.1323)

74

2.74 (0.1079)

06

3.06 (0.1205)

38

3.38 (0.1331)

76

2.76 (0.1087)

08

3.08 (0.1213)

40

3.40 (0.1339)

78

2.78 (0.1094)

10

3.10 (0.1220)

42

3.42 (0.1346)

80

2.80 (0.1102)

12

3.12 (0.1228)

44

3.44 (0.1354)

82

2.82 (0.1110)

14

3.14 (0.1236)

46

3.46 (0.1362)

84

2.84 (0.1118)

16

3.16 (0.1244)

48

3.48 (0.1370)
