Toyota Sequoia (2005). Manual - part 772

SA23Z–04

F07279

N·m (kgf·cm, ft·lbf)

: Specified torque

 Non–reusable part

 Boot

 Wire

 Snap Ring

 Upper Ball Joint

64 (650, 47)

Brake Caliper

 Cotter Pin

105 (1,100, 77)

Shock Absorber

123 (1,250, 90)

28 (285, 21)

Steering Knuckle with Axle Hub

Disc

4WD:

 Cotter Pin

235 (2,400, 173)

Lock Cap

Grease Cap

8.0 (82, 71 in.·lbf)

Speed Sensor

135 (1,400, 100)

65 (660, 48)

–

SUSPENSION AND AXLE

FRONT UPPER BALL JOINT

SA–81

3077

FRONT UPPER BALL JOINT

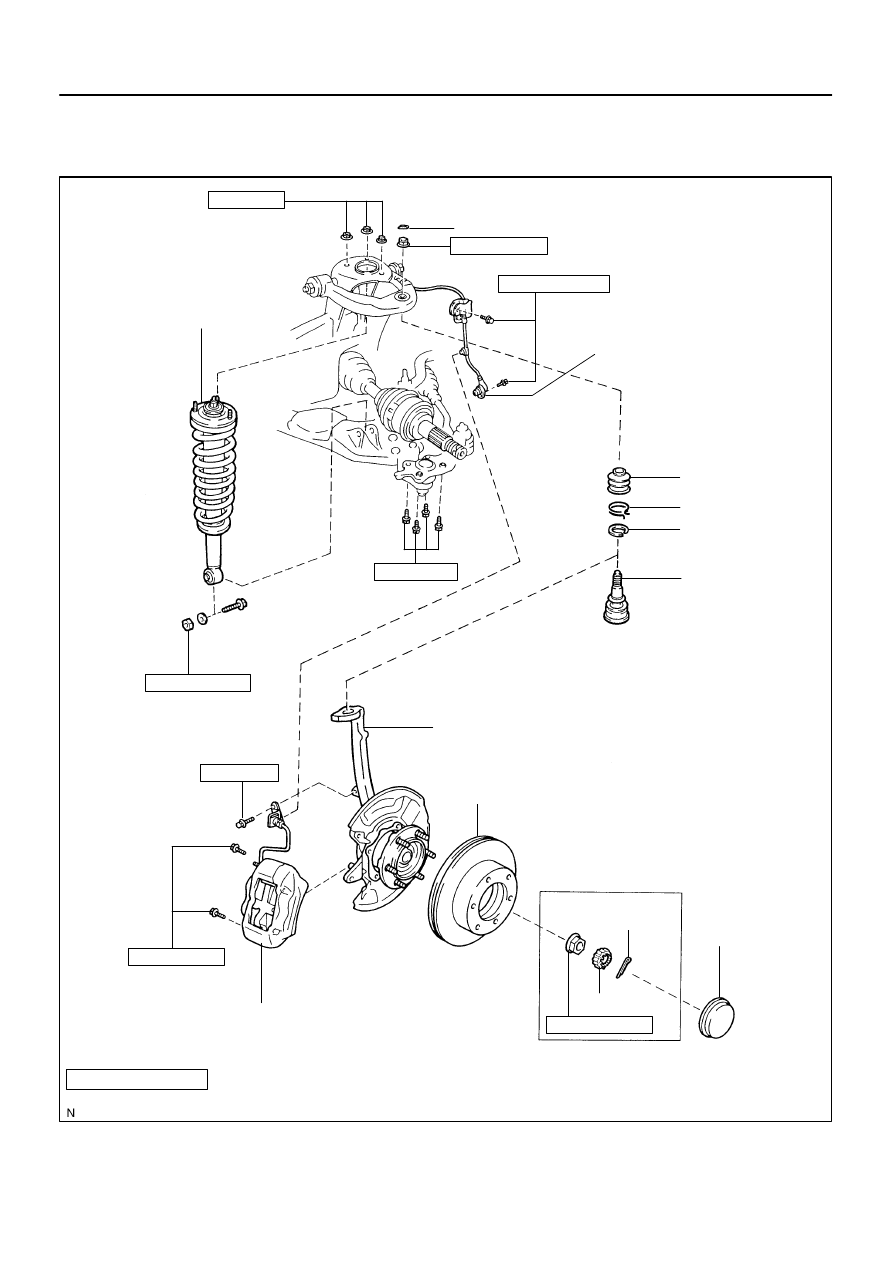

COMPONENTS

SA240–03

R12864

SST

Deep Socket
Wrench

SA–82

–

SUSPENSION AND AXLE

FRONT UPPER BALL JOINT

3078

REMOVAL

1.

REMOVE STEERING KNUCKLE WITH AXLE HUB
(See page

SA–22

)

2.

REMOVE UPPER BALL JOINT

(a)

Remove the wire and boot.

(b)

Using a snap ring expander, remove the snap ring.

(c)

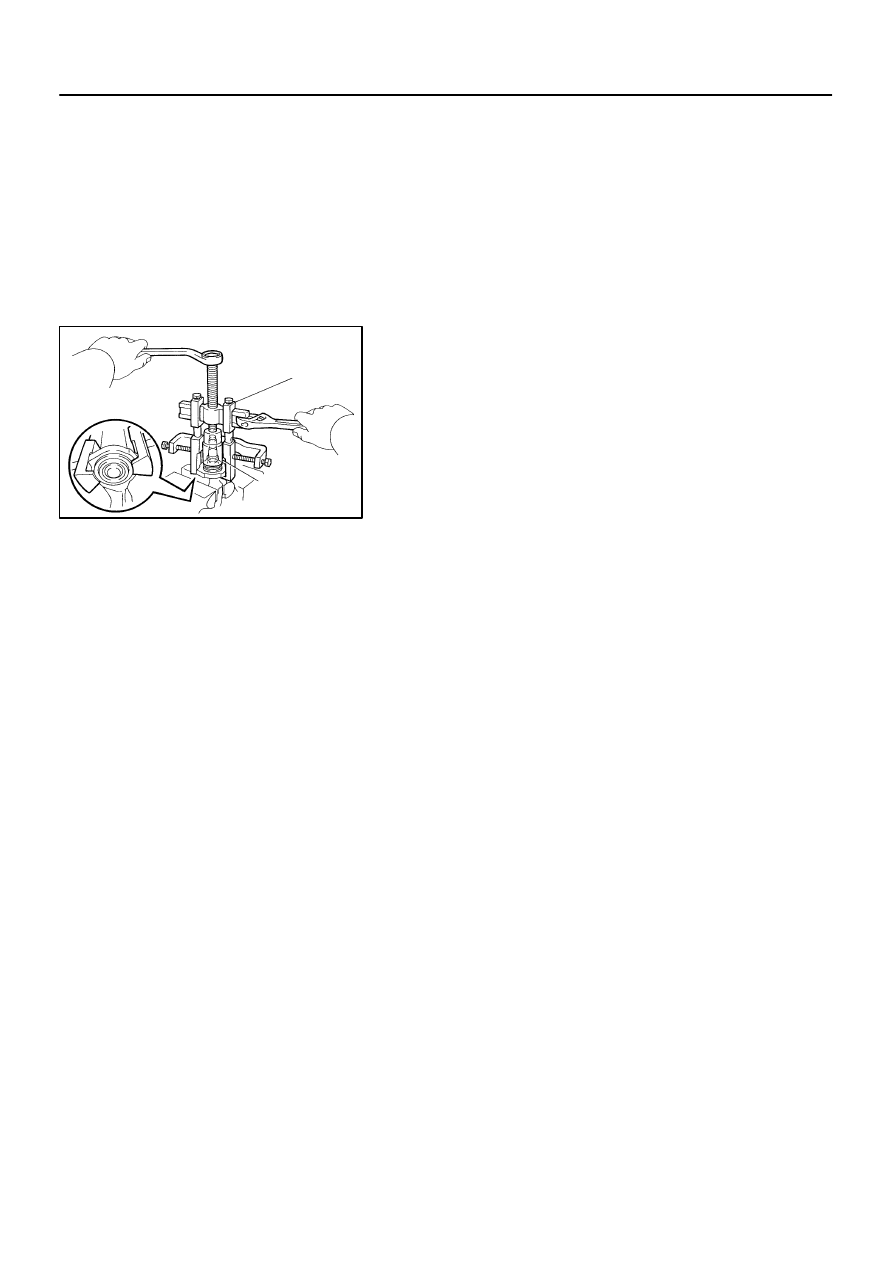

Using SST and a deep socket wrench, remove the upper
ball joint.
SST

09950–40011 (09951–04010, 09952–04010,
09953–04020, 09954–04010, 09955–04031,
09957–04010,  09958–04011)

SA241–03

R12776

–

SUSPENSION AND AXLE

FRONT UPPER BALL JOINT

SA–83

3079

INSPECTION

1.

INSPECT UPPER BALL JOINT BOOT FOR DAMAGE

2.

INSPECT UPPER  BALL JOINT  FOR ROTATION
CONDITION

(a)

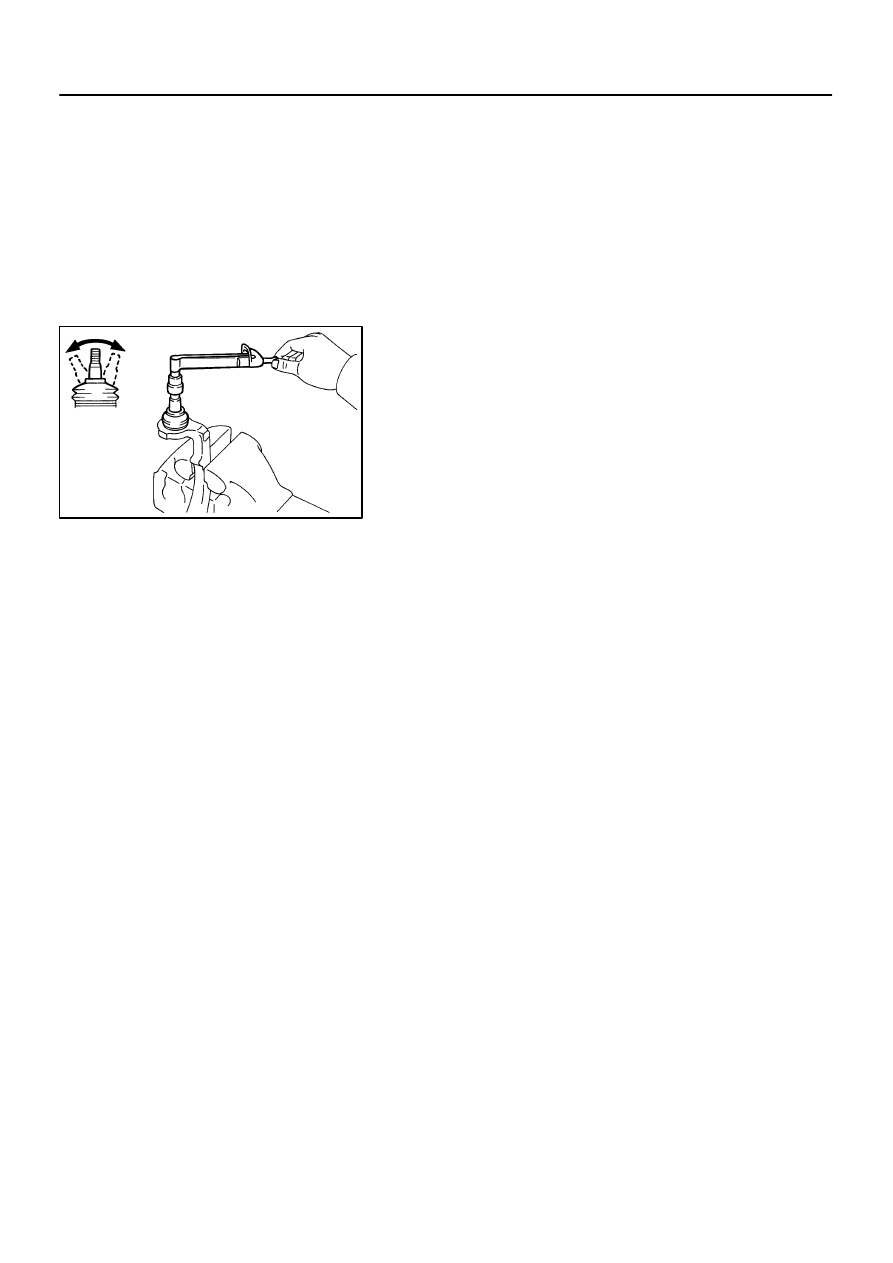

As shown in the illustration, flip the ball joint stud back and
forth 5 times before installing the nut.

(b)

Using a torque wrench, turn the nut continuously 1 turn
per 2 – 4 seconds and take the torque reading on the 5th
turn.
Turning torque:
0.7 – 4.4 N·m (7 – 45 kgf·cm, 6 – 39 in.·lbf)

SA242–03

R13198

SST

Socket

Wrench

SA–84

–

SUSPENSION AND AXLE

FRONT UPPER BALL JOINT

3080

INSTALLATION

1.

INSTALL UPPER BALL JOINT

(a)

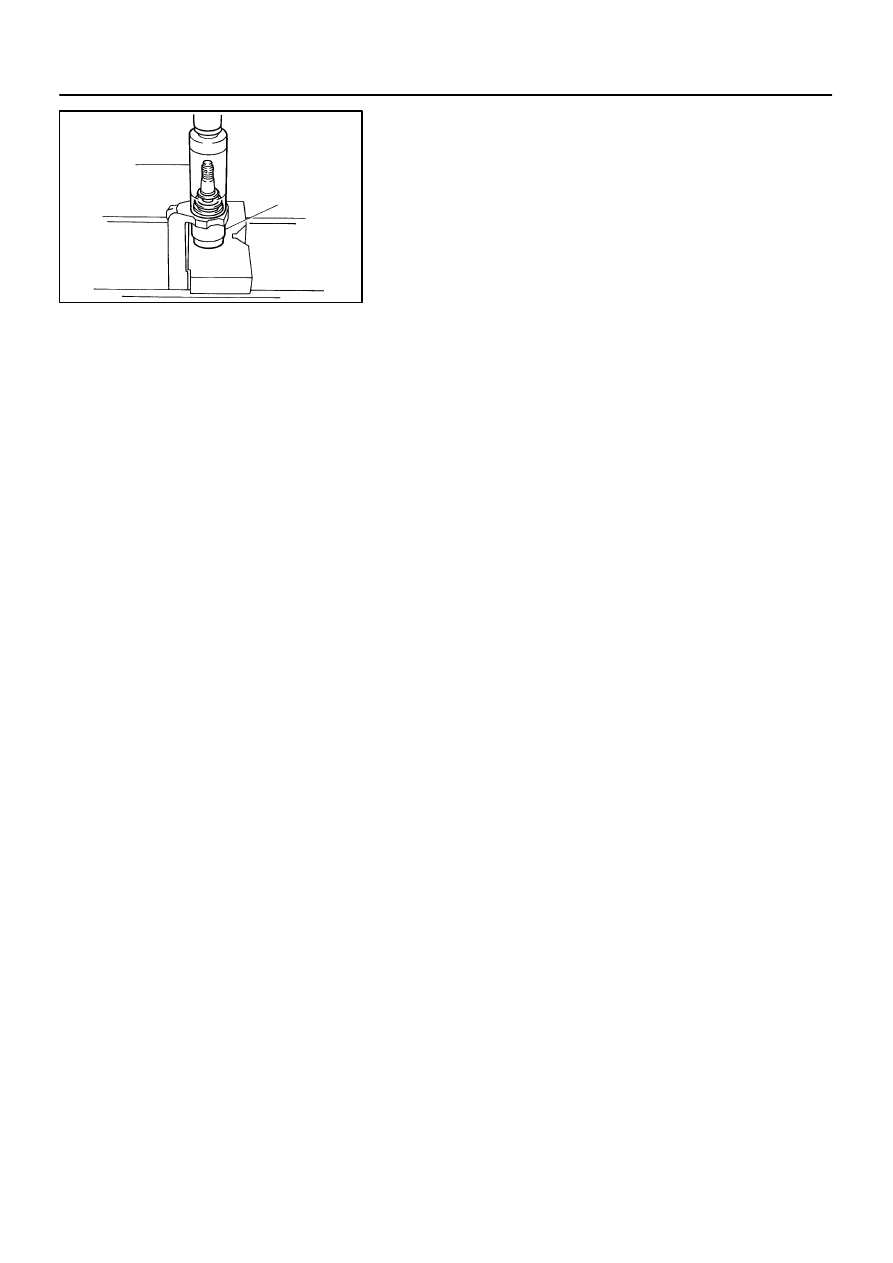

Using SST, press and a socket wrench, install a new ball
joint.
SST

09309–37010

(b)

Using a snap ring expander, install a new snap ring.

(c)

Install a new boot and fix it with a new wire.

HINT:
Use the grease supplied in the kit.
2.

INSTALL STEERING KNUCKLE WITH AXLE HUB
(See page

SA–28

)
