Toyota Sequoia (2005). Manual - part 770

SA24N–02

W01882

SST

SST

F07271

SST

Steel Plate

–

SUSPENSION AND AXLE

FRONT UPPER SUSPENSION ARM

SA–73

3069

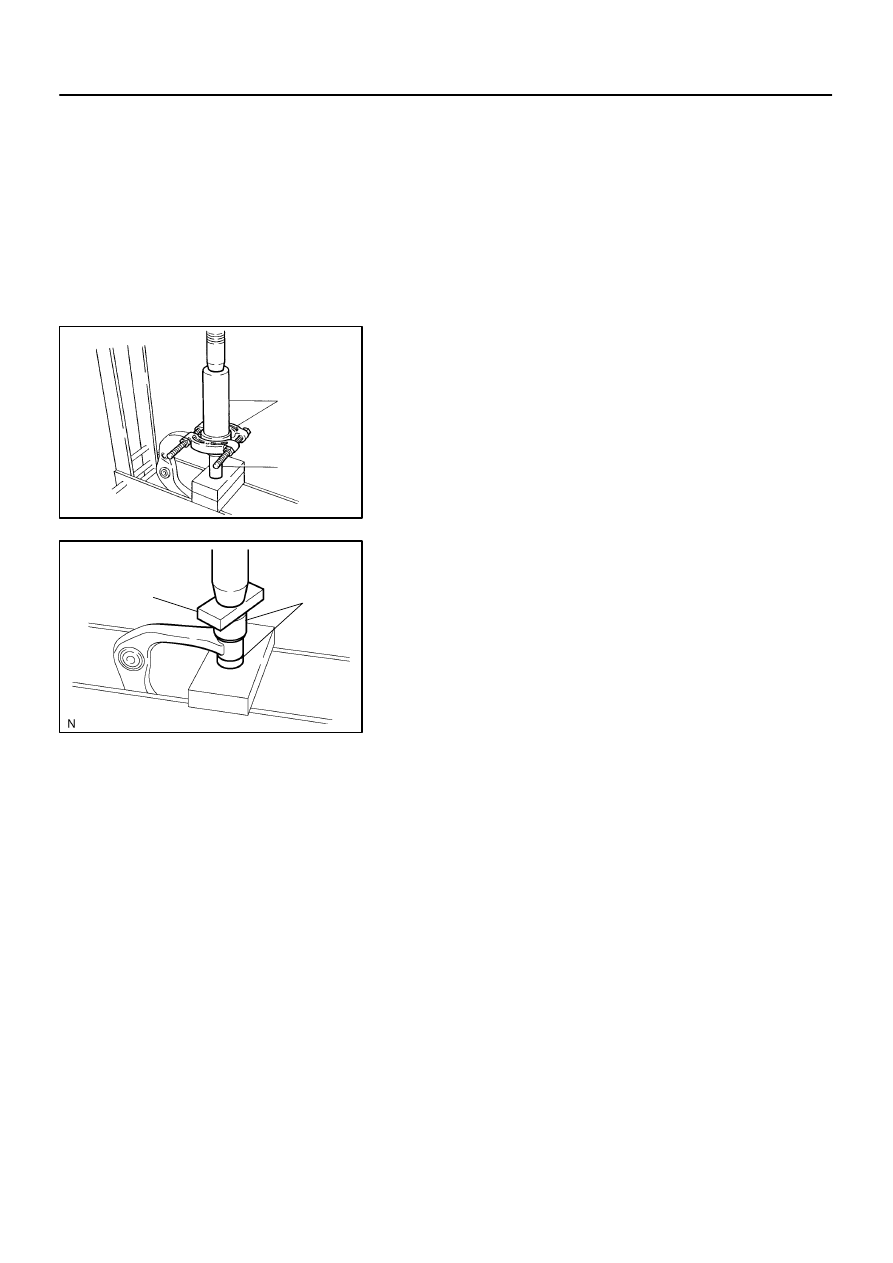

REPLACEMENT

1.

REMOVE BUSHING

(a)

Using a chisel and hammer, pry up the flange of the bush-
ing.

(b)

Using SST and a press, remove the bushing.
SST

09613–26010, 09631–20060, 09950–00020

2.

INSTALL NEW BUSHING

Using SST, a press and steel plate, install a new bushing.

SST

09631–12090, 09710–30021 (09710–03051)

SA187–06

SA–74

–

SUSPENSION AND AXLE

FRONT UPPER SUSPENSION ARM

3070

INSTALLATION

1.

INSTALL UPPER SUSPENSION ARM

Install the upper suspension arm with the 2 washers, bolt and nut.

Torque: 98 N·m (1,000 kgf·cm, 72 ft·lbf)

HINT:
After stabilizing the suspension, torque the nut.
2.

INSTALL BRAKE AND FUEL LINE CLAMP
Torque: 5.5 N·m (56 kgf·cm, 49 in.·lbf)

3.

INSTALL FENDER APRON SEAL REAR

4.

CONNECT UPPER BALL JOINT

(a)

Connect the upper ball joint to the upper suspension arm.

(b)

Install the nut and a new cotter pin.

If the holes for the cotter pin are not aligned, tighten the nut further up to 60

°

.

Torque: 105 N·m (1,100 kgf·cm, 77 ft·lbf)

5.

CONNECT SPEED SENSOR WIRE HARNESS CLAMPS
Torque: 8.0 N·m (82 kgf·cm, 71 in.·lbf)

6.

INSTALL SHOCK ABSORBER WITH COIL SPRING (See page

SA–70

)

7.

CHECK FRONT WHEEL ALIGNMENT (See page

SA–4

)

8.

PERFORM ZERO POINT CALIBRATION OF STEERING ANGLE, MASTER CYLINDER PRES-
SURE, YAW RATE AND DECELERATION SENSORS (See page

DI–897

)

SA17M–06

F07272

No. 2 Spring Bumper

No. 1 Spring Bumper

N·m (kgf·cm, ft·lbf) : Specified torque

Non–reusable part

*  For use with SST

  31 (315, 23)
*23 (235, 17)

165 (1,700, 122)

130 (1,350, 96)

91 (930, 67)

91 (930, 67)

165 (1,700, 122)

Power Steering Gear

 Cotter Pin

 Cotter Pin

  31 (315, 23)
*23 (235, 17)

135 (1,400, 100)

130 (1,325, 96)

Cam

Cam Plate

Cam

 No. 2 Bushing

 No. 1 Bushing

Lower Suspension Arm

Stabilizer
Bar Link

159 (1,621, 117)

 Cotter Pin

69 (700, 51)

Retainer

Retainer

Bushing

Stabilizer Bar

Stabilizer Bar
Bracket

Bushing

37 (377, 27)

130 (1,325, 96)

19 (190, 14)

–

SUSPENSION AND AXLE

FRONT LOWER SUSPENSION ARM

SA–75

3071

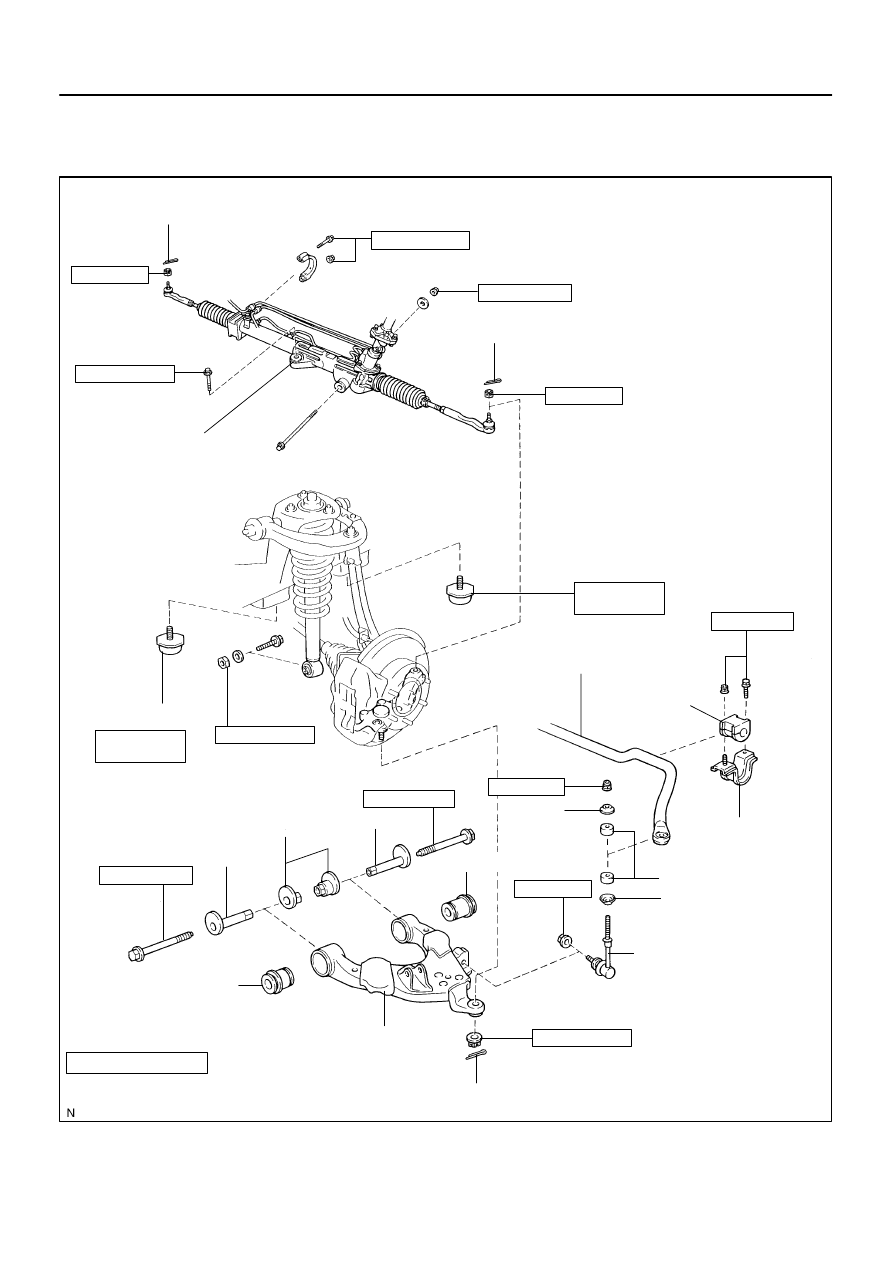

FRONT LOWER SUSPENSION ARM

COMPONENTS

SA23X–03

R13425

SST

F07278

F07273

F14315

SA–76

–

SUSPENSION AND AXLE

FRONT LOWER SUSPENSION ARM

3072

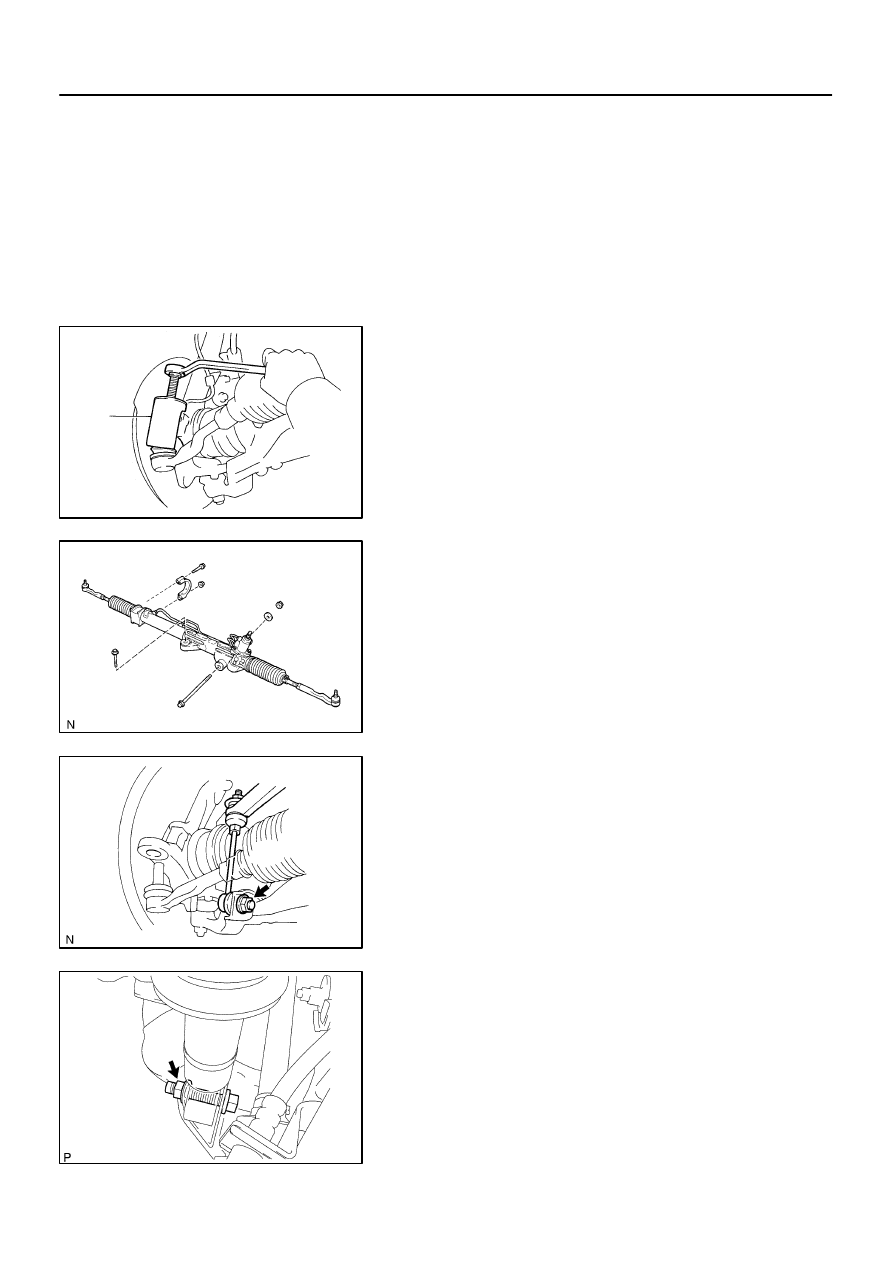

REMOVAL

1.

REMOVE RH AND LH FRONT WHEELS

2.

DISCONNECT RH AND LH TIE ROD ENDS

(a)

Remove the cotter pin and nut.

(b)

Using SST, disconnect the tie rod end from the lower ball
joint.
SST

09610–20012

(c)

Use the same procedures described above to the other
side.

3.

REMOVE POWER STEERING GEAR SET BOLTS AND
NUTS

4.

DISCONNECT STABILIZER BAR LINK FROM LOWER
SUSPENSION ARM

Remove the nut and disconnect the stabilizer bar link from the
lower suspension arm.
HINT:
If the ball joint turns together with the nut, use a hexagon (6 mm)
wrench to hold the stud.

5.

DISCONNECT SHOCK ABSORBER FROM LOWER
SUSPENSION ARM

(a)

Remove the shock absorber lower side set nut and wash-
er.

NOTICE:
Do not remove the bolt.
(b)

Pry down the lower suspension arm to remove the bolt
and disconnect the shock absorber.
