Toyota Sequoia (2005). Manual - part 758

R13276

SST

–

SUSPENSION AND AXLE

FRONT AXLE HUB

SA–25

3021

(b)

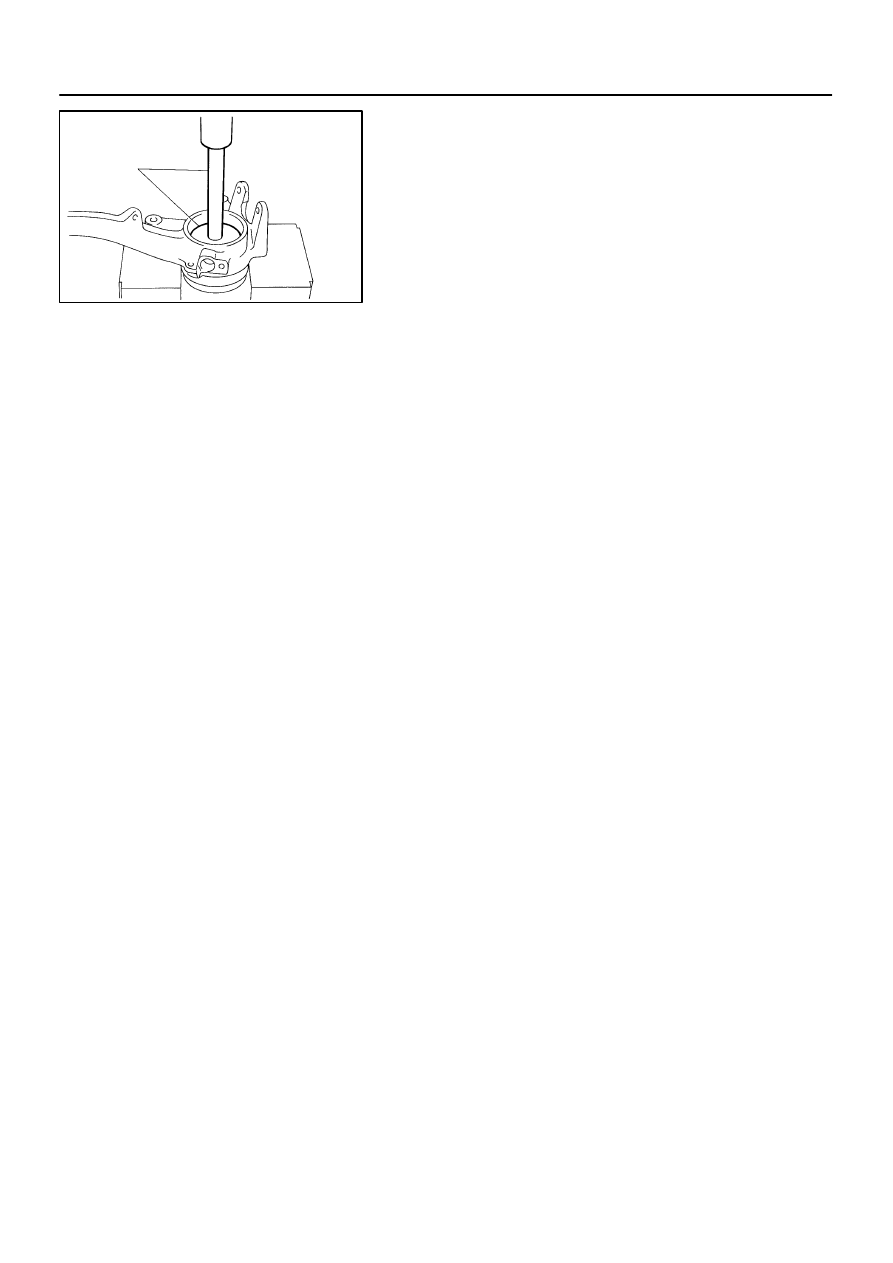

Using SST and a press, remove the bearing from the
steering knuckle.
SST

09950–60020 (09951–00810),
09950–70010 (09951–07150)

SA146–08

R13277

SST

SST

R13278

SST

SST

R13279

SST

R13215

SST

R13418

SST

SA–26

–

SUSPENSION AND AXLE

FRONT AXLE HUB

3022

REASSEMBLY

1.

INSTALL NEW BEARING

(a)

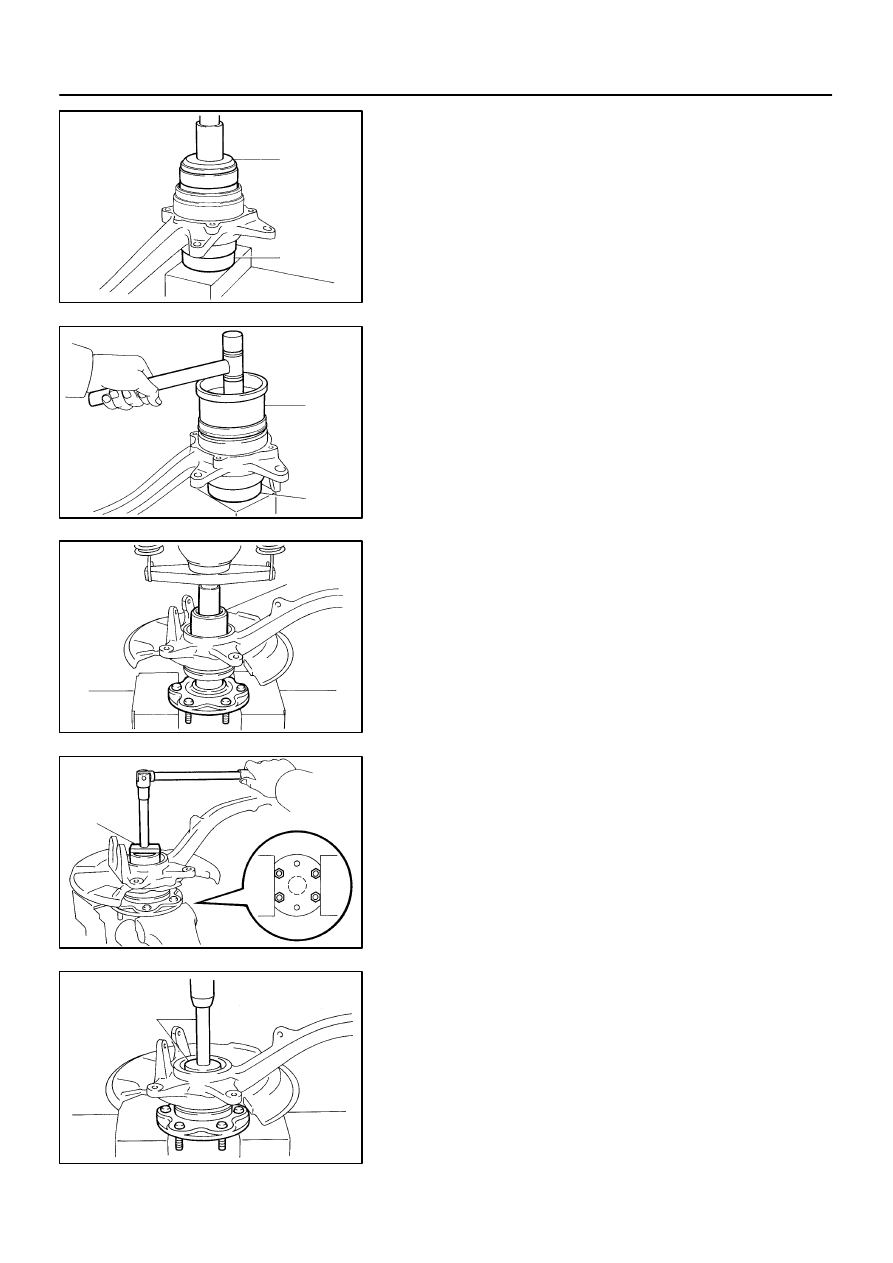

Using SST and a press, install a new bearing to the steer-
ing knuckle.
SST

09527–17011, 09950–60020 (09951–00910)

(b)

Using snap ring pliers, install a new snap ring.

2.

INSTALL NEW OIL SEAL (OUTSIDE)

(a)

Using SST and a plastic hammer, install a new oil seal
(outside).
SST

09223–15030,  09527–17011

(b)

Coat MP grease to the oil seal lip.

3.

INSTALL AXLE HUB TO STEERING KNUCKLE

(a)

Install the dust cover to the steering knuckle with the 4
bolts.
Torque: 18 N·m (185 kgf·cm, 13 ft·lbf)

(b)

Using SST and a press, install the axle hub to the steering
knuckle.
SST

09649–17010

4.

INSTALL SPEED SENSOR ROTOR

NOTICE:
Do not scratch the serration of the speed sensor rotor.

5.

2WD:
INSTALL NEW LOCK NUT

(a)

Using SST, install and torque a new lock nut to the axle
hub.
SST

09318–12010

Torque: 274 N·m (2,800 kgf·cm, 203 ft·lbf)

(b)

Using a chisel and hammer, stake the lock nut.

6.

4WD:
INSTALL BEARING SPACER

Using SST and a press, install the bearing spacer.

SST

09950–60010 (09951–00650),
09950–70010 (09951–07150)

7.

2WD:
INSTALL GREASE CAP

R13280

SST

–

SUSPENSION AND AXLE

FRONT AXLE HUB

SA–27

3023

8.

4WD:
INSTALL NEW OIL SEAL (INSIDE)

(a)

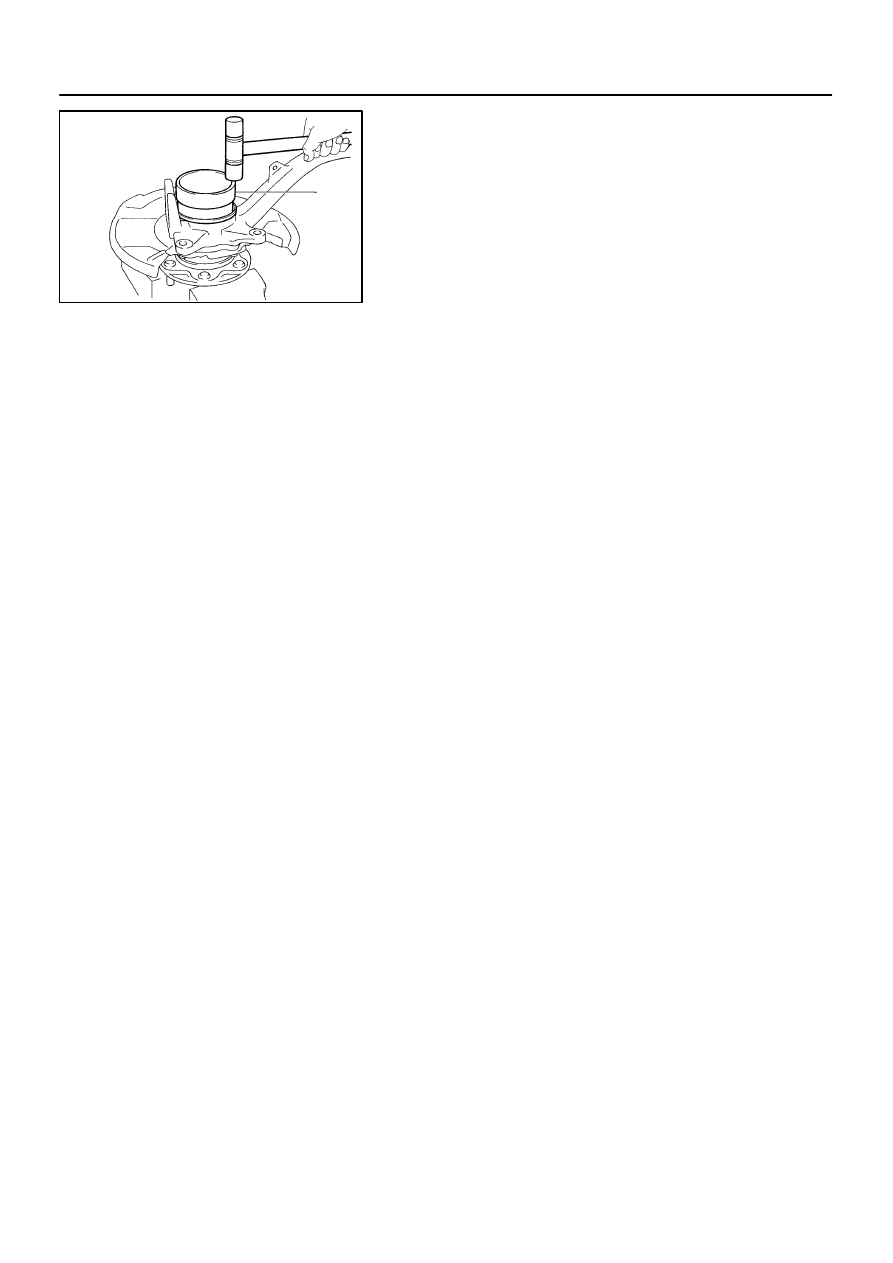

Using SST and a plastic hammer, install a new oil seal (in-
side).
SST

09527–17011

HINT:
Lightly strike the SST on its circumference evenly.
(b)

Coat MP grease to the oil seal lip.

SA23J–05

SA–28

–

SUSPENSION AND AXLE

FRONT AXLE HUB

3024

INSTALLATION

1.

INSTALL STEERING KNUCKLE

(a)

4WD:
Insert the drive shaft into the axle hub and temporarily tighten the nut.

NOTICE:
Be careful not to damage the oil seal and drive shaft boot.
(b)

Connect the steering knuckle to the upper suspension arm.

(c)

Install the nut and a new cotter pin.

If the holes for the cotter pin are not aligned, tighten the nut further up to 60

°

.

Torque: 105 N·m (1,100 kgf·cm, 77 ft·lbf)

2.

CONNECT LOWER BALL JOINT

Connect the lower ball joint to the steering knuckle with the 4 bolts.

Torque: 65 N·m (663 kgf·cm, 48 ft·lbf)

3.

INSTALL SHOCK ABSORBER (See page

SA–70

)

4.

INSTALL BRAKE CALIPER

(a)

Install the disc, brake caliper and 2 bolts.
Torque: 123 N·m (1,250 kgf·cm, 90 ft·lbf)

(b)

Install the brake line clamp to the steering knuckle with the bolt.
Torque: 28 N·m (285 kgf·cm, 21 ft·lbf)

5.

CONNECT SPEED SENSOR AND WIRE HARNESS CLAMP

Connect the speed sensor and wire harness clamp to the steering knuckle with the 2 bolts.

Torque: 8.0 N·m (82 kgf·cm, 71 ft·lbf)

6.

4WD:
INSTALL DRIVE SHAFT LOCK NUT

(a)

While applying the brakes, tighten the nut.
Torque: 235 N·m (2,400 kgf·cm, 173 ft·lbf)

(b)

Install the lock cap and a new cotter pin.

If the holes for the cotter pin are not aligned, tighten the nut further up to 60

°

.

7.

INSTALL GREASE CAP

8.

INSTALL FRONT WHEEL
Torque: 110 N·m (1,150 kgf·cm, 83 ft·lbf)

9.

DEPRESS BRAKE PEDAL SEVERAL TIMES

10.

CHECK FRONT WHEEL ALIGNMENT (See page

SA–4

)

11.

CHECK SPEED SENSOR SIGNAL (See page

DI–899

)

12.

PERFORM ZERO POINT CALIBRATION OF STEERING ANGLE, MASTER CYLINDER PRES-
SURE, YAW RATE AND DECELERATION SENSORS (See page

DI–897

)
