N·m (kgf·cm, ft·lbf) : Specified torque

 Non–reusable part

64 (650, 47)

Brake Caliper

Hub Bolt

 Cotter Pin

105 (1,100, 77)

8.0 (82, 71 in.·lbf)

Speed Sensor

Shock Absorber

135 (1,400, 100)

65 (663, 48)

123 (1,250, 90)

28 (285, 21)

Steering Knuckle with Axle Hub

Disc

4WD:

 Cotter Pin

235 (2,400, 173)

Lock Cap

Grease Cap

Grease Cap

2WD:

4WD:

 Oil Seal

Speed Sensor
Rotor

Dust Cover

Steering Knuckle

18 (185, 13)

 Oil Seal

 Bearing

 Snap Ring

Axle Hub

Bearing Spacer

4WD:

274 (2,800, 203)

 Lock Nut

2WD:

–

SUSPENSION AND AXLE

FRONT AXLE HUB

SA–21

3017

FRONT AXLE HUB

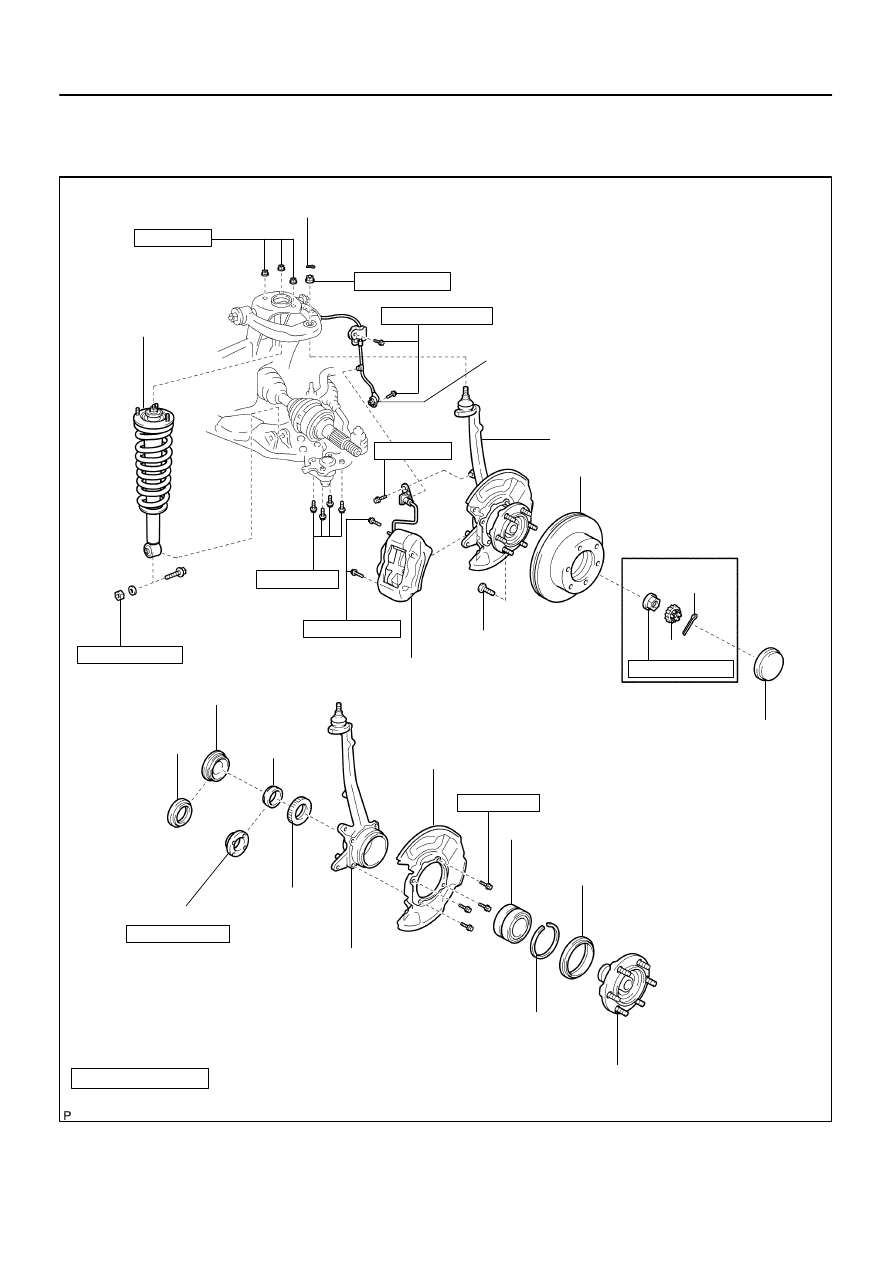

COMPONENTS

SA23I–04

R13426

F07263

F07264

F07265

SA–22

–

SUSPENSION AND AXLE

FRONT AXLE HUB

3018

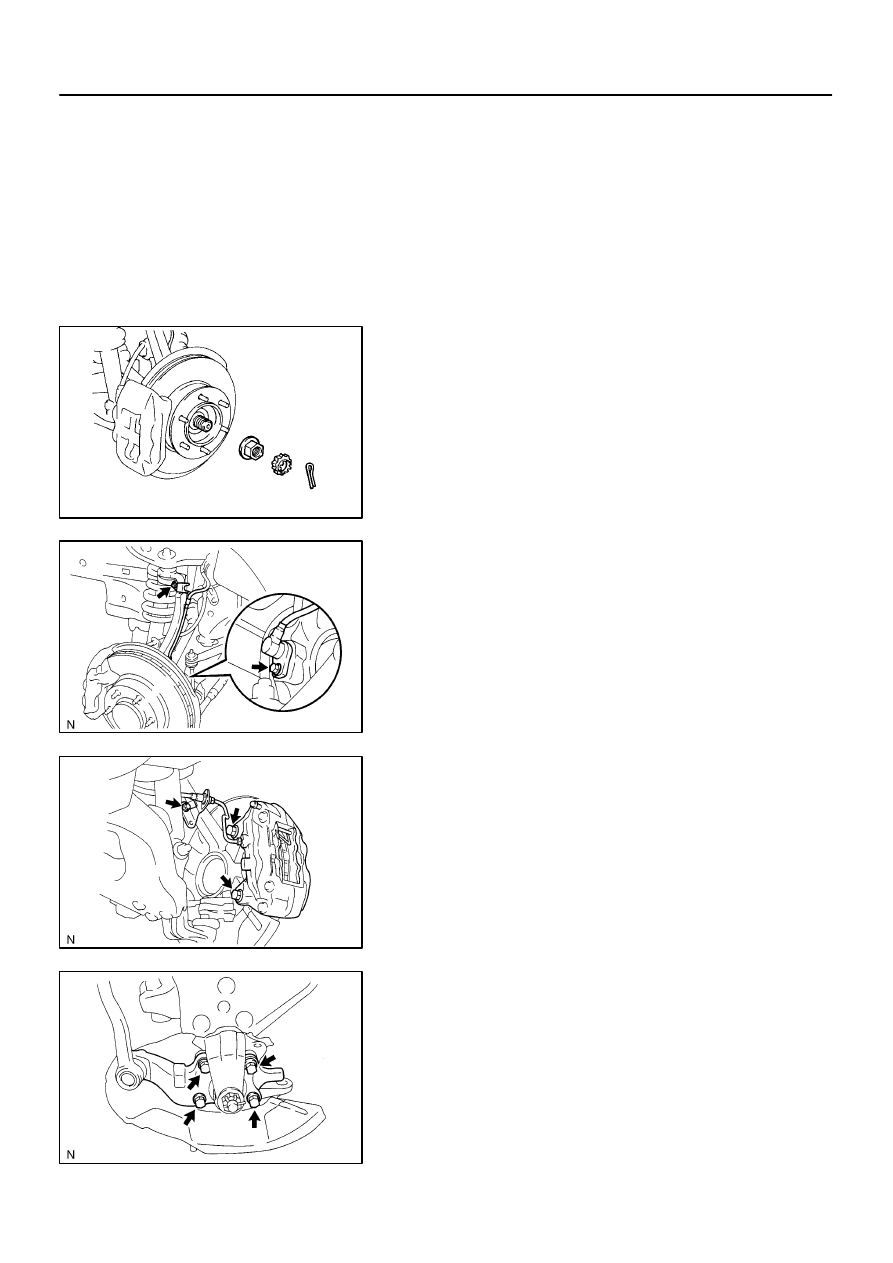

REMOVAL

1.

REMOVE FRONT WHEEL

2.

REMOVE GREASE CAP

Using a screwdriver and hammer, remove the grease cap.

3.

4WD:
DISCONNECT DRIVE SHAFT

(a)

Remove the cotter pin and lock cap.

(b)

While applying the brakes, remove the lock nut.

4.

DISCONNECT SPEED SENSOR AND WIRE HARNESS
CLAMP FROM STEERING KNUCKLE

Remove the 2 bolts and disconnect the speed sensor and wire
harness clamp from the steering knuckle.

5.

REMOVE BRAKE CALIPER AND DISC

(a)

Remove the bolt and brake line clamp from the steering
knuckle.

(b)

Remove the 2 bolts, brake caliper and disc.

NOTICE:
Do not damage the brake tube.
(c)

Support the brake caliper securely.

6.

REMOVE SHOCK ABSORBER (See page

SA–64

)

7.

DISCONNECT LOWER BALL JOINT

Remove the 4 bolts and disconnect the lower ball joint.
8.

REMOVE STEERING KNUCKLE

(a)

Remove the cotter pin and loosen the nut.

R13196

SST

–

SUSPENSION AND AXLE

FRONT AXLE HUB

SA–23

3019

(b)

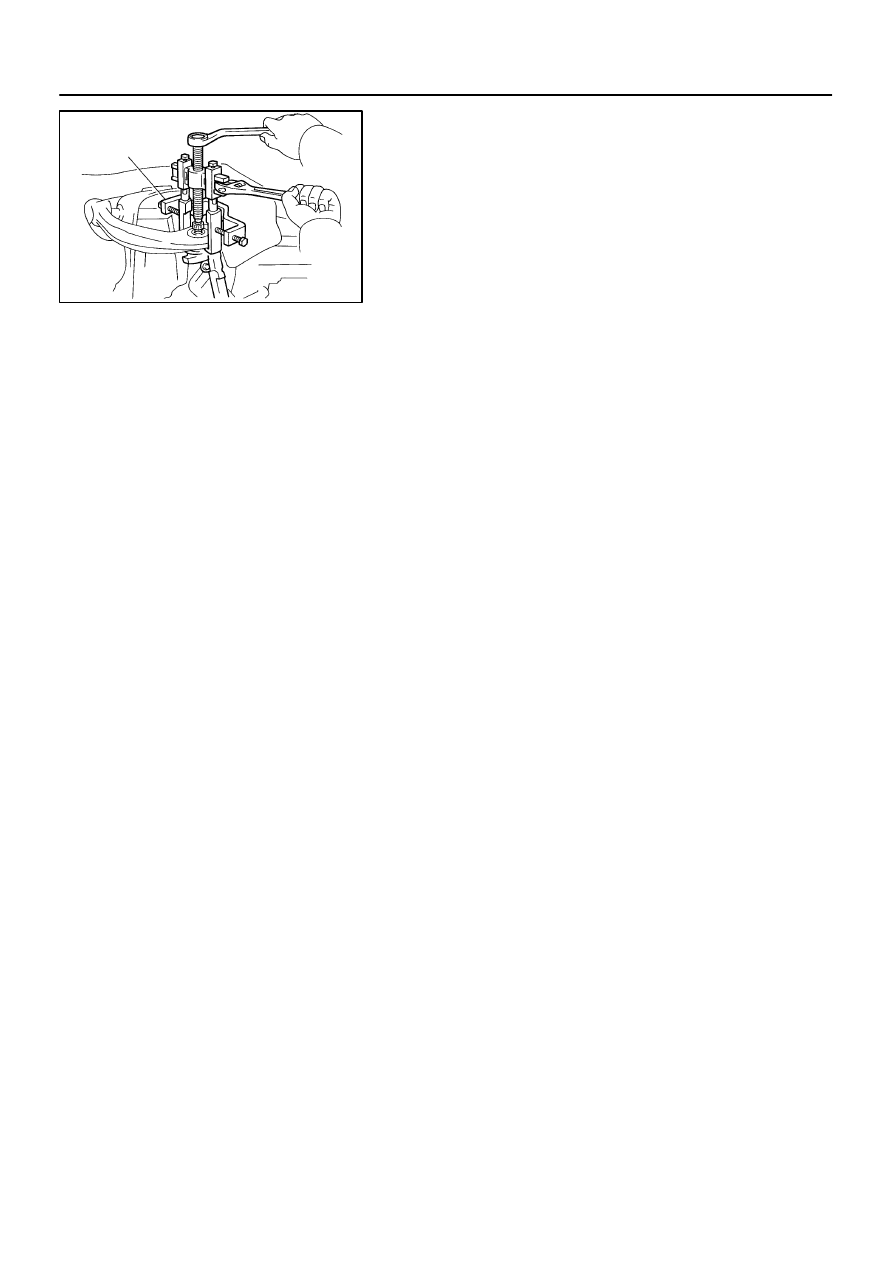

Using SST, disconnect the steering knuckle.
SST

09950–40011 (09951–04010, 09952–04010,
09553–04020, 09554–04010, 09955–04031,
09958–04011)

(c)

Remove the nut and steering knuckle.

NOTICE:
4WD:
Be careful not to damage the oil seal and drive shaft boot.
HINT:
4WD:
When it is difficult to disconnect the drive shaft, tap the tip of the
drive shaft with a plastic hammer.

SA145–08

R13215

SST

R13275

SST

SST

SA–24

–

SUSPENSION AND AXLE

FRONT AXLE HUB

3020

DISASSEMBLY

1.

2WD:
REMOVE GREASE CAP

(a)

Mount the axle hub in a soft jaw vise.

HINT:
Close the vise until it holds hub bolts. Do not tighten further.
(b)

Using a screwdriver, remove the grease cap.

2.

4WD:
REMOVE OIL SEAL (INSIDE)

(a)

Mount the axle hub in a soft jaw vise.

HINT:
Close the vise until it holds hub bolts. Do not tighten further.
(b)

Using a screwdriver, remove the oil seal (inside).

3.

2WD:
REMOVE LOCK NUT AND SPEED SENSOR ROTOR

(a)

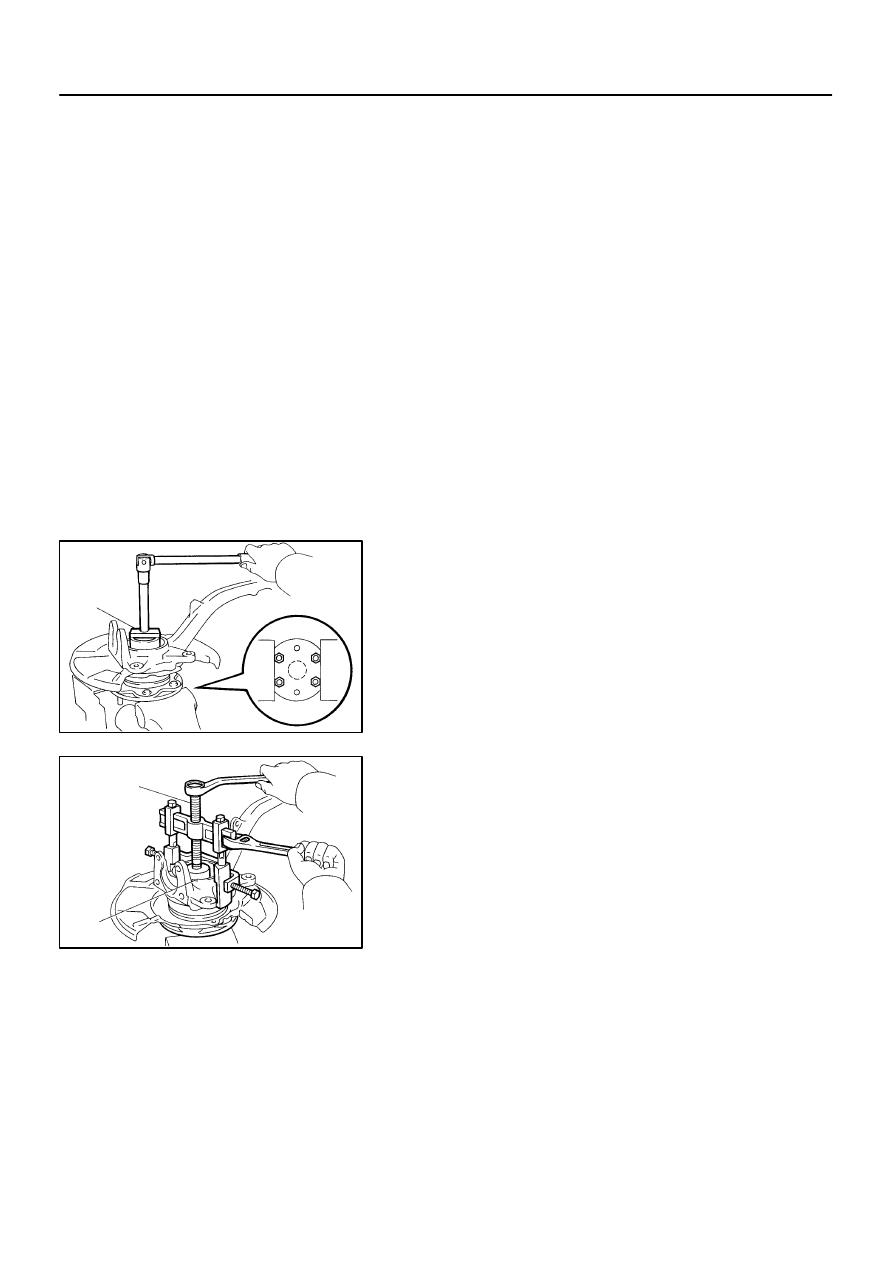

Using a chisel and hammer, loosen the staked part of the
lock nut.

NOTICE:
Be careful not to damage the bushing.

(b)

Using SST, remove the lock nut.
SST

09318–12010

(c)

Remove the speed sensor rotor.

NOTICE:
Take care not to scratch the serration of the speed sensor
rotor.
4.

REMOVE AXLE HUB FROM STEERING KNUCKLE

(a)

Remove the 4 bolts and shift the dust cover towards the
hub side (outside).

(b)

Using SST, remove the axle hub from the steering
knuckle.
SST

09710–30021  (09710–03051),
09950–40011 (09951–04020, 09952–04010,
09953–04020, 09954–04010, 09955–04031,
09957–04010, 09958–04011)

(c)

Remove the dust cover from the steering knuckle.

(d)

4WD:
Remove the bearing spacer and speed sensor rotor.

NOTICE:
Take care not to scratch the serration of the speed sensor
rotor.
5.

REMOVE OIL SEAL (OUTSIDE)

Using a screwdriver, remove the oil seal (outside) from the
steering knuckle.
6.

REMOVE BEARING FROM STEERING KNUCKLE

(a)

Using snap ring pliers, remove the snap ring.
