F19239

F19313

SST

F19314

FIPG

F19238

–

TRANSFER

TRANSFER ASSEMBLY

TR–23

2961

20.

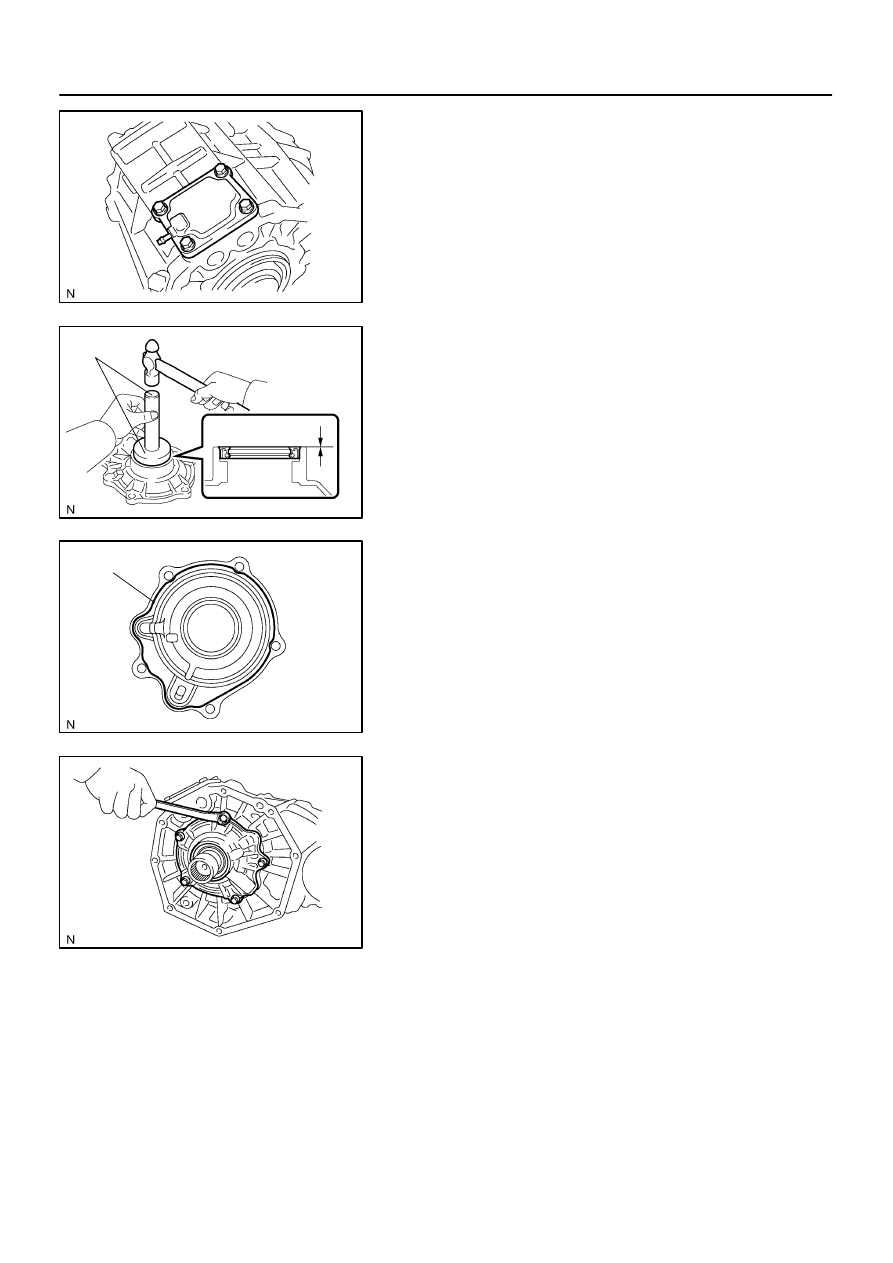

INSTALL BREATHER OIL DEFLECTOR

21.

INSTALL TRANSFER CASE COVER

Install the transfer case cover with the 4 bolts.

Torque: 18 N·m (184 kgf·cm, 13 ft·lbf)

22.

INSTALL FRONT BEARING RETAINER

(a)

Using SST and a hammer, drive in a new oil seal until its
surface is flush with the retainer upper surface.
SST

09950–60010 (09951–00590), 09950–70010
(09951–07100)

(b)

Coat the lip of the oil seal with MP grease.

(c)

Apply FIPG to the front bearing retainer, as shown.
FIPG:
Part No. 08826–00090, THREE BOND 1281 or
equivalent

(d)

Apply sealant to the bolt threads.
FIPG:
Part No. 08826–00080, THREE BOND 1334, LOCTITE
242 or equivalent

(e)

Install the front bearing retainer with the 5 bolts.
Torque: 11.5 N·m (117 kgf·cm, 8 ft·lbf)

TR00F–08

F19234

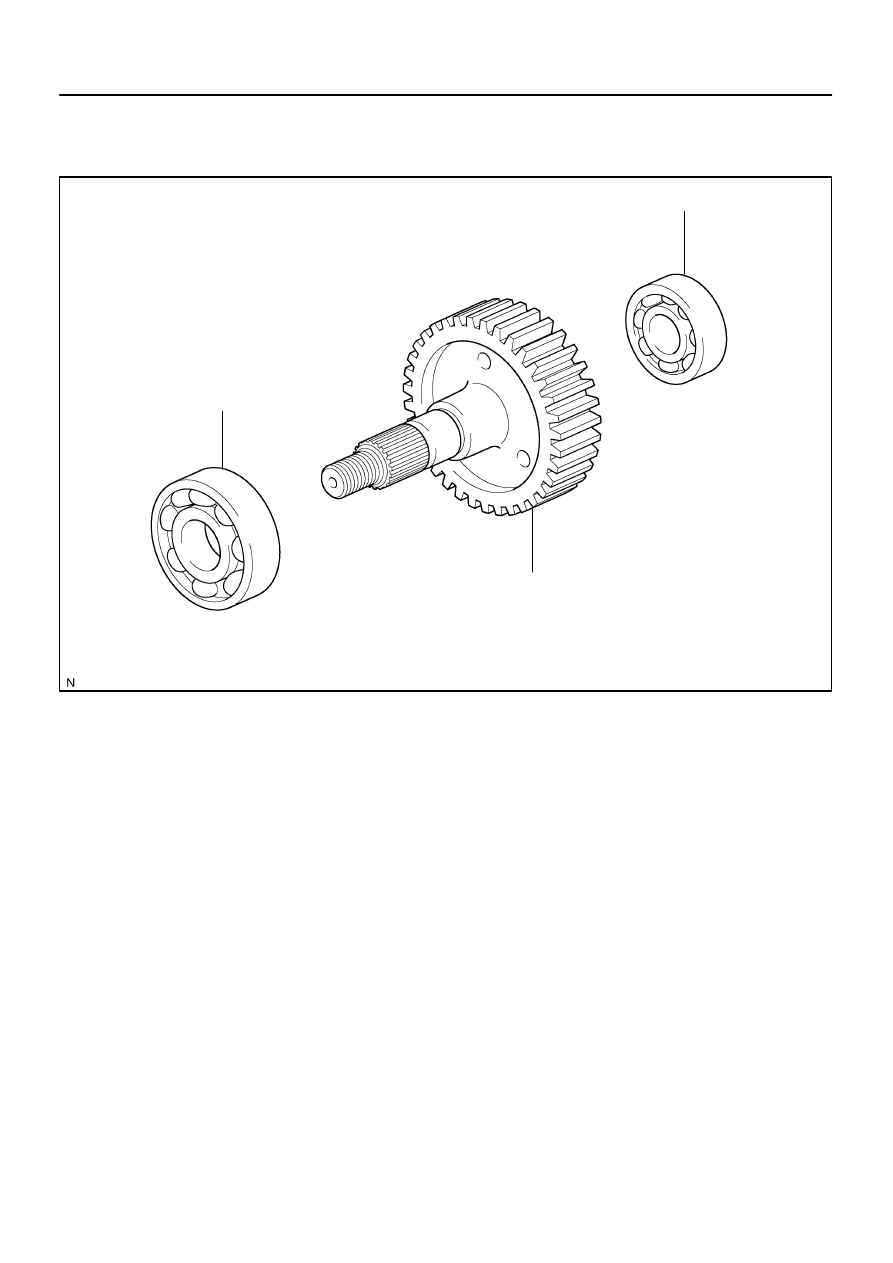

 Front Bearing

 Non–reusable part

Driven Sprocket

 Rear Bearing

TR–24

–

TRANSFER

DRIVEN SPROCKET

2962

DRIVEN SPROCKET

COMPONENTS

TR00G–08

F19254

F19255

Steel Bar

SST

F19302

SST

F19303

–

TRANSFER

DRIVEN SPROCKET

TR–25

2963

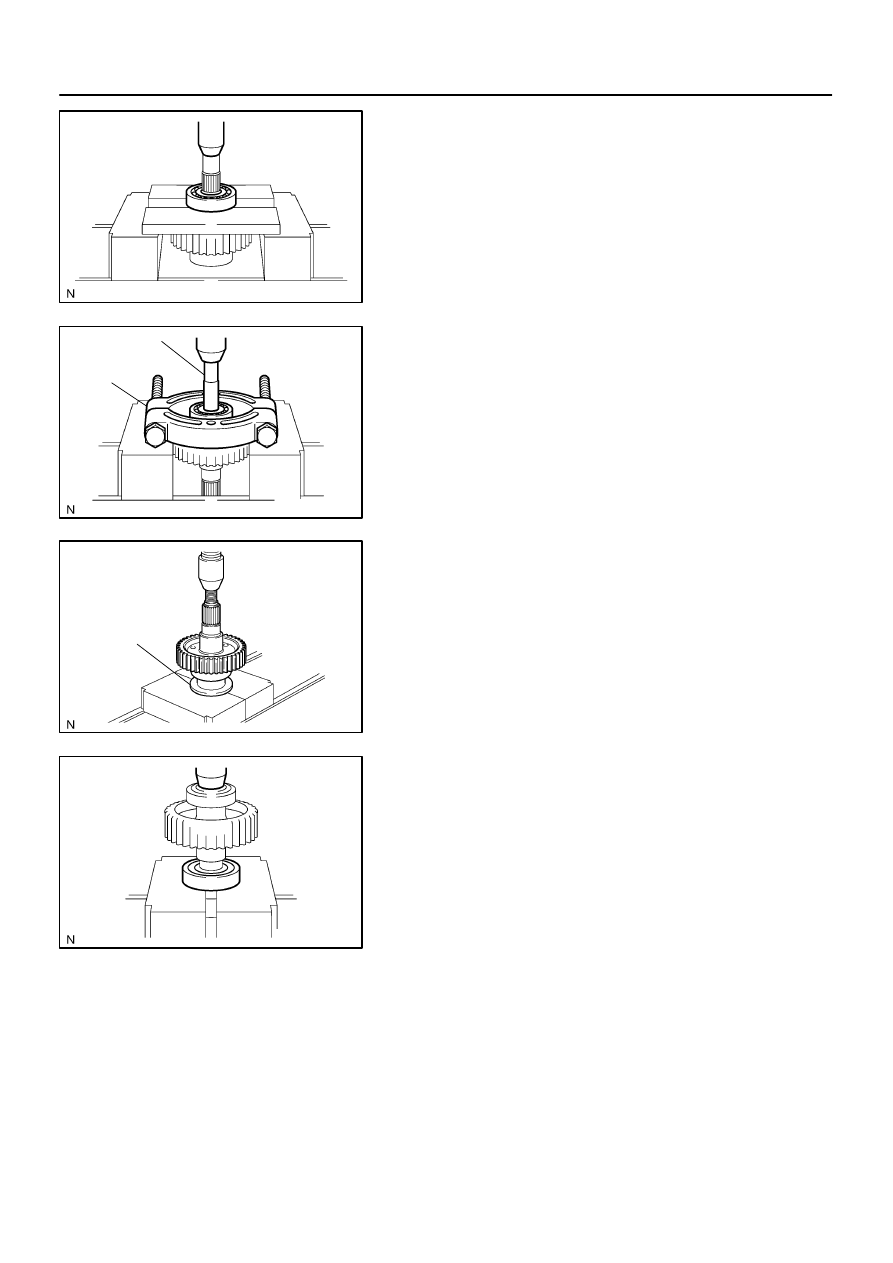

REPLACEMENT

1.

REMOVE FRONT BEARING

Using a press, remove the front bearing.

2.

REMOVE REAR BEARING

Using SST, a press and steel bar, remove the rear bearing.

SST

09555–55010

3.

INSTALL REAR BEARING

Using SST and a press, install a new rear bearing.

SST

09316–60011 (09316–00031)

4.

INSTALL FRONT BEARING

Using a press, install a new front bearing.

TR083–03

F19236

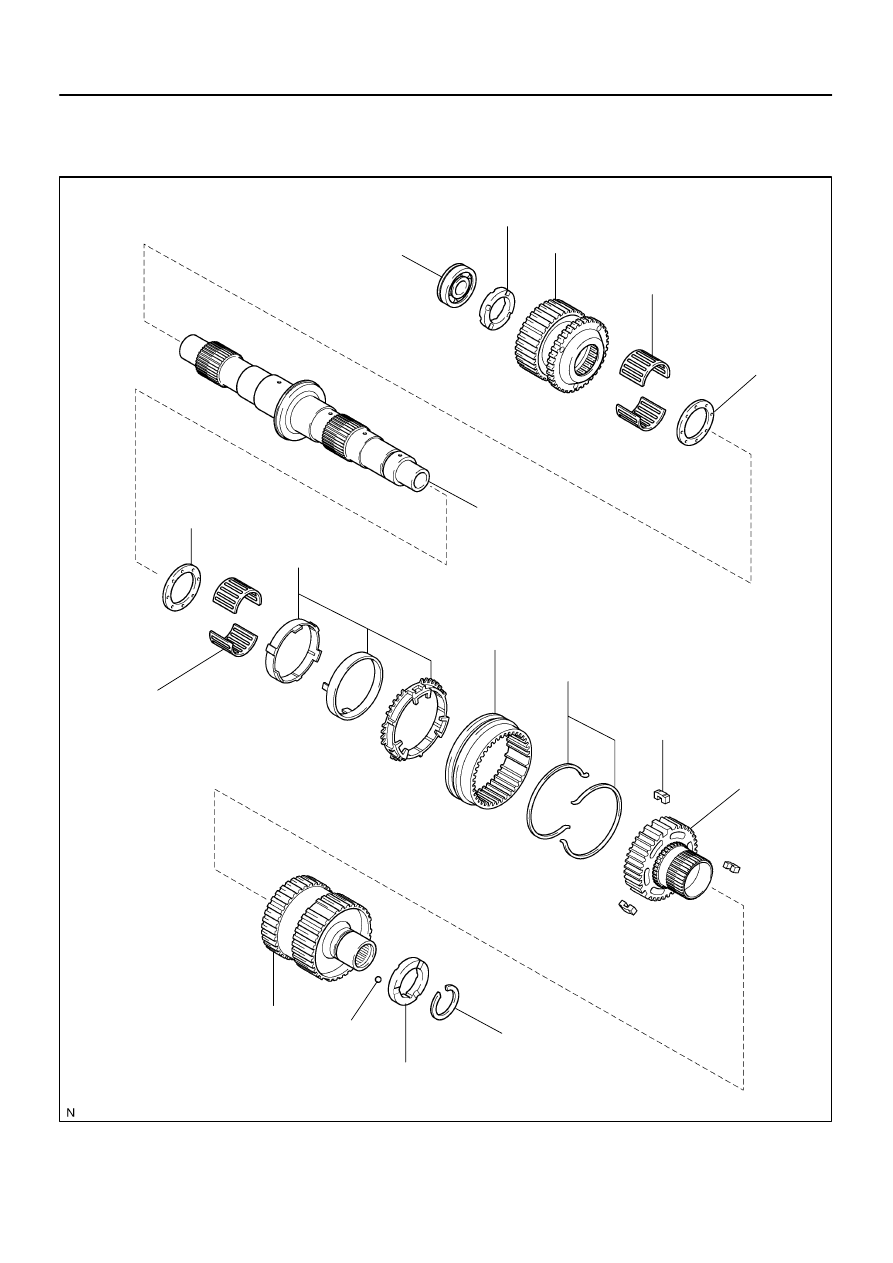

Output Shaft Rear
Radial Ball Bearing

Output Shaft Spacer No. 1

Output Shaft Front
Needle Roller Bearing

Synchronizer Ring Set

Front Drive Clutch Sleeve

 Non–reusable part

Center Differential Case

Ball

Snap Ring

Output Shaft Spacer No. 2

Drive Sprocket

Drive Sprocket Bear-
ing

Output Shaft
Plate Washer

Output Shaft Rear

Output Shaft
Plate Washer

Synchromesh Shifting Key Spring

Synchromesh Shifting Key

Clutch Hub

TR–26

–

TRANSFER

REAR OUTPUT SHAFT

2964

REAR OUTPUT SHAFT

COMPONENTS
