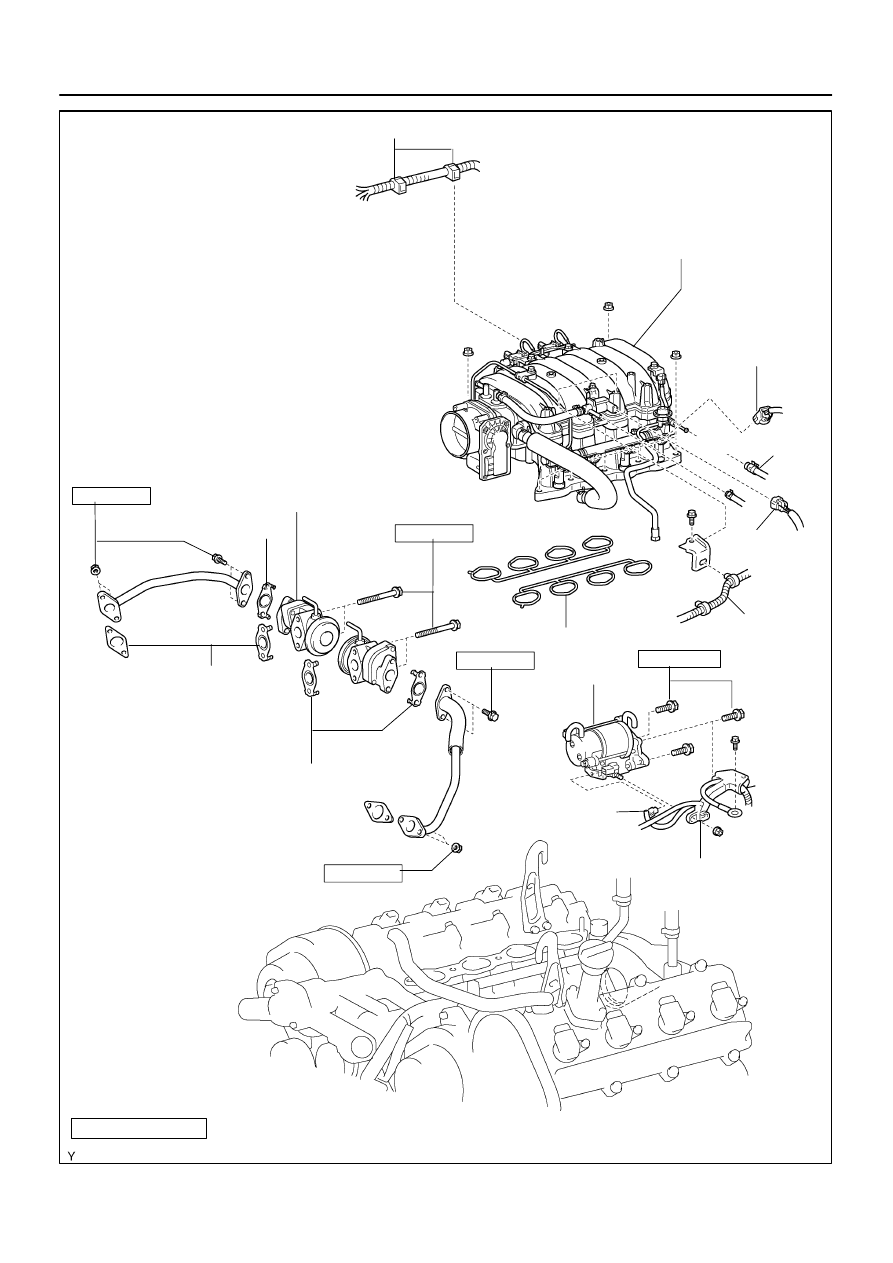

B17496

Injector Connector

VSV Connector
for EVAP

Starter Connector

Starter

Intake Manifold Assembly

Engine Wire and Clamp

 Gasket

 Non–reusable part

39 (400, 29)

Engine Wire
Protector

Fuel Return Hose

Engine Wire

N·m (kgf·cm, ft·lbf) : Specified torque

 Gasket

Fuel Inlet Hose

Air Switching Valve No.2

 Gasket

 Gasket

10 (102, 7 )

10 (102, 7 )

10 (102, 7 )

10 (102, 7 )

–

STARTING

STARTER

ST–3

2877

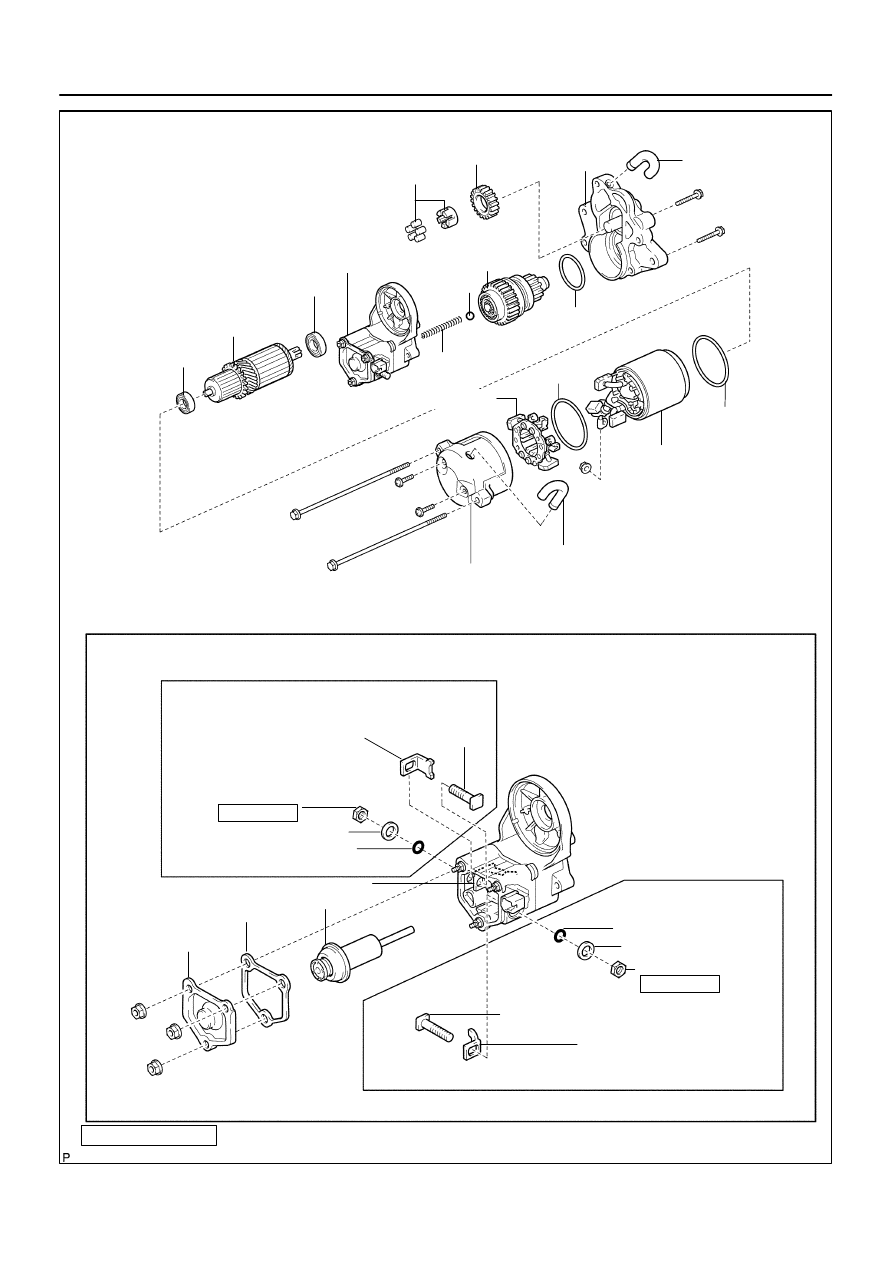

B13802

 O–Ring

Idler Gear

Starter Housing
Assembly

Return Spring

Starter Clutch
Assembly

Steel Ball

Contact Plate

 Rear Bearing

Armature

Magnetic Switch
Assembly

Bearing

 Front Bearing

 O–Ring

End Cover

Brush Holder

Magnetic Switch Assembly

Terminal Nut

O–Ring

Wave Washer

Terminal Bolt

 Terminal C Kit Part

Lead Terminal

Plunger

 Gasket

End Cover

Terminal Bolt

Wave Washer

O–Ring

Terminal Nut

 Terminal 30 Kit Part

 Non–reusable part

 Dust Protector

 Dust Protector

Field Frame (Field Coil)

17 (170, 13)

17 (170, 13)

N·m (kgf·cm, ft·lbf) : Specified torque

 O–Ring

Contact Plate

ST–4

–

STARTING

STARTER

2878

ST08Z–07

B04548

B04549

Starter
Connector

Engine Wire Protector

–

STARTING

STARTER

ST–5

2879

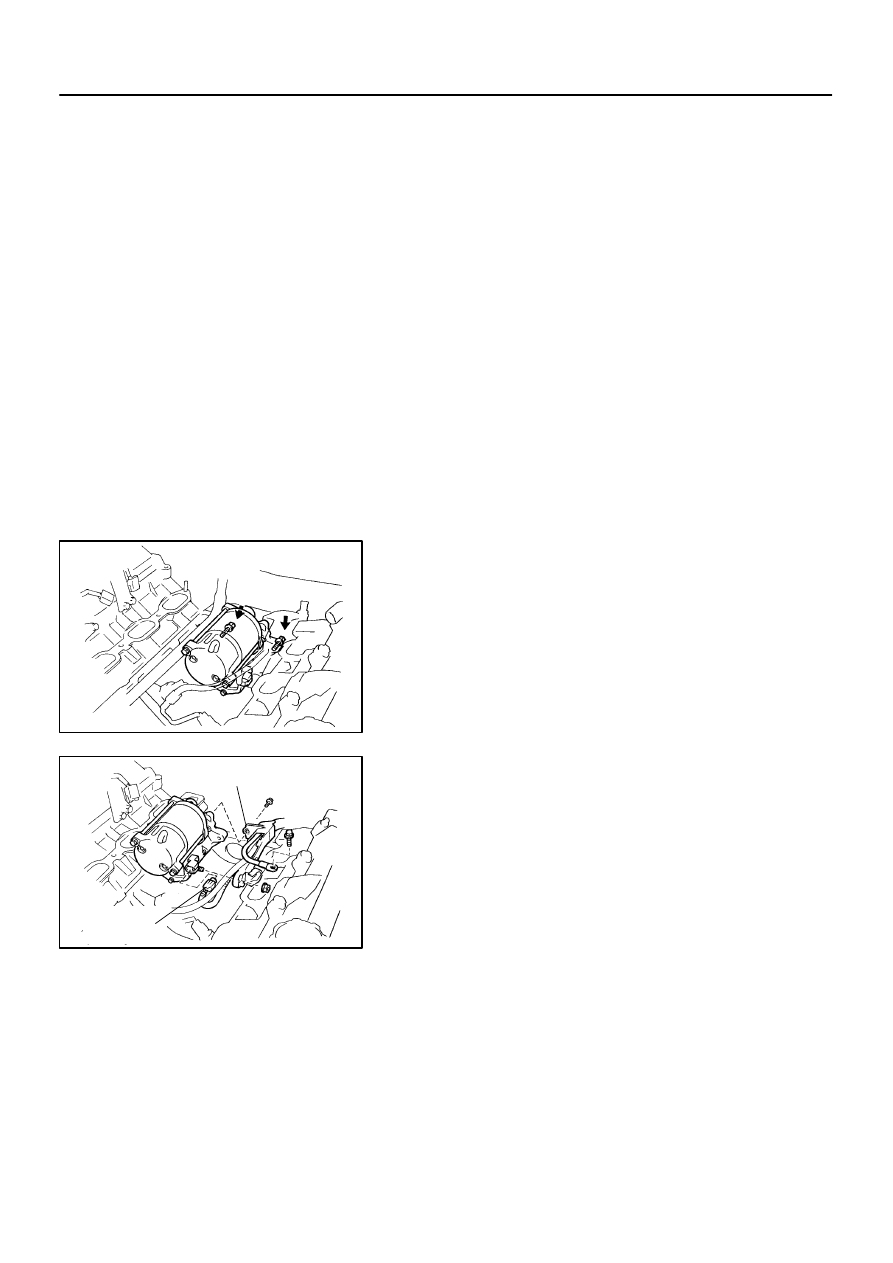

REMOVAL

1.

REMOVE THROTTLE BODY COVER

2.

REMOVE INTAKE AIR CONNECTOR

3.

DISCONNECT CABLE FROM NEGATIVE (–) BATTERY
TERMINAL

4.

DISCONNECT THROTTLE BODY ASSEMBLY FROM
INTAKE MANIFOLD (See page

SF–42

)

5.

REMOVE INTAKE MANIFOLD ASSEMBLY
(See page

EM–36

)

6.

REMOVE AIR PUMP ASSEMBLY (See page

EC–22

)

7.

REMOVE STARTER

(a)

Remove the 2 bolts holding the starter from the cylinder
block.

(b)

Disconnect the starter from the cylinder block.

(c)

Disconnect the starter connector.

(d)

Remove the nut, bolt and disconnect the starter wire.

(e)

Remove the bolt, and disconnect the engine wire protec-
tor from the starter.

(f)

Remove the starter.

ST090–06

B12318

B12328

B13804

B13805

(2)

(3)

(1)

(4)

(5)

ST0948

Magnetic Finger

ST–6

–

STARTING

STARTER

2880

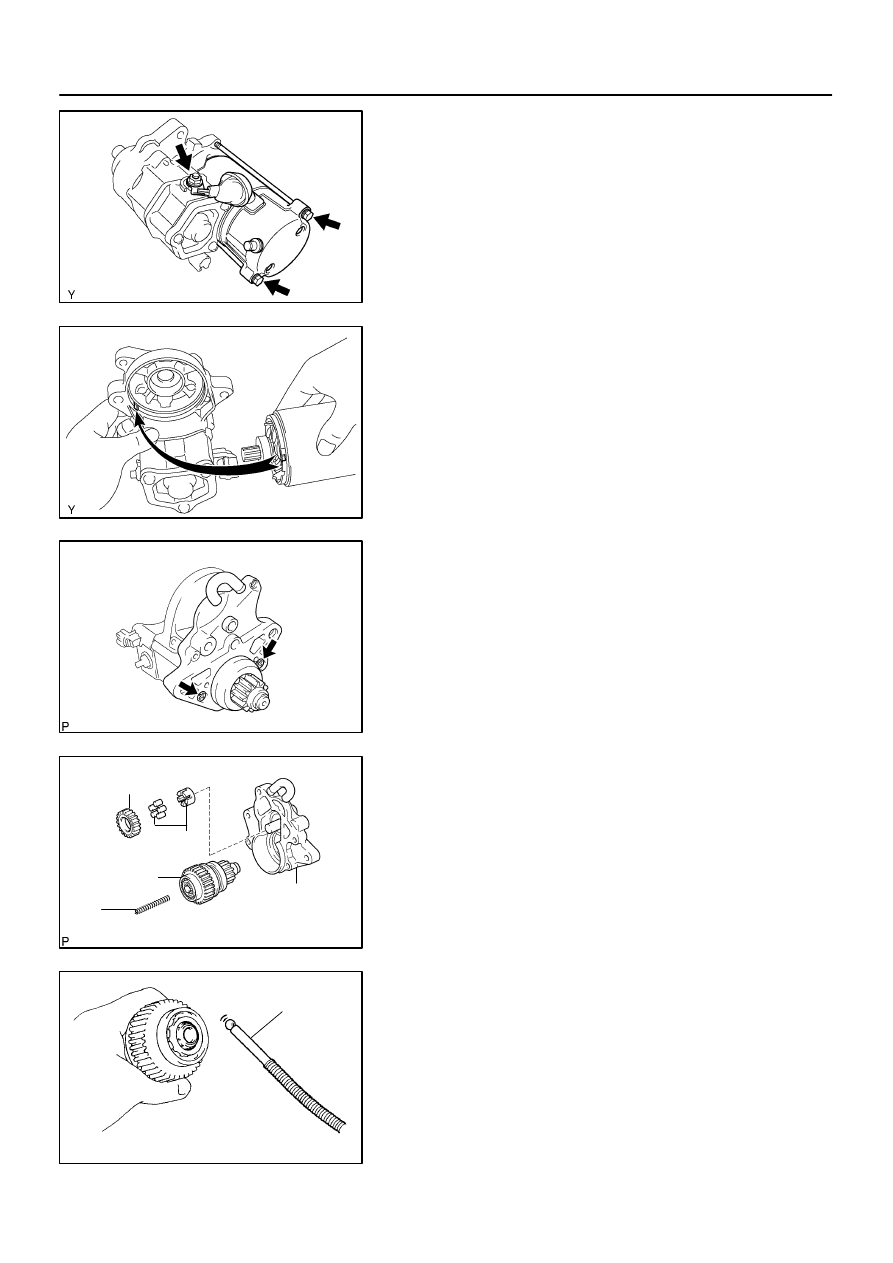

DISASSEMBLY

1.

REMOVE FIELD FRAME AND ARMATURE

(a)

Remove the nut, and disconnect the lead wire from the
magnetic switch terminal.
Torque: 5.9 N·m (60 kgf·cm, 52 in.·lbf)

(b)

Remove the 2 through bolts.
Torque: 9.3 N·m (95 kgf·cm, 82 in.·lbf)

(c)

Pull out the field frame together with the armature from the
magnetic switch assembly.

NOTICE:
At the time of assembly, align the protrusion of the field
frame with the groove of the magnetic switch.
(d)

Remove the O–ring from the field frame.

HINT:
At the time of assembly, use a new O–ring.

2.

REMOVE STARTER HOUSING, CLUTCH ASSEMBLY
AND GEAR

(a)

Remove the 2 screws.
Torque: 9.3 N·m (95 kgf·cm, 82 in.·lbf)

(b)

Remove these parts from the magnetic switch assembly:
(1)

Starter housing

(2)

Return spring

(3)

Idler gear

(4)

Bearing

(5)

Starter clutch assembly

HINT:
At the time of assembly, please refer to the following items.
Apply grease to the return spring and insert the return spring
into the clutch shaft hole.
3.

REMOVE STEEL BALL

Using a magnetic finger, remove the steel ball from the clutch
shaft hole.
HINT:
At the time of assembly, apply grease to the steel ball and insert
the steel ball into the clutch shaft hole.
