IG08U–08

B17487

IG–8

–

IGNITION

CAMSHAFT POSITION SENSOR

2869

REMOVAL

1.

DRAIN ENGINE COOLANT

2.

REMOVE DRIVE BELT (See page

CH–7

)

3.

REMOVE LH NO.3 TIMING BELT COVER
(See page

EM–16

)

4.

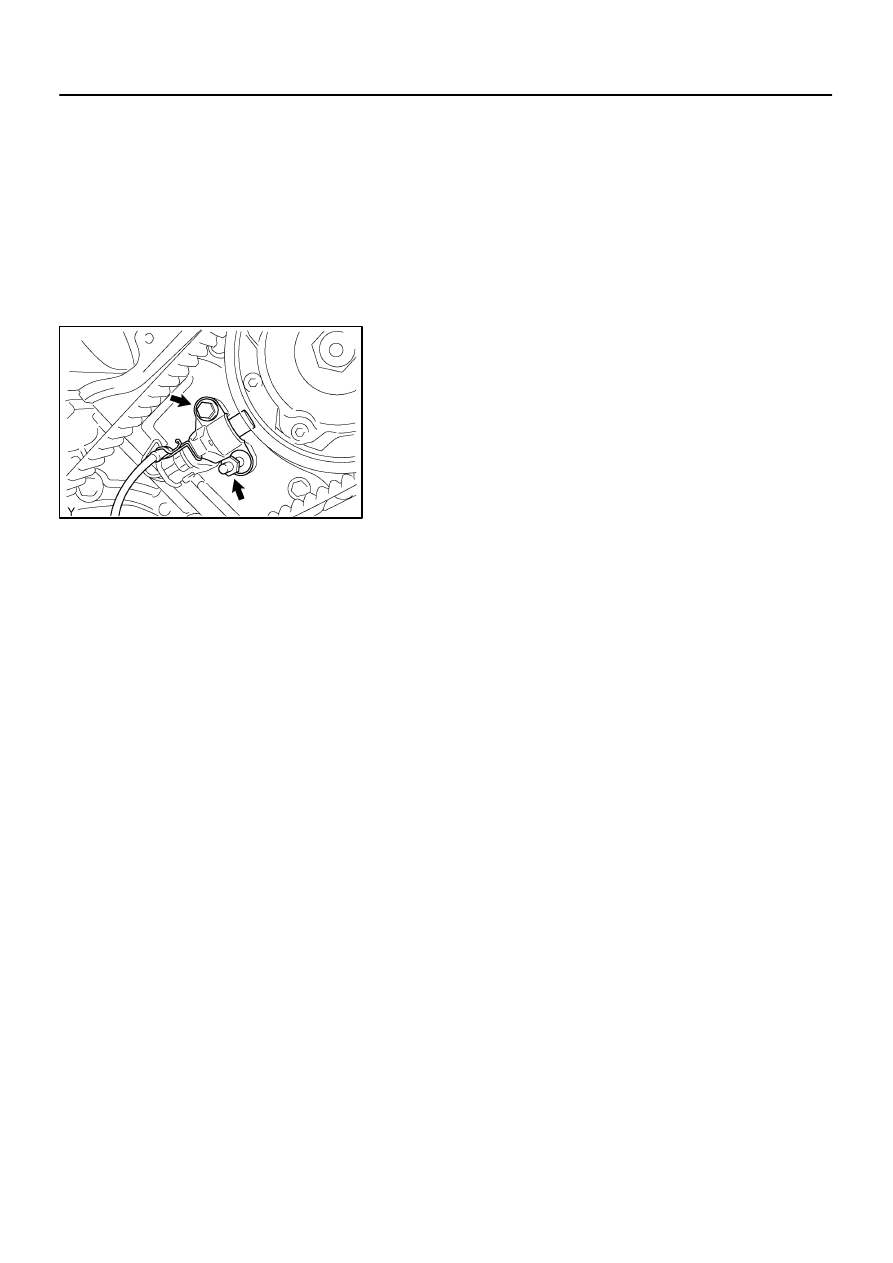

REMOVE CAMSHAFT POSITION SENSOR

Remove the bolt, stud bolt and camshaft position sensor.

IG08V–06

B17487

–

IGNITION

CAMSHAFT POSITION SENSOR

IG–9

2870

INSTALLATION

1.

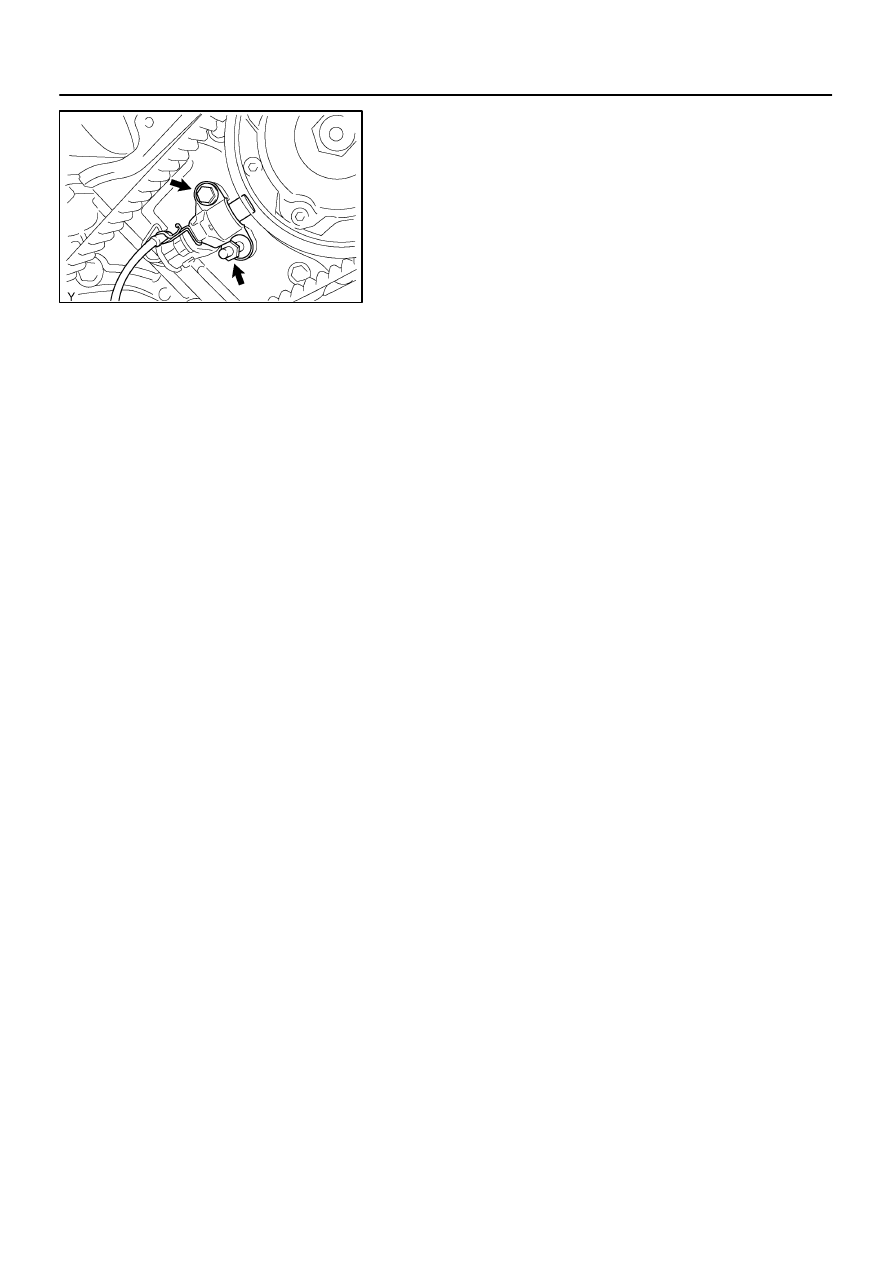

INSTALL CAMSHAFT POSITION SENSOR

Install the camshaft position sensor with the bolt and stud bolt

Torque: 7.5 N·m (80 kgf·cm, 66 in.·lbf)

2.

INSTALL LH NO.3 TIMING BELT COVER
(See page

EM–23

)

3.

INSTALL DRIVE BELT (See page

CH–16

)

4.

FILL ENGINE COOLANT (See page

CO–2

)

5.

CHECK ENGINE COOLANT FOR LEAKS

6.

CHECK IGNITION TIMING (See page

EM–9

)

IG08W–06

B07249

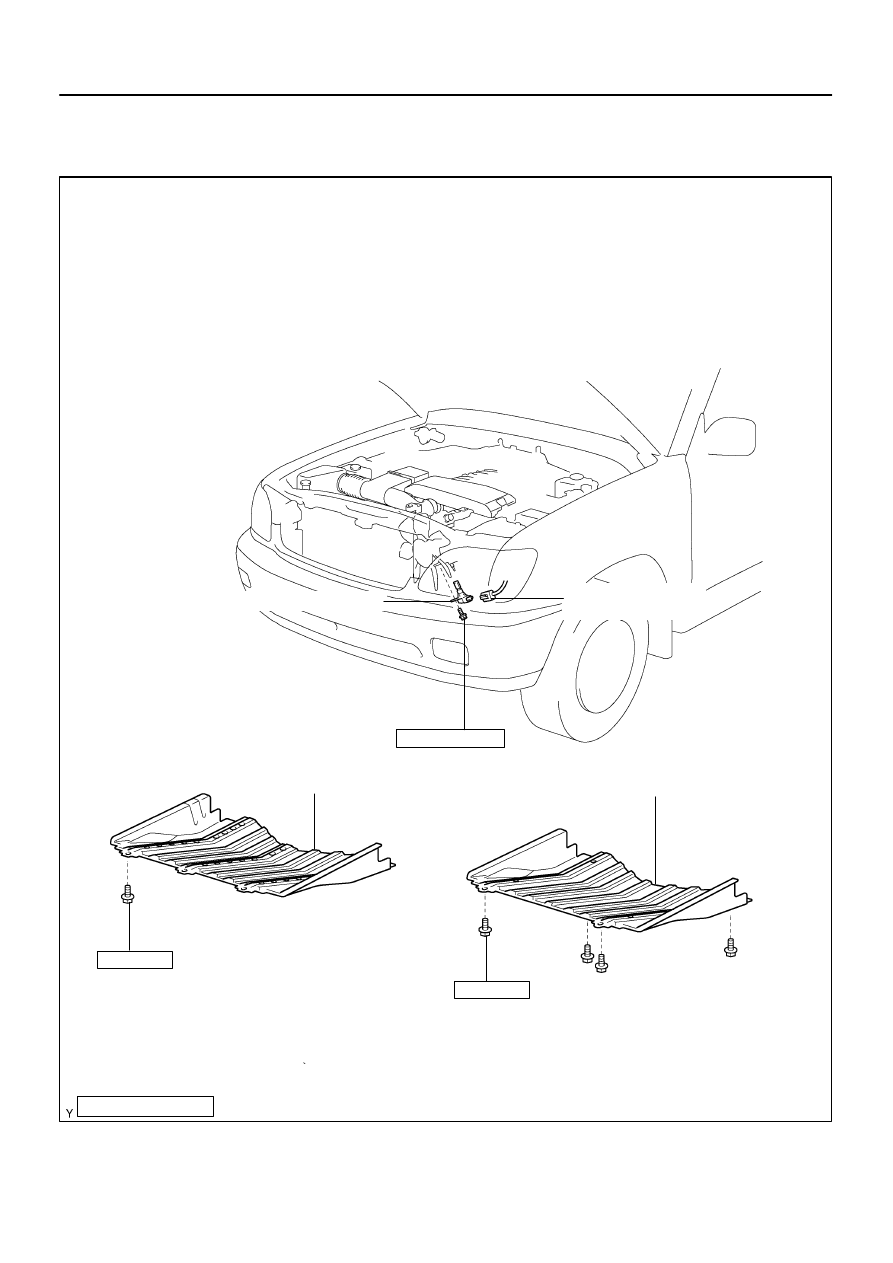

N·m (kgf·cm, ft·lbf) : Specified torque

Crankshaft Position Sensor

Engine Under Cover (2WD)

Crankshaft Position
Sensor Connector

Engine Under Cover (4WD)

x 5

6.5 (65, 58 in.·lbf)

29 (296, 21)

29 (296, 21)

IG–10

–

IGNITION

CRANKSHAFT POSITION SENSOR

2871

CRANKSHAFT POSITION SENSOR

COMPONENTS

IG08X–05

B07251

–

IGNITION

CRANKSHAFT POSITION SENSOR

IG–11

2872

REMOVAL

1.

REMOVE ENGINE UNDER COVER

2.

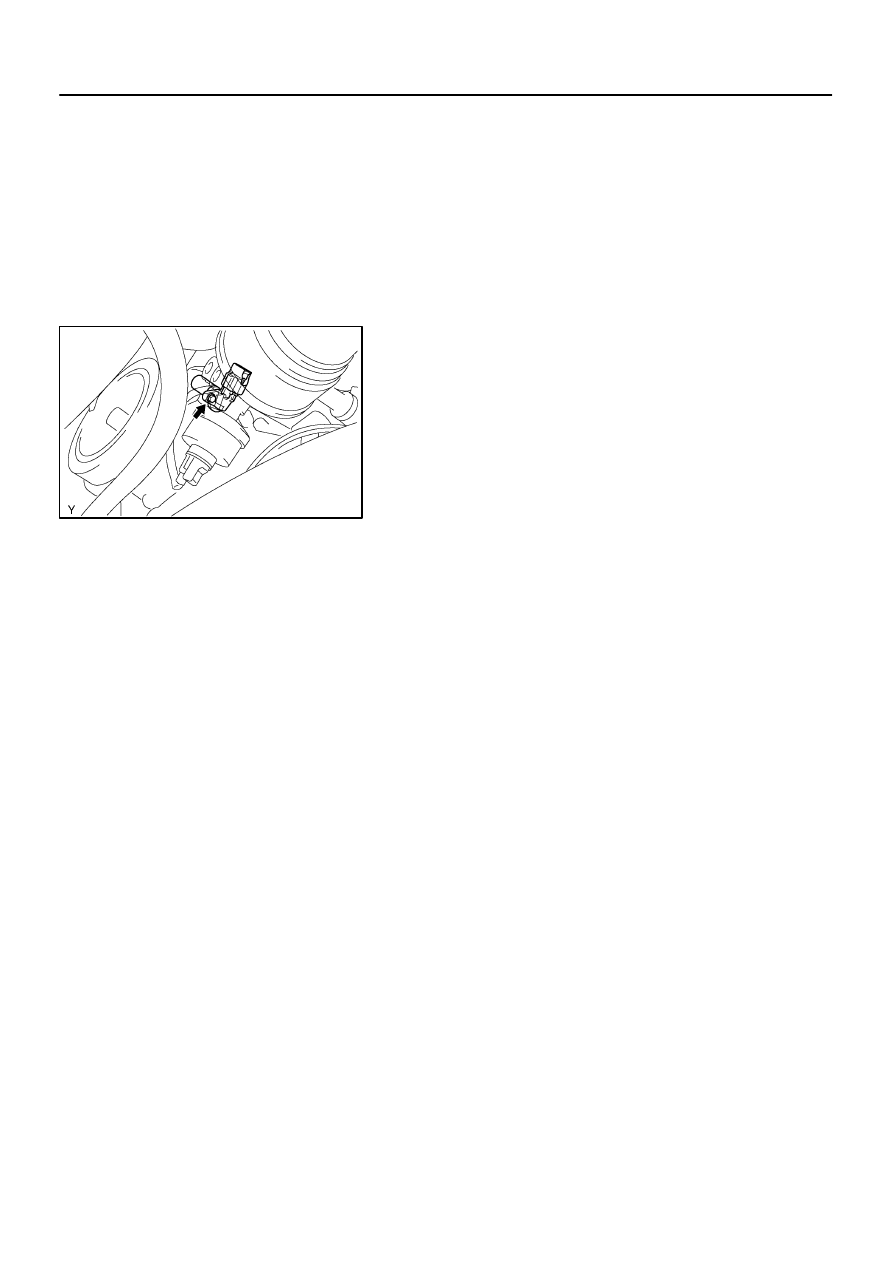

REMOVE CRANKSHAFT POSITION SENSOR

(a)

Disconnect the crankshaft position sensor connector.

(b)

Remove the bolt and crankshaft position sensor.
