FUEL PUMP

SF–19

2753

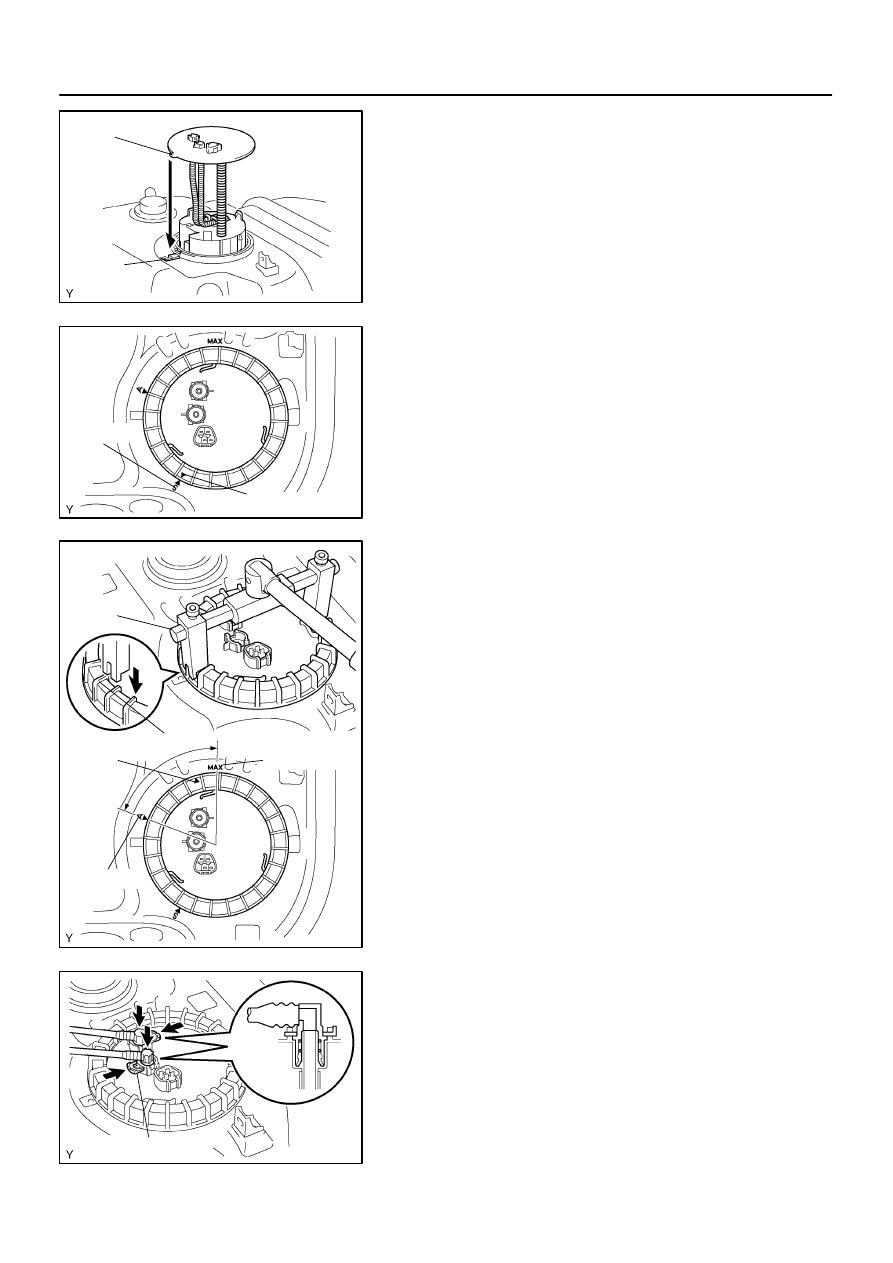

INSTALLATION

1.

INSTALL FUEL PUMP ASSEMBLY

(a)

Install a new gasket to the fuel tank.

(b)

Install the fuel pump assembly to the fuel tank.

NOTICE:
Be careful not to bend the arm of the fuel sender gauge.
(c)

Align the keyway of the fuel suction tube support with the
key of the fuel suction plate No.1.

(d)

Apply MP grease to the entire interior surface of the fuel
pump gauge retainer.

(e)

Align the triangle mark on the new fuel pump gauge re-
tainer with the ”S” mark on the fuel tank while pushing
down the fuel suction tube. Attach the fuel pump gauge
retainer.

(f)

Rotate the fuel pump gauge retainer by hand. Use an SST
to tighten the fuel pump gauge retainer by turning it one
and a half times. The triangle mark on the fuel pump
gauge retainer must be positioned between the ”A” and
”MAX.” marks on the fuel tank.
SST

09808–14020 (09808–01410, 09808–01420,
09808–01430)

NOTICE:
Do not use other tools in this operation. Damage to the fuel
pump gauge retainer and the fuel tank may result.
HINT:
A rib on the fuel pump gauge retainer fits into a tip of the SST.

2.

CONNECT FUEL SUCTION TUBE

Connect the fuel pump tube and return tube to the fuel tank with
the tube joint clips.

SF–20

–

SFI

FUEL PUMP

2754

NOTICE:

Check that there are no scratches or foreign objects
on the connecting part.

Check that the fuel tube joint is inserted securely.

Check that the tube joint clip is on the collar of the fuel
tube joint.

After installing the tube joint clip, check that the fuel
tube joint has not been pulled off.

3.

CHECK FOR FUEL LEAKS

4.

INSTALL FUEL TANK ASSEMBLY (See page

SF–36

)

SF0XZ–14

B17758

Vacuum Hose

Fuel Pressure Regulator

N·m (kgf·cm, ft·lbf)

 Non–reusable part

: Specified torque

 O–Ring

Fuel Return Hose

7.5 (80, 66 in.·lbf)

–

SFI

FUEL PRESSURE REGULATOR

SF–21

2755

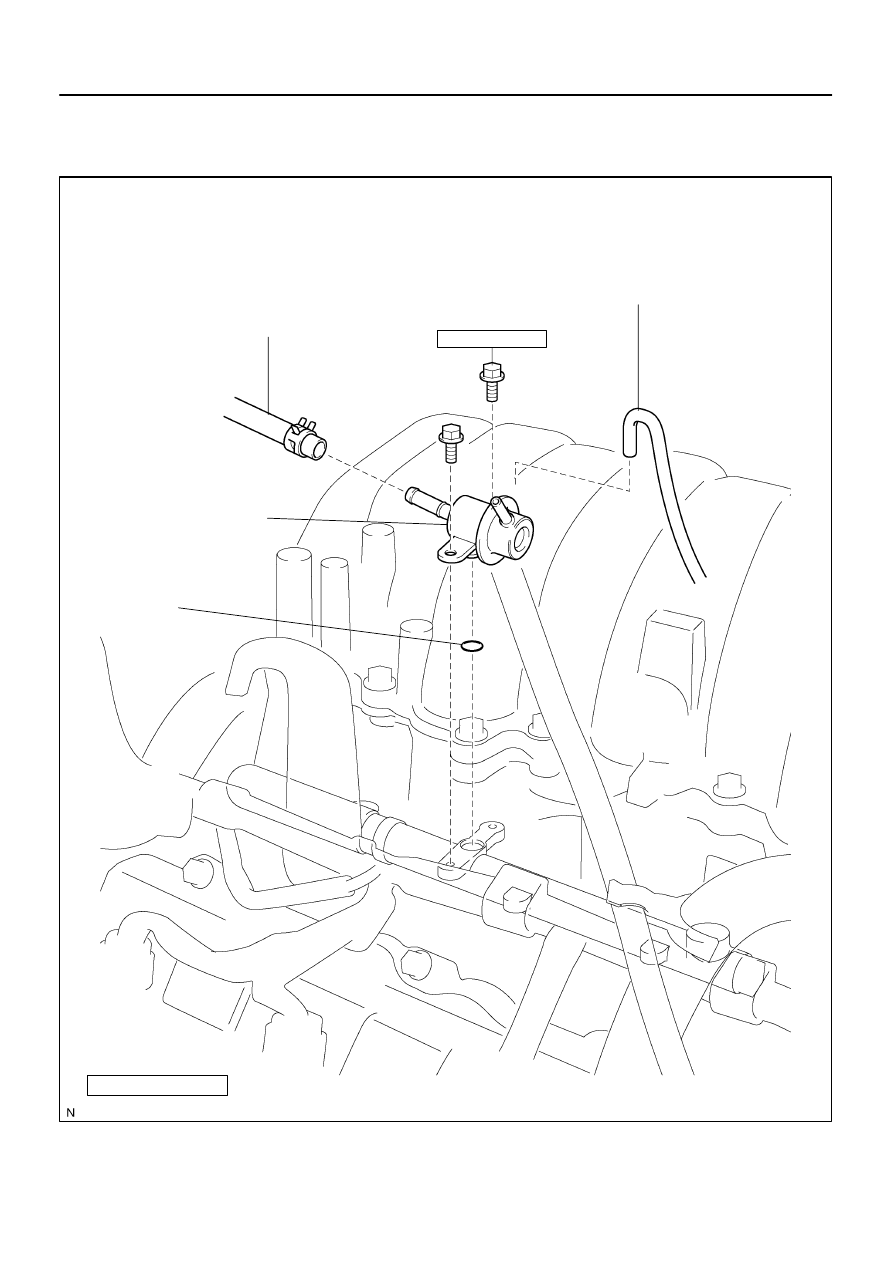

FUEL PRESSURE REGULATOR

COMPONENTS

B07053

Vacuum Hose

Fuel Return Hose

SF0Y0–10

B17759

SF–22

–

SFI

FUEL PRESSURE REGULATOR

2756

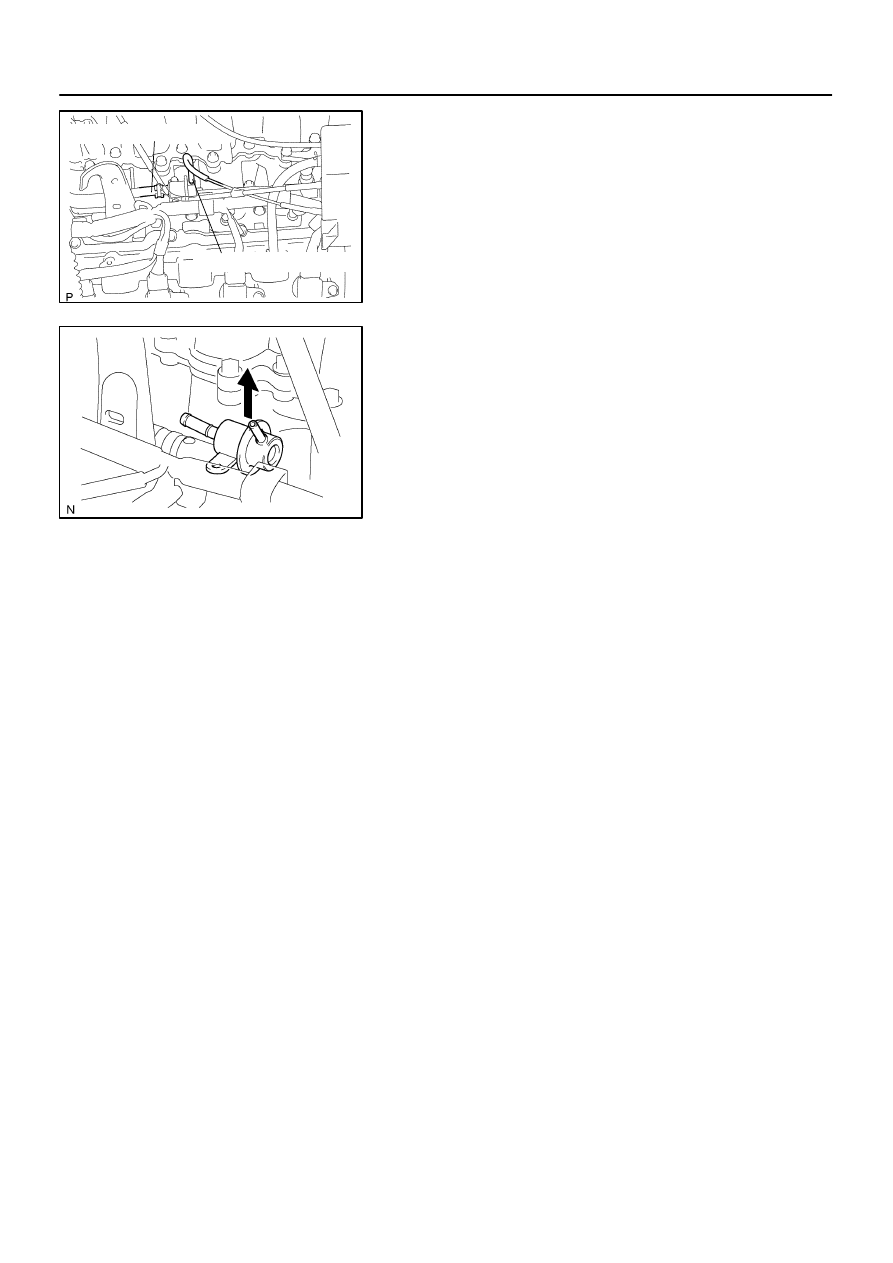

REMOVAL

REMOVE FUEL PRESSURE REGULATOR
(a)

Disconnect the vacuum hose from intake air resonator.

(b)

Disconnect the fuel return hose from the pressure regula-
tor.

CAUTION:
Put a shop towel under the pressure regulator.

(c)

Remove the 2 bolts, and pull out the pressure regulator.

(d)

Remove the O–ring from the pressure regulator.
