Toyota Sequoia (2005). Manual - part 689

SF130–04

B17536

Tube Joint Clip

B17537

Nylon Tube

Fuel Tube Joint

O–Ring

Tube Joint Clip

B17538

SST

Rib

–

SFI

FUEL PUMP

SF–11

2745

REMOVAL

1.

REMOVE FUEL TANK ASSEMBLY (See page

SF–34

)

2.

DISCONNECT FUEL SUCTION TUBE

Remove the 2 tube clips, and pull out the 2 fuel tubes.

NOTICE:

Before this operation, check the connector for dirt,
mud or other contamination. Clean if necessary.

Be careful of mud. The connector’s O–ring, which
seals the pipe and connector, is easily contaminated.

Do not use any tool in this operation.

Do not bend or twist the nylon tube. Protect the con-
nector by covering it with a plastic bag.

When the pipe and connector are stuck, push and pull
the connector to release and pull the connector out
carefully.

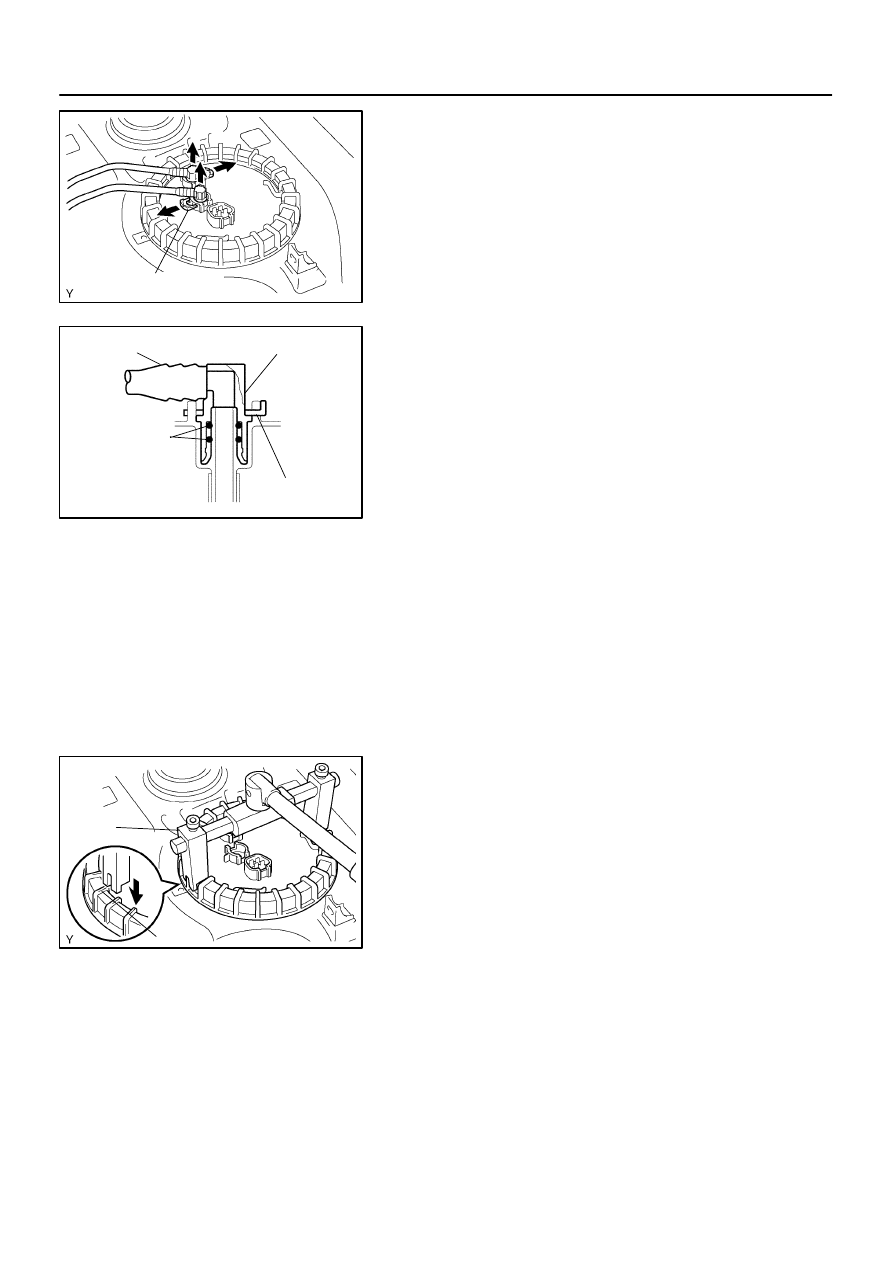

3.

REMOVE FUEL PUMP ASSEMBLY

(a)

Using SST, loosen the fuel pump gauge retainer.
SST

09808–14020 (09808–01410, 09808–01420,
09808–01430)

HINT:
A rib on the fuel pump gauge retainer fits into a tip of the SST.
(b)

Remove the fuel pump gauge retainer.

(c)

Remove the fuel suction tube.

NOTICE:
Be careful not to bend the arm of the fuel sender gauge.
(d)

Remove the gasket from the fuel tank.

SF1XE–01

B17539

B17540

Unlock

Slide

(a)

B17543

B17544

B17608

SF–12

–

SFI

FUEL PUMP

2746

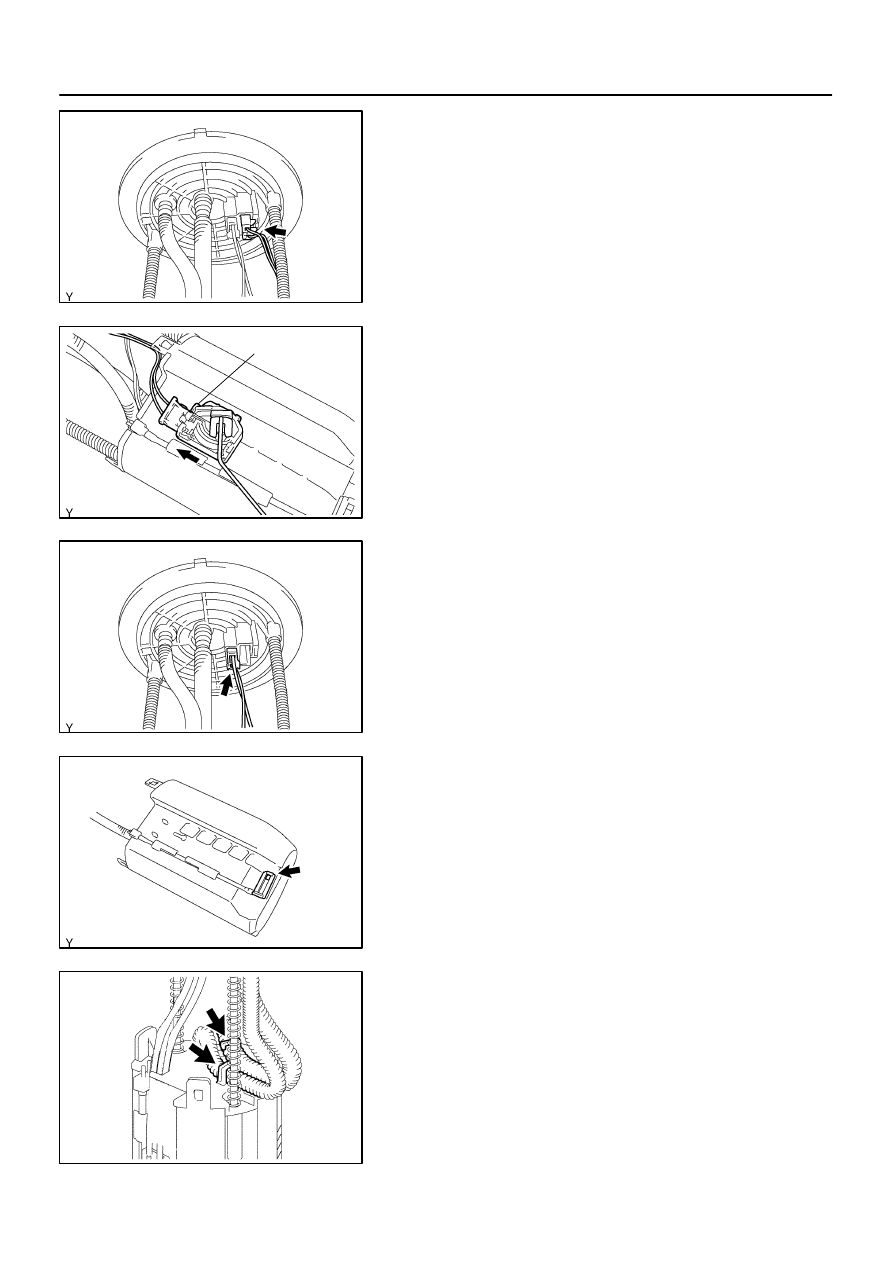

DISASSEMBLY

1.

REMOVE FUEL SENDER GAUGE

(a)

Disconnect the sender gauge connector from the fuel
suction plate No.1.

(b)

Unlock the fuel sender gauge and slide to remove.

2.

REMOVE FUEL SUB–TANK

(a)

Disconnect the fuel pump harness connector from the
fuel suction plate No.1.

(b)

Disconnect the suction filter hose from the fuel sub–tank.

(c)

Disconnect the 2 tubes from the tube clamps.

B17541

B17545

B17546

B17609

B17548

–

SFI

FUEL PUMP

SF–13

2747

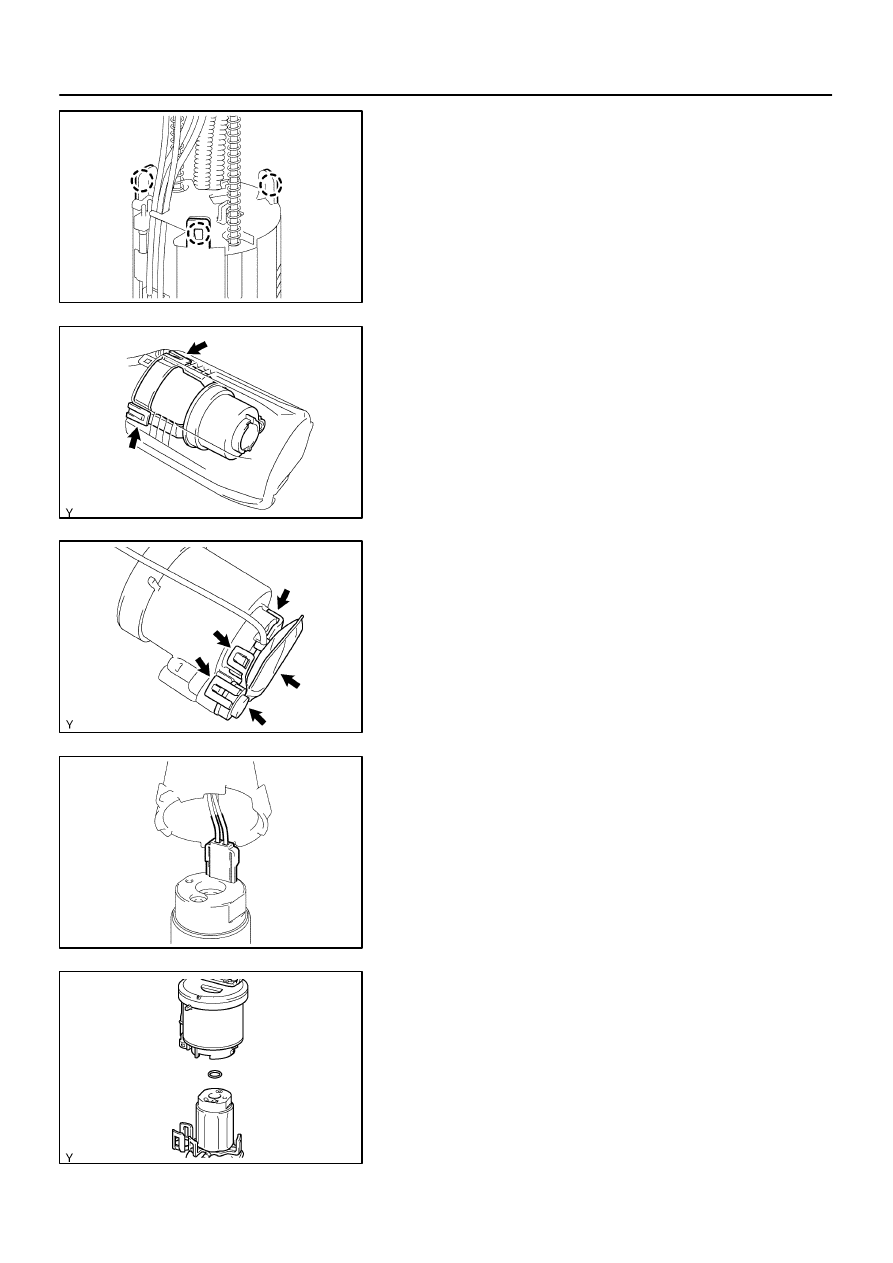

(d)

Using a screwdriver with the tip wrapped in tape, discon-
nect the 3 snap–claws from the fuel suction support No.2.

NOTICE:
Do not damage the fuel suction plate No.2 or fuel sub–tank.
(e)

Disconnect the fuel suction plate No.1 with the fuel filter
assembly from the fuel sub–tank.

3.

REMOVE FUEL FILTER WITH FUEL PUMP

(a)

Using a screwdriver with the tip wrapped in tape, discon-
nect the 2 snap–claws from the fuel suction support.

NOTICE:
Do not damage the fuel filter assembly or fuel suction sup-
port.
(b)

Remove the fuel filter assembly with fuel pump from the
fuel suction support.

4.

REMOVE FUEL PUMP

(a)

Using a screwdriver with the tip wrapped in tape, discon-
nect the 5 snap–claws from the suction filter.

NOTICE:
Do not damage the fuel filter assembly or suction filter.
(b)

Remove the fuel suction filter with fuel pump from the fuel
filter.

(c)

Disconnect the fuel pump harness from the fuel pump.

(d)

Remove the O–ring from the fuel pump.

B17549

SF–14

–

SFI

FUEL PUMP

2748

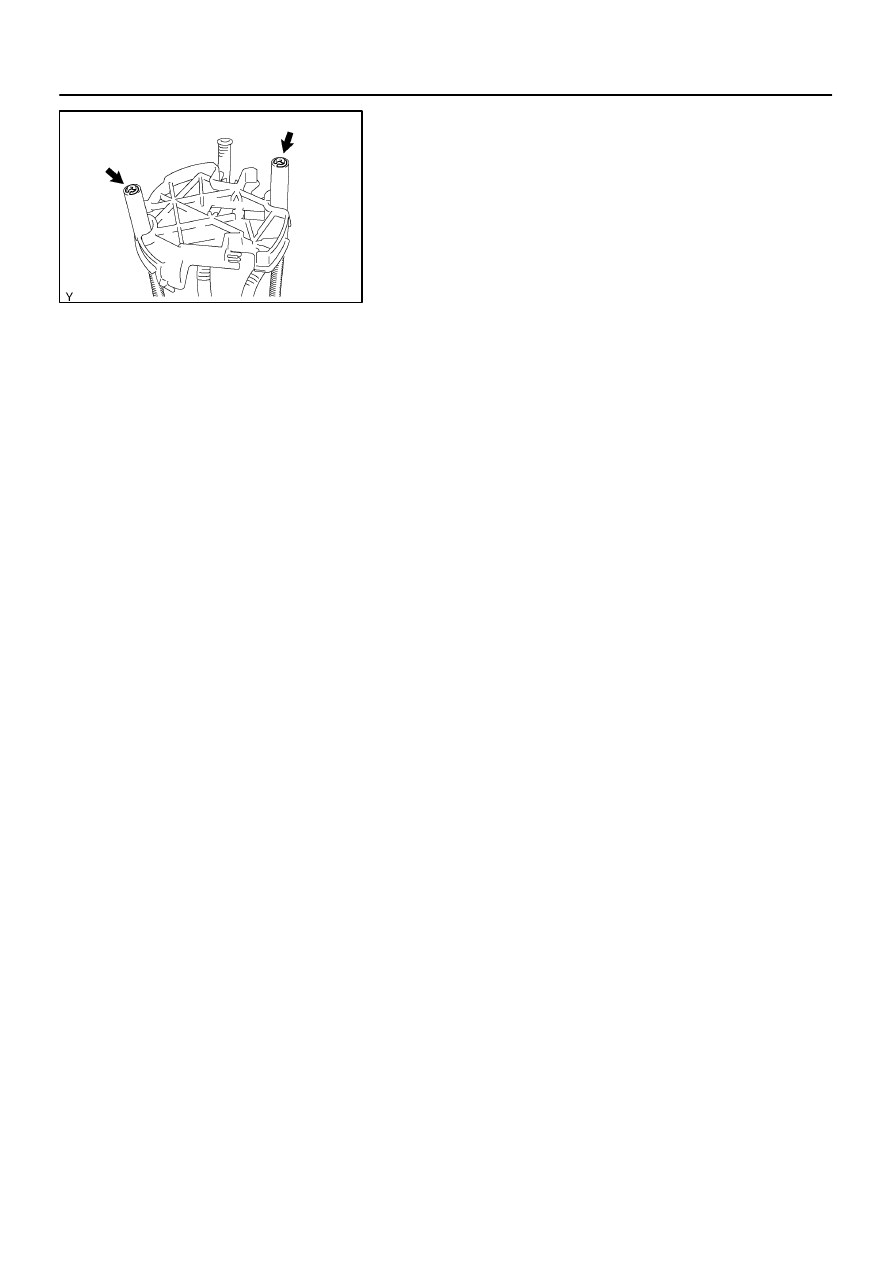

5.

REMOVE FUEL SUCTION PLATE NO.2

(a)

Using a screwdriver, remove the 2 E–rings from the suc-
tion plate No.2.

(b)

Remove the suction plate No.2 and 2 springs from the fuel
suction plate No.1.
