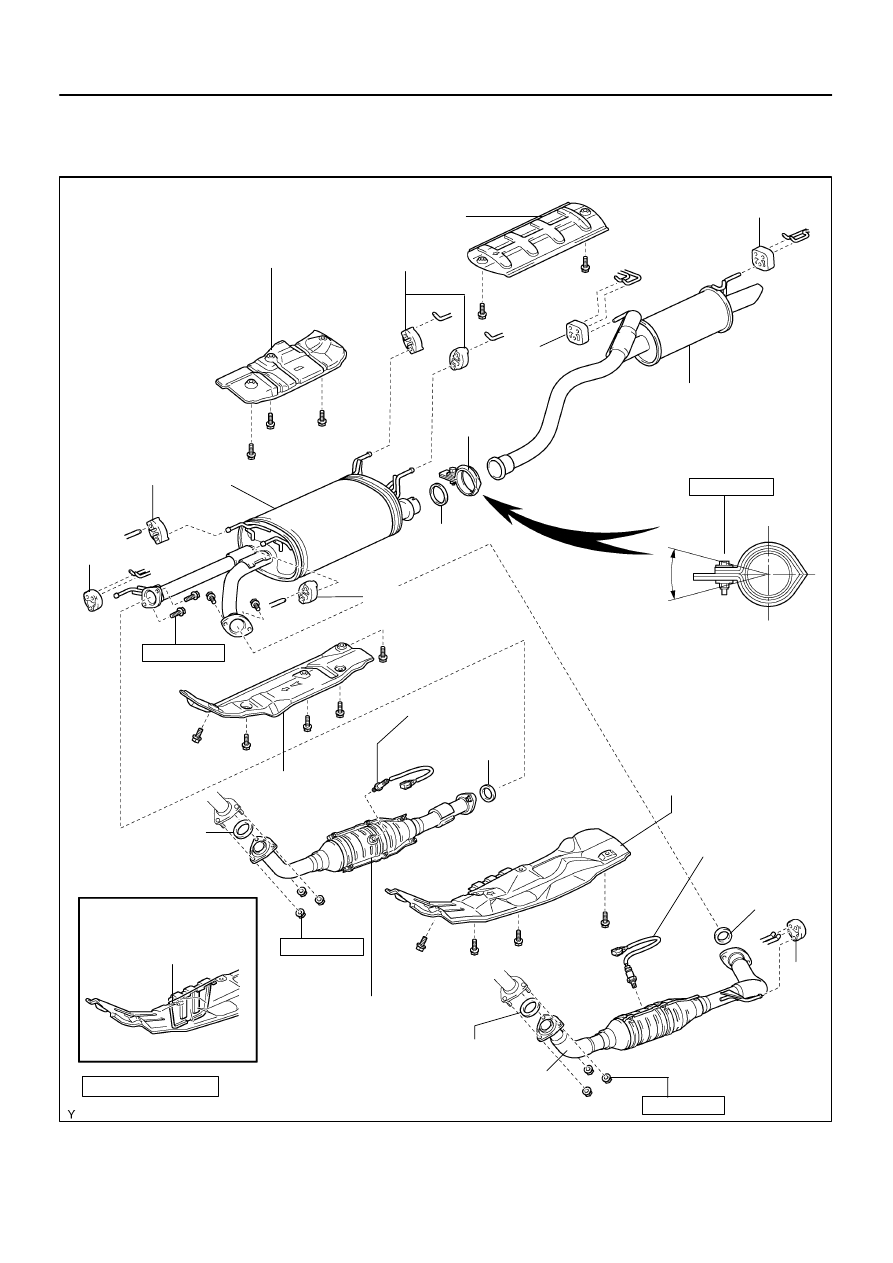

COMPONENTS

EM1X4–01

A23379

A23380

A23381

A23382

A23383

–

ENGINE MECHANICAL

EXHAUST SYSTEM

EM–127

2706

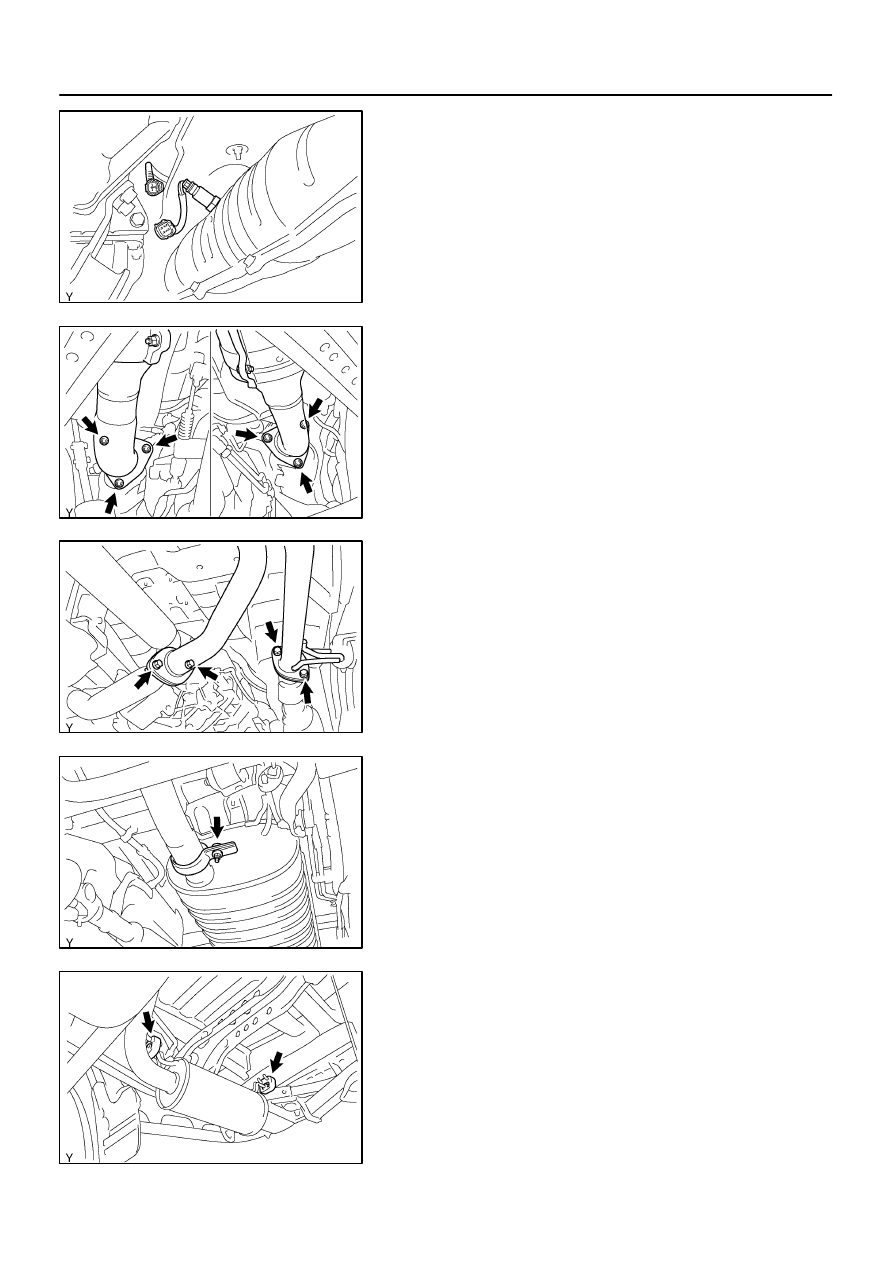

REMOVAL

1.

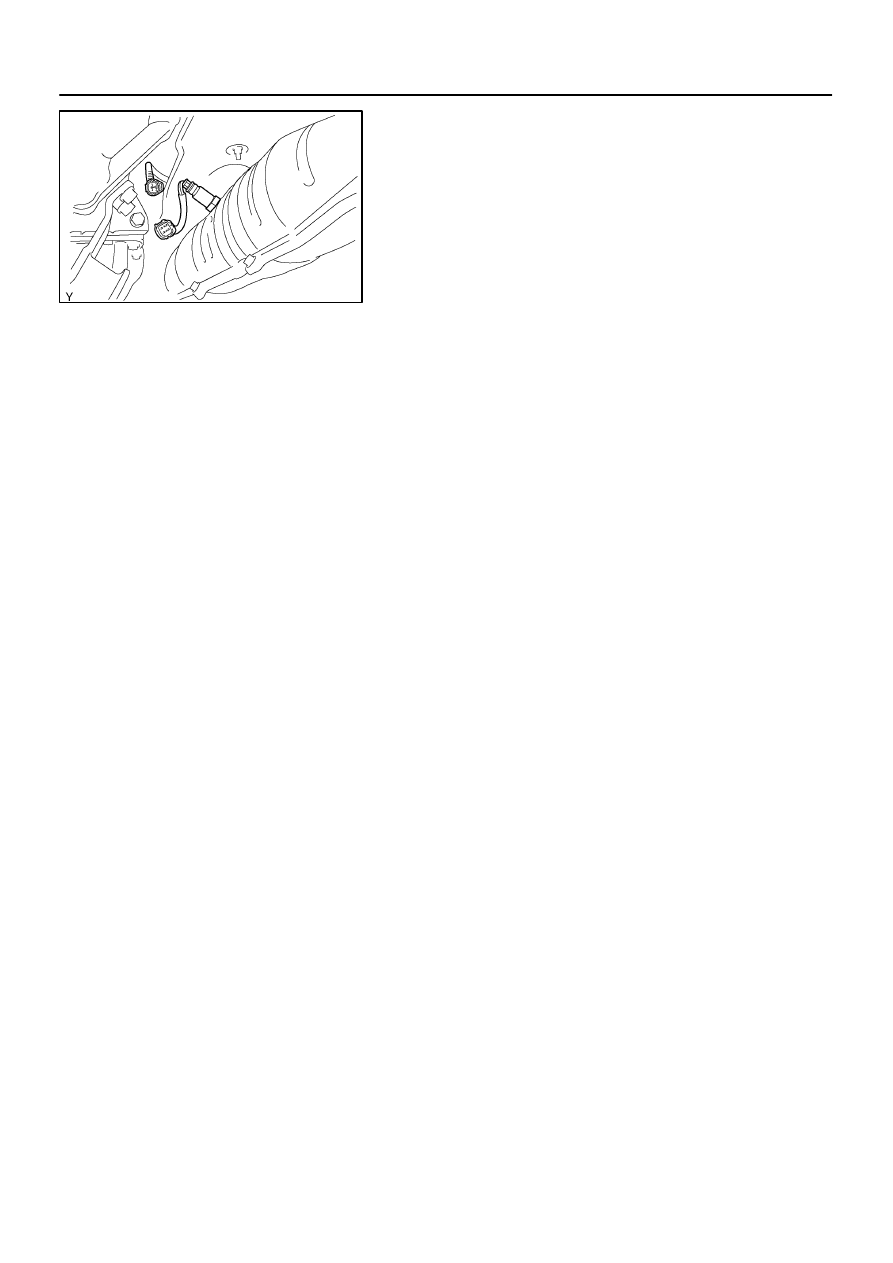

REMOVE HEATED OXYGEN SENSORS

(a)

Disconnect the heated oxygen sensor.

(b)

Remove the heated oxygen sensor.

2.

REMOVE RH AND LH FRONT EXHAUST PIPES

(a)

Remove the 6 nuts and 2 gaskets, and disconnect the
front exhaust pipes from the exhaust manifold.

(b)

Remove the 4 bolts, 2 gaskets and 2 front exhaust pipes
from the center exhaust pipe.

3.

REMOVE CENTER EXHAUST PIPE

(a)

Loosen the clamp bolt, disconnect the center exhaust
pipe and remove the gasket from the exhaust tail pipe.

(b)

Remove the 5 rings and center exhaust pipe.

4.

REMOVE EXHAUST TAIL PIPE

Remove the 2 rings and exhaust tail pipe.
5.

REMOVE HEAT INSULATOR

(a)

Remove the 5 bolts and No.1 heat insulator.

(b)

Remove the 4 bolts and No.2 heat insulator.

(c)

Remove the 3 bolts and No.3 heat insulator.

(d)

Remove the 2 bolts and No.4 heat insulator.

EM1X5–01

A23383

A23382

A23380

A23381

EM–128

–

ENGINE MECHANICAL

EXHAUST SYSTEM

2707

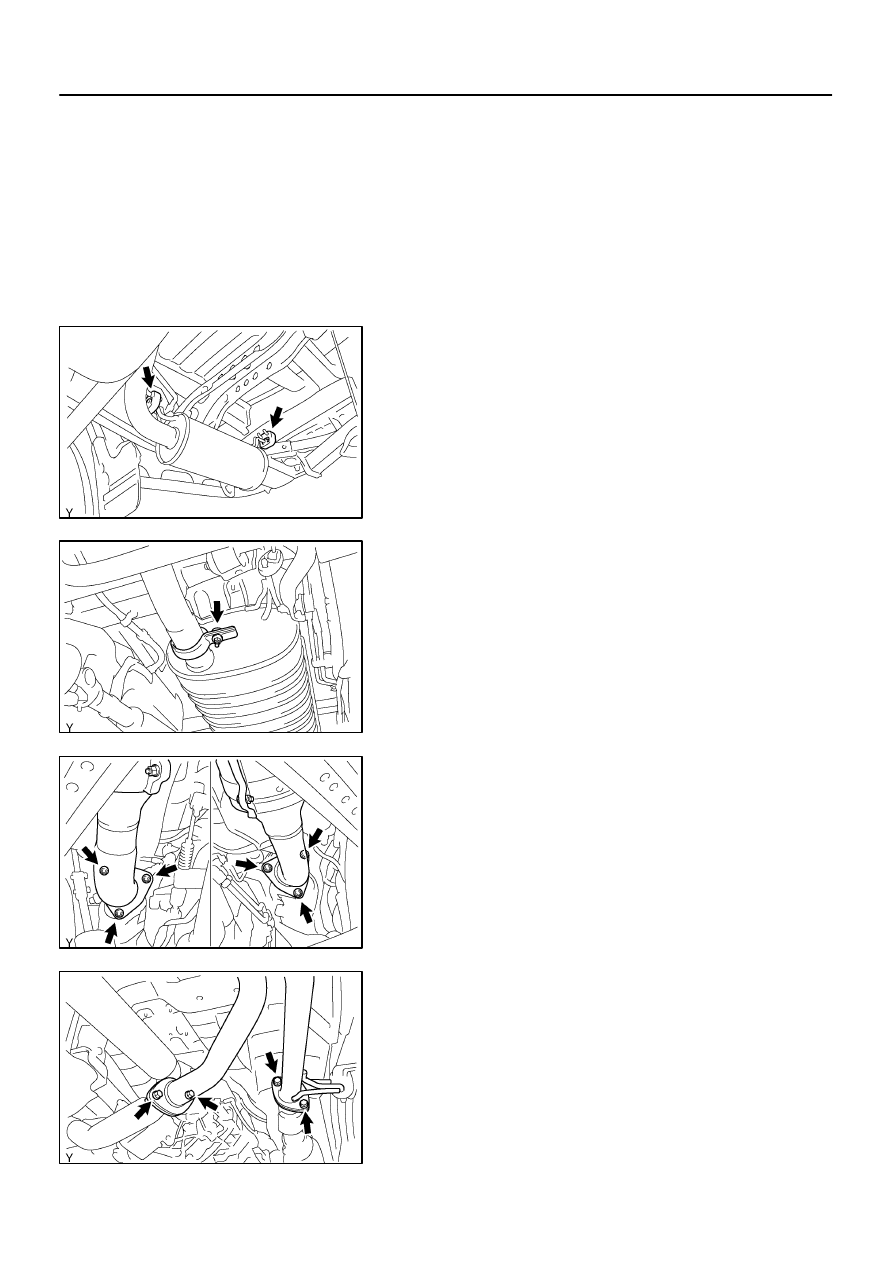

INSTALLATION

1.

INSTALL HEAT INSULATOR

(a)

Install the No.1 heat insulator with the 5 bolts.

(b)

Install the No.2 heat insulator with the 4 bolts.

(c)

Install the No.3 heat insulator with the 3 bolts.

(d)

Install the No.4 heat insulator with the 2 bolts.

2.

INSTALL EXHAUST TAIL PIPE

(a)

Install the 2 rings and exhaust tail pipe.

3.

INSTALL CENTER EXHAUST PIPE

(a)

Install the 5 rings and center exhaust pipe.

(b)

Install a new gasket and connect the center exhaust pipe
to the exhaust tail pipe with a new clamp.
Torque: 32 N·m (326 kgf·cm, 24 ft·lbf)

4.

INSTALL RH AND LH FRONT EXHAUST PIPES

(a)

Install 2 new gaskets and connect the 2 front exhaust
pipes with the 6 nuts to the exhaust manifold.
Torque: 62 N·m (632 kgf·cm, 46 ft·lbf)

(b)

Install 2 new gaskets and connect the 2 front exhaust pipe
with the 4 bolts to the center exhaust pipe.
Torque: 48 N·m (489 kgf·cm, 35 ft·lbf)

A23379

–

ENGINE MECHANICAL

EXHAUST SYSTEM

EM–129

2708

5.

INSTALL HEATED OXYGEN SENSORS

(a)

Install the heated oxygen sensor.
Torque: 44 N·m (450 kgf·cm, 33 ft·lbf)

(b)

Connect the heated oxygen sensor connector.
