Toyota Sequoia (2005). Manual - part 596

DIDBY–01

I28218

I28225

I28226

PKB                 OFF

REV                 OFF

SPEED        49km/h

TAIL                 OFF

–

DIAGNOSTICS

NAVIGATION SYSTEM

DI–2179

2373

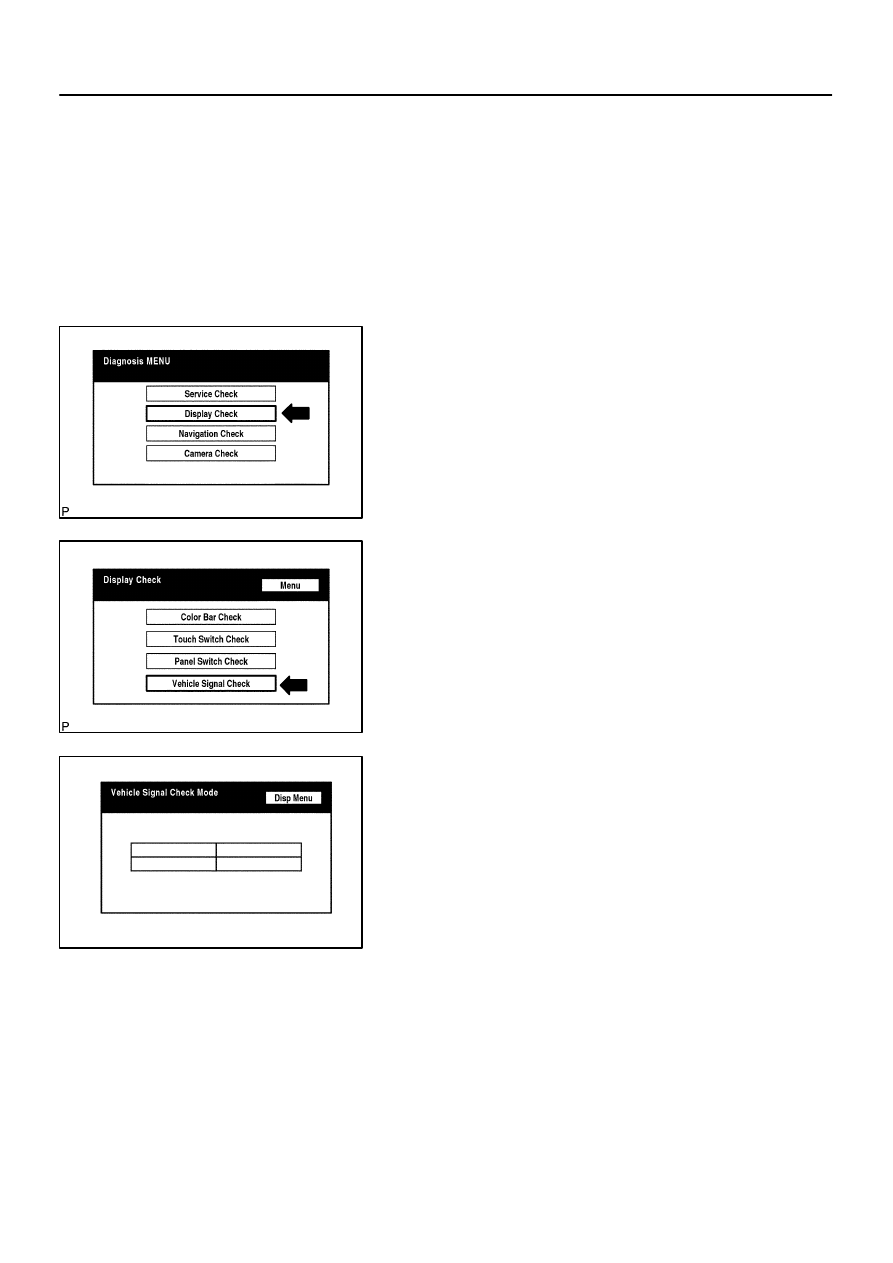

DISPLAY CHECK MODE (Vehicle Signal Check)

HINT:

This mode checks the vehicle signal status input to the radio and navigation assy.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1.

Enter diagnostic mode (See page

DI–2191

).

2.

Select ”Display Check” from the ”Diagnosis MENU”
screen.

3.

Select ”Vehicle Signal Check” from the ”Display
Check” screen.

4.

When the ”Vehicle Signal Check Mode” screen is dis-
played, check all the vehicle signal conditions.

HINT:

Only conditions having inputs are displayed.

This screen is updated once per second when input sig-
nals to the vehicle are changed.

DIDBZ–01

I28227

I28228

I28229

DI–2180

–

DIAGNOSTICS

NAVIGATION SYSTEM

2374

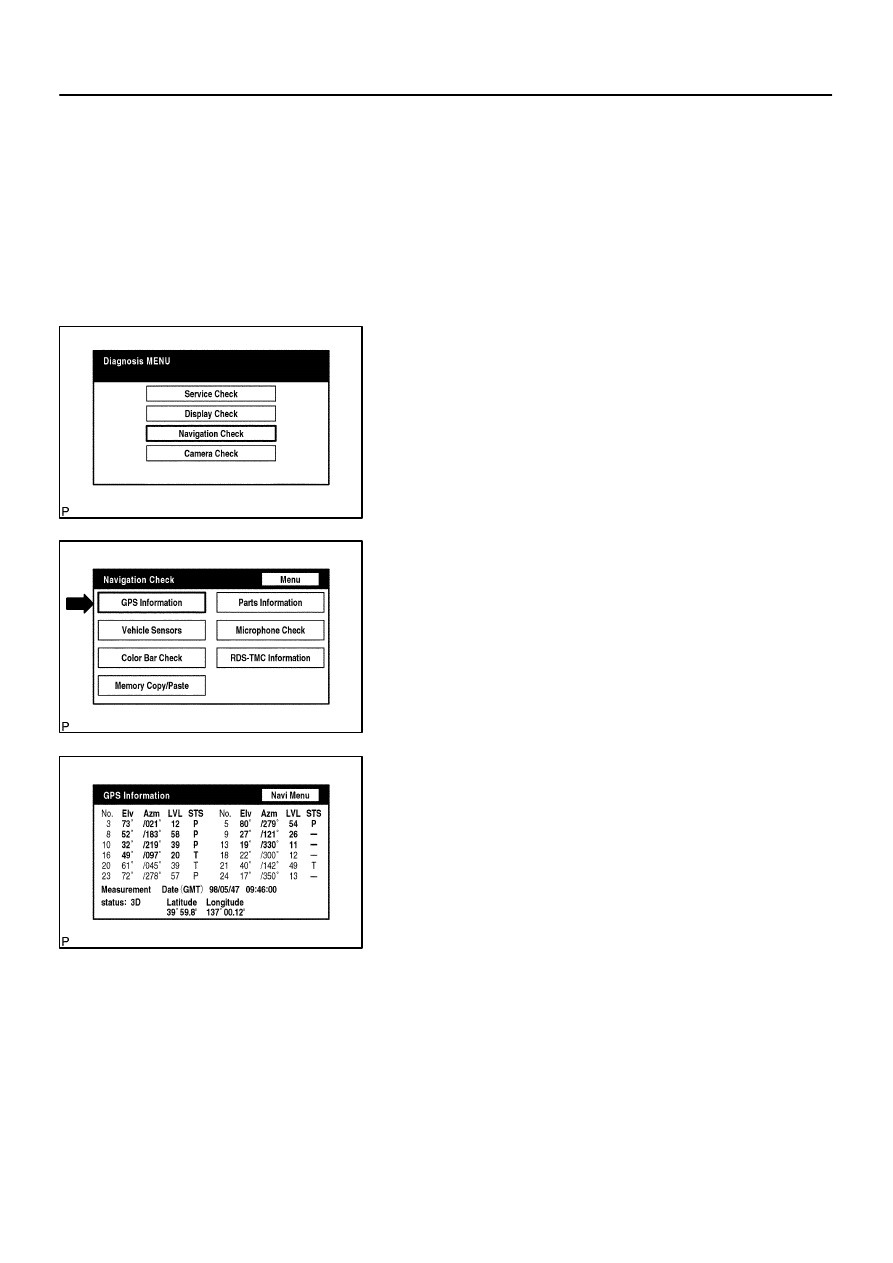

NAVIGATION CHECK MODE (GPS Information)

HINT:

This mode displays GPS satellite information.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1.

Enter diagnostic mode (See page

DI–2191

).

2.

Select ”Navigation Check” from the ”Diagnosis
MENU” screen.

3.

Select ”GPS Information” from the ”Navigation
Check” screen.

4.

When GPS information is displayed, check the GPS
conditions.

HINT:
This screen is updated once per second when input signals to
the vehicle are changed.

DIDC0–01

I28227

I28230

I28231

–

DIAGNOSTICS

NAVIGATION SYSTEM

DI–2181

2375

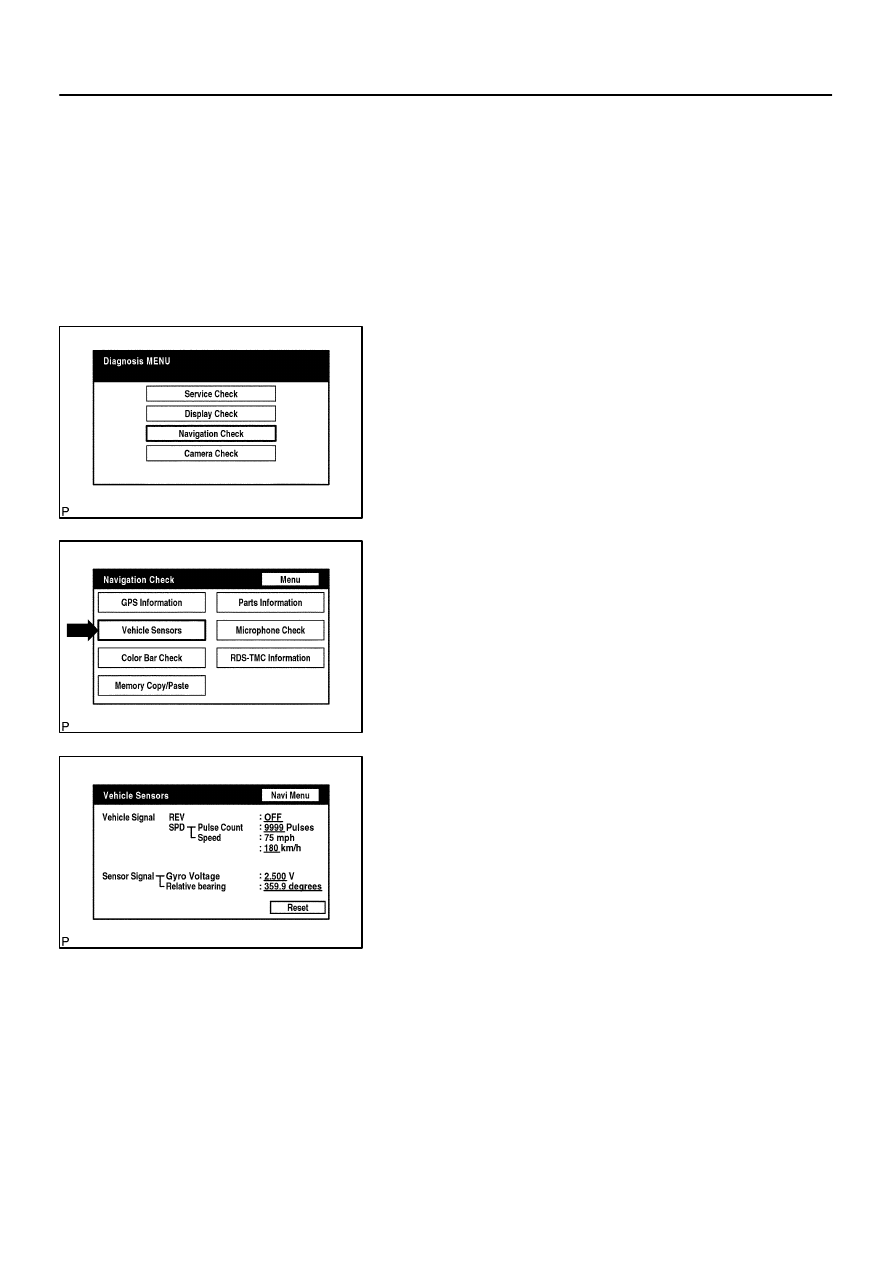

NAVIGATION CHECK MODE (Vehicle Sensors)

HINT:

This mode checks the vehicle signal status input to the radio and navigation assy.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1.

Enter diagnostic mode (See page

DI–2191

).

2.

Select ”Navigation Check” from the ”Diagnosis
MENU” screen.

3.

Select ”Vehicle Sensors” from the ”Navigation
Check” screen.

4.

Check all the signals and sensors when vehicle sig-
nal information is displayed.

HINT:
This screen is updated once per second when input signals to
the vehicle are changed.

DIDC1–01

I28227

I28232

I28233

DI–2182

–

DIAGNOSTICS

NAVIGATION SYSTEM

2376

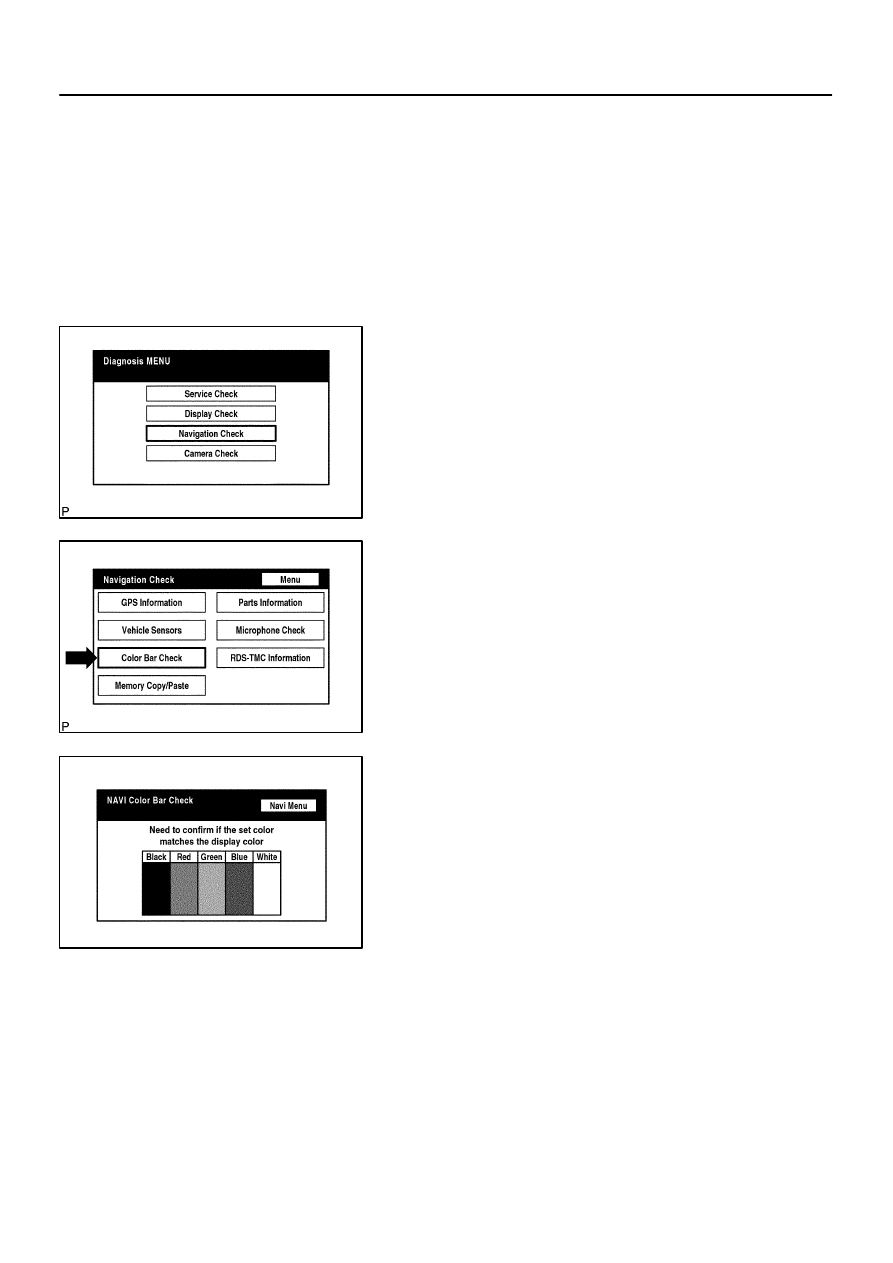

NAVIGATION CHECK MODE (Navi Color Bar Check)

HINT:

This mode checks the color display on the radio and navigation assy.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1.

Enter diagnostic mode (See page

DI–2191

).

2.

Select ”Navigation Check” from the ”Diagnosis
MENU” screen.

3.

Select ”Color Bar Check” from the ”Navigation
Check” screen.

4.

Check each color of the color bar when the ”NAVI Col-
or Bar Check” screen is displayed.

HINT:
Colors will not be displayed full–screen as in ”Display Check
Mode”.
