DIAGNOSTICS

TIRE PRESSURE WARNING SYSTEM

DI–847

1041

DTC

C2165/65 Abnormal Temperature Inside ID1 Tire

DTC

C2166/66 Abnormal Temperature Inside ID2 Tire

DTC

C2167/67 Abnormal Temperature Inside ID3 Tire

DTC

C2168/68 Abnormal Temperature Inside ID4 Tire

DTC

C2169/69 Abnormal Temperature Inside ID5 Tire

CIRCUIT DESCRIPTION

The tire pressure monitor valve sub–assy measures tire internal temperature as well as tire pressure, and
transmits the information to the tire pressure monitor receiver along with the transmitter ID. If the measured
temperature is out of the specified range, the tire pressure monitor ECU recognizes it as a malfunction, out-
puts DTCs, and blinks the tire pressure warning lamp.

DTC No.

DTC Detecting Condition

Trouble Area

C2165/65
C2166/66
C2167/67
C2168/68
C2169/69

Temperature inside the tire exceeds 119



C (246.2



F) more

than once.

Tire pressure monitor valve sub–assy

Tire pressure monitor ECU

Tire pressure monitor receiver assy

HINT:
It is necessary to perform the procedure to identify the tire pressure monitor valve sub–assy that is malfunc-
tioning because it cannot be identified by the output DTC.

DIDKA–01

DI–848

–

DIAGNOSTICS

TIRE PRESSURE WARNING SYSTEM

1042

INSPECTION PROCEDURE

NOTICE:
It is necessary to register an ID code after replacing the tire pressure monitor valve sub–assy and/or
the tire pressure monitor ECU (see page

DI–805

).

HINT:
Set the tire pressure to the specified value.

1

Check tire pressure warning lamp.

PREPARATION:
Turn the ignition switch to the ON position.
CHECK:
Check the tire pressure warning lamp.
RESULT:

Does not blink

A

Comes on and goes off repeatedly at 0.5 second intervals

B

B

Go to step 6.

A

2

Identify transmitter corresponding to DTC (See page

DI–881

).

NEXT

3

Adjust tire pressure to the specified value.

Tire size

Front

Rear

Spare

P245 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

P265 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

P265 / 65 R 17

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

NEXT

4

Clear DTC (See page

DI–820

).

NEXT

–

DIAGNOSTICS

TIRE PRESSURE WARNING SYSTEM

DI–849

1043

5

Check DTC (See page

DI–820

).

CHECK:
Check for a DTC.
OK:

DTC is not output.

HINT:

If the result is OK, replace the tire pressure monitor valve sub–assy specified in STEP 2.

Register the transmitter ID after replacement and then set the tire pressure to the specified value.

NG

Go to step 11.

OK

Replace tire pressure monitor valve sub–
assy (See page

SA–13

).

6

Identify transmitter corresponding to DTC (See page

DI–881

).

NEXT

7

Adjust tire pressure to the specified value.

Tire size

Front

Rear

Spare

P245 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

P265 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

P265 / 65 R 17

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

NEXT

8

Replace tire pressure monitor valve sub–assy (See page

SA–16

).

PREPARATION:
Replace the identified tire pressure monitor valve sub–assy with a new one.
HINT:
Before installing a new tire pressure monitor valve sub–assy onto the wheel, read and write down its trans-
mitter ID.

NEXT

F19326

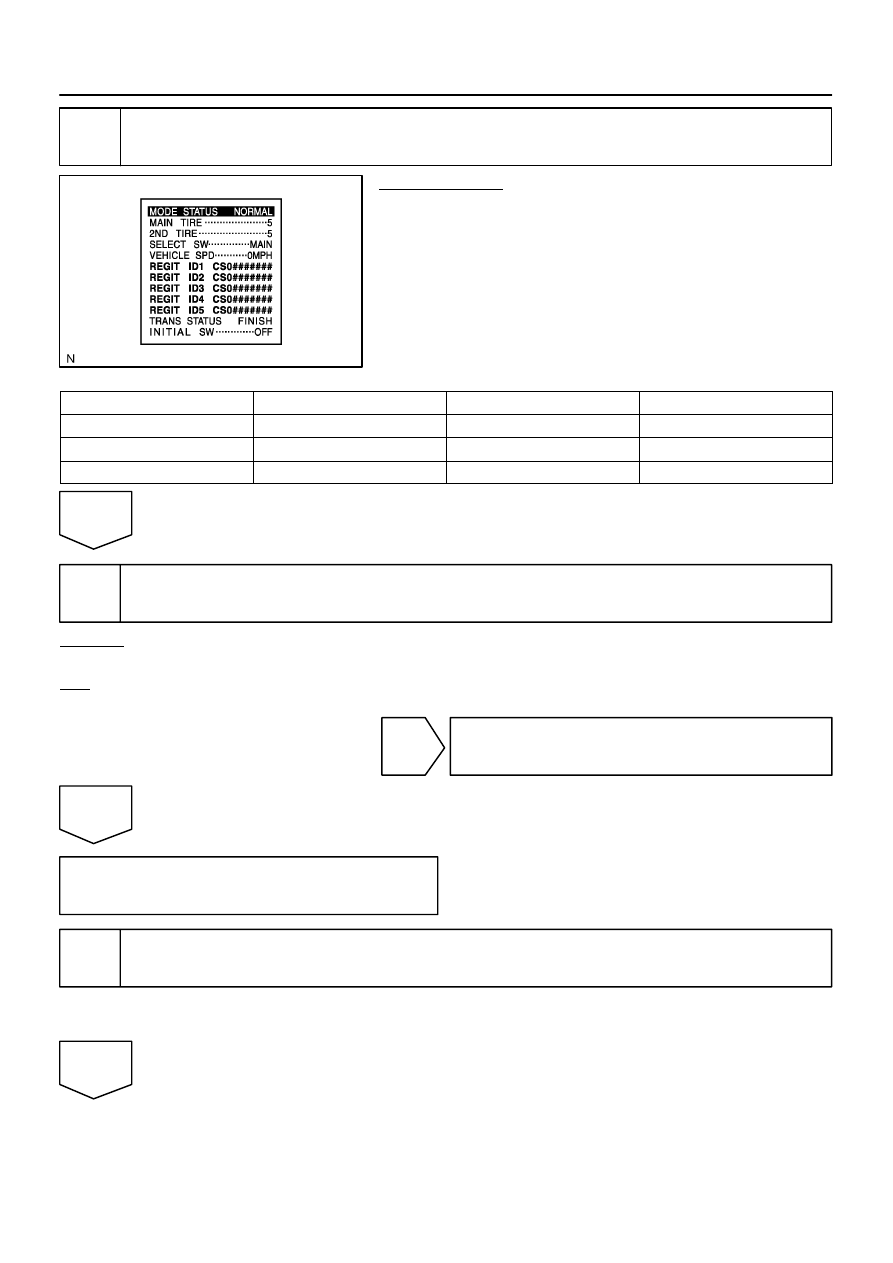

DATA LIST:

DI–850

–

DIAGNOSTICS

TIRE PRESSURE WARNING SYSTEM

1044

9

Registration of transmitter ID (See page

DI–805

).

PREPARATION:
(a)

Confirm the transmitter ID on the DATA LIST.

(b)

Register the transmitter ID for all wheels.

(c)

Set the tire pressure to the specified value.

Tire size

Front

Rear

Spare

P245 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

240 kPa (2.4 kgf/cm

2

, 35 psi)

P265 / 70 R 16

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

P265 / 65 R 17

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

220 kPa (2.2 kgf/cm

2

, 32 psi)

NEXT

10

Check DTC (See page

DI–820

).

CHECK:
Check for a DTC.
OK:

DTC is not output.

NG

Go to step 11.

OK

End

11

Replace tire pressure monitor receiver assy (See page

SA–13

).

HINT:
Perform the inspection using parts from a normal vehicle when possible.

NEXT
