DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–531

725

(b)

When fluid overflows: [*2]
(1)

Install the overflow plug with a new gasket when the
draining ATF has become a trickle.

Torque: 20 N

⋅

m (204 kgf

⋅

cm, 15 ft

⋅

lbf)

(2)

Install the refill plug with a new O–ring.

Torque: 39 N

⋅

m (400 kgf

⋅

cm, 29 ft

⋅

lbf)

(3)

Lower down the vehicle.

(4)

Turn the ignition switch off and remove the SST.

(5)

Check for fluid leaks in the transmission.

If there are leaks, it is necessary to repair or replace O–rings,
FIPGs, oil seals, plugs or other related parts.

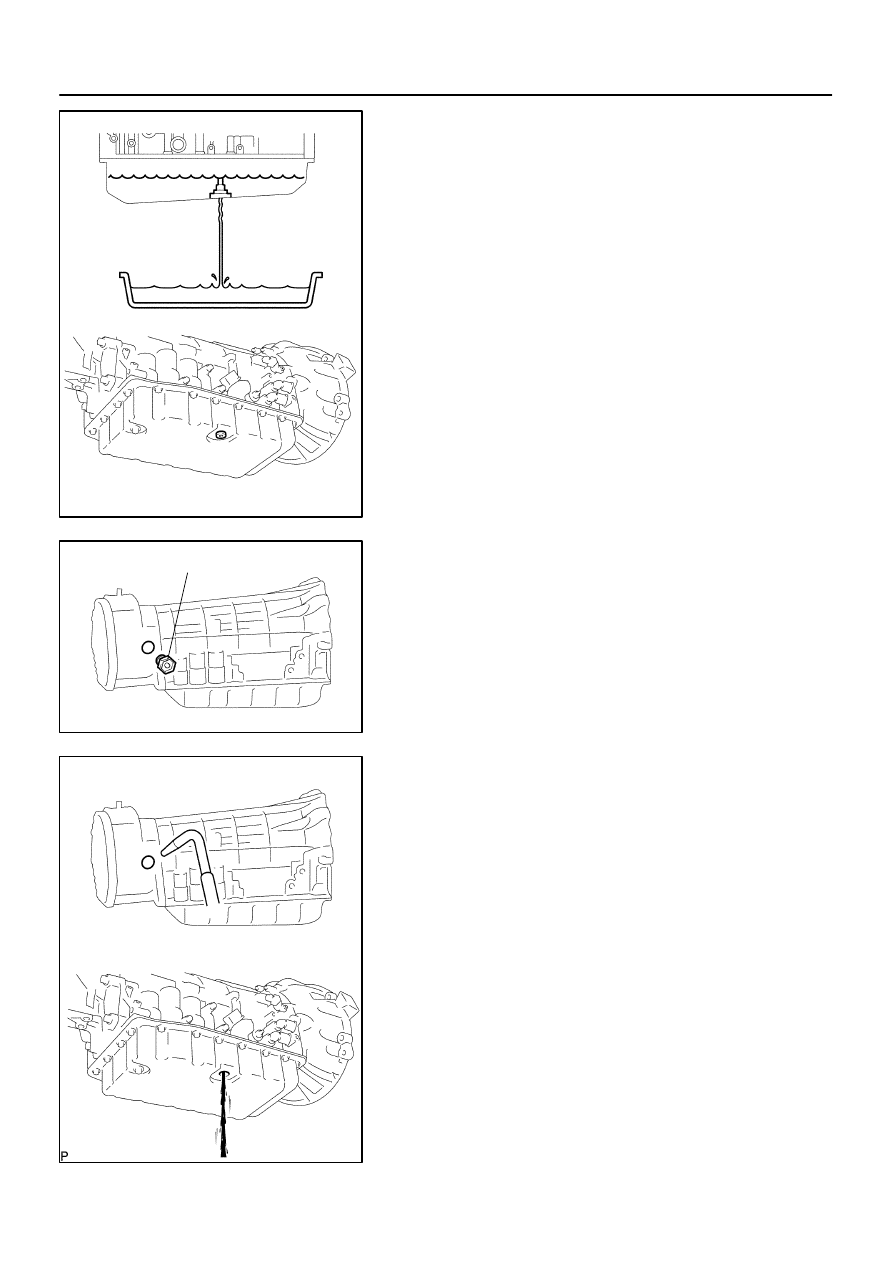

(c)

When fluid does not overflow:



[*3]

(1)

Remove the refill plug.

(2)

Add ATF through the refill hole until it drains out from
the overflow hole.

D14141

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15 16

D13649

DLC3:

CG

TC

D13654

DI–532

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

726

(3)

Install the overflow plug with a new gasket when the
draining ATF has becomes a trickle.

Torque: 20 N

⋅

m (204 kgf

⋅

cm, 15 ft

⋅

lbf)

(4)

Install the refill plug with a new O–ring.

Torque: 39 N

⋅

m (400 kgf

⋅

cm, 29 ft

⋅

lbf)

(5)

Lower down the vehicle.

(6)

Turn the ignition switch off.

(7)

Check for fluid leaks in the transmission.

If there are leaks, it is necessary to repair or replace O–rings,
FIPGs, oil seals, plugs or other related parts.

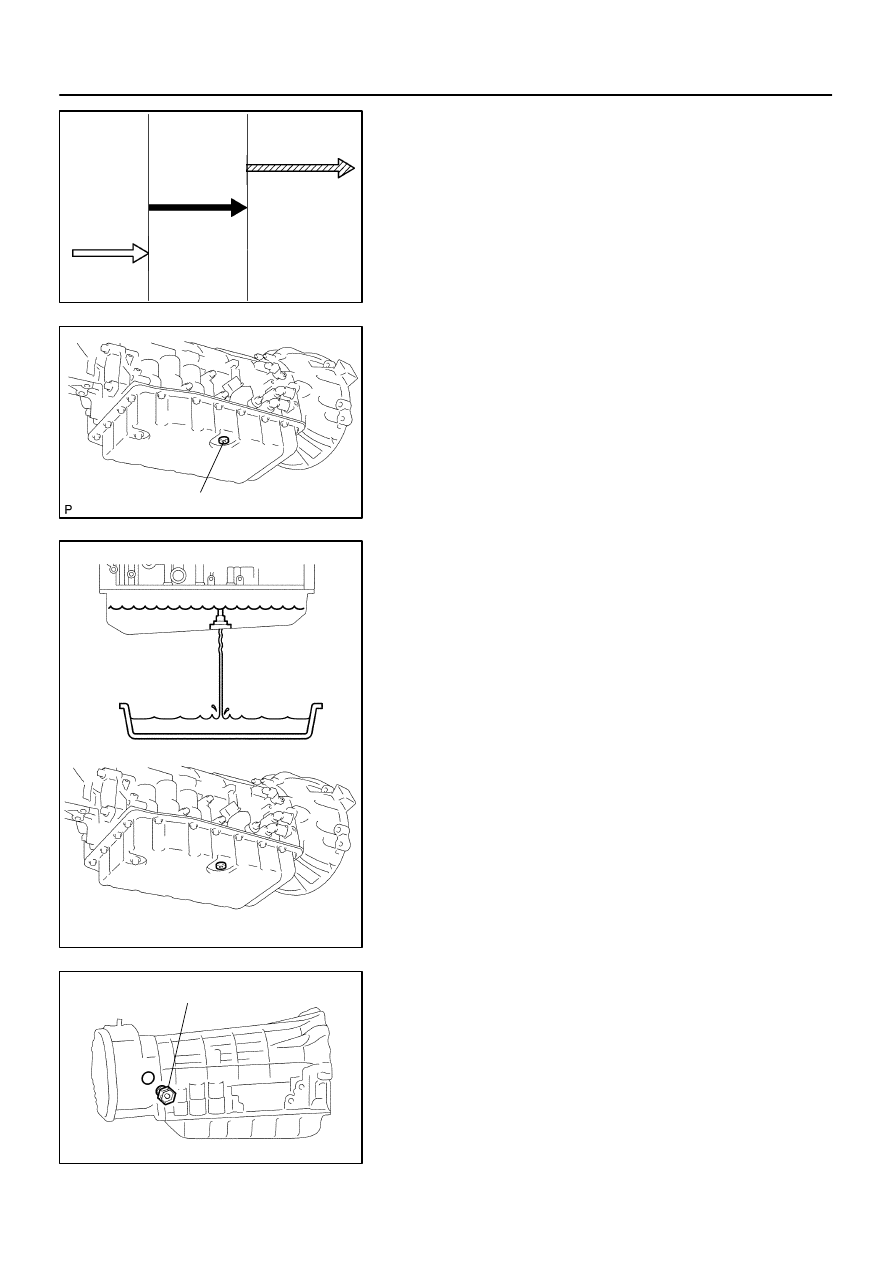

(d)

When adding a minimum amount of fluid: [*4]
(1)

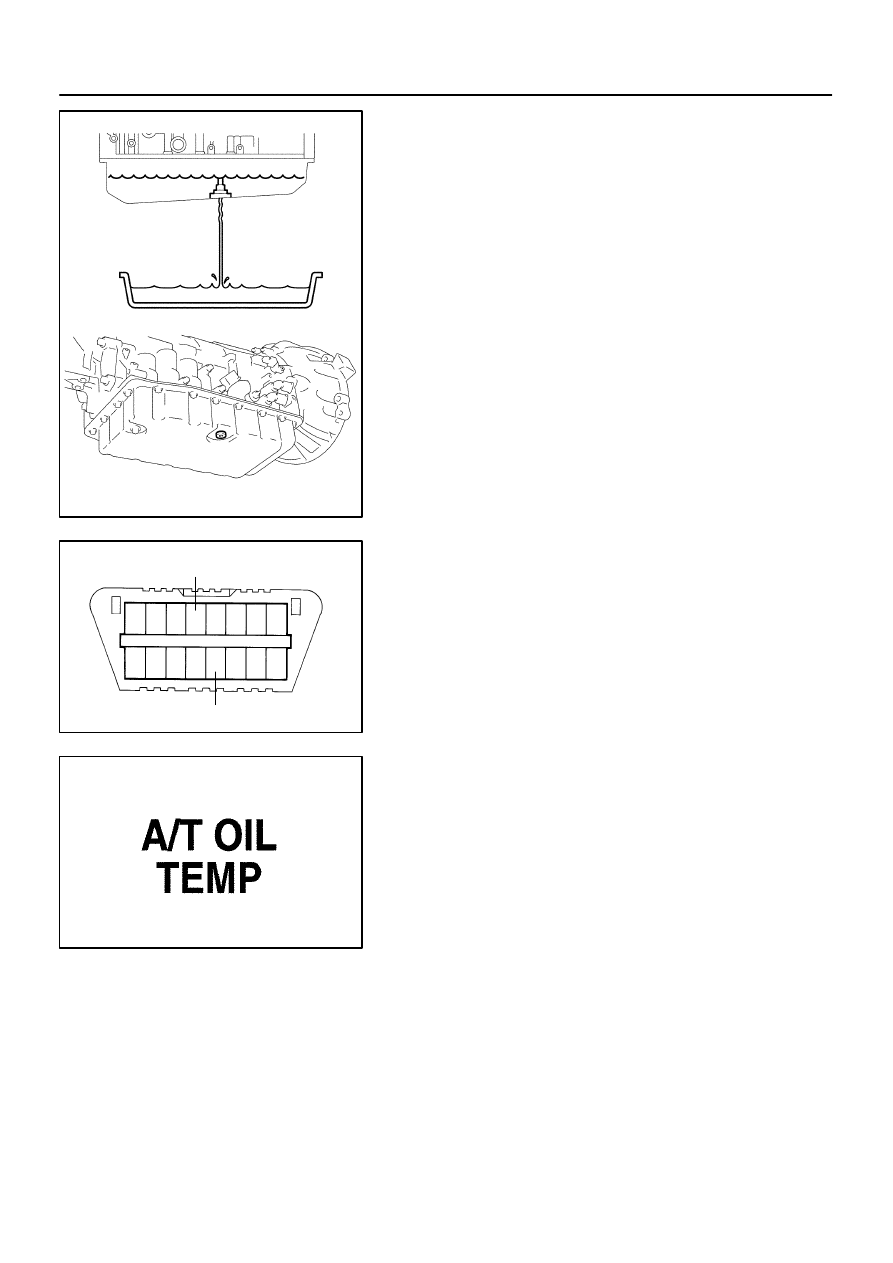

Using SST, create a short–circuit between terminals
TC and CG of the DLC3.

SST

09843–18040

(2)

Start the engine and run at idle.

NOTICE:
The A/C switch must be turned off.

(3)

Slowly move the shift lever from the P to the 2–L
position. Return the shift lever to the P position.

(4)

Switch to the fluid temperature detection mode.
Move the shift lever from the N to the D position, or
from D to N, within 1.5 seconds. (Repeat this opera-
tion for 6 seconds or more.)

OK: The A/T OIL TEMP warning light comes on for 2
seconds and then goes off.
(5)

Disconnect terminals TC and CG after confirming
the above condition.

(6)

Idle the engine to raise the fluid temperature.

D14231

When fluid

temperature

is low: off

When fluid

temperature

is correct: on

When fluid

temperature

is high: blinks

D14139

Overflow Plug

D14141

D14140

Refill Plug

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–533

727

(7)

Lift up the vehicle immediately after the meter indi-
cator light (ATF temperature warning light) comes
on.

NOTICE:

Add fluid only when the meter indicator light is on.

Perform this procedure while the engine is idling.

(8)

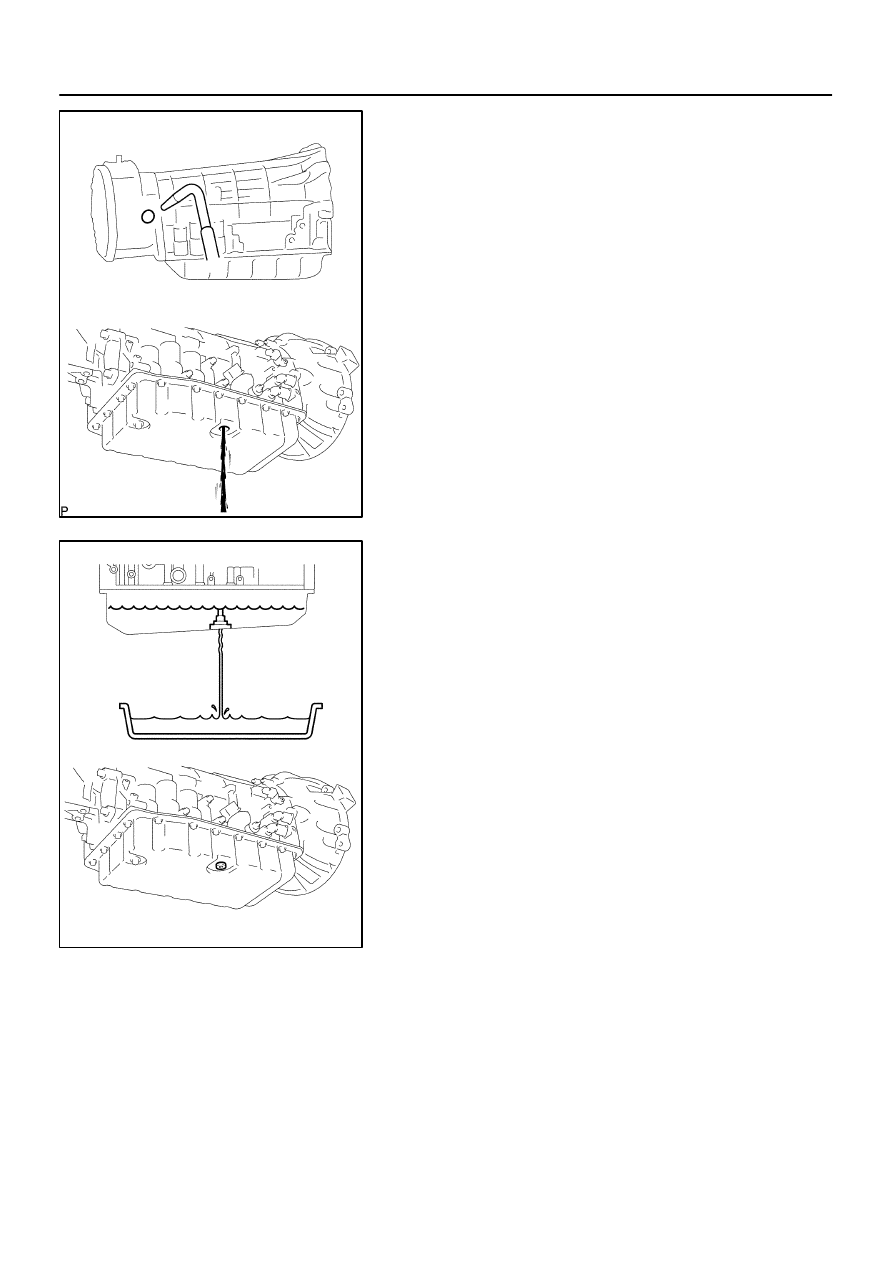

Remove the overflow plug. If ATF overflows, pro-
ceed to [*5]. If ATF does not overflow, proceed to
[*6].

HINT:
”Overflow” indicates the condition under which ATF drains out
from the overflow tube.

(e)

When fluid overflows: [*5]
(1)

Install the overflow plug with a new gasket when the
draining ATF has become a trickle.

Torque: 20 N

⋅

m (204 kgf

⋅

cm, 15 ft

⋅

lbf)

(2)

Install the refill plug with a new O–ring.

Torque: 39 N

⋅

m (400 kgf

⋅

cm, 29 ft

⋅

lbf)

(3)

Lower down the vehicle.

(4)

Turn the ignition switch off.

(5)

Check for fluid leaks in the transmission.

If there are leaks, it is necessary to repair or replace O–rings,
FIPGs, oil seals, plugs or other related parts.

(f)

When fluid does not overflow: [*6]
(1)

Remove the refill plug.

D14138

D14141

DI–534

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

728

(2)

Add ATF through the refill hole until it drains out from
the overflow hole.

(3)

Install the overflow plug with a new gasket when the
draining ATF has become a trickle.

Torque: 20 N

⋅

m (204 kgf

⋅

cm, 15 ft

⋅

lbf)

(4)

Install the refill plug with a new O–ring.

Torque: 39 N

⋅

m (400 kgf

⋅

cm, 29 ft

⋅

lbf)

(5)

Lower down the vehicle.

(6)

Turn the ignition switch off.

(7)

Check for fluid leaks in the transmission.

If there are leaks, it is necessary to repair or replace O–rings,
FIPGs, oil seals, plugs or other related parts.
