Toyota Sequoia (2005). Manual - part 182

DIDIO–01

/                  /

How Often Does
Problem Occur?

/                  /

Automatic Transmission
System Check Sheet

Inspector’s
Name              :

Customer’s Name

/                   /

Odometer Reading

km
mile

Continuous

Intermittent (           times a day)

Symptoms

No up–shift     (      1st

→

 2nd         2nd

→

 3rd         3rd

→

 4th         4th

→

 5th)

Vehicle does not move (      Any position          Particular position)

No down–shift     (      5th

→

 4th         4th

→

 3rd         3rd

→

 2nd         2nd

→

 1st)

Lock–up malfunction

Shift point too high or too low

Harsh engagement (      N

→

 D        Lock–up        Any drive position)

Slip or shudder

No kick–down

Others

DTC Check

1st Time

2nd Time

Check Item

Normal system code

Trouble code (DTC                             )

Normal system code

Trouble code (DTC                             )

Malfunction
Indicator Lamp

Normal

Remains ON

VIN

Production Date

Licence Plate No.

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–523

717

CUSTOMER PROBLEM ANALYSIS CHECK

DIDIP–01

1

2

3

4

5

6

7

8

9 10 11 12 13 14 15 16

D13649

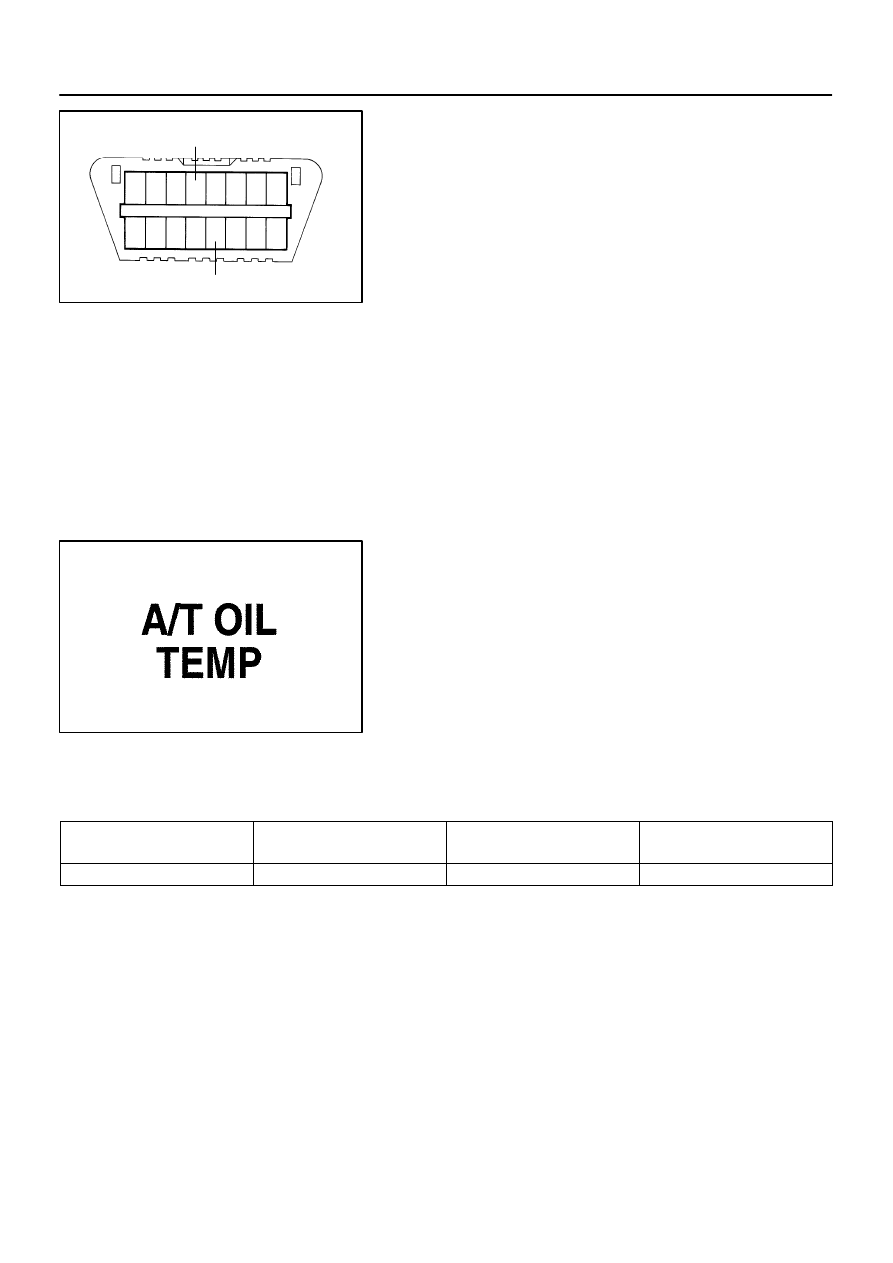

DLC3:

CG

TC

D13654

DI–524

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

718

BASIC INSPECTION

1.

CHECK FLUID LEVEL

(a)

Using SST, create a short–circuit between terminals TC
and CG of the DLC3.
SST

09843–18040

(b)

Start the engine and run at idle.

The A/C switch must be turned off.

On models with active height control suspension &
adaptive variable suspension, turn the height con-
trol switch off.

(c)

Slowly move the shift lever through all positions from P to
L, and move it back to the P position.

(d)

Switch to the fluid temperature detection mode.
Move the shift lever from the N to the D position, or from
D to N, within 1.5 seconds. (Repeat this operation for 6 se-
conds or more.)
OK: The A/T OIL TEMP warning light comes on for 2
seconds and then goes off.

(e)

Return the shift lever to the P position and disconnect ter-
minals TC and CG.

(f)

Idle the engine to raise oil temperature.

(g)

Lift up the vehicle immediately after the meter indicator
light (ATF temperature warning light) comes on.

The A/T OIL TEMP warning light indicates the ATF
temperature according to the following table.

ATF Temp.

Less than optimized

temperature

Optimized temperature

More than optimized

temperature

A/T OIL TEMP warning light

OFF

ON

Blinking

D14137

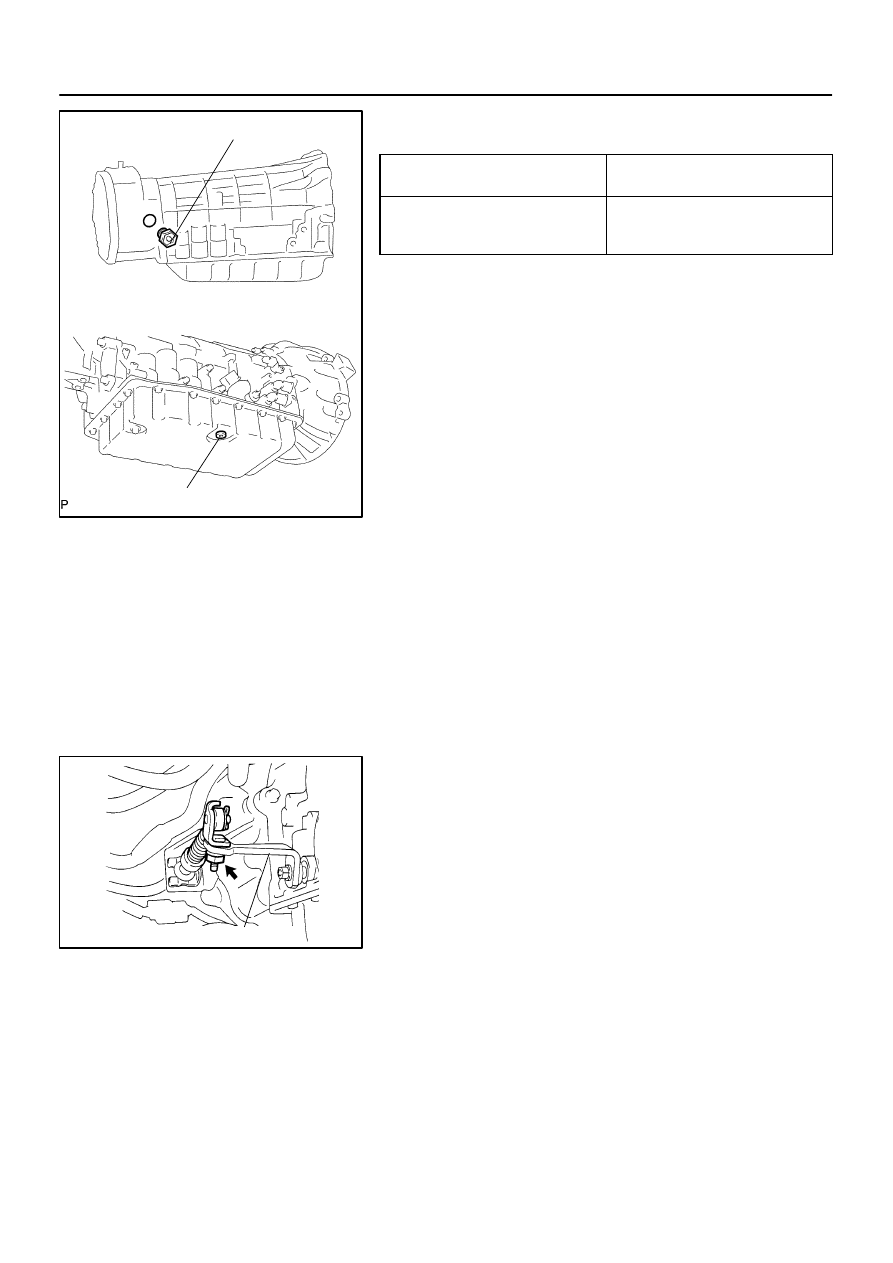

Refill Plug

Overflow Plug

D14142

Control Shaft Lever

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

DI–525

719

(h)

Remove the overflow plug and check the fluid level.
Standard:

When ATF overflows

ATF level is higher than specification

(Go to step (k))

When ATF does not overflow

ATF level is equal to or lower than

specification

(Go to step (i))

HINT:

”Overflow” indicates the condition under which ATF
drains out from the overflow tube.

The capacity of the overflow tube is approximately 3 cc.
If the amount of drained ATF is little, only the fluid remain-
ing in the tube has drained out. This condition is not con-
sidered as ”overflow”.

(i)

Remove the refill plug.

(j)

Add ATF through the refill hole until it flows out from the
overflow hole.
Fluid type: Toyota genuine ATF WS

(k)

When the draining ATF has become a trickle, install the
overflow plug with a new gasket.

(l)

Install the refill plug if removed.

(m)

Lower the vehicle.

(n)

Turn the ignition switch off to stop the engine.

2.

CHECK FLUID CONDITION

If the fluid smells burnt or is black, replace it (see step 6).

3.

INSPECT AND ADJUST SHIFT LEVER POSITION

(a)

When shifting the shift lever from the N position to other
positions, check that the lever can be shifted smoothly
and accurately to each position and that the position indi-
cator comes on in accordance with the shift lever position.

If the indicator and shift lever position do not match, carry out
the following adjustment procedures.

(1)

Remove the nut and disconnect the shift control
cable from the control shaft lever.

(2)

Move the control shaft fully rearward.

(3)

Return the control shaft lever 2 notches to the N
position.

(4)

Set the shift lever to the N position.

(5)

Connect the shift control cable and temporarily
install the control shaft lever nut.

(6)

While holding the shift lever lightly toward the R
position side, tighten the control shaft lever nut.

Torque: 14.5 N·m (148 kgf·cm, 11 ft·lbf)

D07226

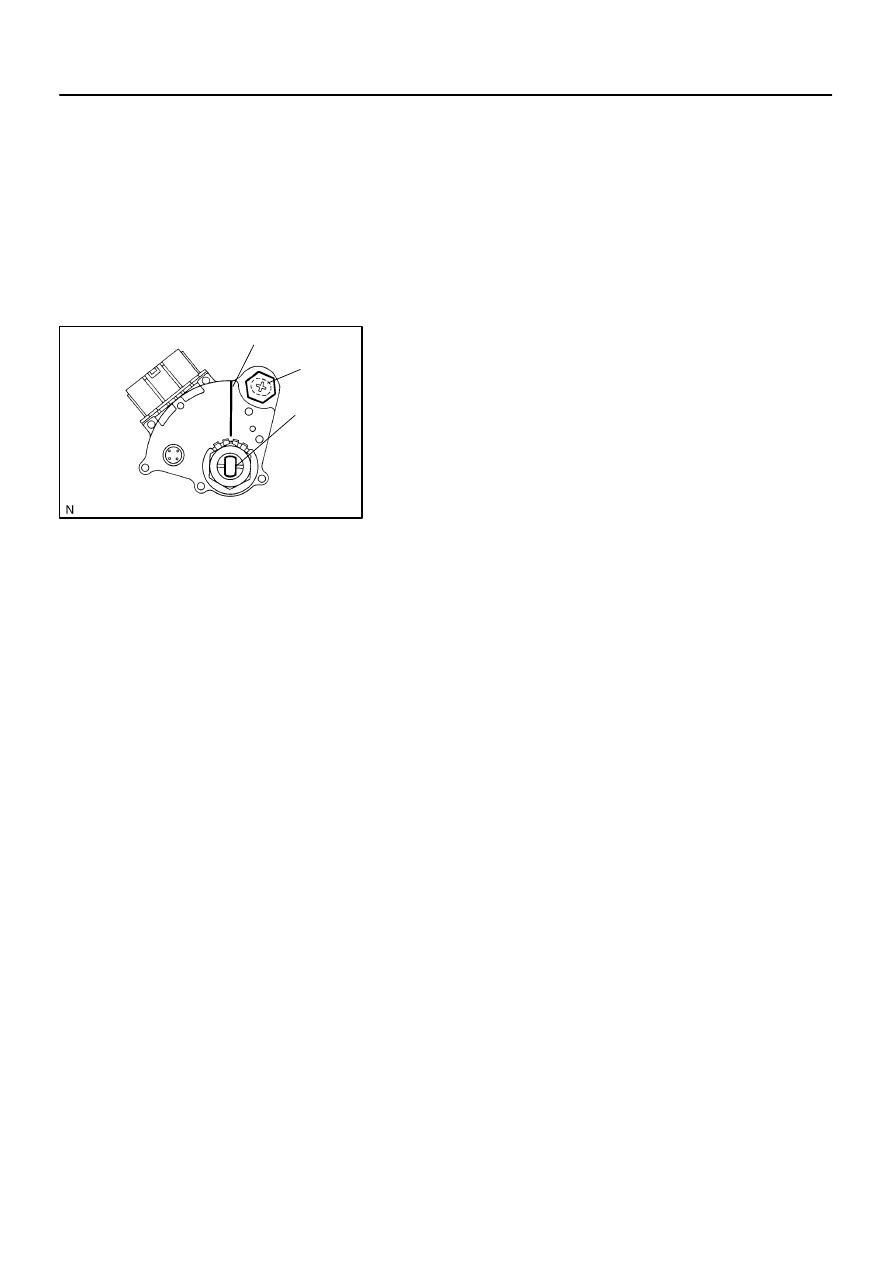

Neutral Basic Line

Bolt

Groove

DI–526

–

DIAGNOSTICS

AUTOMATIC TRANSMISSION

720

(7)

Start the engine and make sure that the vehicle
moves forward when shifting the lever from the N to
the D position and reverses when shifting it to the
R position.

4.

INSPECT AND ADJUST PARK/NEUTRAL POSITION

(a)

Check that the engine can be started when the shift lever
is in the N or P position, but cannot be started in other
positions.

If operation cannot be done as stated above, carry out the fol-
lowing adjustment procedures.

Loosen the park/neutral position switch bolt and set
the shift lever to the N position.

Align the groove with the neutral basic line.

Hold in position and tighten the bolt.

Torque:13 N·m (130 kgf·cm, 9 ft·lbf)

(b)

For continuity inspection of the park/neutral position
switch, see page

DI–576

.

5.

CHECK IDLE SPEED
Idle speed (In N position and air conditioner OFF):
700

±

50 rpm
