SEQUOIA (EM00Z0U)

Cruise Control

The cruise control system is a constant vehicle speed controller which controls the opening angle of the engine throttle valve
by the SW, and allows driving at a constant speed without depressing the accelerator pedal.

1. Set Control

When the – SET SW is operated while traveling with the ON–OFF SW on, the speed when the – SET SW is operated to off
is memorized, and the vehicle speed is controlled at that speed.

2. Coast Control

When the – SET SW is operated to on, the cruise control opening angle requirement is turned to 0 to decrease the vehicle
speed, and the speed when the – SET SW is operated to off is memorized, and the vehicle speed is controlled at that speed.
Furthermore, every time the – SET SW is operated momentarily (Approx. 0.5 sec.) to on, the memorized vehicle speed is
decreased by approx. 1.5 km/h (0.9 mph).

3. Accel Control

When the + RES SW is operated to on, the throttle motor rotates the throttle valve to open direction to increase the vehicle
speed, and the speed when the + RES SW is operated to off is memorized, and the vehicle speed is controlled at that
speed.
Furthermore, every time the + RES SW is operated momentarily (Approx. 0.5 sec.) to on, the memorized vehicle speed is
increased by approx. 1.5 km/h (0.9 mph).

4. Manual Cancel Mechanism

If any of the following signals are input during cruise control traveling, the current to the motor flows in the direction to close
the throttle valve, and cancel the cruise control.

(1) Stop light SW is on (Brake pedal is depressed)

(2) The CANCEL SW of the control SW is on

(3) ON–OFF SW is off

(4) Gear is shifted from D position to other positions than D.

5. Resume Control

After canceling the cruise control (except when the ON–OFF SW is off) if the vehicle speed is above the minimum speed
limit (Approx. 40km/h, 25mph), operating the + RES SW to on from off will cause the system to accelerate and resume to the
vehicle speed before manual cancellation.

6. Overdrive Function

The overdrive may be cut on an uphill grade, while traveling with the cruise control.
After the overdrive is cut, if the throttle angle sensor determines that the uphill grade has finished, the overdrive will resume
after the overdrive timer operation.

7. Auto Cancel Operation

If any of the following conditions are detected, the set speed is erased and the control is canceled.

(1) Disconnection and/or short in the stop light SW

(2) Malfunction in the vehicle speed signal

(3) Malfunction in the electronic throttle parts

(4) Malfunction in the stop light SW input circuit

(5) Malfunction in the cancel circuit

(6) The actual vehicle speed becomes –16 km/h slower than the set speed

If the following condition is detected, the set speed is kept and the control is canceled.

(1) The actual vehicle speed becomes slower than the minimum speed limit.

  :  Parts Location

Code

See Page

Code

See Page

Code

See Page

A37

42

E8

E

43

J52

B

44

C5

A

42

F23

43

J53

A

44

C6

B

42

J5

41

J54

B

44

C9

42

J8

44

P1

41

D6

43

J16

44

S14

45

E4

A

43

J17

44

T14

41

E5

B

43

J18

44

V1

41

E6

C

43

J43

44

E7

D

43

J51

A

44

System Outline

SEQUOIA (EM00Z0U)

193

: Junction Block and Wire Harness Connector

Code

See Page

Junction Block and Wire Harness (Connector Location)

1D

33

Cowl Wire and Instrument Panel J/B (Lower Finish Panel)

1E

33

Cowl Wire and Instrument Panel J/B (Lower Finish Panel)

1F

33

Cowl Wire and Instrument Panel J/B (Lower Finish Panel)

1H

2F

29

Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)

2H

29

Engine Room Main Wire and Engine Room J/B (Engine Compartment Left)

3A

36

Cowl Wire and Sub J/B No.3 (Upper the Accelerator Pedal)

3B

36

Cowl Wire and Sub J/B No.3 (Upper the Accelerator Pedal)

4A

38

Cowl Wire and Sub J/B No.4 (Upper the Accelerator Pedal)

4D

38

Cowl Wire and Sub J/B No.4 (Upper the Accelerator Pedal)

4E

38

Cowl Wire and Sub J/B No.4 (Upper the Accelerator Pedal)

: Connector Joining Wire Harness and Wire Harness

Code

See Page

Joining Wire Harness and Wire Harness (Connector Location)

IA4

51

Engine Room Main Wire and Cowl Wire (Cowl Side Panel LH)

IG4

51

Engine Wire and Cowl Wire (Right Side of Instrument Panel)

: Ground Points

Code

See Page

Ground Points Location

EB

50

Rear Left Side of Cylinder Head

EC

50

Front Left Side of Cylinder Head

ED

50

Front Fender Apron LH

IE

51

Cowl Side Panel LH

IG

51

Cowl Side Panel RH

194

SEQUOIA (EM00Z0U)

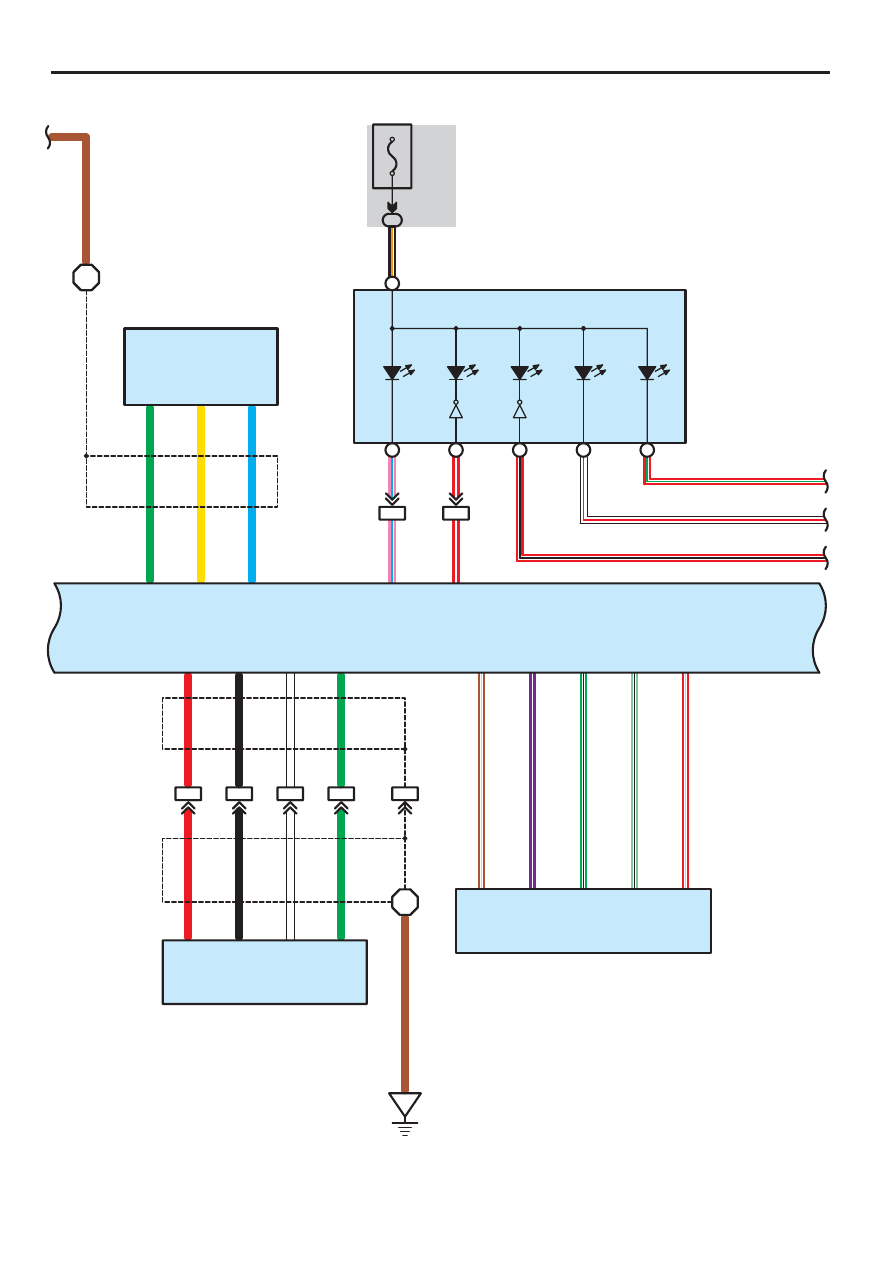

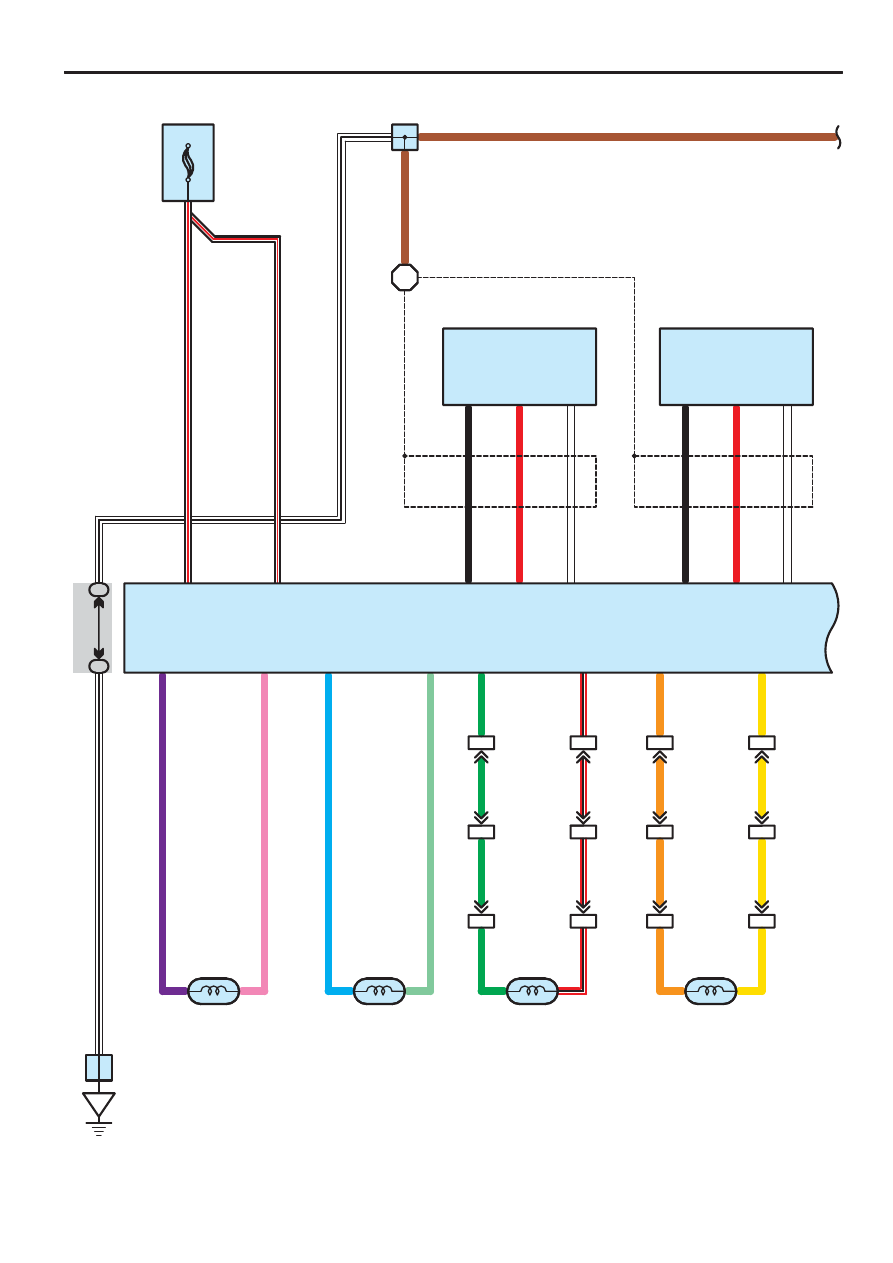

ABS, TRAC and VSC
