1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH (See DISASSEMBLY )

2. REMOVE REAR UPPER DOOR ARMREST BASE PANEL LH (See DISASSEMBLY )

3. REMOVE REAR DOOR FRAME GARNISH LH (See DISASSEMBLY )

4. REMOVE COURTESY LIGHT ASSEMBLY (See DISASSEMBLY )

5. REMOVE REAR DOOR ARMREST COVER LH

6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (See DISASSEMBLY )

7. REMOVE REAR OUTER DOOR GLASS WEATHERSTRIP LH

a. Put protective tape around the weatherstrip outer.

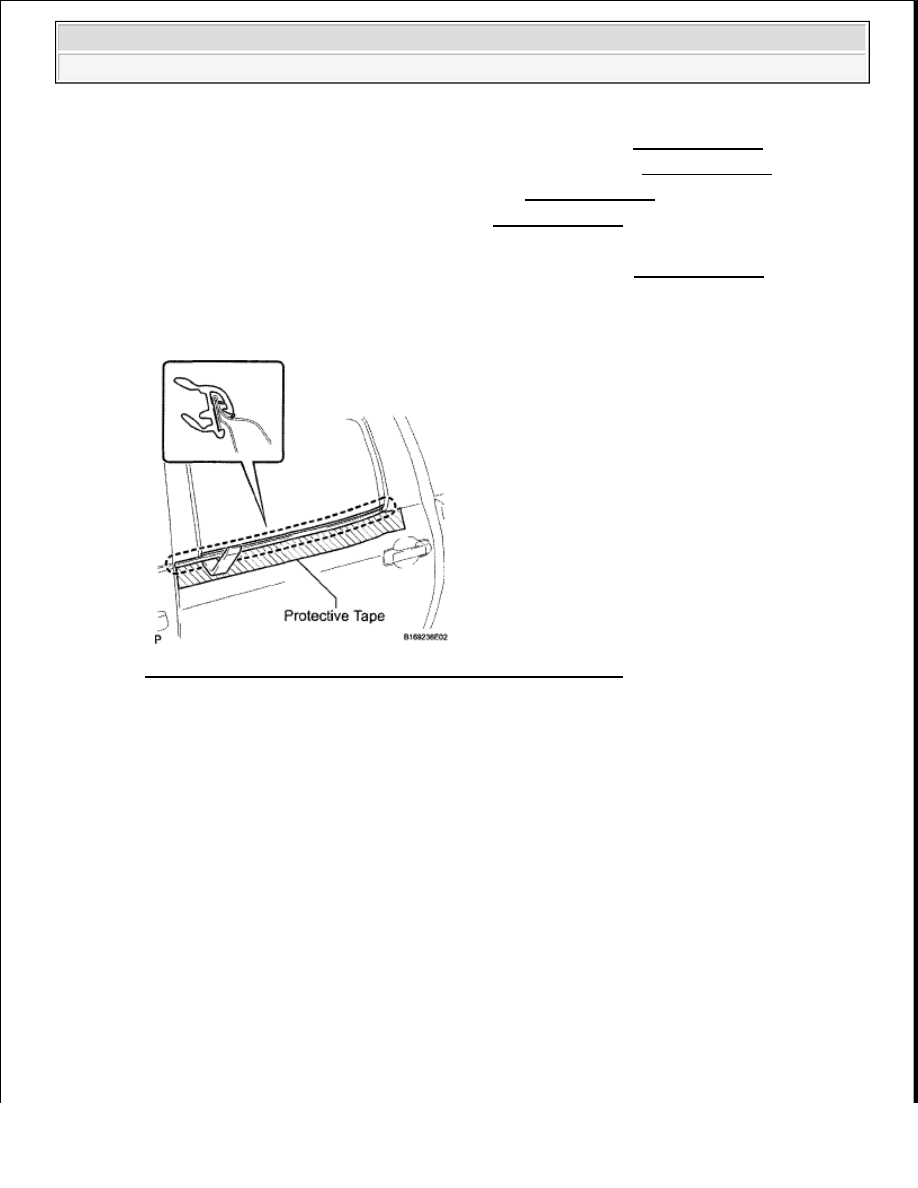

Fig. 160: Putting Protective Tape Around Weatherstrip Outer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Using a moulding remover, detach the claw and remove the weatherstrip.

INSTALLATION

HINT:



Use the same procedures for the RH side and LH side.



The procedures listed below are for the LH side.

1. INSTALL REAR OUTER DOOR GLASS WEATHERSTRIP LH

a. Attach the claw to install the weatherstrip.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Exterior - Tundra

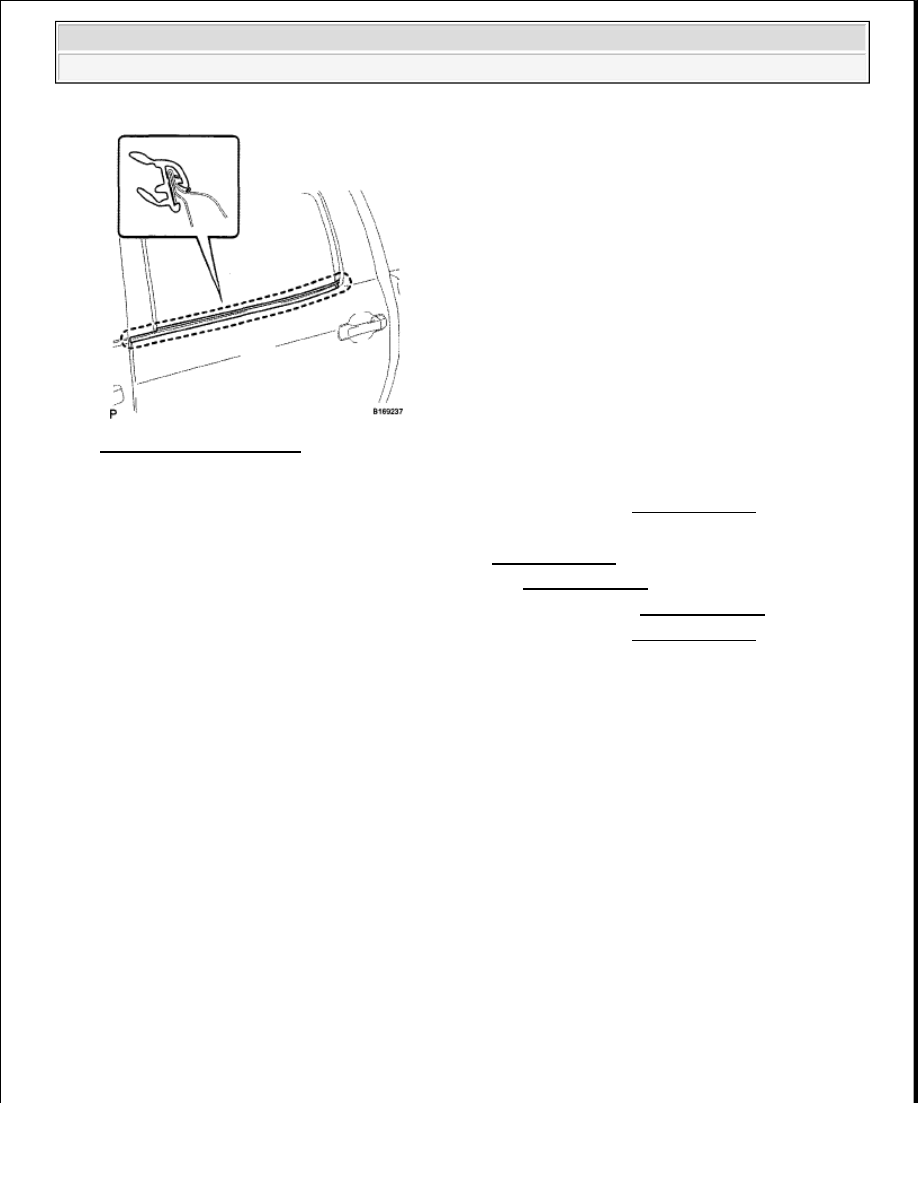

Fig. 161: Identifying Claw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (See REASSEMBLY )

3. INSTALL REAR DOOR ARMREST COVER LH

4. INSTALL COURTESY LIGHT ASSEMBLY (See REASSEMBLY )

5. INSTALL REAR DOOR FRAME GARNISH LH (See REASSEMBLY )

6. INSTALL REAR UPPER DOOR ARMREST BASE PANEL LH (See REASSEMBLY )

7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH (See REASSEMBLY )

ROOF DRIP SIDE FINISH MOULDING

COMPONENTS

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Exterior - Tundra

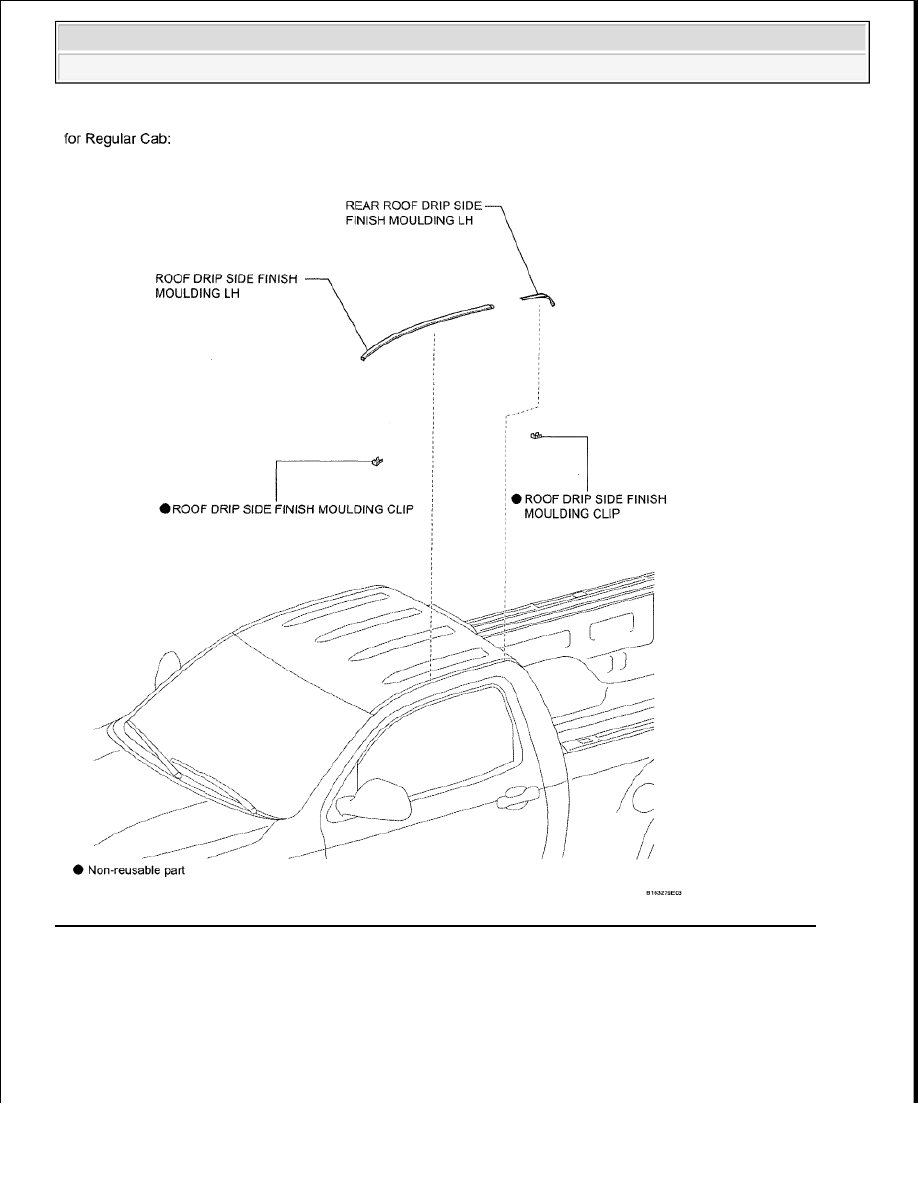

Fig. 162: Identifying Roof Drip Side Finish Moulding Replacement Components - For Regular Cab
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Exterior - Tundra

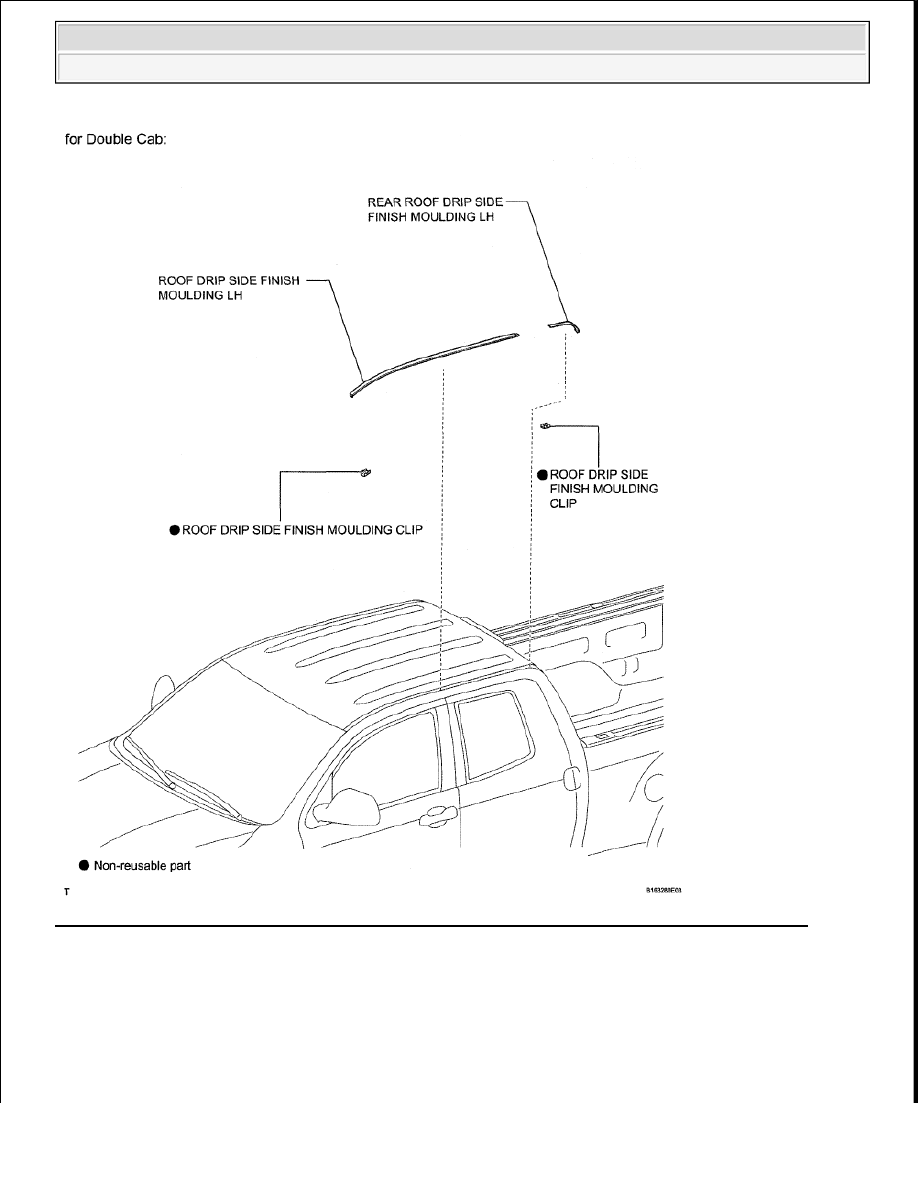

Fig. 163: Identifying Roof Drip Side Finish Moulding Replacement Components - For Double Cab
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Exterior - Tundra
