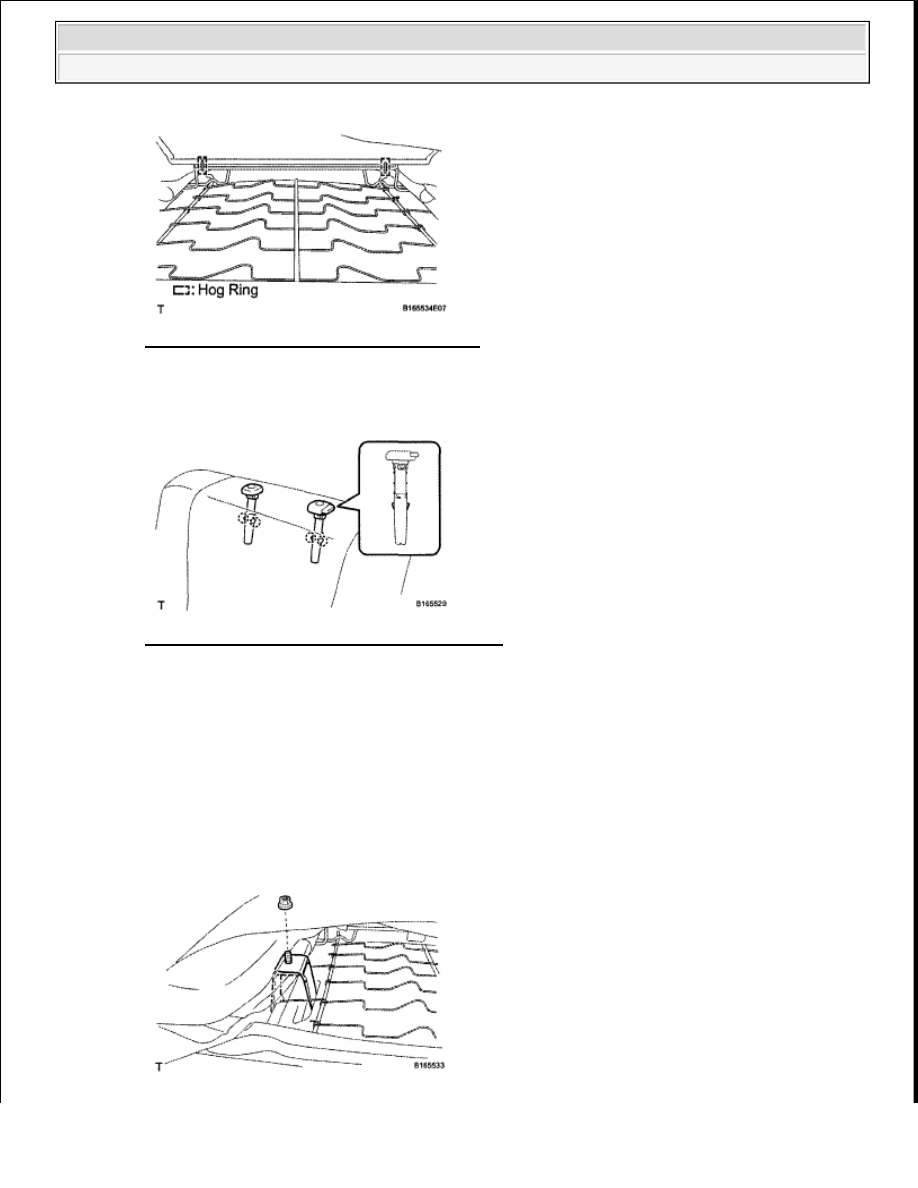

Fig. 589: Identifying Seat Frame Hog Rings
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Attach the 4 claws to install the 2 headrest supports.

Fig. 590: Identifying Headrest Supports Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

d. Install the seatback cover bracket to the seat frame with the nut.

Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

e. Install the seatback cover wires.

CAUTION: After the seatback trim cover is assembled, make sure the side

airbag strap is not twisted.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

Fig. 591: Identifying Seatback Cover Bracket Nut
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

f. Using hog ring pliers, install new hog rings to the seat frame.

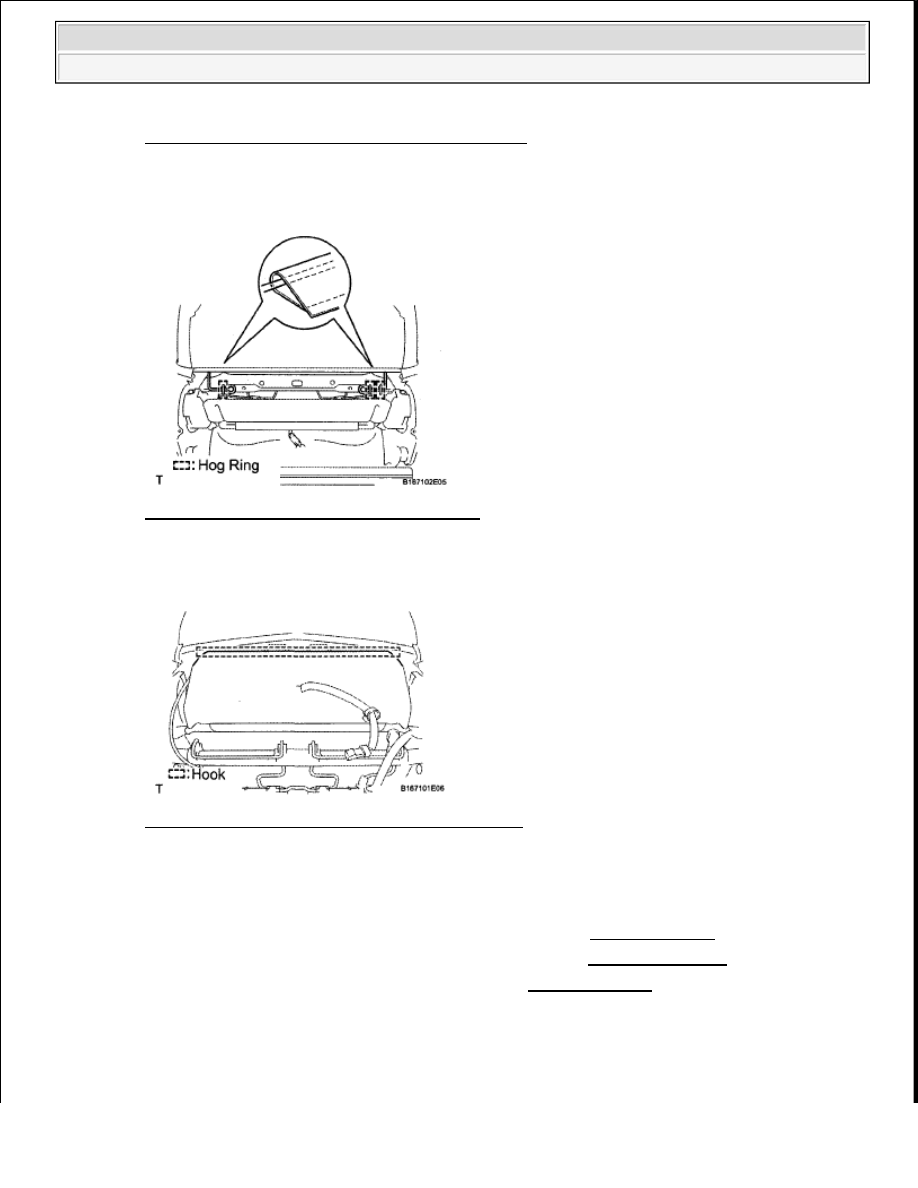

Fig. 592: Identifying Seat Frame Hog Rings
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

g. Attach the hook.

Fig. 593: Identifying Front Seatback Cover Hook
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

h. Attach the wire harness clamp.

i. Connect the seat heater connector.

4. INSTALL INNER FRONT SEAT CUSHION SHIELD LH (see REASSEMBLY )

5. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (See INSTALLATION )

6. INSTALL FRONT SEAT CUSHION SHIELD LH (see REASSEMBLY )

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

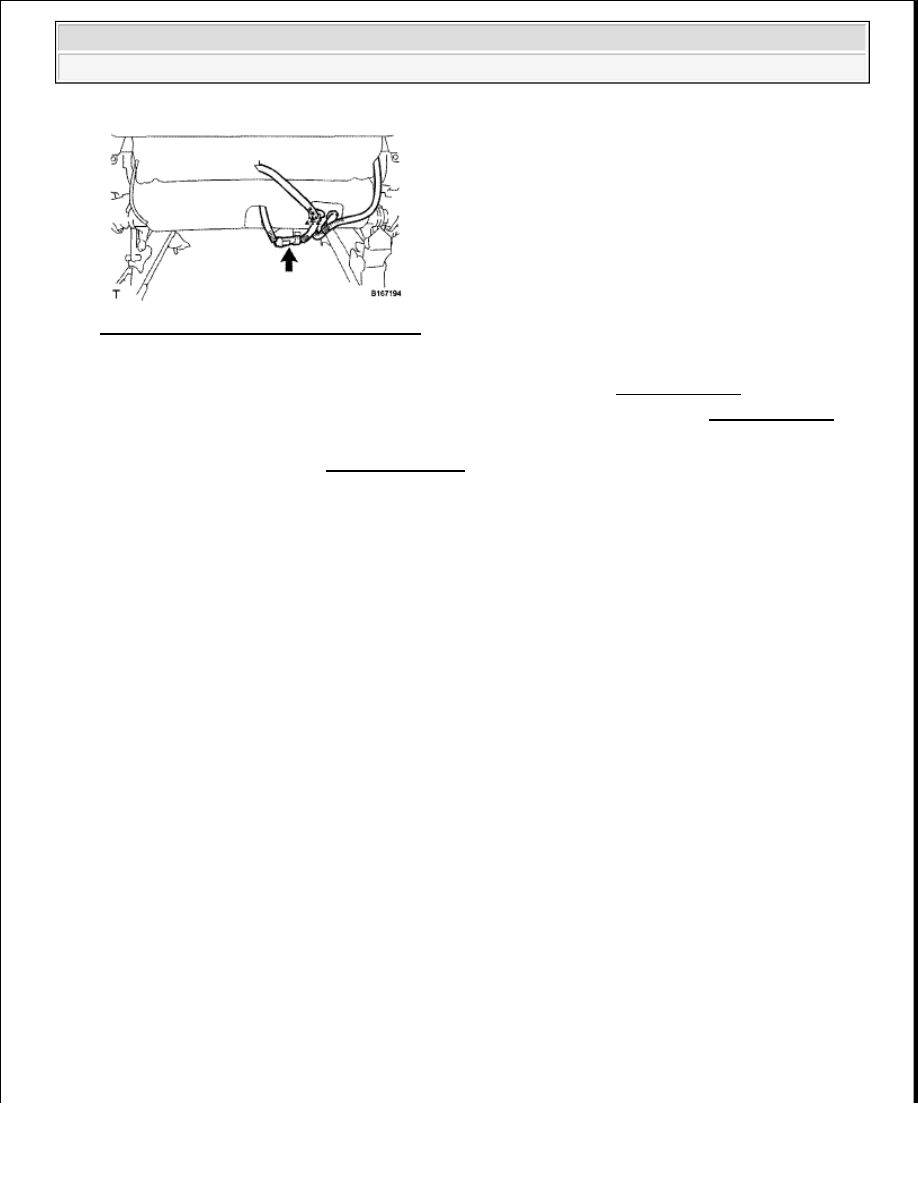

Fig. 594: Locating Seat Heater Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. INSTALL RECLINING POWER SEAT SWITCH KNOB LH (see REASSEMBLY )

8. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB LH (see REASSEMBLY )

9. INSTALL FRONT SEAT ASSEMBLY LH

a. Install the front seat (see INSTALLATION ).

FRONT SEAT CUSHION HEATER (W/ SEAT HEATER SYSTEM)

COMPONENTS

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra

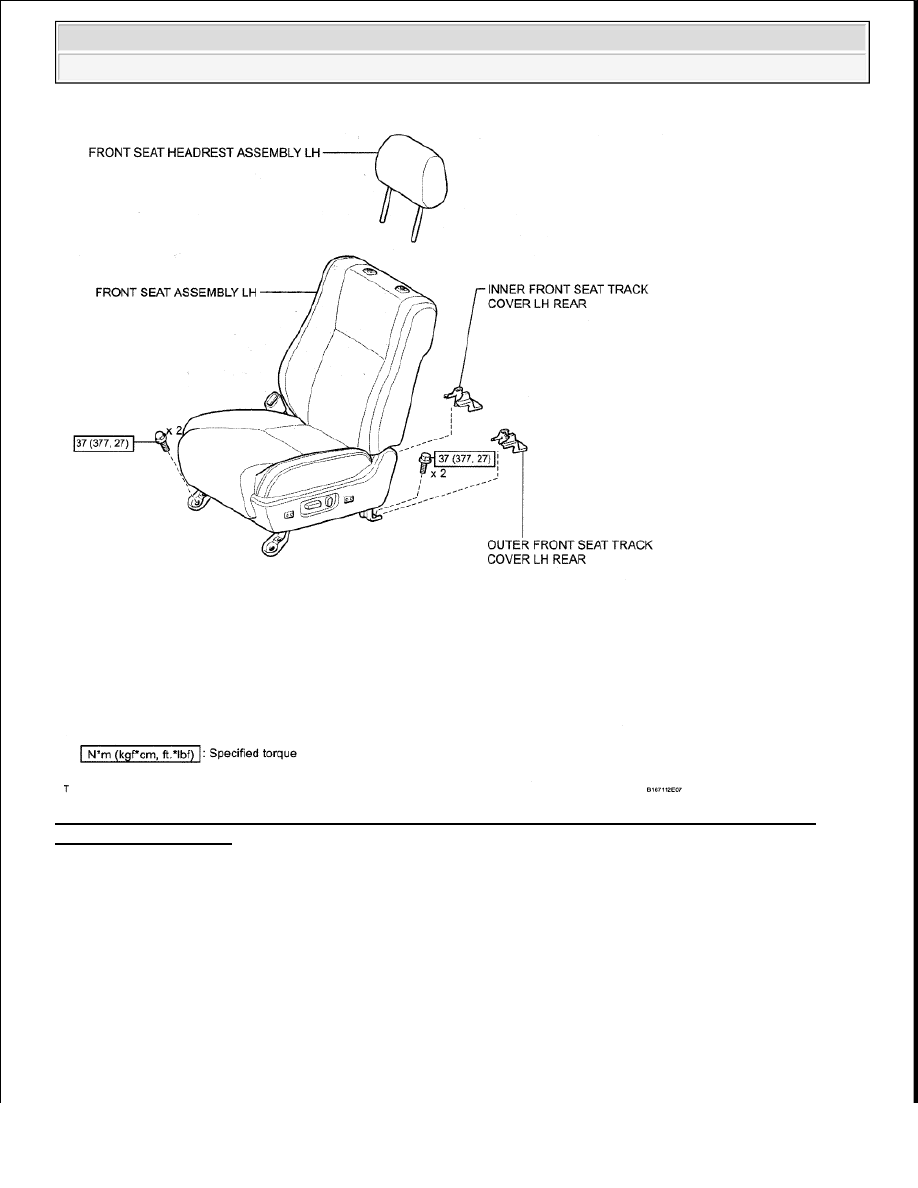

Fig. 595: Identifying Front Seat Cushion Heater Components With Torque Specifications - W/ Seat
Heater System (1 Of 2)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Seat - Tundra
