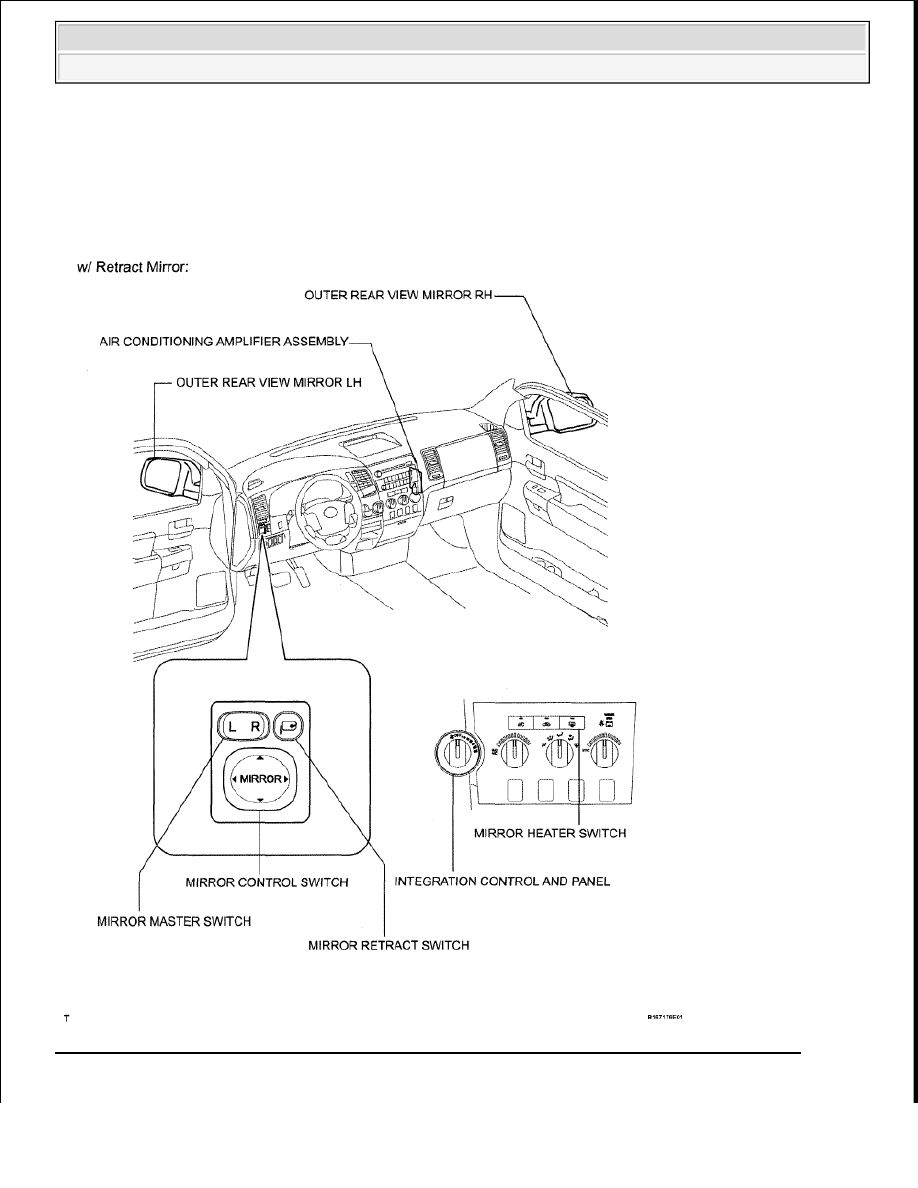

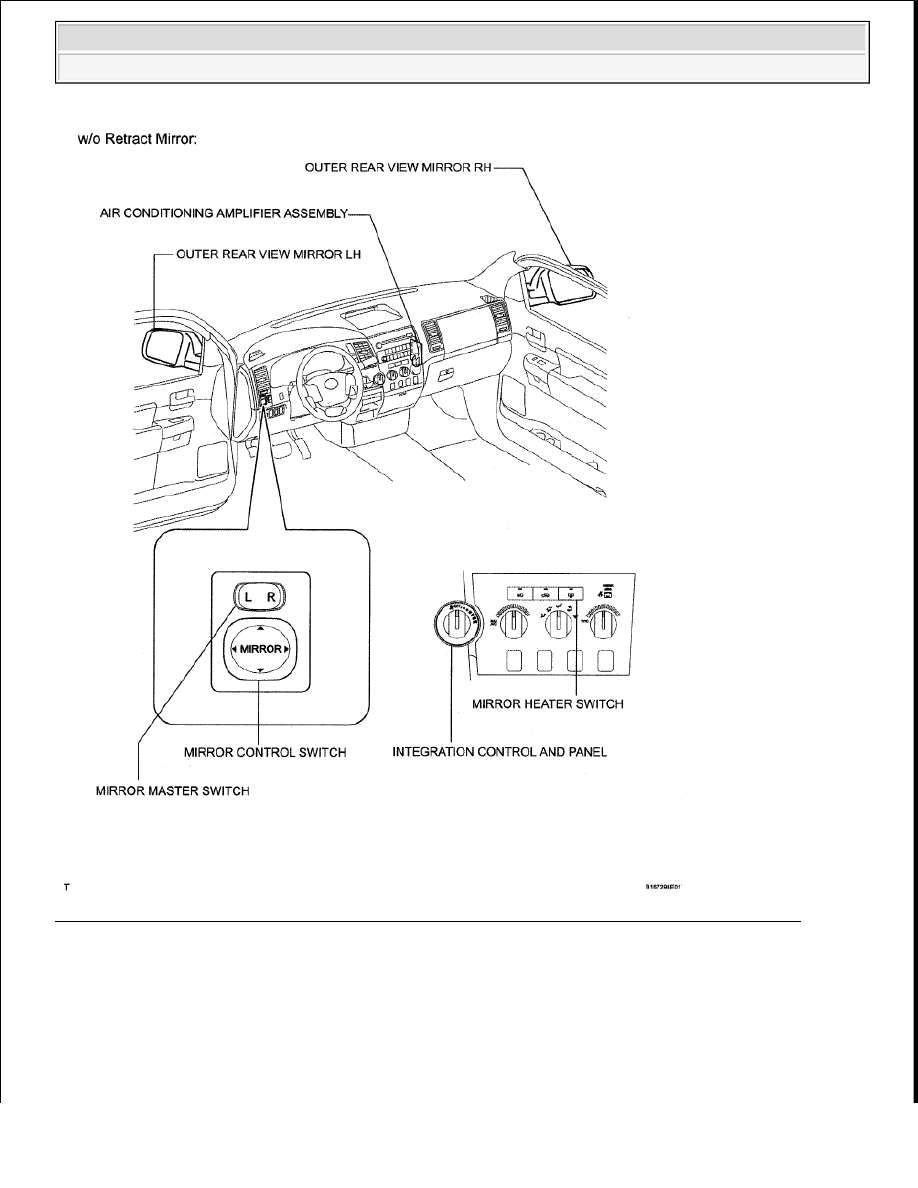

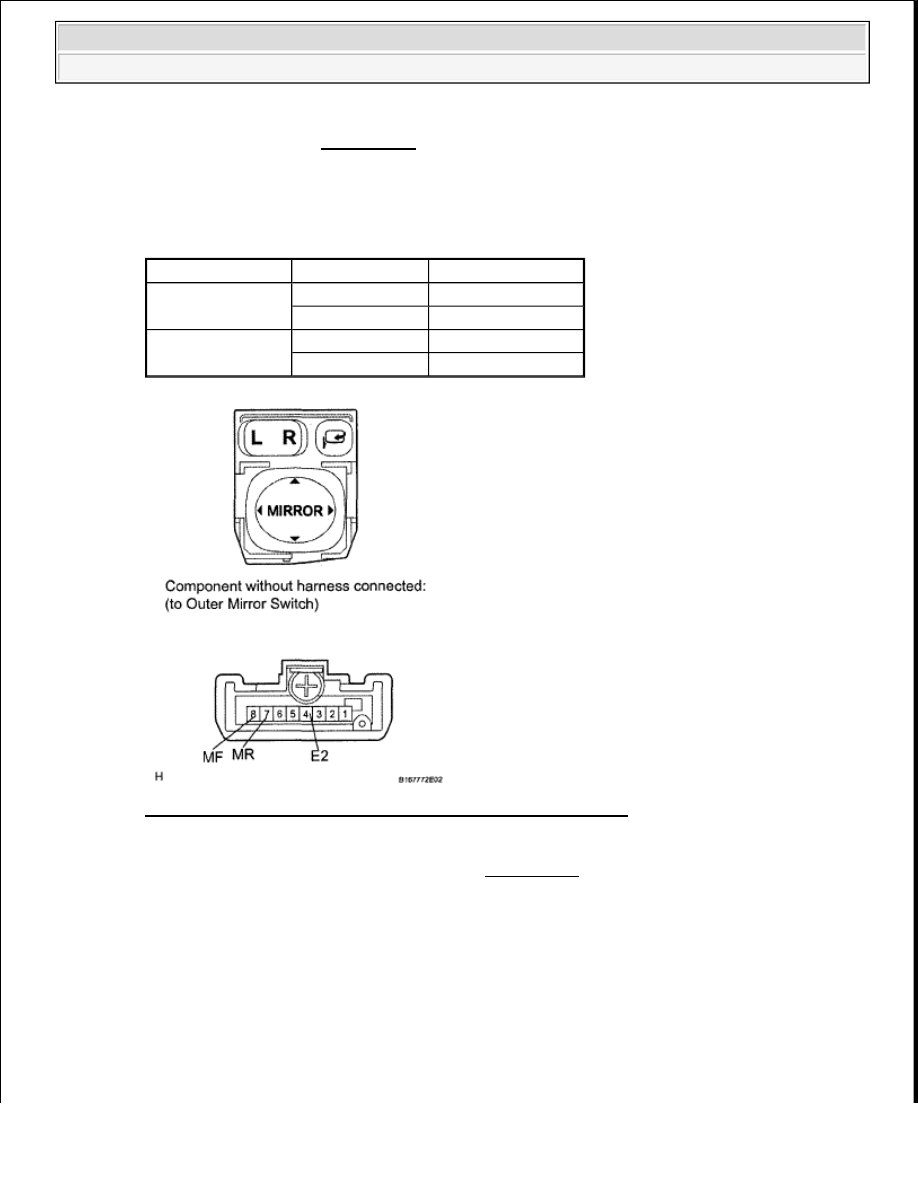

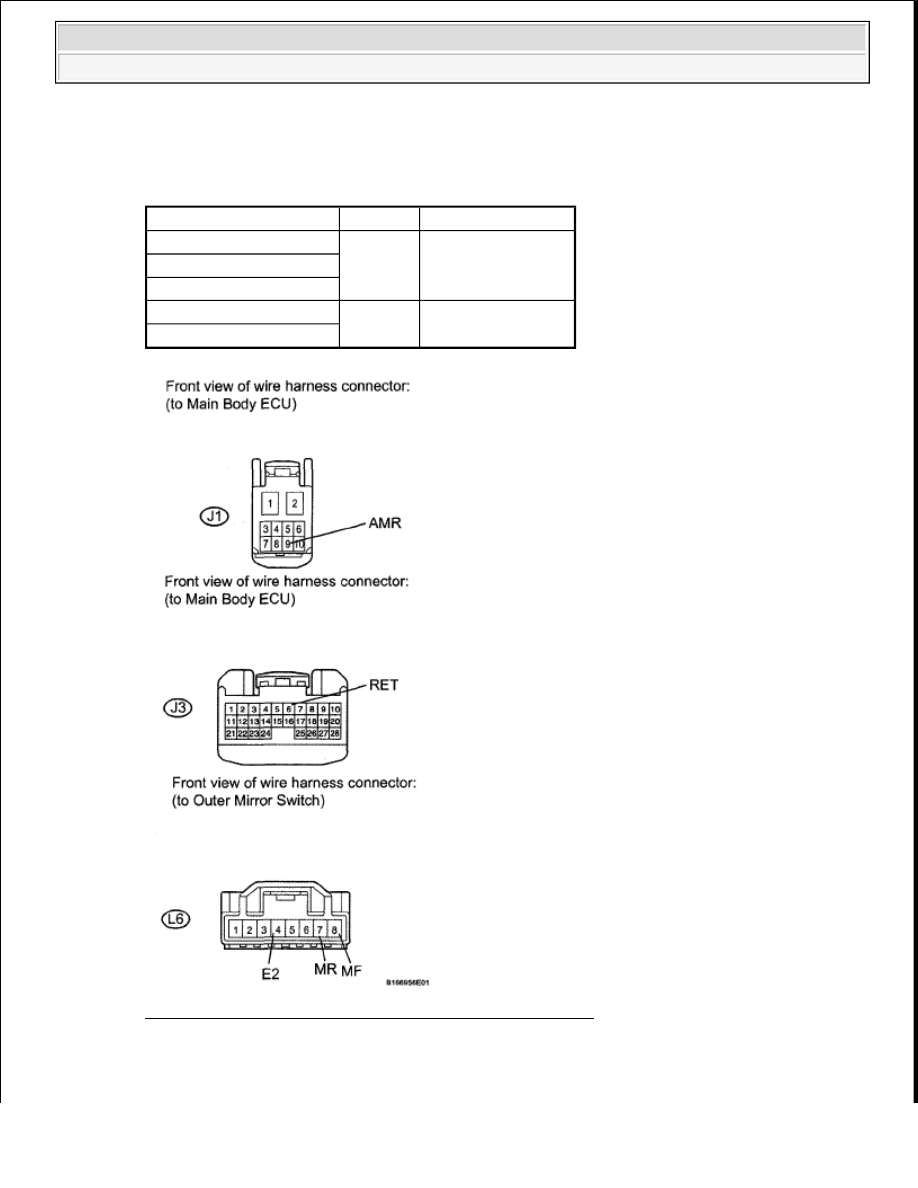

a. Remove the switch (see REMOVAL ). b. Measure the resistance according to the value(s) in the table below. Standard resistance OUTER MIRROR SWITCH TESTER CONNECTION SPECIFIED CONDITION CHART Fig. 30: Identifying Outer Mirror Switch Connector Terminals NG: REMOVE OUTER MIRROR SWITCH (see REMOVAL ) OK: Go to Next Step 11. CHECK HARNESS AND CONNECTOR (OUTER MIRROR SWITCH - MAIN BODY ECU AND BODY GROUND) a. Disconnect the J1 and J3 ECU connectors. b. Disconnect the L6 switch connector. c. Measure the resistance according to the value(s) in the table below. Tester Connection Switch Condition Specified Condition 4 (E2) - 7 (MR) Pressed (Retracts) 10 kohms or higher Below 1 ohms 4 (E2) - 8 (MF) Pressed (Returns) Below 1 ohms Not pressed 10 kohms or higher
