Fig. 132: Identifying Register Duct Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

11. INSTALL NO. 1 INSTRUMENT PANEL PIN

a. Install the 2 pins with the 2 screws.

Fig. 133: Identifying No. 1 Instrument Panel Pin Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

12. INSTALL AUTOMATIC LIGHT CONTROL SENSOR (for Automatic Air Conditioning System)

a. Attach the 2 claws to install the sensor.

b. Connect the sensor connector.

Fig. 134: Identifying Sensor Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra

INSTALLATION

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR
STANDARD BOLTS ).

1. INSTALL NO. 3 INSTRUMENT PANEL STAY

a. Attach the 5 claws to install the 5 stays.

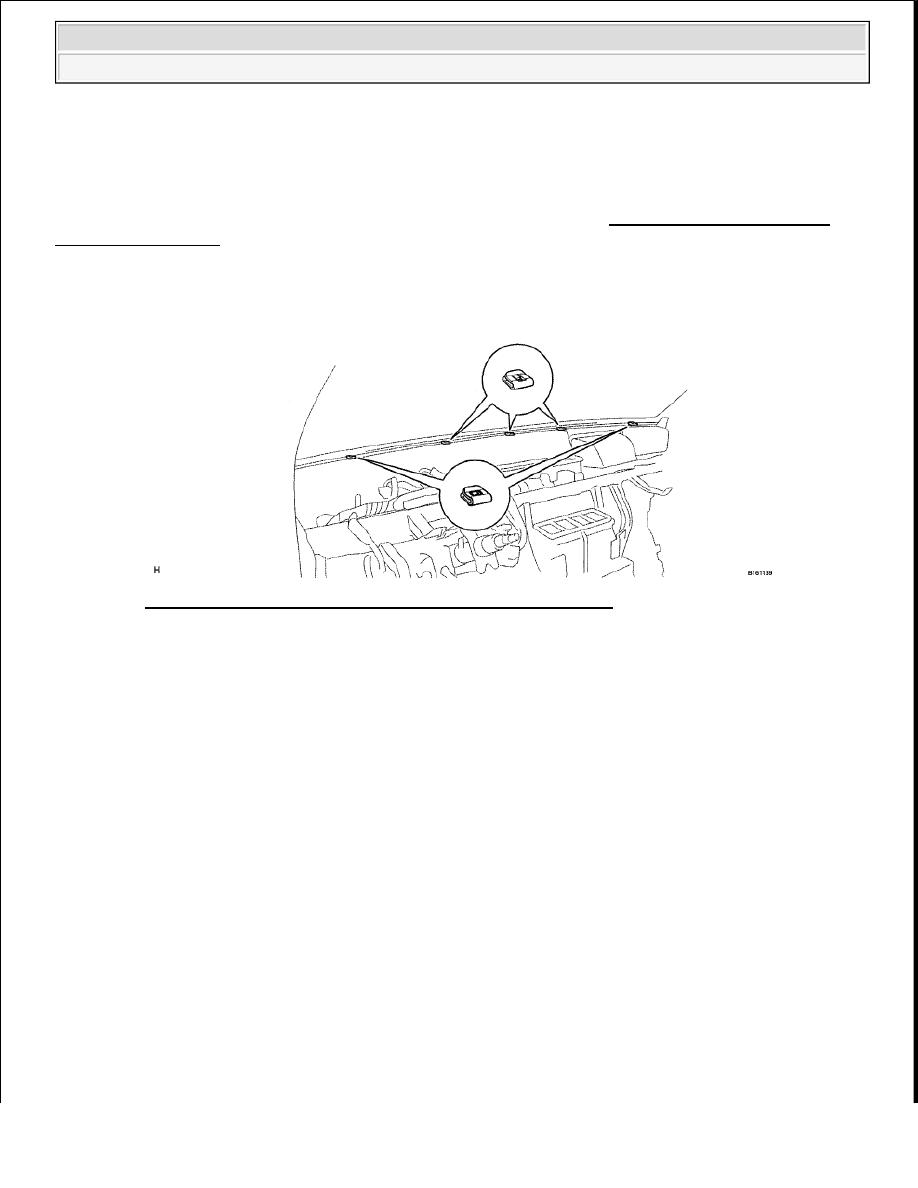

Fig. 135: Identifying No. 3 Instrument Panel Stay And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY

a. Attach the 5 claws to install the instrument panel.

b. Install the 3 bolts and 2 nuts.

c. Install the 2 passenger airbag bolts.

Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra

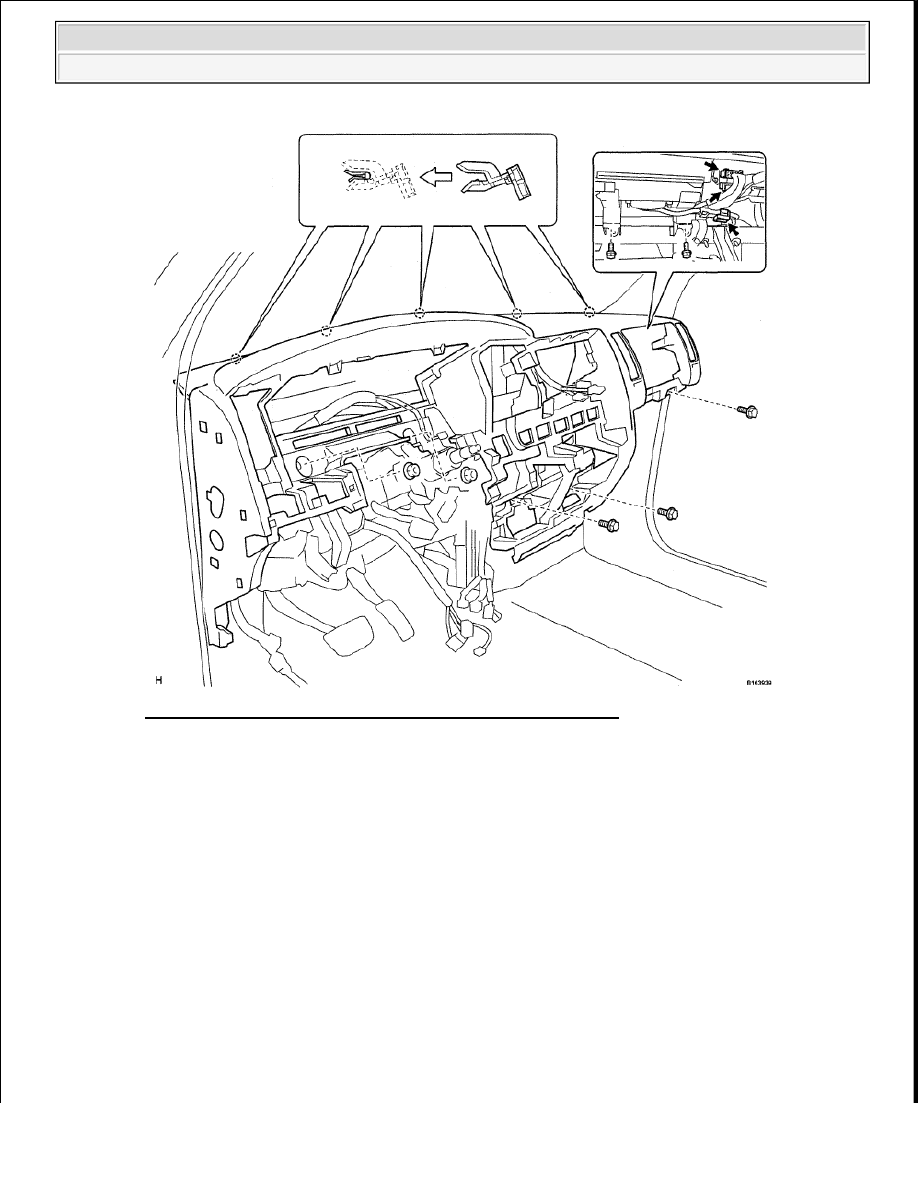

Fig. 136: Identifying Instrument Panel Claws, Bolts And Nuts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

d. Connect the connectors and attach the connectors to the clamps.

e. Install the wire harness with the bolt.

2009 Toyota Tundra

2009 ACCESSORIES AND EQUIPMENT Instrument Panel - Tundra

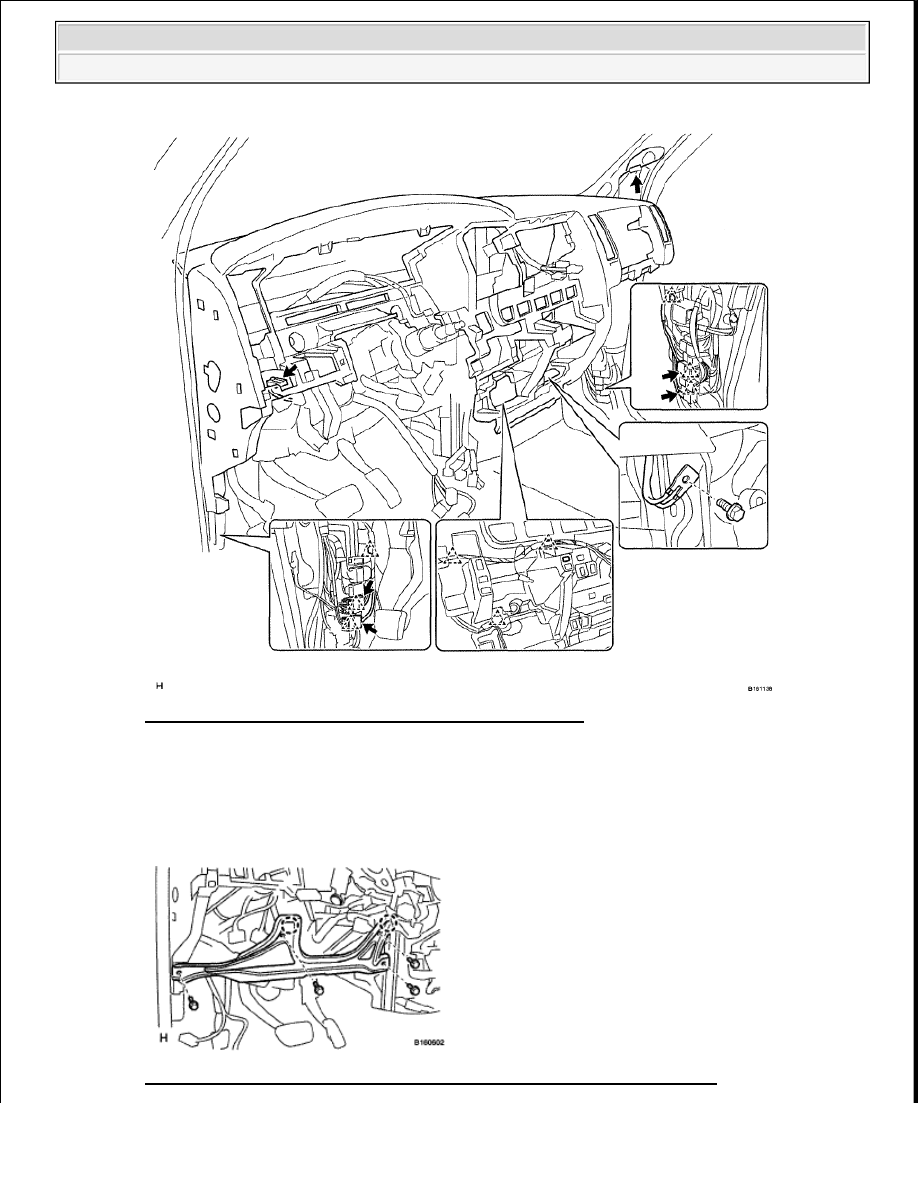

Fig. 137: Identifying Connectors, Bolt And Wire Harness
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD INSERT

a. Connect the connector.

b. Attach the 2 claws to install the safety pad.

Fig. 138: Identifying No. 1 Instrument Panel Safety Pad Clamps And Bolts
