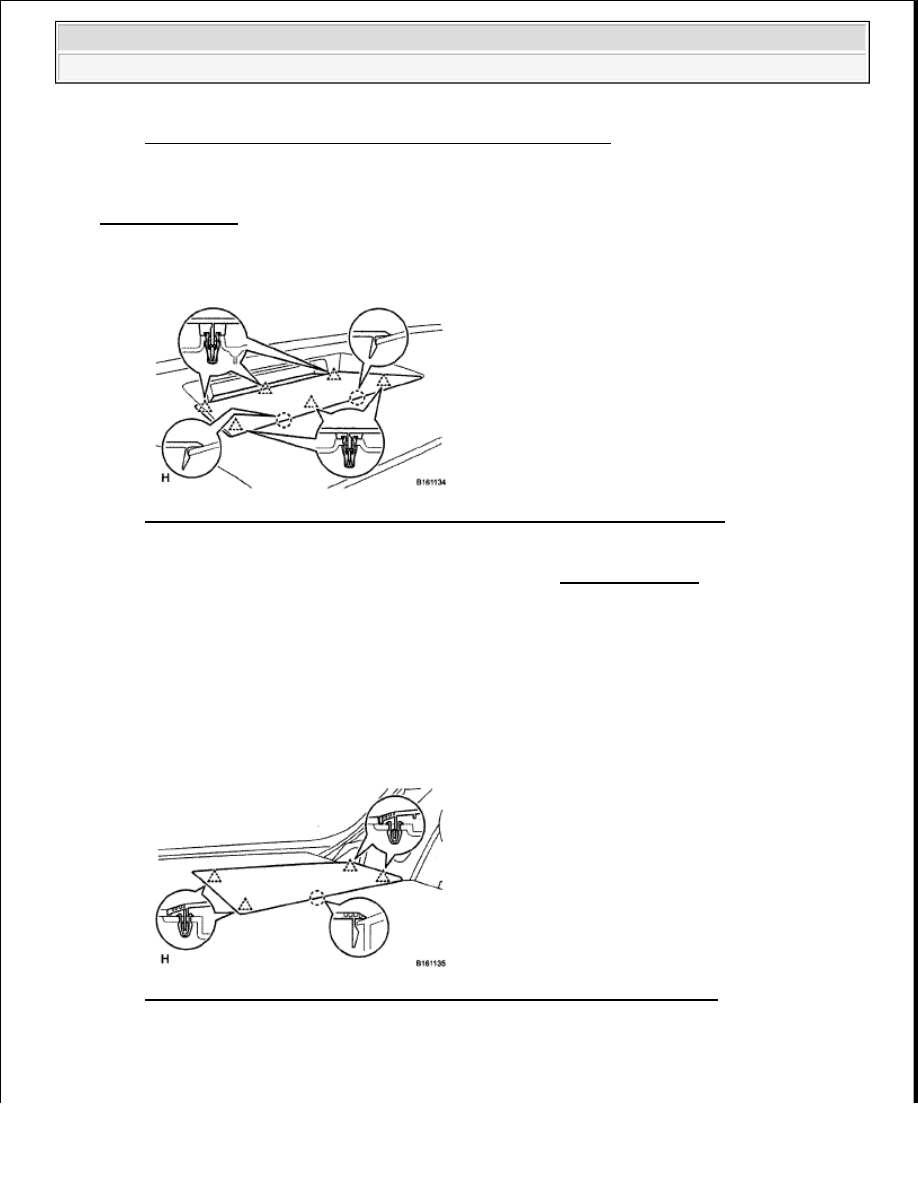

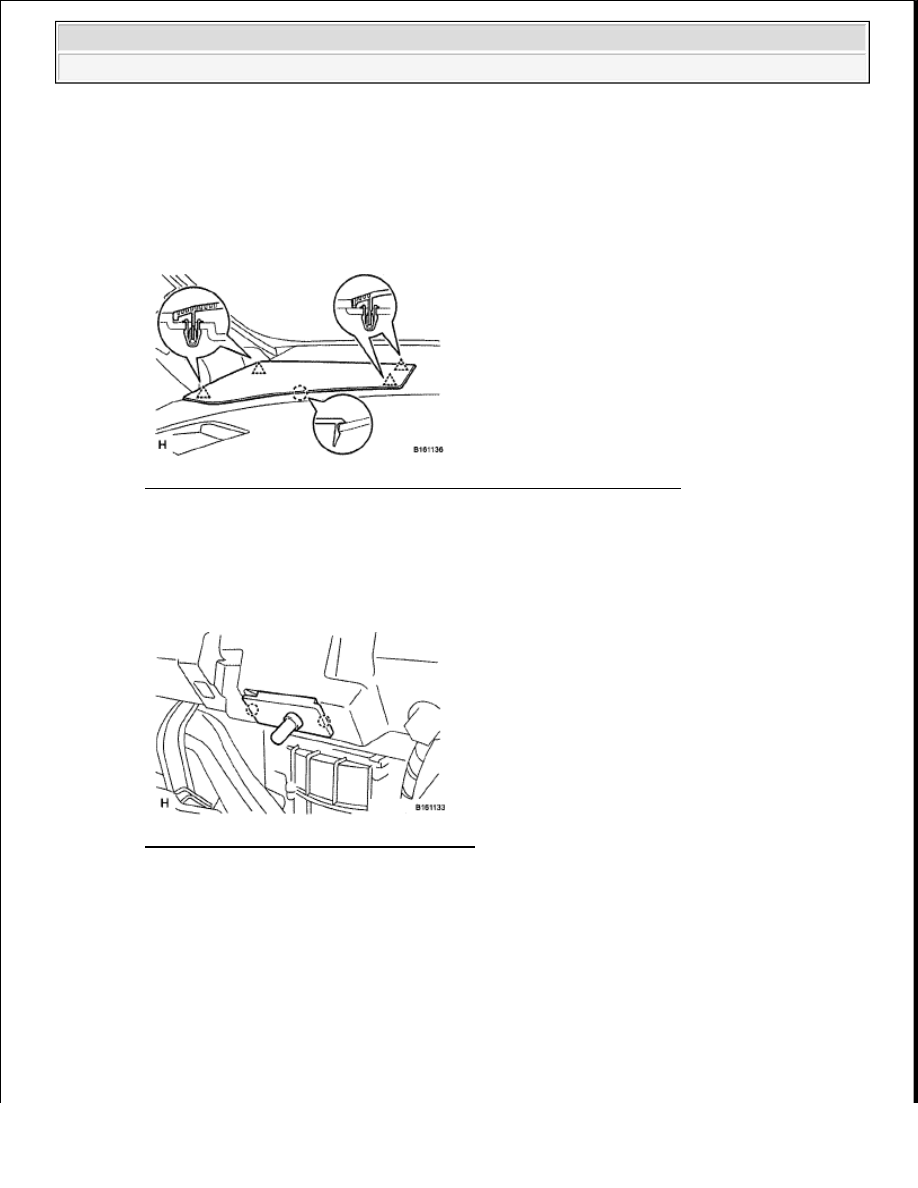

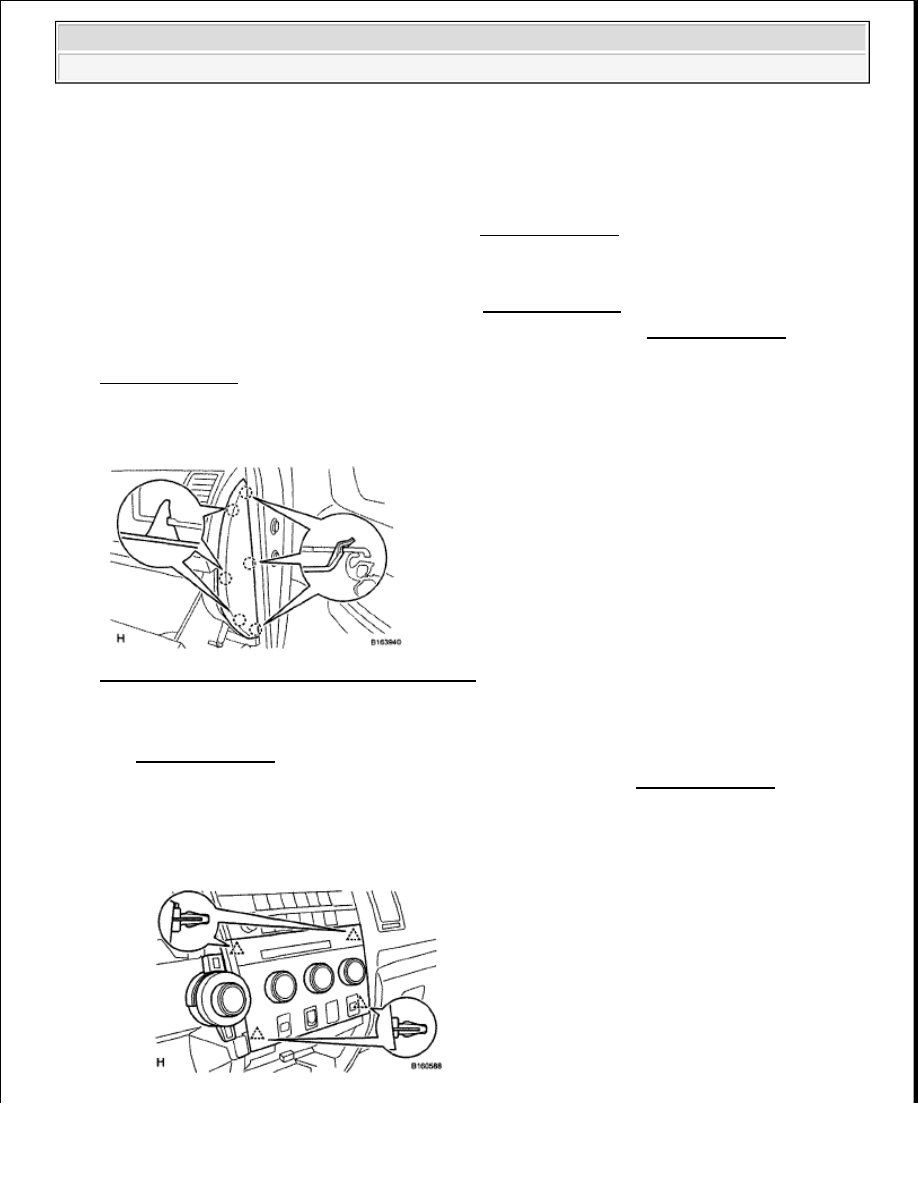

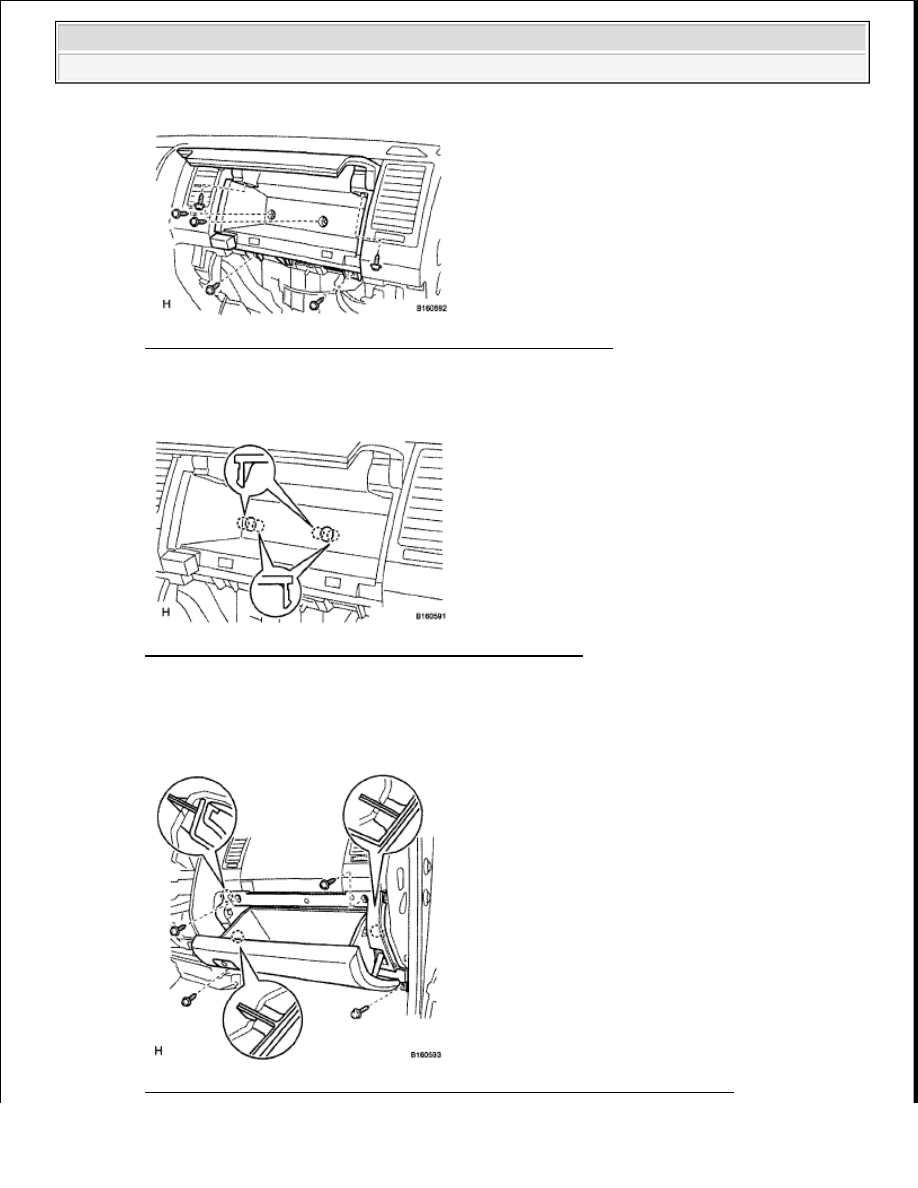

Fig. 57: Identifying Instrument Panel Pad Clamps And Bolts 4. INSTALL FRONT NO. 4 SPEAKER ASSEMBLY (for 10 Speaker Models) (See INSTALLATION ) 5. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY a. Attach the 6 clips and 2 claws to install the speaker panel. Fig. 58: Identifying No. 3 Instrument Panel Speaker Panel Clips And Claws 6. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY LH (See INSTALLATION ) 7. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY a. Attach the 4 clips and claw to install the speaker panel. 8. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY RH a. Connect the speaker connector. b. Temporarily install the speaker by aligning the positioning pins of the speaker with the instrument panel. c. Install the speaker with the 2 bolts. Fig. 59: Identifying No. 2 Instrument Panel Speaker Panel Clips And Claw NOTE: Do not touch the cone part of the speaker.
