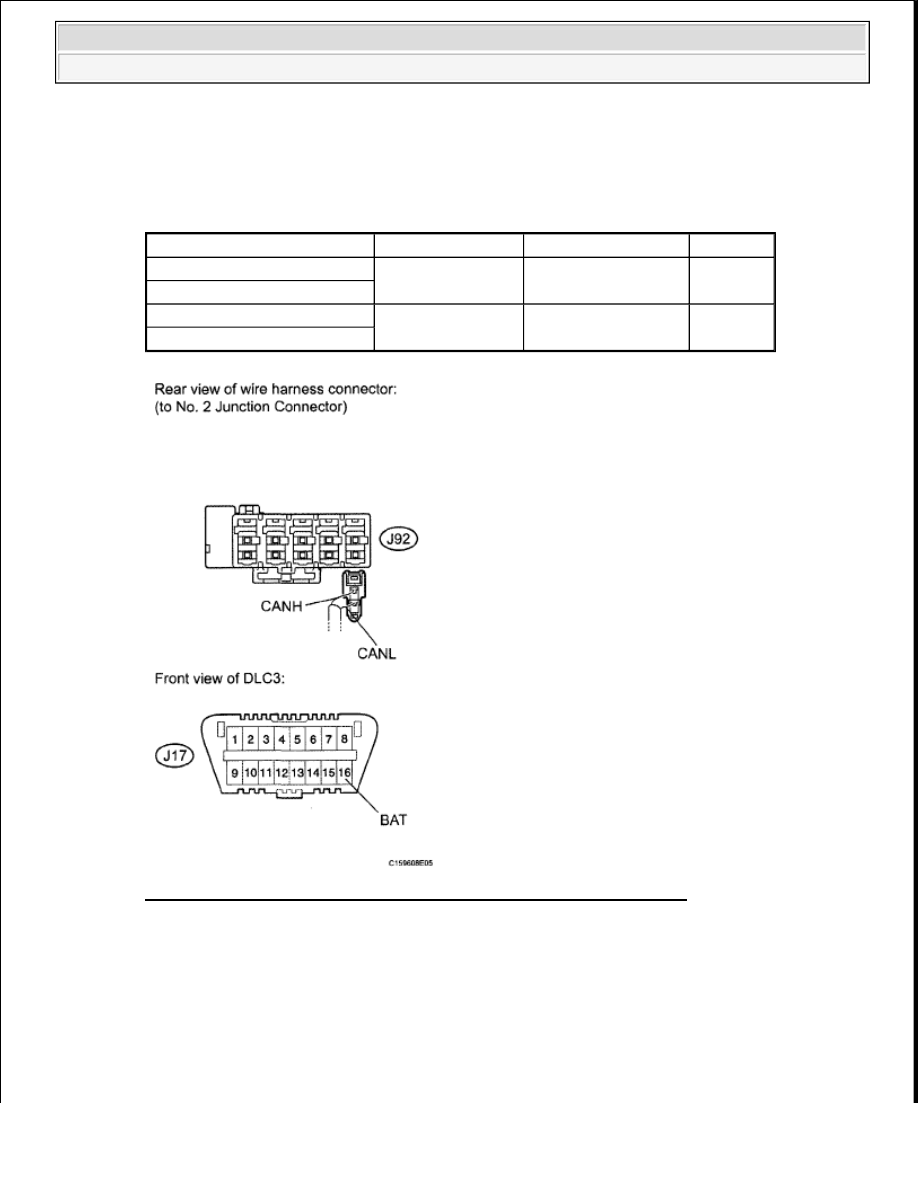

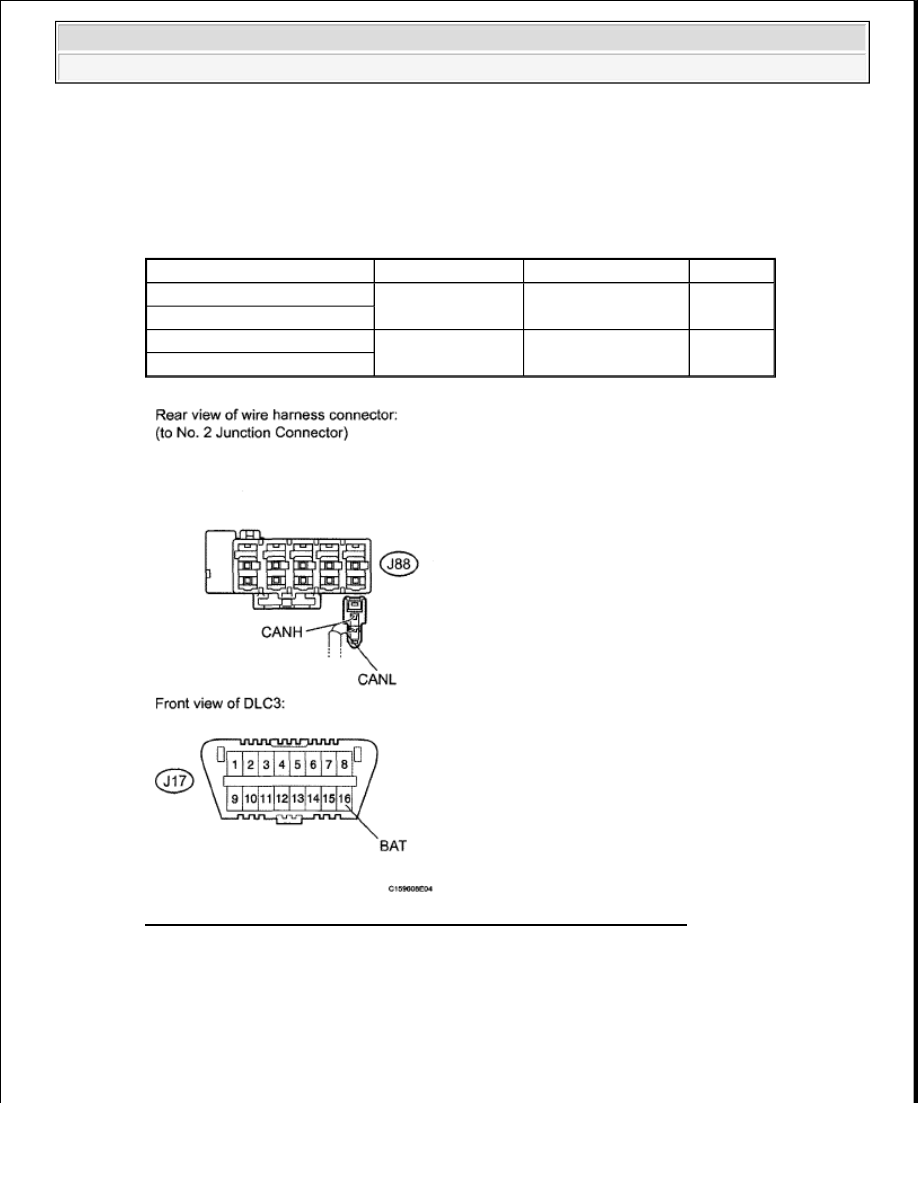

a. Disconnect the J88 No. 2 junction connector connector. b. Measure the resistance according to the value(s) in the table below. Result RESULT REFERENCE TABLE Fig. 129: Identifying J88 No. 2 Junction And J17 Connector Terminals NG: Go to step 24 OK: Go to next step 21. CHECK FOR SHORT TO B+ IN CAN BUS WIRE (NO. 2 JUNCTION CONNECTOR - ECM) a. Disconnect the J92 No. 2 junction connector connector. Tester Connection Switch Condition Measured Resistance Proceed to J88-1 (CANH) - J17-16 (BAT) Ignition switch OFF 1 ohms or higher OK J88-2 (CANL) - J17-16 (BAT) J88-1 (CANH) - J17-16 (BAT) Ignition switch OFF Below 1 ohms NG J88-2 (CANL) - J17-16 (BAT)
2009 Toyota Tundra 2009 ACCESSORIES & EQUIPMENT CAN Communication - Tundra
|
