Toyota Tundra. Manual - part 2722





2. INSTALL BREAK AWAY CAPSULE

a. Install the 2 break away capsules and 2 break away collars to the steering column.

Fig. 72: Identifying Break Away Capsules And Break Away Collars
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. INSTALL IGNITION SWITCH ASSEMBLY

a. Attach the 2 claws to install the ignition switch to the steering lock.

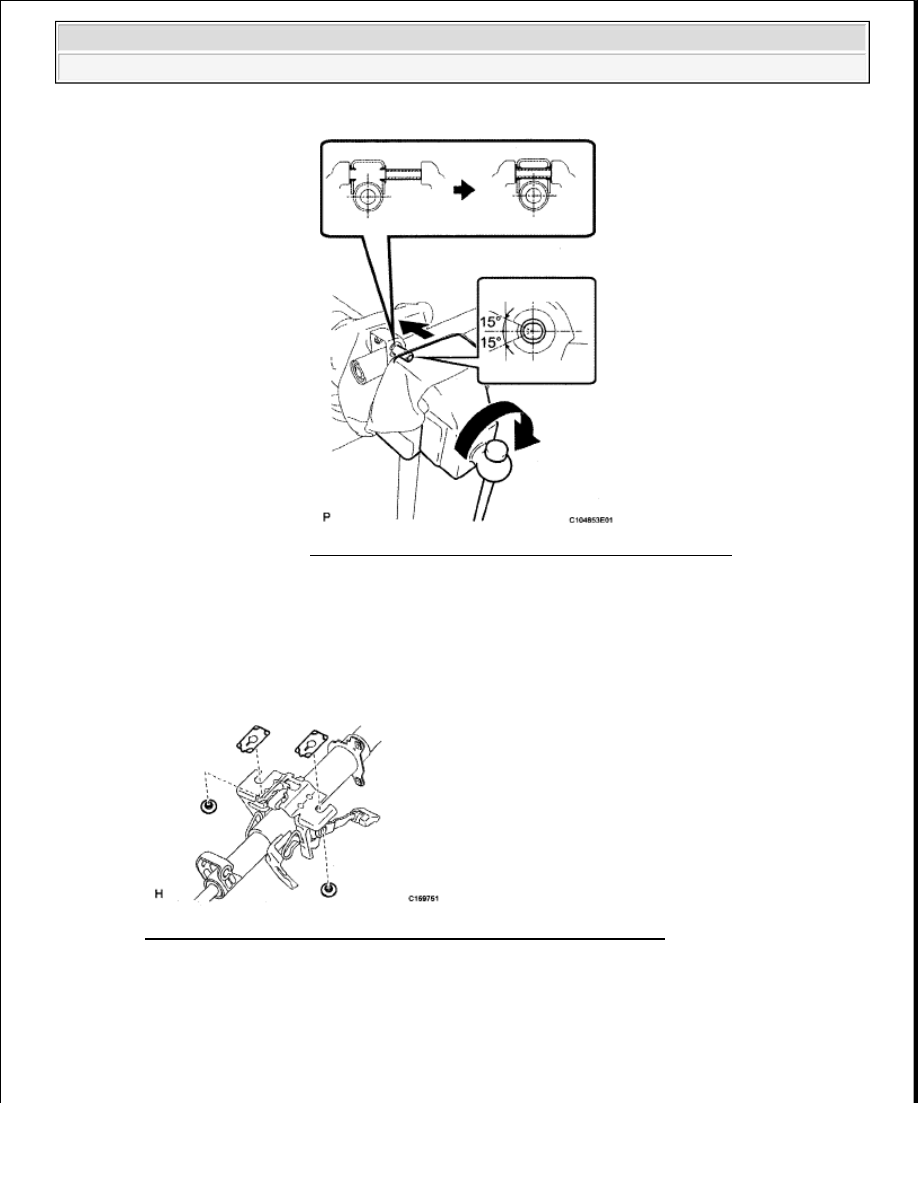

Fig. 71: Installing Steering Colum Bracket Spacer
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

NOTE:

Do not damage the plate spring of the break away collar.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































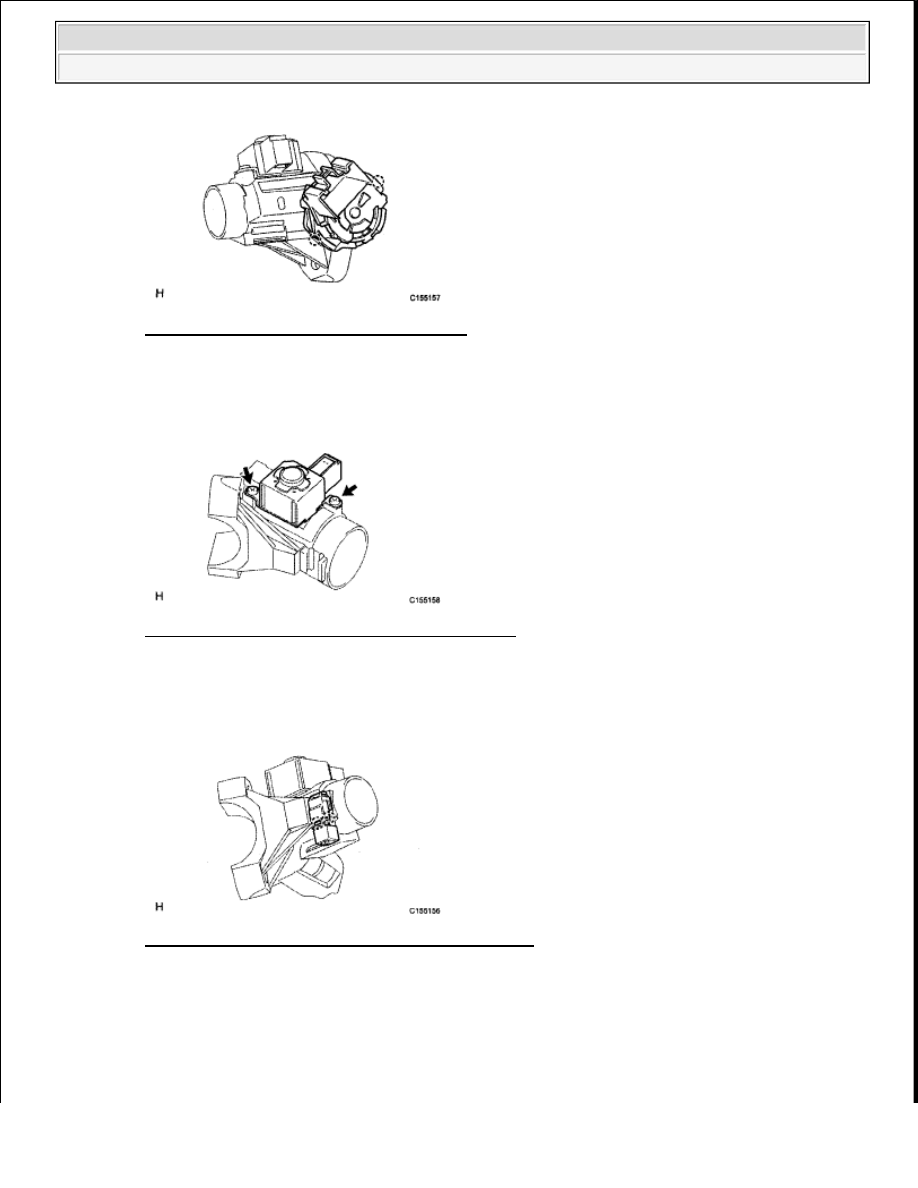

Fig. 73: Identifying Ignition Switch Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. INSTALL KEY INTERLOCK SOLENOID

a. Install the key interlock solenoid to the steering lock with the 2 screws.

Fig. 74: Locating Key Interlock Solenoid Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. INSTALL UNLOCK WARNING SWITCH ASSEMBLY

a. Attach the 2 claws to install the unlock warning switch to the steering lock.

Fig. 75: Identifying Unlock Warning Switch Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

6. INSTALL IGNITION SWITCH LOCK CYLINDER

a. Check that the ignition switch lock cylinder is in the ACC position.

b. Install the ignition switch lock cylinder to the steering lock.

c. Check that the ignition switch lock cylinder is securely installed.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































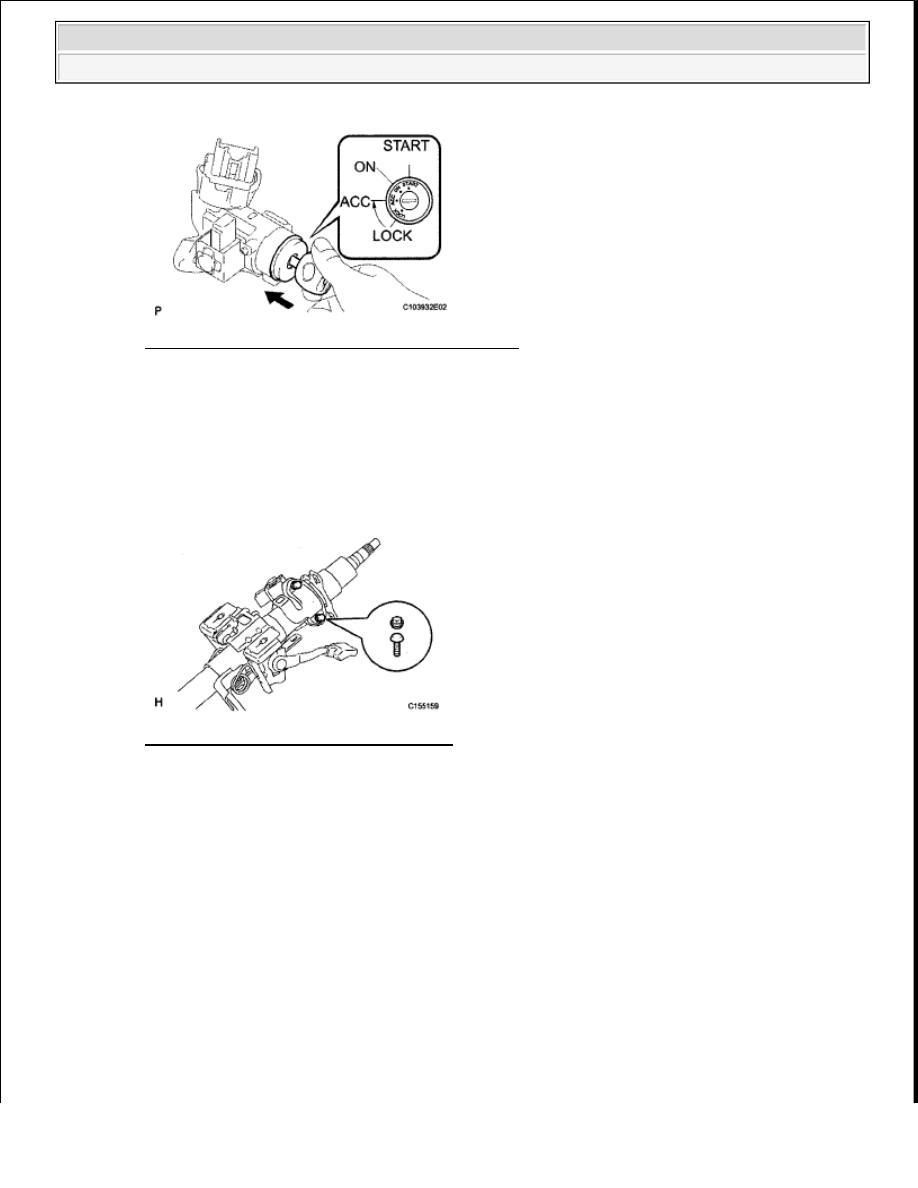

Fig. 76: Installing Ignition Switch Lock Cylinder
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. INSPECT STEERING LOCK OPERATION

8. INSTALL UPPER STEERING COLUMN CLAMP WITH SWITCH

a. Temporarily install the upper steering column with switch bracket and the steering lock bracket

with 2 new tapered-head bolts.

b. Tighten the 2 tapered-head bolts until the bolt heads break off.

Fig. 77: Identifying Tapered-Head Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. INSTALL TRANSPONDER KEY AMPLIFIER (w/ Engine Immobilizer System)

a. Align the transponder key amplifier with the installation position of the upper bracket with the

amplifier inclined.

b. Push the transponder key amplifier upward and install it to the upper bracket.

NOTE:

Do not push the amplifier up with excessive force.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra































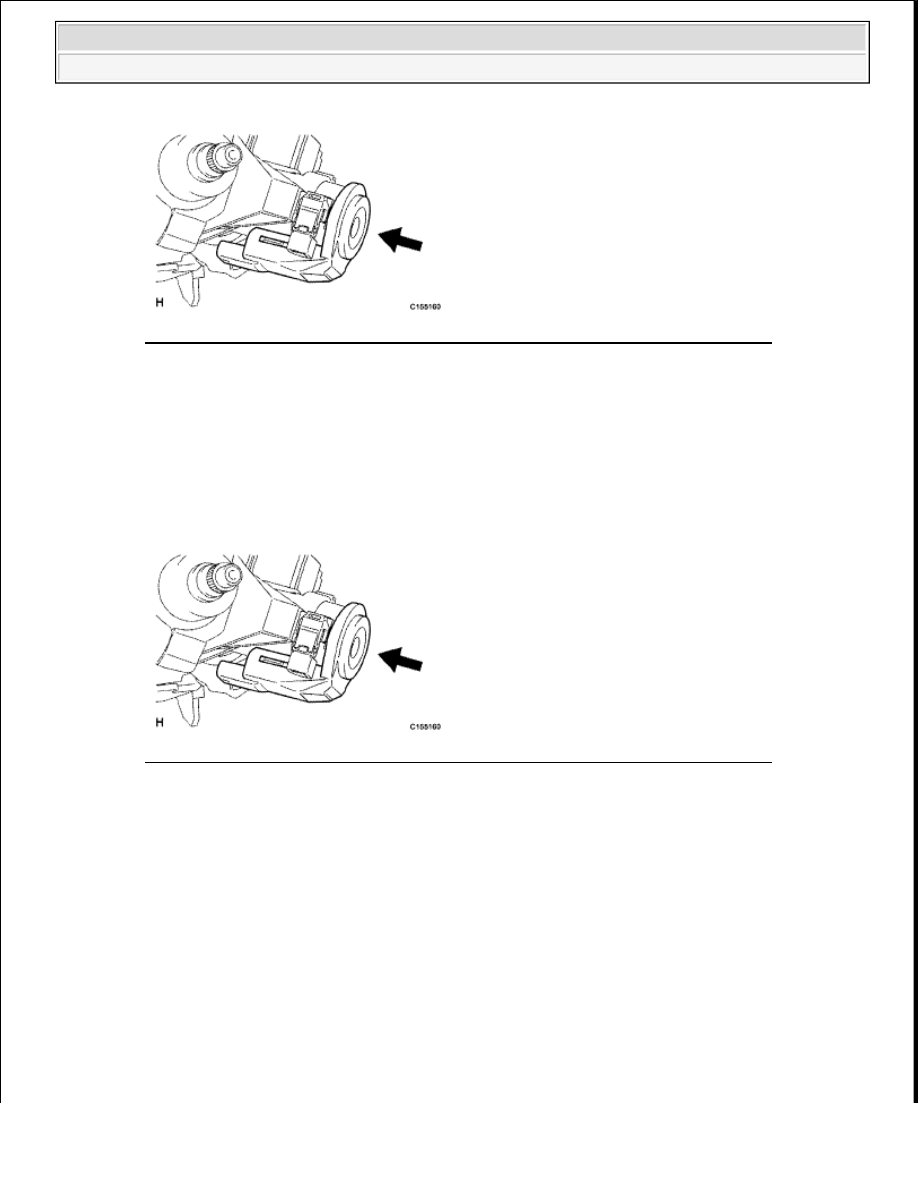

Fig. 78: Installing Transponder Key Amplifier And Key Cylinder Light Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

10. INSTALL KEY CYLINDER LIGHT ASSEMBLY (w/o Engine Immobilizer System)

a. Align the key cylinder light with the installation position of the upper bracket with the key cylinder

light inclined.

b. Push the key cylinder light upward and install it to the upper bracket.

Fig. 79: Installing Transponder Key Amplifier And Key Cylinder Light Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

1. INSTALL STEERING COLUMN ASSEMBLY

a. Install the steering column with the bolt and 2 nuts.

Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

NOTE:

Do not push the key cylinder light up with excessive force.



2009 Toyota Tundra

2009 STEERING Steering Column - Tundra
