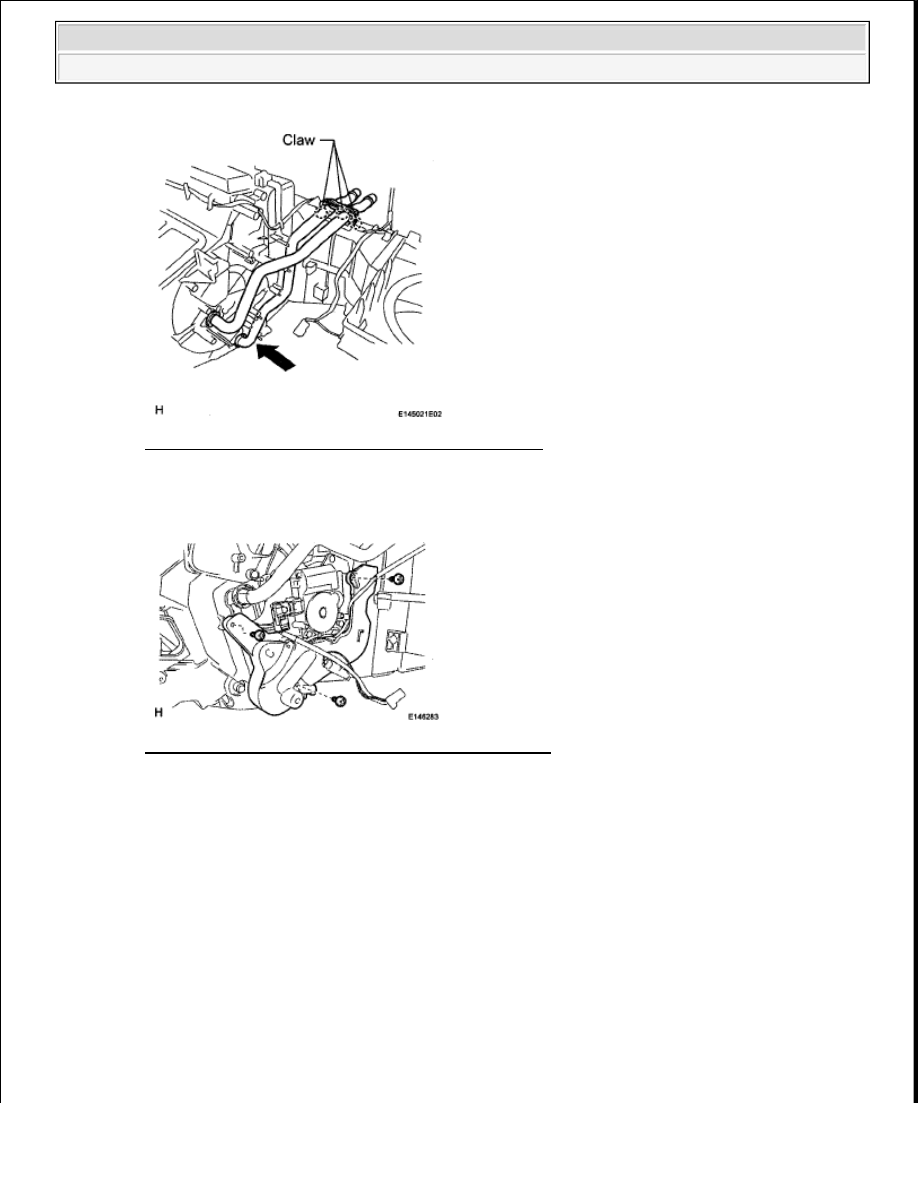

Fig. 340: Locating Heater Radiator Unit And Claws c. Install the plate with the 3 screws. Fig. 341: Locating Heater Radiator Unit And Screws 4. INSTALL COOLING UNIT DAMPER SERVO SUB-ASSEMBLY (for Automatic Air Conditioning System) a. Install the damper servo with the 3 screws, as shown in the illustration.
2009 Toyota Tundra 2009 HVAC Air Conditioning - Tundra
|
