a. Remove the air conditioning unit (see REMOVAL ).

2. REMOVE LOWER DEFROSTER NOZZLE ASSEMBLY

a. Detach the 4 claws and remove the nozzle.

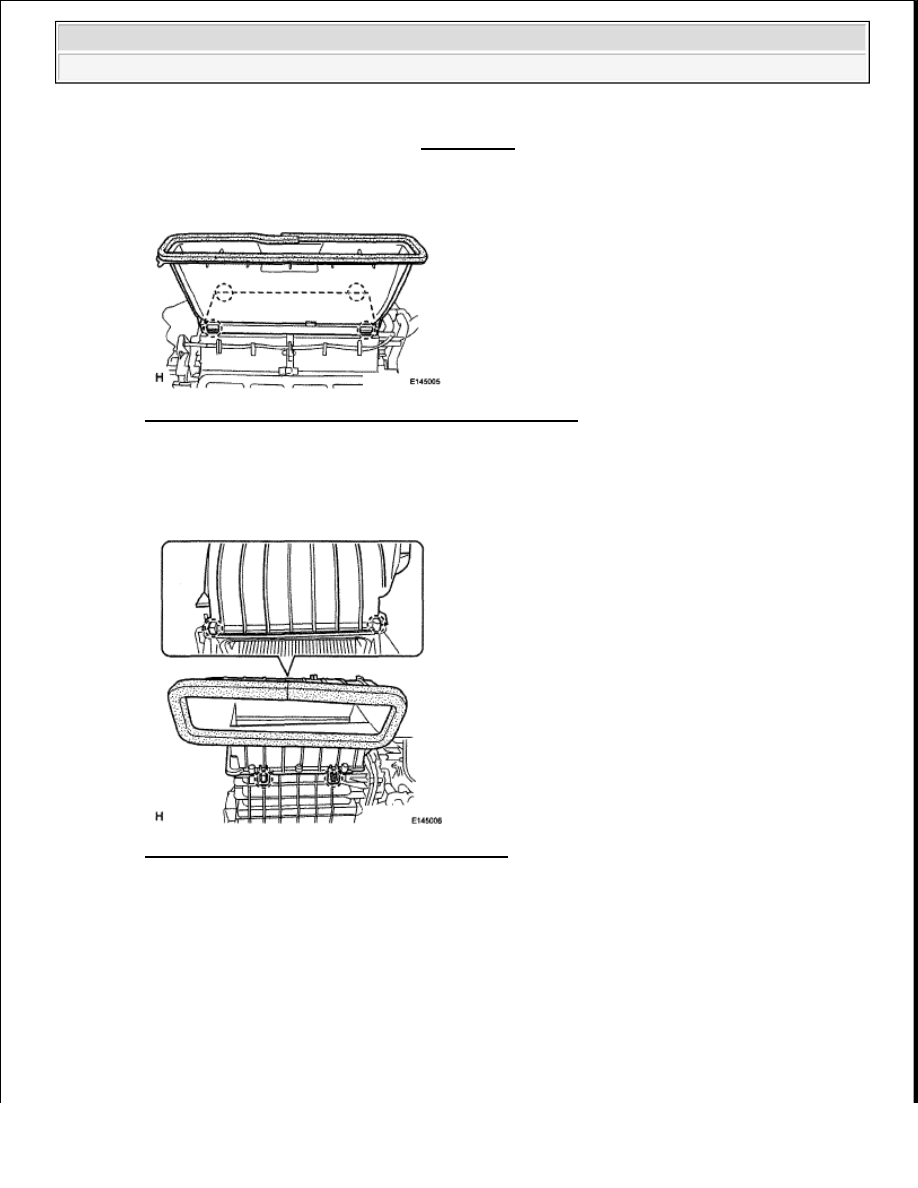

Fig. 314: Identifying Lower Defroster Nozzle And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. REMOVE NO. 3 AIR DUCT SUB-ASSEMBLY

a. Detach the 4 claws and remove the duct.

Fig. 315: Identifying No. 3 Air Duct And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. REMOVE AIR FILTER COVER PLATE

a. Detach the 2 clips and remove the plate.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

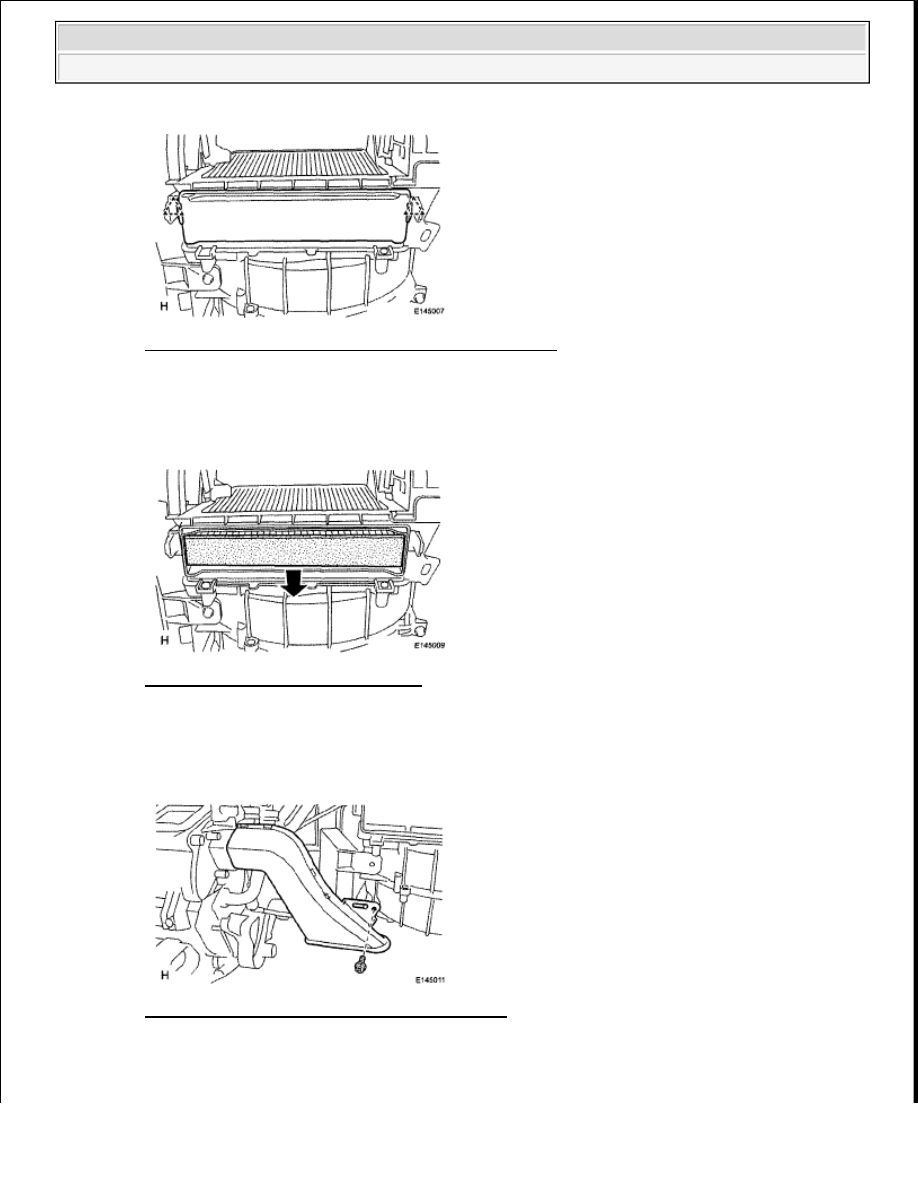

Fig. 316: Identifying Air Filter Cover Plate And Clips
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. REMOVE CLEAN AIR FILTER

a. Remove the filter.

Fig. 317: Removing Clean Air Filter
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

6. REMOVE NO. 2 AIR DUCT SUB-ASSEMBLY

a. Remove the screw and duct.

Fig. 318: Identifying No. 2 Air Duct And Screw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

a. Remove the 2 screws and amplifier.

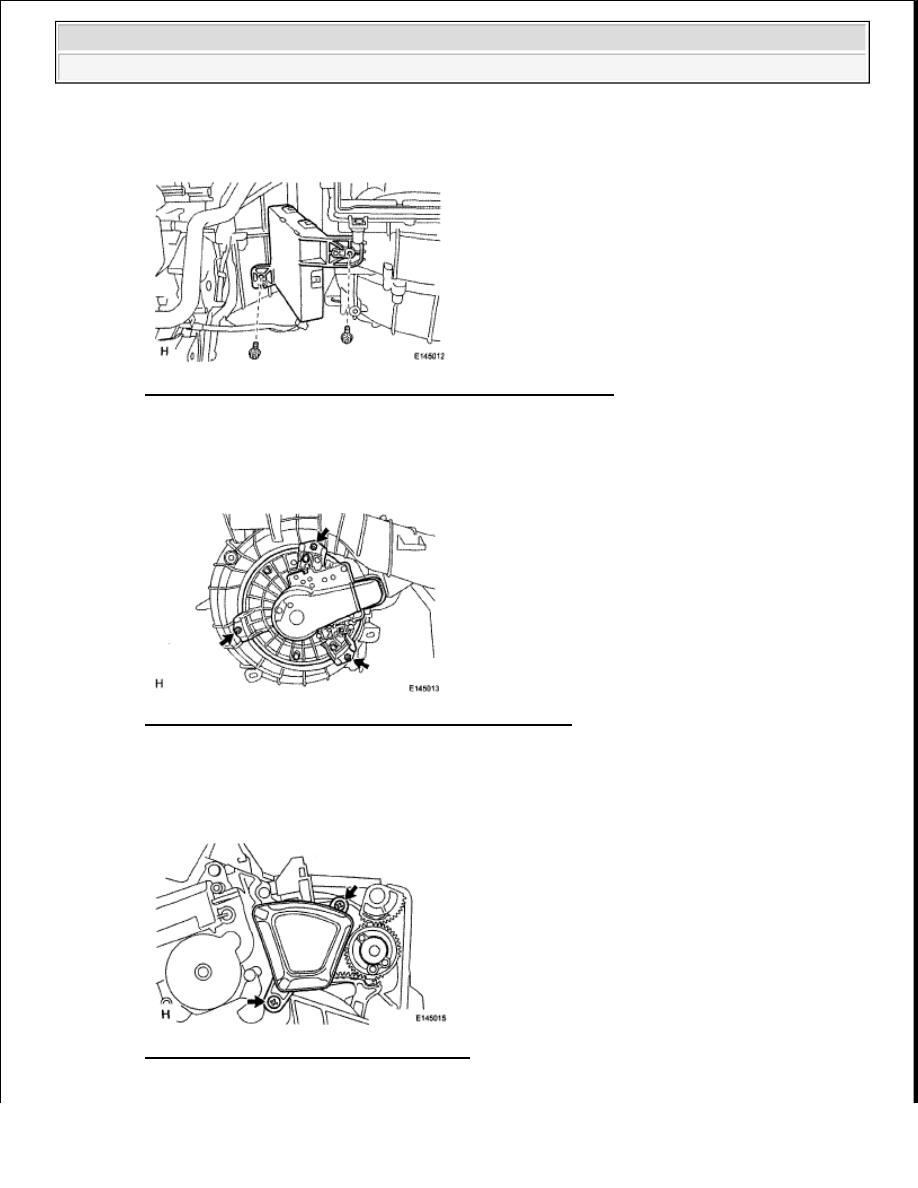

Fig. 319: Identifying Air Conditioning Amplifier And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY

a. Remove the 3 screws and motor.

Fig. 320: Locating Blower With Fan Motor And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. REMOVE AIR DUCT

a. Remove the 2 screws and duct.

Fig. 321: Identifying Air Duct And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

10. REMOVE DAMPER SERVO SUB-ASSEMBLY

a. Disconnect the 2 connectors.

b. Remove the 4 screws and damper servo.

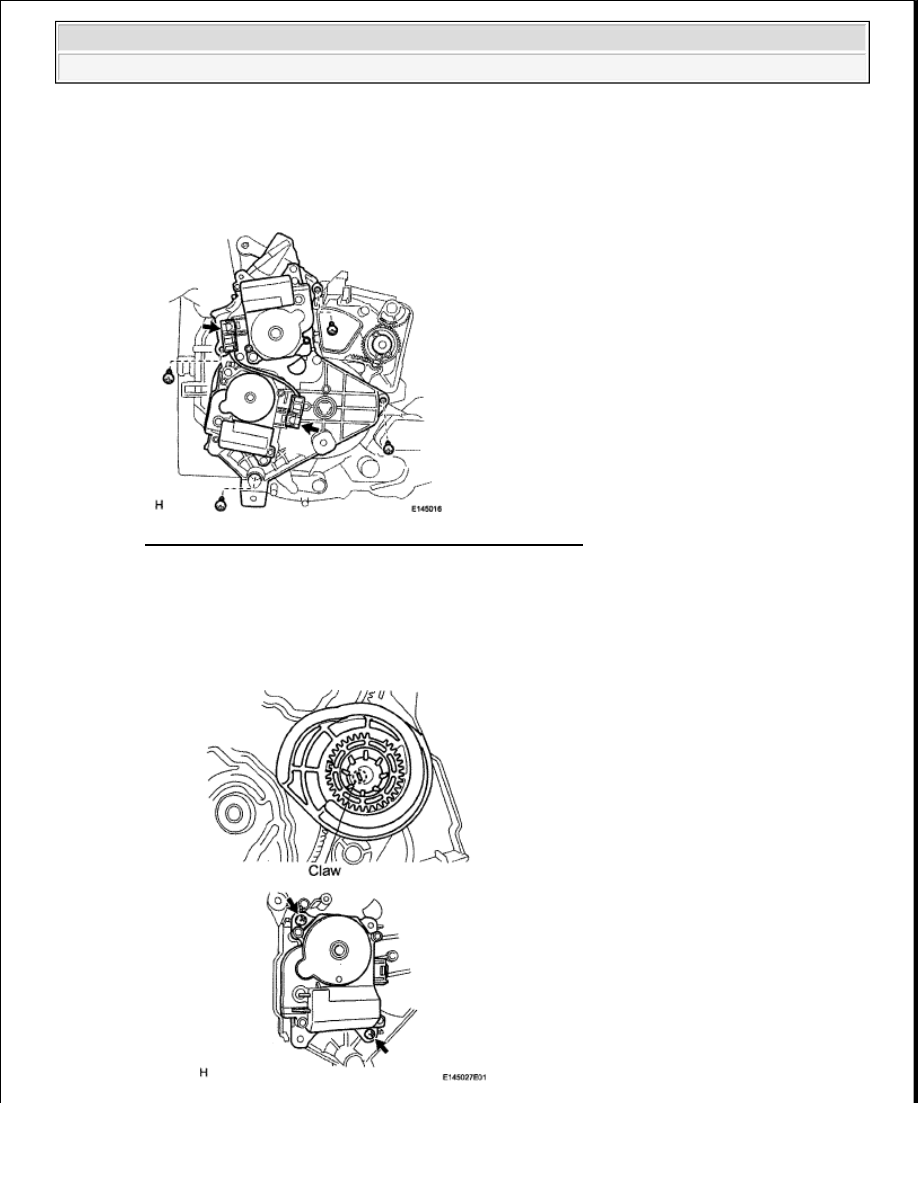

Fig. 322: Locating Damper Servo Screws And Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Remove the damper servo.

1. Detach the claw and remove the main plate.

2. Remove the 2 screws and damper servo.
