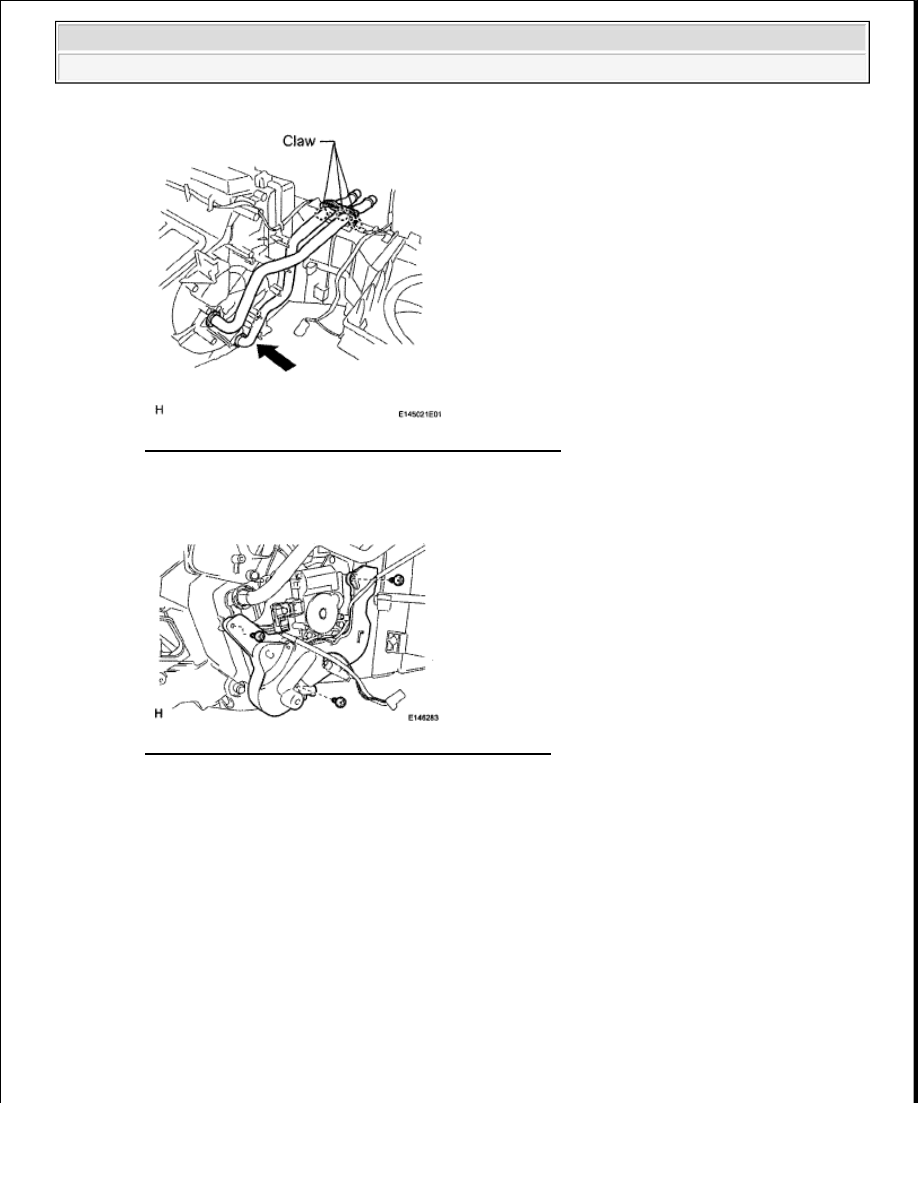

Fig. 199: Identifying Heater Radiator Unit And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

c. Install the plate with the 3 screws.

Fig. 200: Locating Heater Radiator Unit And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. INSTALL COOLING UNIT DAMPER SERVO SUB-ASSEMBLY (for Automatic Air

Conditioning System)

a. Install the damper servo with the 3 screws, as shown in the illustration.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

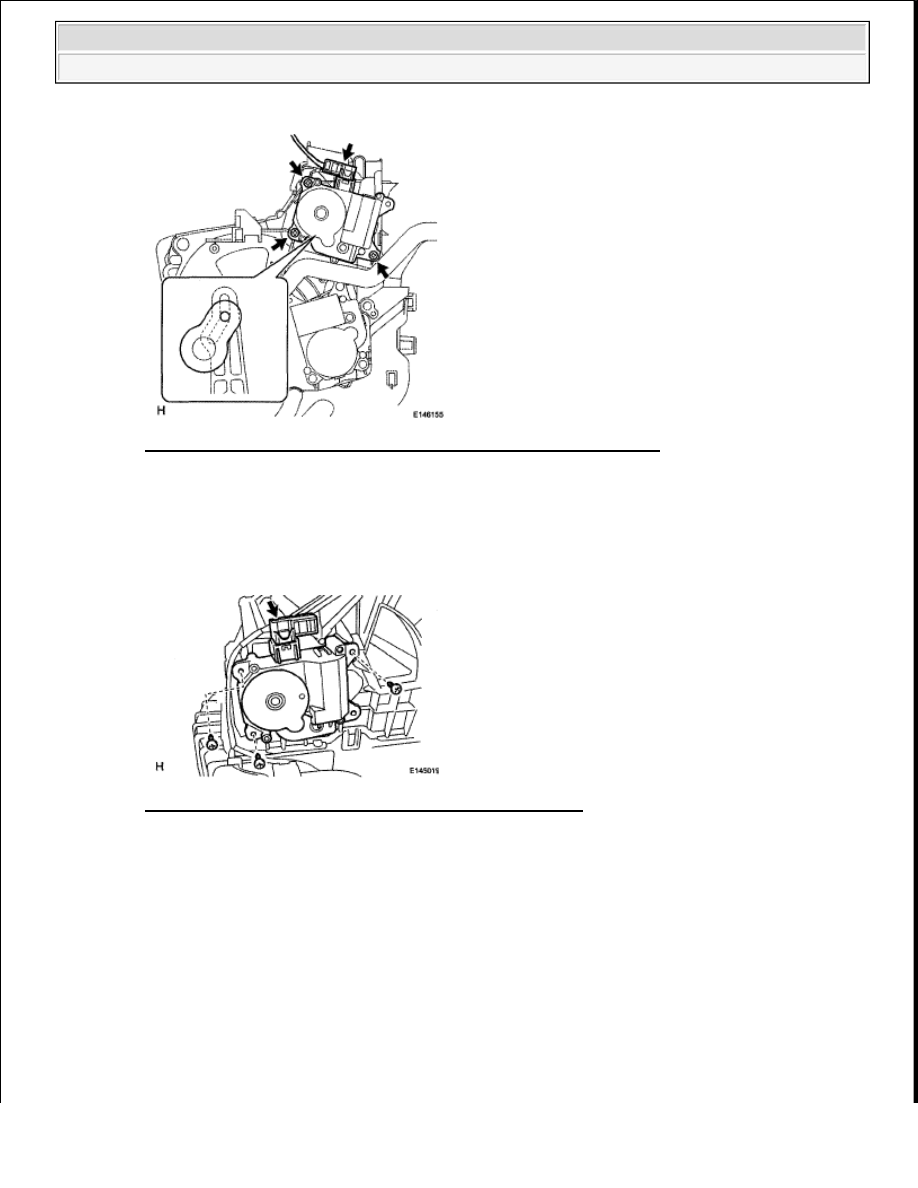

Fig. 201: Identifying Cooling Unit Damper Servo Plate And Screws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Connect the connector.

6. INSTALL BLOWER DAMPER SERVO SUB-ASSEMBLY

a. Install the damper servo with the 3 screws.

Fig. 202: Locating Damper Servo Screws And Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Connect the connector.

7. INSTALL BLOWER CASE SUB-ASSEMBLY

a. Attach the 3 claws to install the case.

b. Install the 3 screws.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

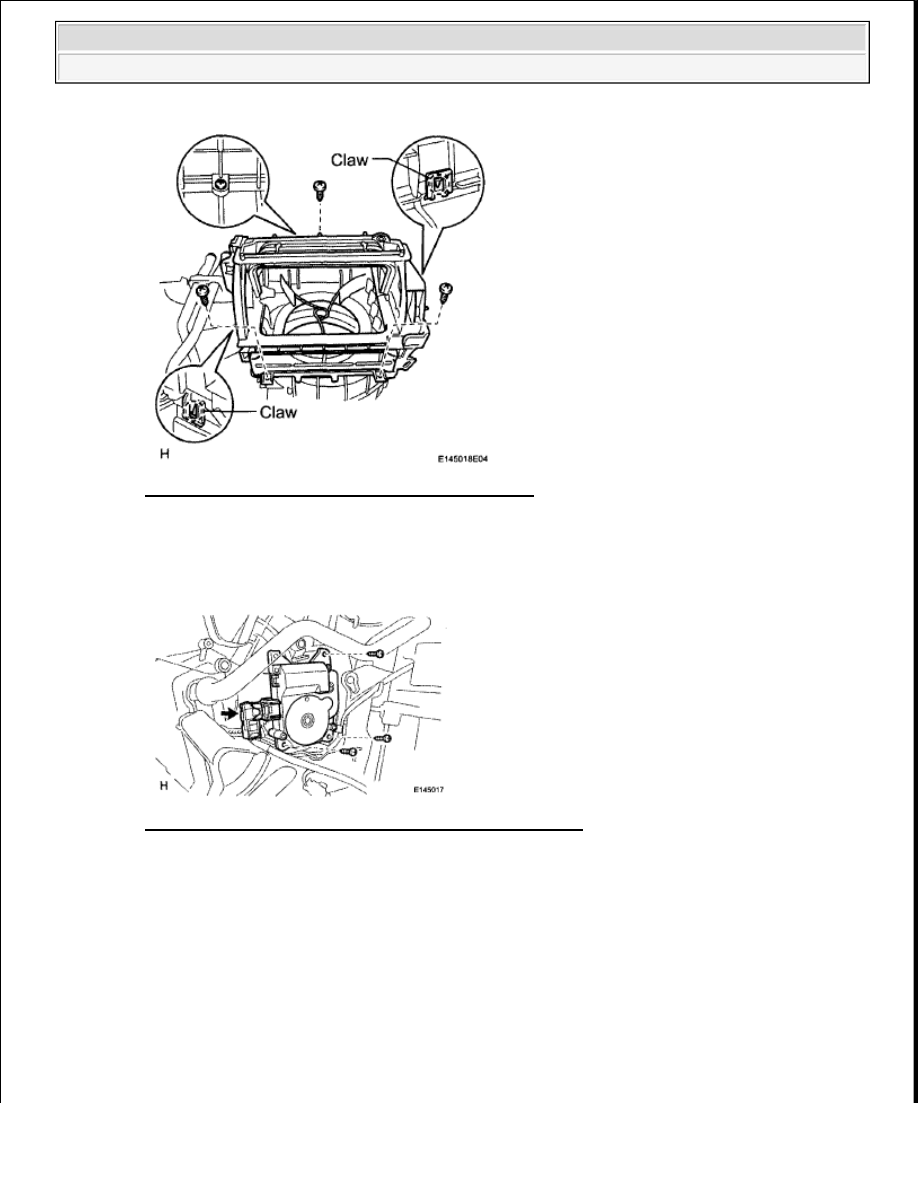

Fig. 203: Locating Blower Case Screws And Claws
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. INSTALL DAMPER SERVO SUB-ASSEMBLY

a. Install the damper servo with the 3 screws.

Fig. 204: Locating Damper Servo Screws And Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Connect the connector.

9. INSTALL DAMPER SERVO SUB-ASSEMBLY

a. Install the servo motor.

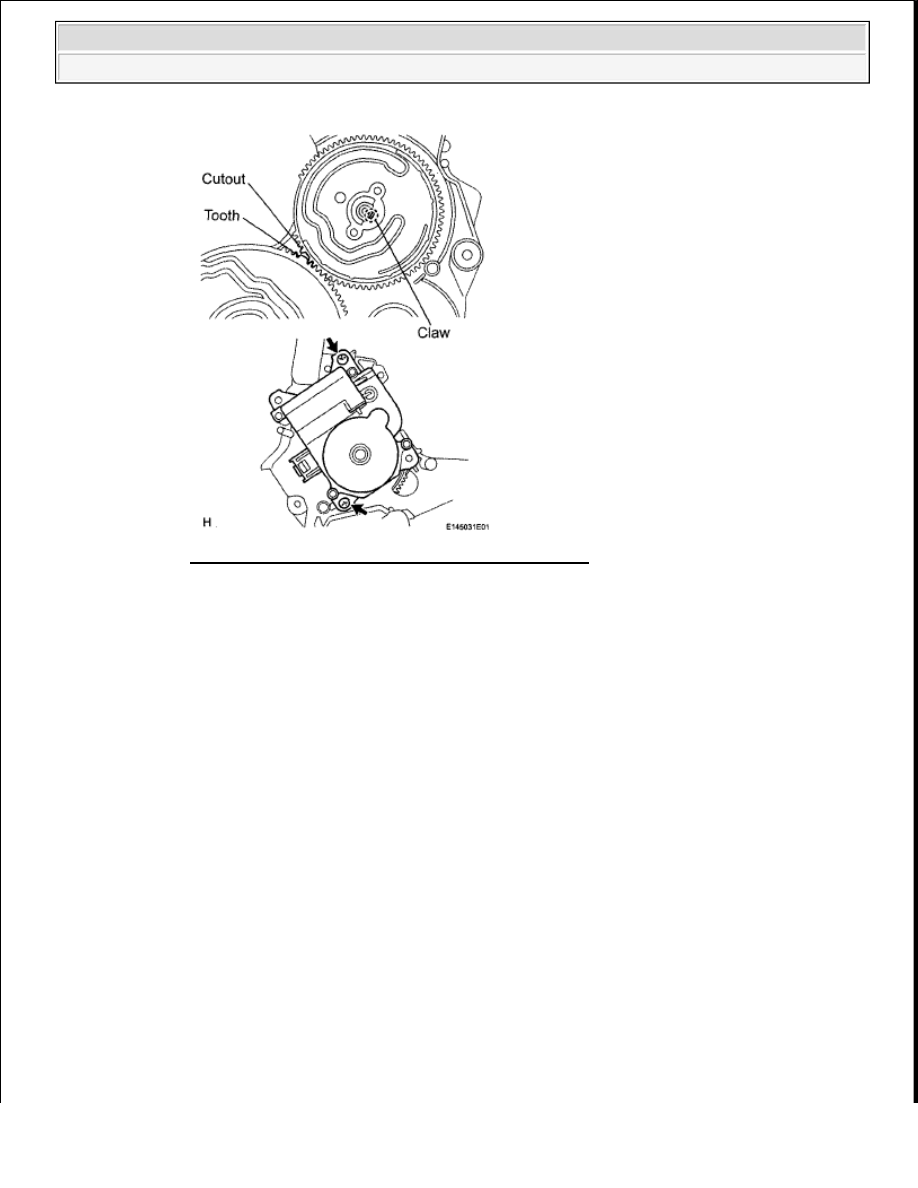

1. Set the plate so that the cutout part engages with the tooth of the gear, and attach the claw to

install the main plate.

2. Install the 2 screws.

2009 Toyota Tundra

2009 HVAC Air Conditioning - Tundra

Fig. 205: Identifying Servo Motor Screws And Claw
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Install the servo motor.

1. Insert the pin into the plate groove.

2. Attach the claw to install the main plate.

3. Install the 2 screws.
