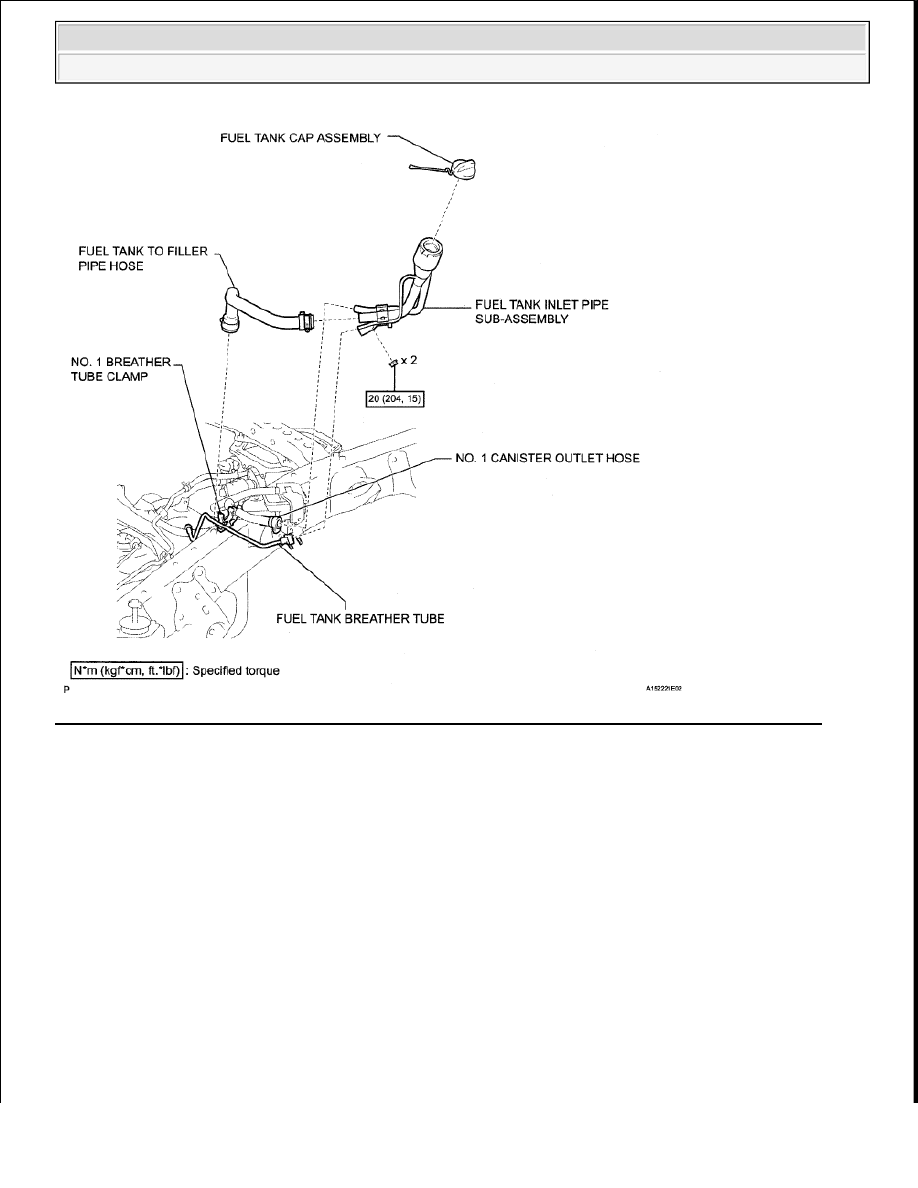

Fig. 116: Identifying Fuel Sender Gauge Assembly Components With Torque Specifications (3 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2009 Toyota Tundra

2009 ENGINE Fuel (2UZ-FE) - Tundra

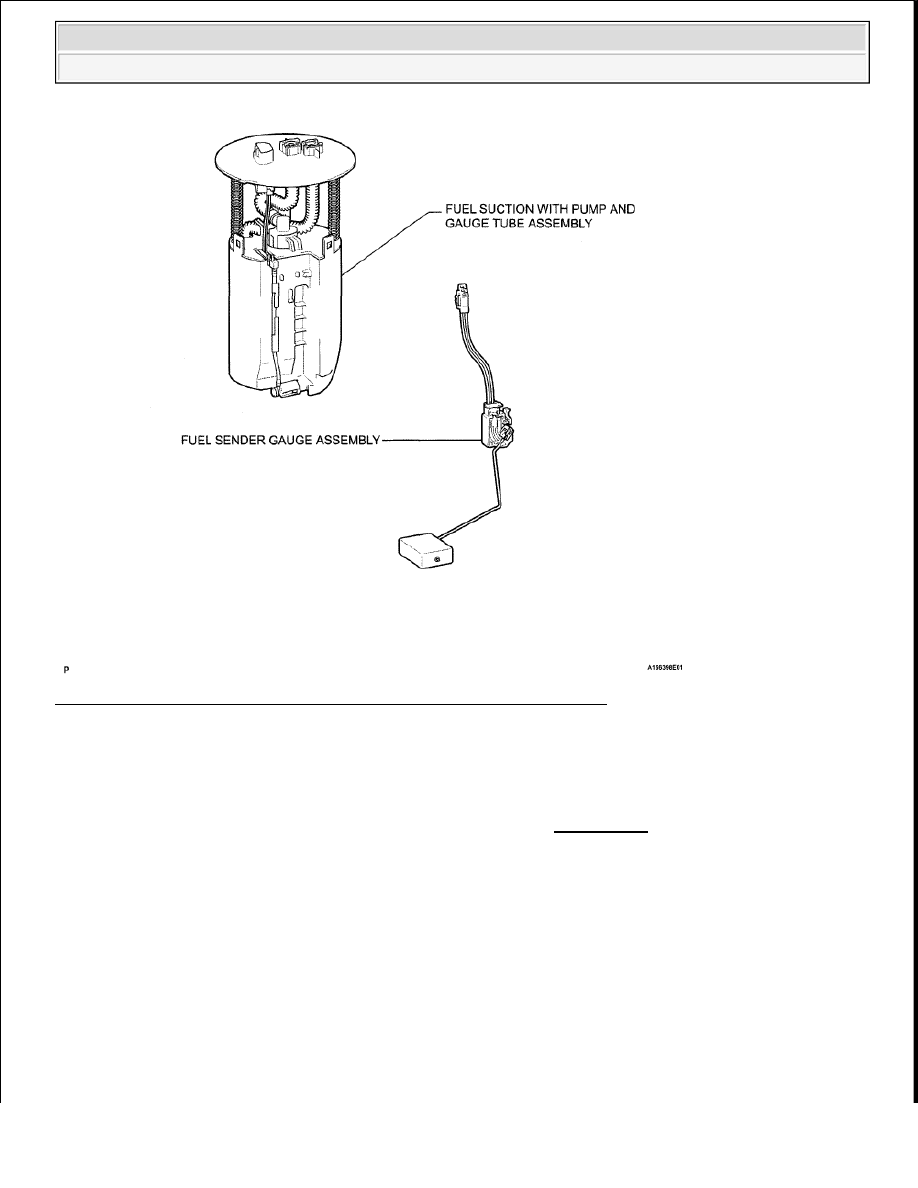

Fig. 117: Identifying Fuel Sender Gauge Assembly Components (4 Of 4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

REMOVAL

1. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

a. Remove the fuel suction with pump and gauge tube (see REMOVAL ).

2. REMOVE FUEL SENDER GAUGE ASSEMBLY

a. Disconnect the fuel sender gauge connector.

2009 Toyota Tundra

2009 ENGINE Fuel (2UZ-FE) - Tundra

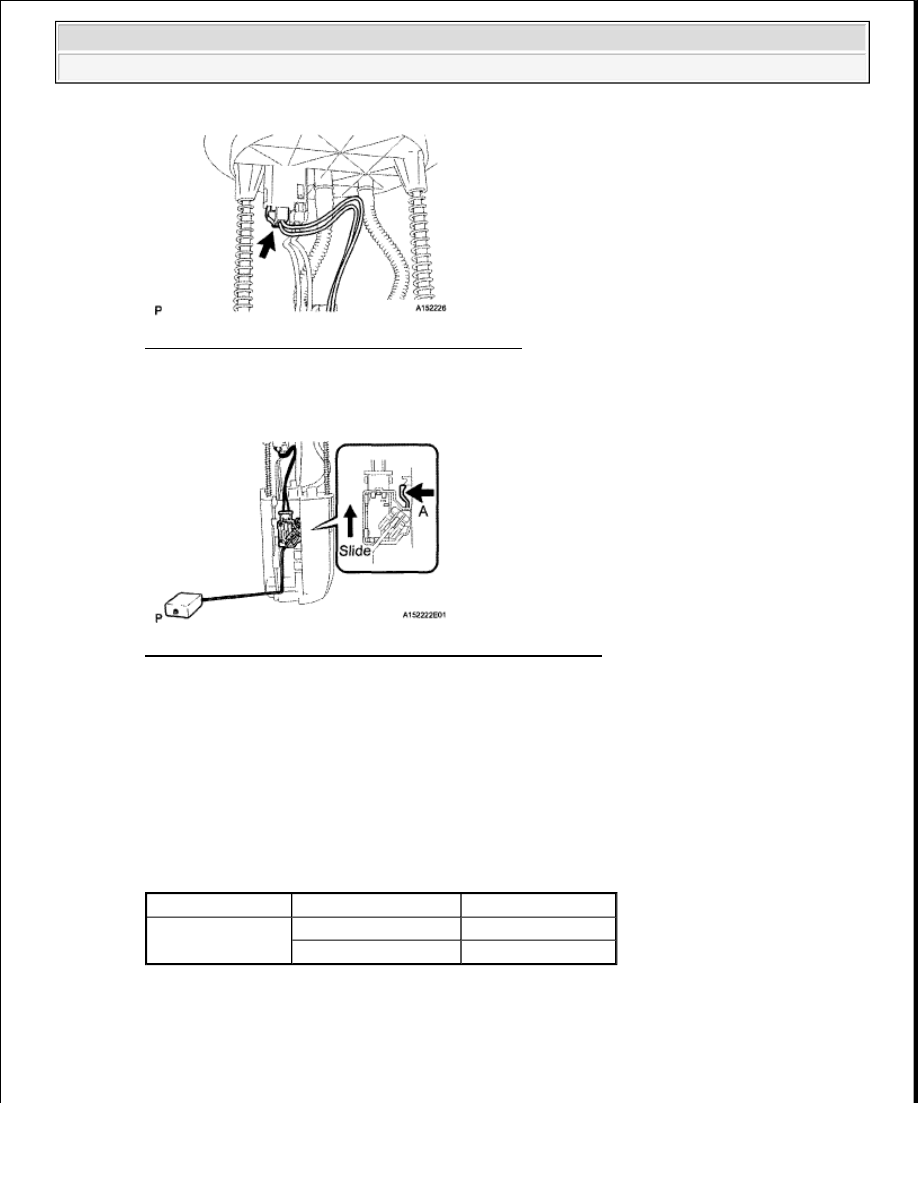

Fig. 118: Locating Fuel Sender Gauge Connector
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

b. Press down on the sender gauge claw labeled A. Then slide the sender gauge upward to remove it.

Fig. 119: Pressing Down On Sender Gauge Claw Labeled A
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSPECTION

1. INSPECT FUEL SENDER GAUGE ASSEMBLY

a. Check that the float moves smoothly between F and E.

b. Measure the resistance according to the value(s) in the table below.

Standard resistance

FUEL SENDER GAUGE ASSEMBLY

If the value is not as specified, replace the fuel sender gauge assembly.

Tester Connection

Condition

Specified Condition

2-3

Float level is F (upper)

12 to 18 ohms

Float level is E (lower)

405 to 415 ohms

2009 Toyota Tundra

2009 ENGINE Fuel (2UZ-FE) - Tundra

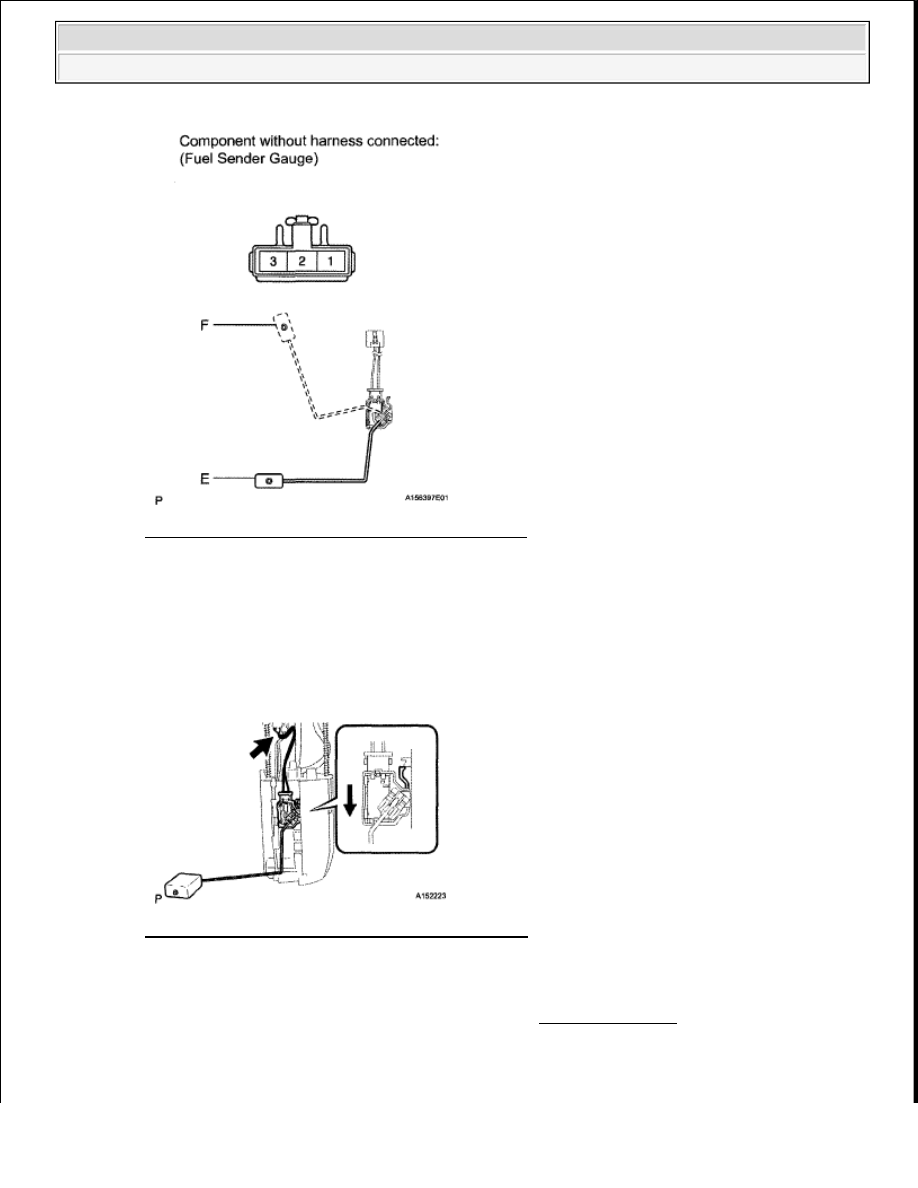

Fig. 120: Inspecting Fuel Sender Gauge Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INSTALLATION

1. INSTALL FUEL SENDER GAUGE ASSEMBLY

a. Set the sender gauge to the fuel sub tank. Then slide the sender gauge downward to install it.

b. Connect the fuel sender gauge connector.

Fig. 121: Setting Sender Gauge To Fuel Sub Tank
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

a. Install the fuel suction with pump and gauge tube (see INSTALLATION ).
