547

7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

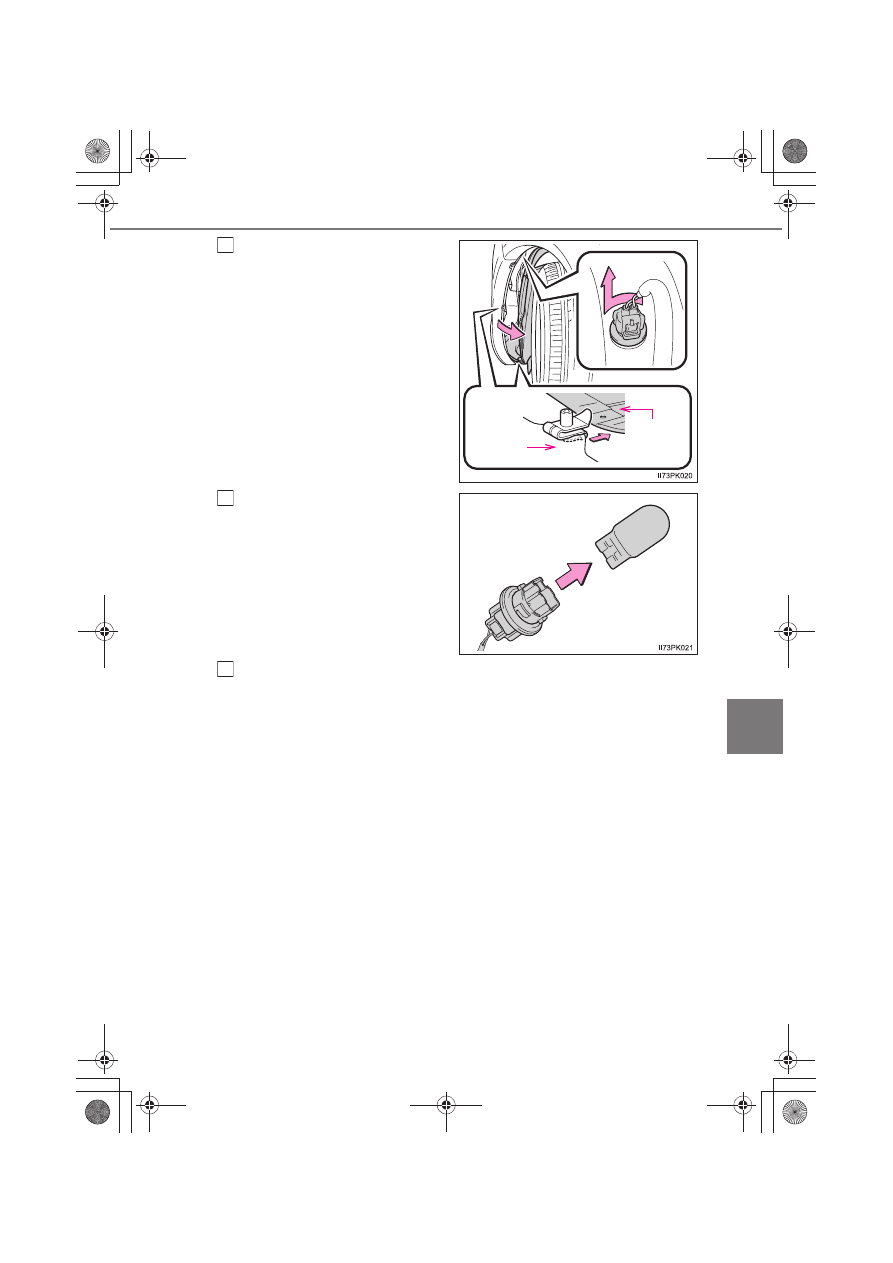

Partly remove the fender
liner and turn the bulb base
counterclockwise.

Remove the light bulb.

When installing, reverse the steps listed.

Bumper

Fender
liner

2

3

4

548

7-3. Do-it-yourself maintenance

■

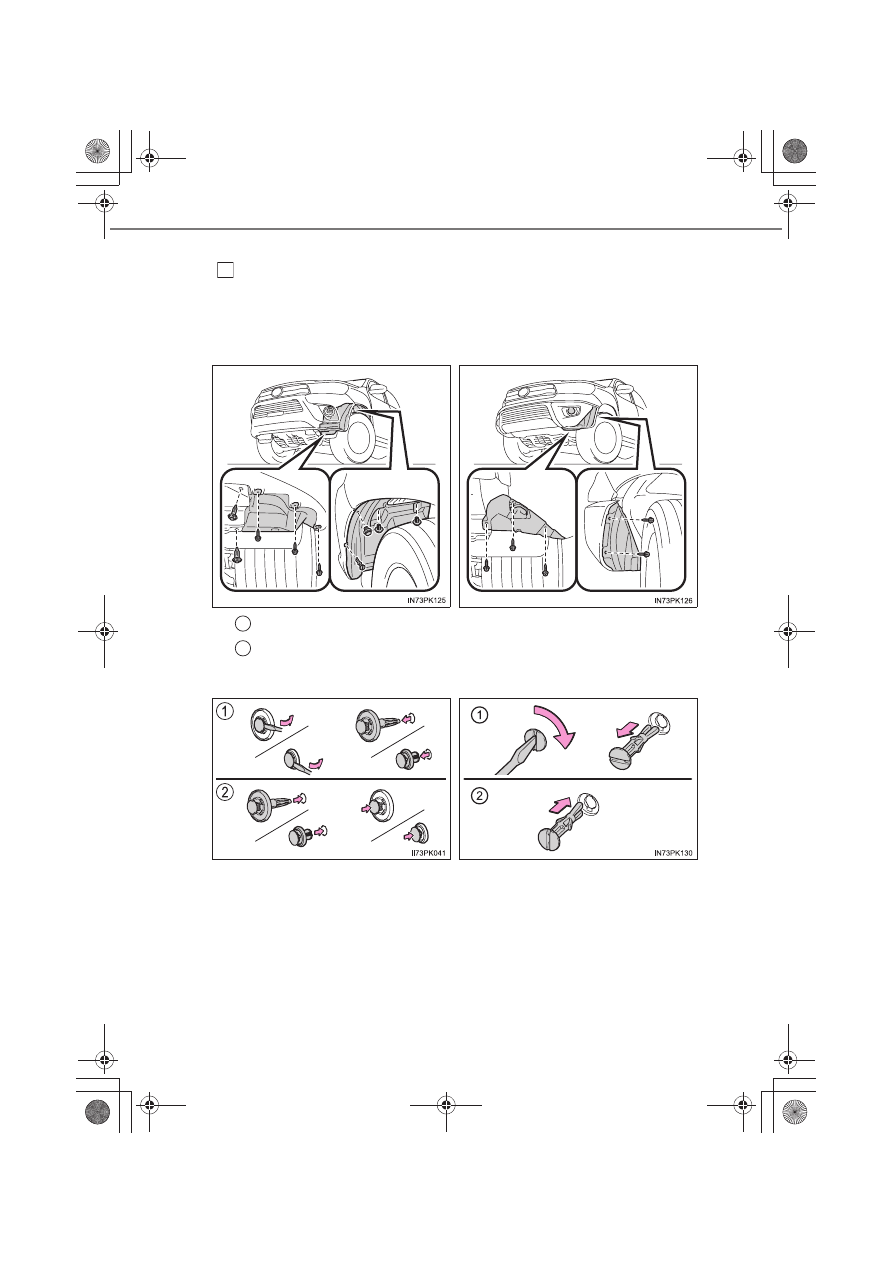

Front fog lights (if equipped)

To allow enough working space, turn the steering wheel to the
opposite side where the bulb to be replaced is located.
Remove the screws and clips.

Removing the clip
Installing the clip

1

X

Vehicles without steel bumper

X

Vehicles with steel bumper

1
2

X

Type A

X

Type B

549

7-3. Do-it-yourself maintenance

7

M

ai

nte
nan
ce and

 ca

re

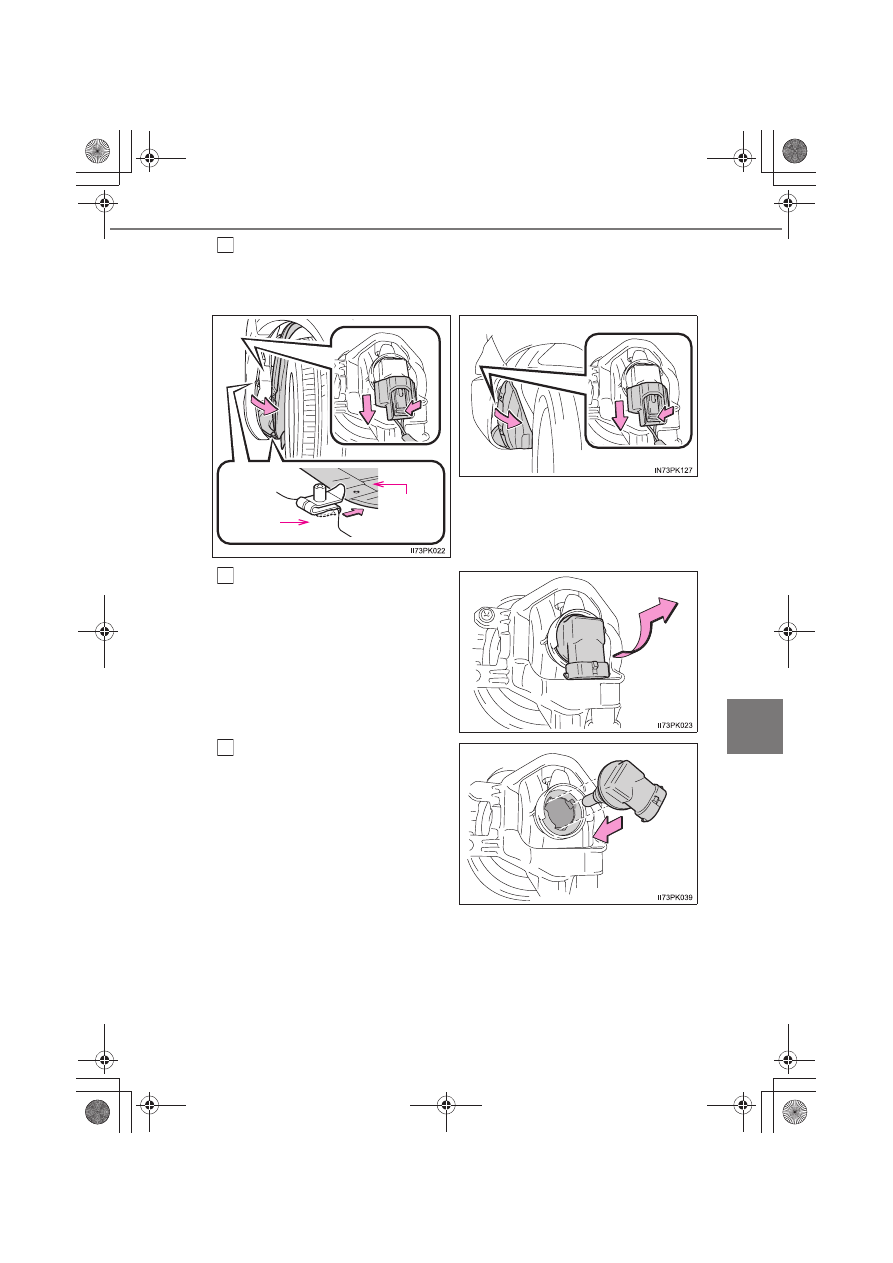

Partly remove the fender liner and unplug the connector while
pressing the lock release.

Turn the bulb base counter-
clockwise.

Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.

2

X

Vehicles without steel bumper

X

Vehicles with steel bumper

Bumper

Fender
liner

3

4

550

7-3. Do-it-yourself maintenance

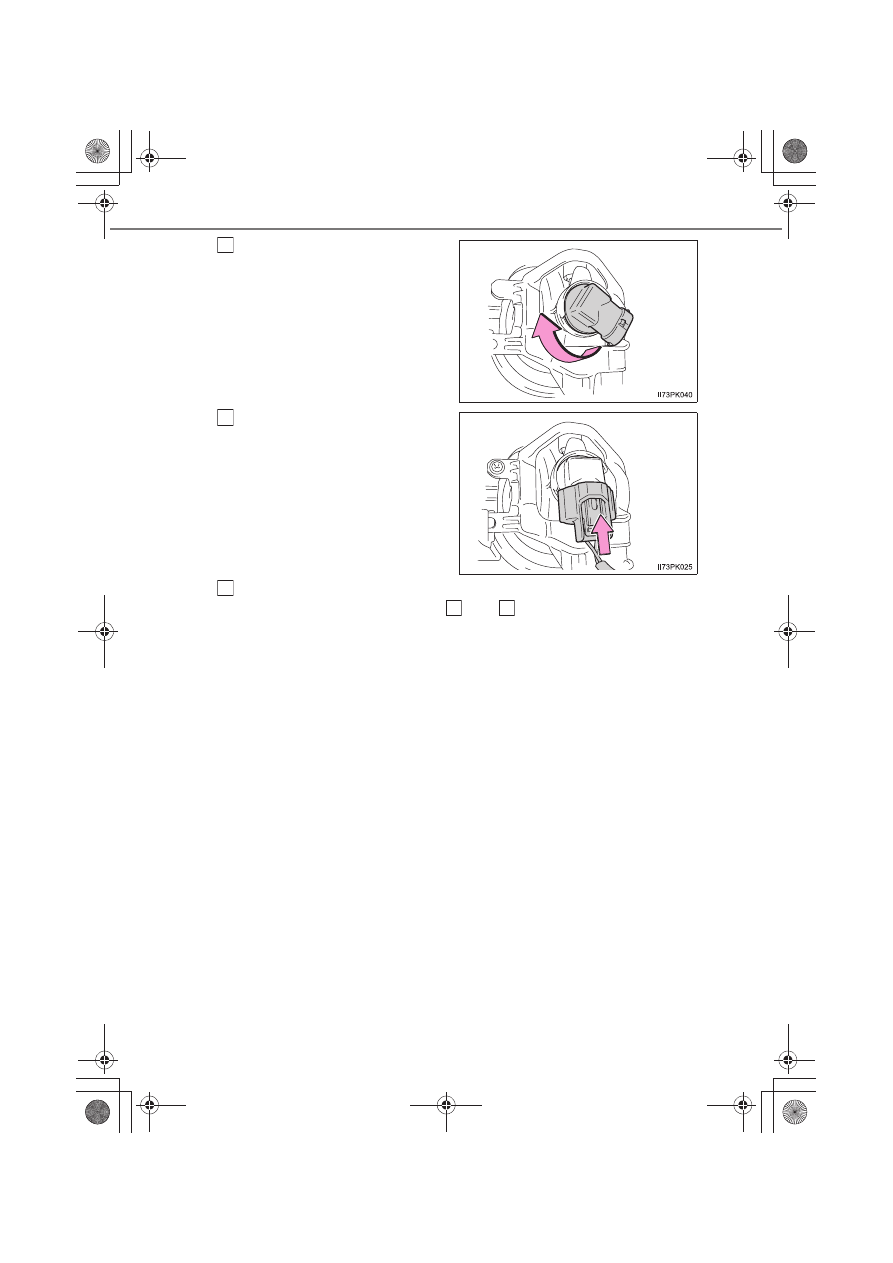

Turn and secure the bulb base.

Install the connector

Shake the bulb base gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.

When installing the fender liner, screws and clips, reverse the
removing procedure in steps

 and

.

5

6

7

1

2
