379

5

5-1. Basic Operations

Au
dio
 sy
stem

AUX port/USB port

■

iPod
Open the cover and connect an
iPod using an iPod cable.

Turn on the power of the iPod if
it is not turned on.

■

USB memory
Open the cover and connect the USB memory device.

Turn on the power of the USB memory device if it is not turned on.

■

Portable audio player
Open the cover and connect the portable audio player.

Turn on the power of the portable audio player if it is not turned on.

Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.

Connecting using the AUX port/USB port

WARNING

■

While driving
Do not connect a device or operate the device controls.

NOTICE

■

To prevent damage to portable audio device or its terminal

●

Do not leave the portable audio device in the vehicle. The temperature
inside the vehicle may become high, resulting in damage to the device.

●

Do not push down on or apply unnecessary pressure to the portable audio
device while it is connected.

●

Do not insert foreign objects into the port.

380

5-2. Using the audio system

Optimal use of the audio system

Displays the “SETUP” menu/
Selecting the mode
Changes the following settings

• Sound quality and volume

balance
→P. 380

The sound quality and balance
setting can be changed to pro-
duce the best sound.

• Automatic Sound Levelizer

→P. 381

■

Changing sound quality modes

Press the “SETUP ENTER” button
Press the “TUNE >” or “< SELECT” button to select “Sound Set-
ting”, and press the “SETUP ENTER” button.
Press the “TUNE >” or “< SELECT” button as corresponds to the
desired mode.

“BASS”, “TREBLE”, “FADER”, “BALANCE”, or “ASL” can be selected.

Press the “SETUP ENTER” button.

The sound quality, volume balance and ASL settings can be
adjusted.

1

2

Using the audio control function

1

2

3

4

381

5-2. Using the audio system

5

Au
dio
 sy
stem

■

Adjusting sound quality
Pressing the “TUNE >” or “< SELECT” button adjusts the level.

*

1

: The sound quality level is adjusted individually in each audio mode.

*

2

: For the vehicles with 2 speakers system, the sound will be mute if the

sound balance is adjusted to the maximum level at the rear.

Press the “SETUP ENTER” button or

 (BACK) to return to the

sound setting menu.

■

Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, press the “TUNE >” or “< SELECT” button to
change the amount of ASL.
“LOW”, “MID”, “HIGH”, or “OFF” can be selected.

ASL automatically adjusts the volume and tone quality according to
vehicle speed.

Press the “SETUP ENTER” button or

 (BACK) to return to the

sound setting menu.

Sound

quality mode

Mode

displayed

Level

Press the

“< SELECT”

Press the
“TUNE >”

Bass

*

1

“BASS”

-5 to 5

Low

High

Treble

*

1

“TREBLE”

-5 to 5

Front/rear volume

balance

*

2

“FADER”

F7 to R7

Shifts to rear

Shifts to front

Left/right

volume

balance

“BALANCE”

L7 to R7

Shifts to left

Shifts to right

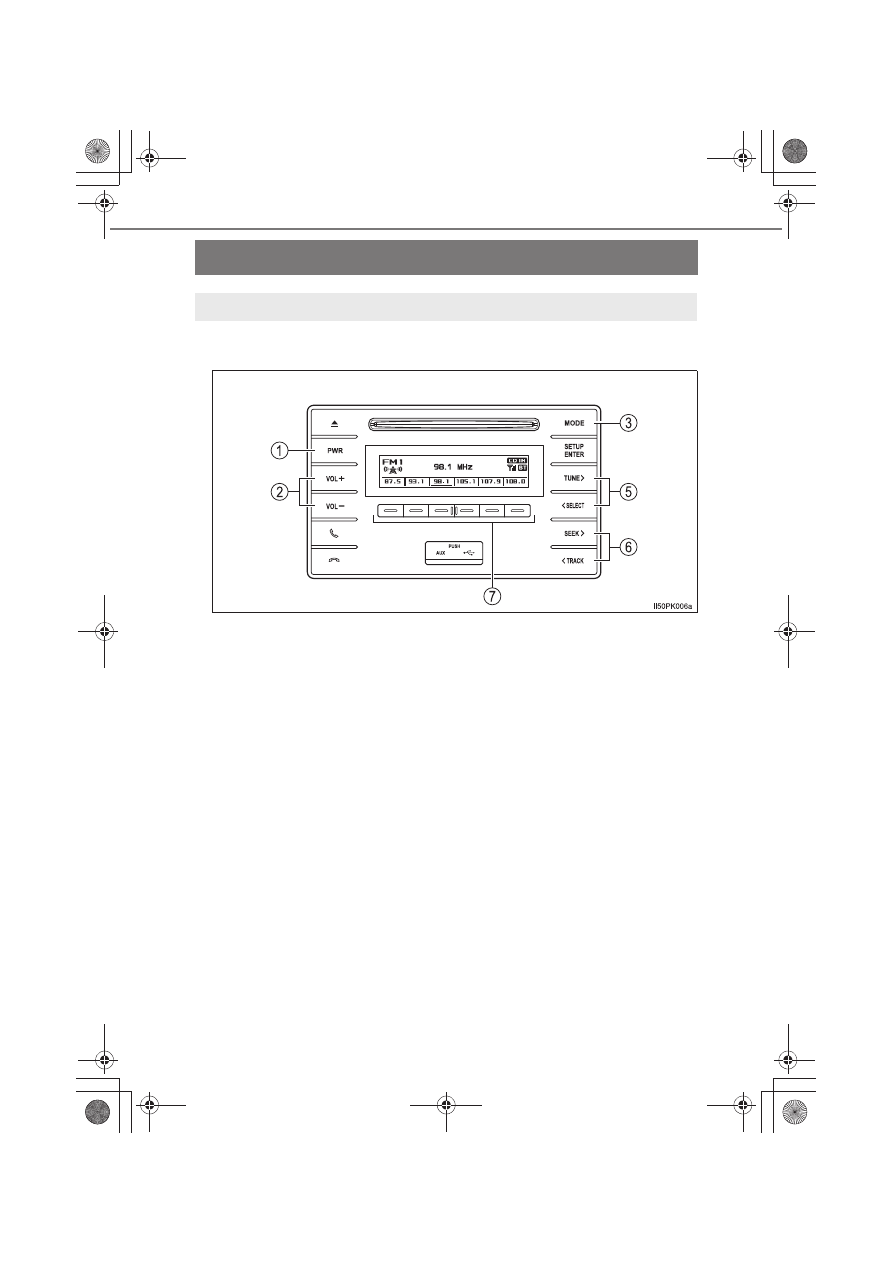

382

5-3. Using the radio

Radio operation

X

Type A

Press the “MODE” button until “AM” or “FM” is displayed.
