Average vehicle speed
Displays the average vehicle speed since the engine switch is
turned to the “ON” position (vehicles without smart entry & start sys-
tem) or IGNITION ON mode (vehicles with smart entry & start sys-
tem).

The function can be reset by pressing the “DISP” button for longer than
1 second when the average vehicle speed is displayed.

■

Elapsed time
Displays the elapsed time after the engine switch is turned to the
“ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).

• When the engine switch is turned on, time is counted from 00:00. When

the time exceeds 99:59, the counter returns to 00:00.

• The function can be reset by pressing the “DISP” button for longer than

1 second when the elapsed time is displayed.

■

Eco Driving Indicator Zone Display (if equipped)
Displays Zone of Eco driving with current Eco driving ratio based on
acceleration. (

→P. 126)

■

Display off
A blank screen is displayed.

■

Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the “DISP” button will automatically be turned off.

●

If a warning message appears while the setting display is displayed

●

When the vehicle begins to move while the setting display is displayed

■

When disconnecting and reconnecting battery terminals
The trip information data and settings will be reset.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization
Settings (e.g. on/off operation of the Eco Driving Indicator Light) can be
changed.
(Customizable features:

→P. 648)

136

2. Instrument cluster

Multi-information display (Type B)

∗

The multi-information display presents the driver with a variety of vehi-
cle data.

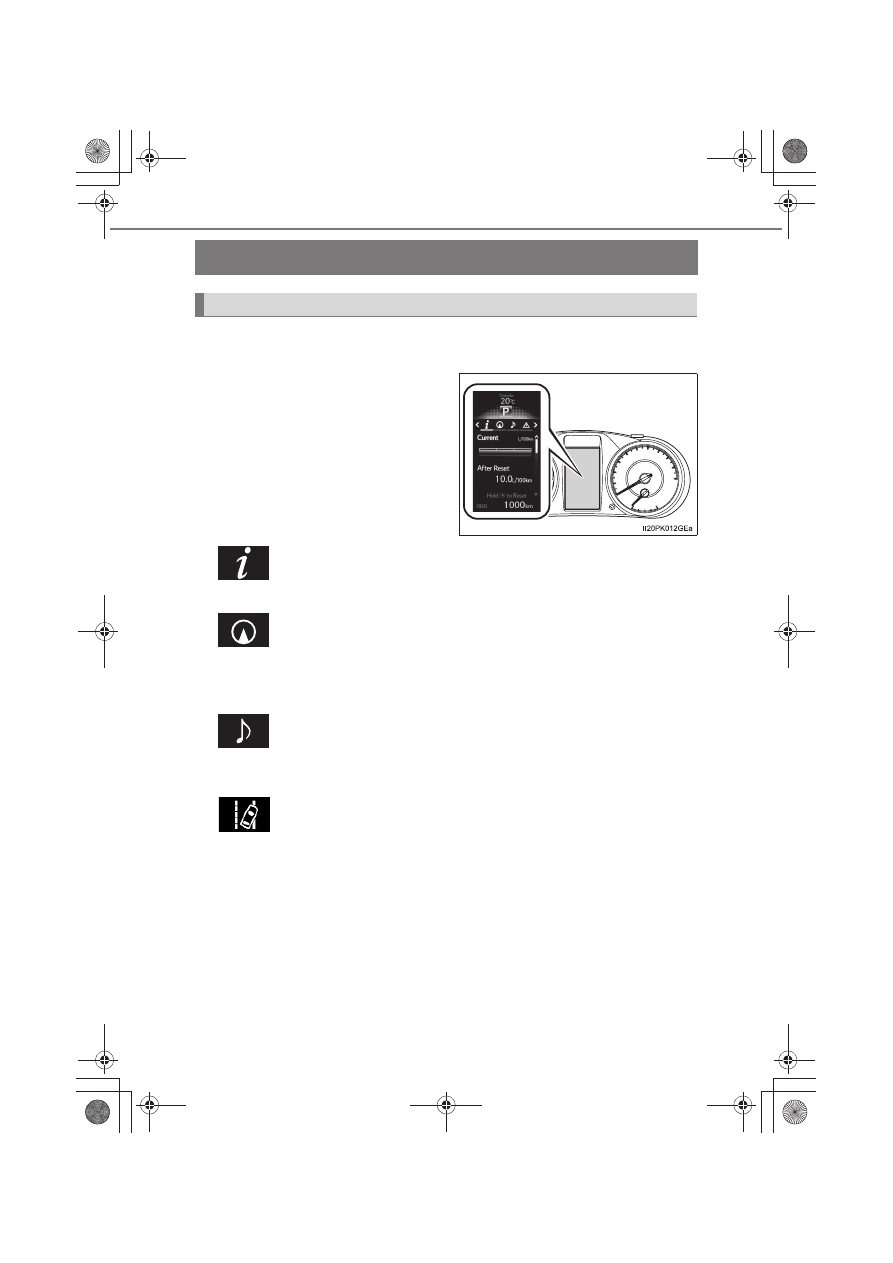

The following information will be
displayed when a menu icon is
selected. (

→P. 137)

Some of the information may be
displayed automatically depend-
ing on the situation.

Drive information

Select to display various drive data. (

→P. 138)

Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance
• Compass display

Audio system-linked display (if equipped)

Select to enable selection of an audio source or track on the meter
using the meter control switches.

Driving assist system information (if equipped)

Select to display the LDA (Lane Departure Alert) or RSA (Road Sign
Assist) information, when the system is used. (

→P. 300, 309)

∗

: If equipped

Display contents

137

2. Instrument cluster

2

In

st

rum

ent cl

ust
e

r

Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (

→P. 577)

Settings display

Select to change the meter display settings. (

→P. 650)

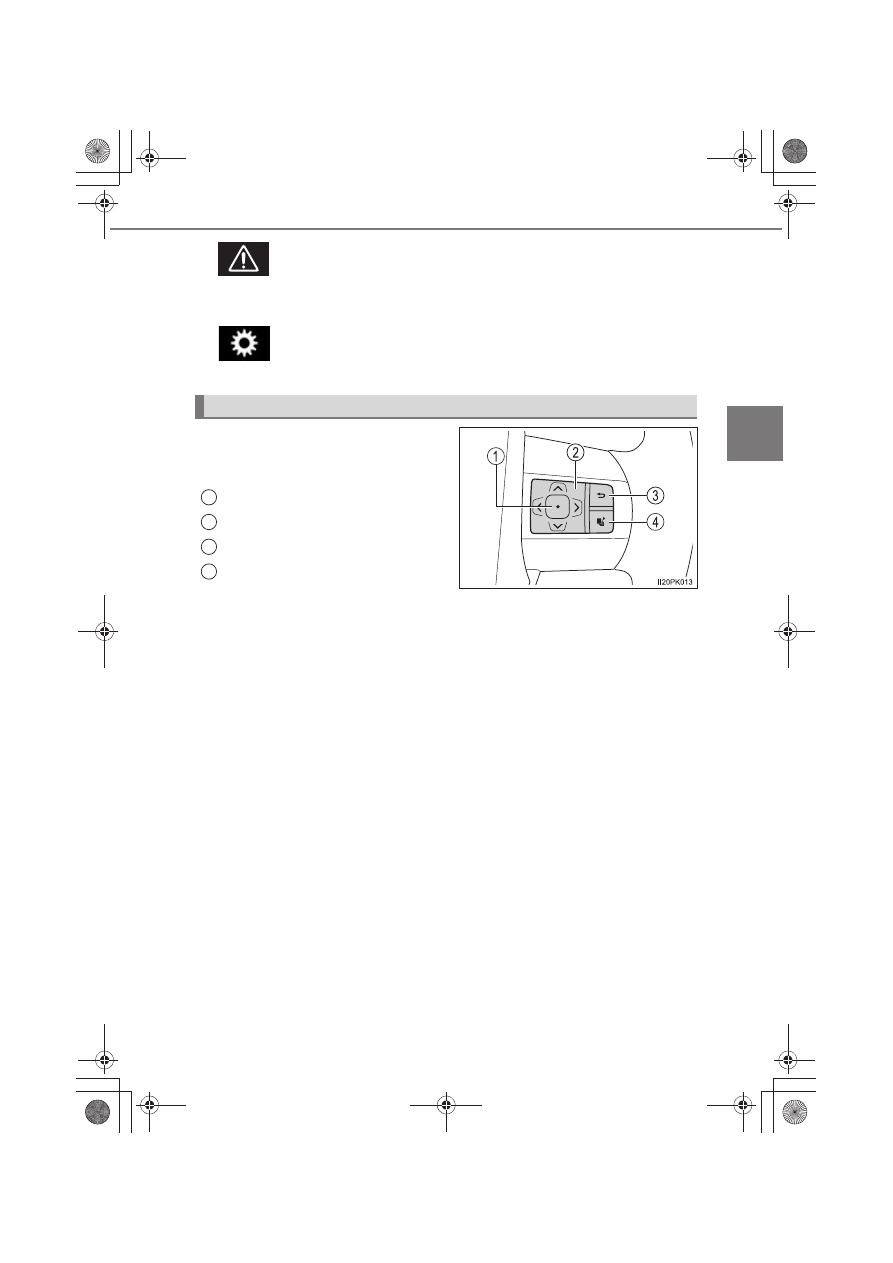

The multi-information display is
operated using the meter control
switches.

Enter/Set
Select an item/Change pages
Return to the previous screen
Press: Displays the screen reg-
istered as the top screen

When no screen has been registered, the drive information screen will be
displayed.

Press and hold: Registers the currently displayed screen as the top
screen

When the confirmation screen is displayed, select yes to register the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.

Operating the meter control switches

1
2
3
4

138

2. Instrument cluster

Items displayed can be switched by pressing “<” or “>” of the meter
control switches to select

 and pressing “

∧” or “∨”.

● Current fuel economy (bar type/value type)

*

1, 2

Displays the current rate of fuel consumption.

● Average fuel economy (after reset

*

3

/after start/after refuel)

*

1, 2

Displays the average fuel consumption since the function was
reset, the engine was started and the vehicle was refueled respec-
tively.

● Average speed (after reset

*

3

/after start)

*

1

Displays the average vehicle speed since function was reset and
the engine was started respectively.

● Elapsed time (after reset

*

3

/after start)

*

1

Displays the elapsed time since the function was reset and the
engine was started respectively.

● Distance (range/after start)

*

1

Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining and the distance driven after the
engine was started respectively.

• This distance is computed based on your average fuel consump-

tion. As a result, the actual distance that can be driven may differ
from that displayed.

• When only a small amount of fuel is added to the tank, the dis-

play may not be updated.
When refueling, turn the engine switch off. If the vehicle is refu-
eled without turning the engine switch off, the display may not be
updated.

Drive information
