6-3. Do-it-yourself maintenance

Checking and replacing fuses

If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.

1
2



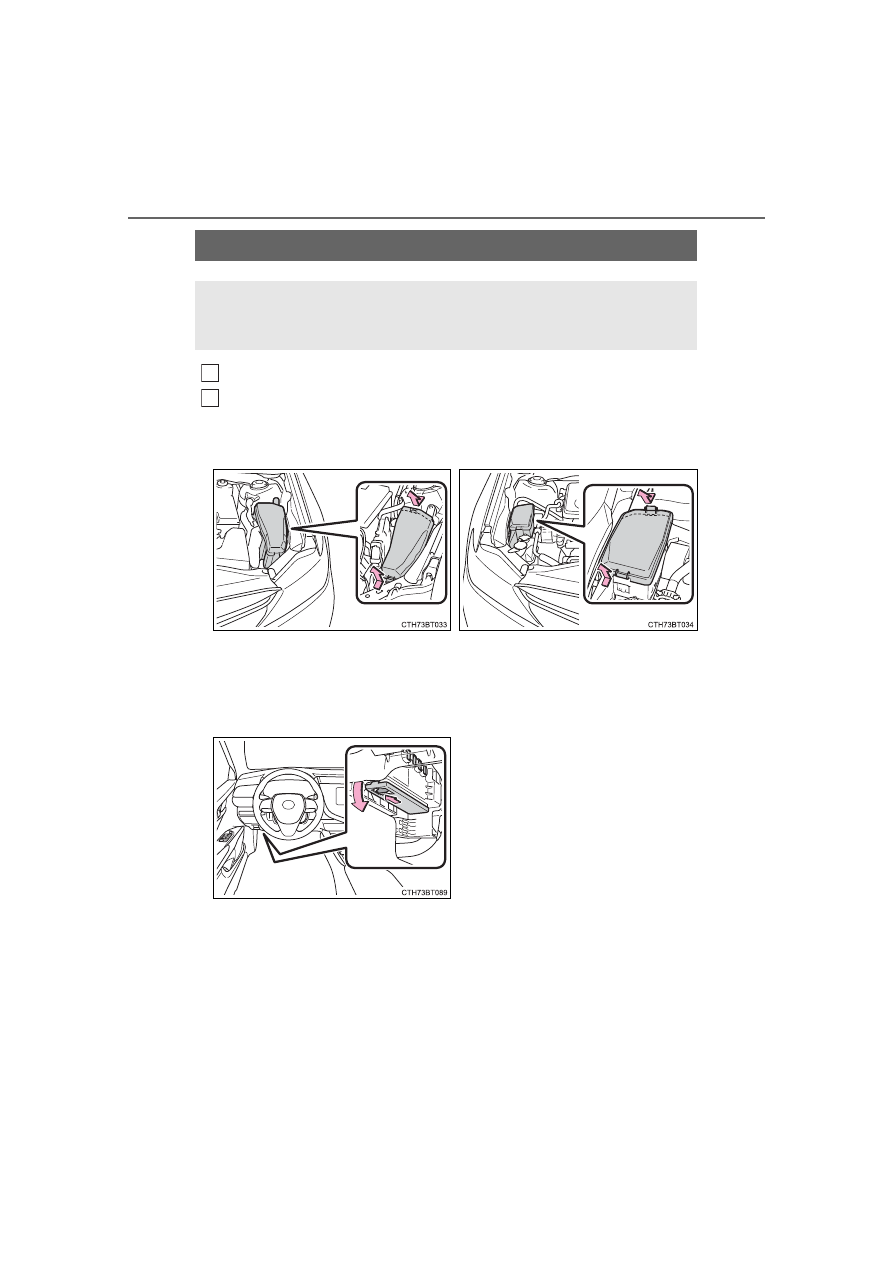

Engine compartment (type A)



Engine compartment (type B)
(if equipped)

Push the tabs in and lift the lid off.

Push  the  tabs  in  and  lift  the  lid
off.



Under the driver’s side instru-
ment panel

Remove the lid.

Make sure to push the claw when
removing/installing the lid.

471

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

re

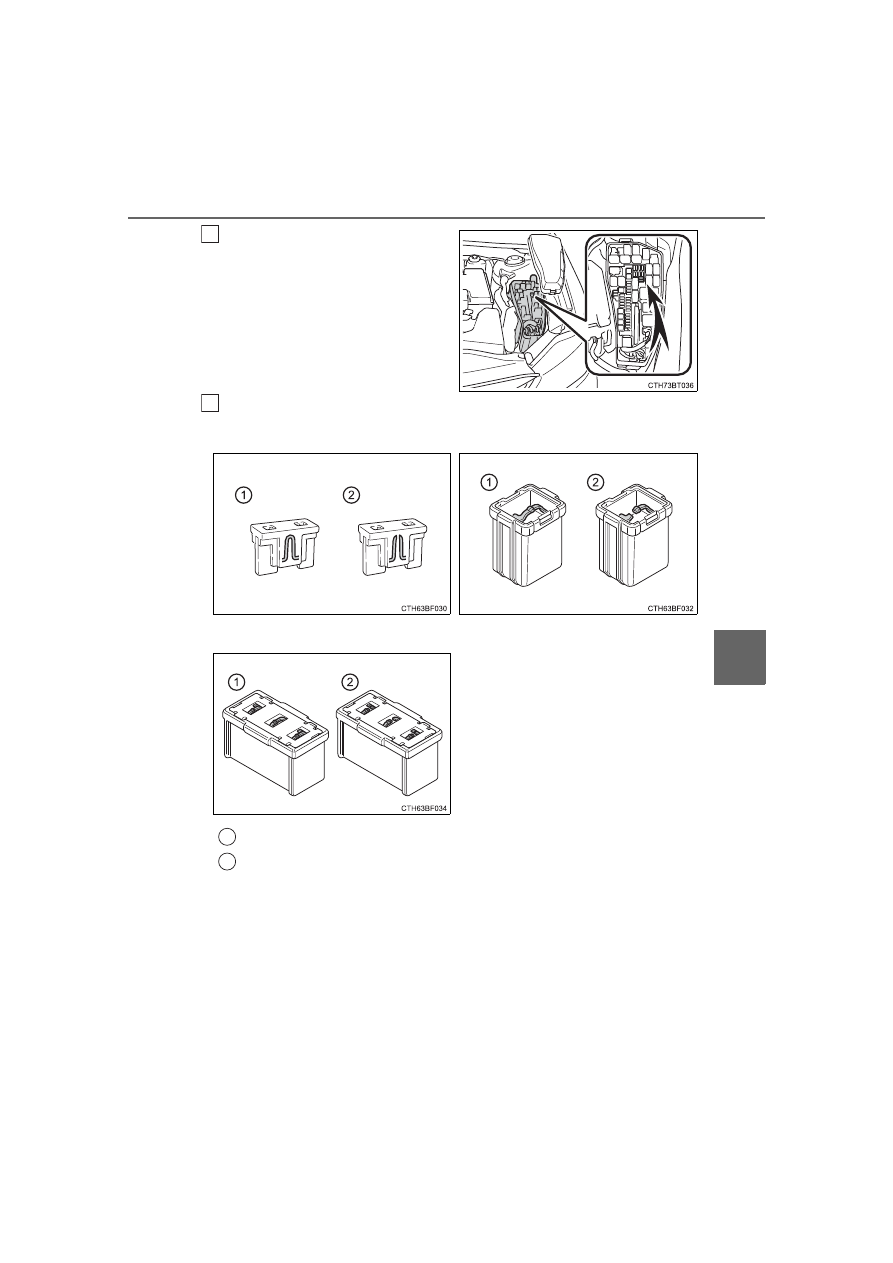

Remove the fuse with the pull-
out tool.

Only type A fuses can be removed
using the pullout tool.

Check if the fuse is blown.

Normal fuse
Blown fuse

Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.

3

4



Type A



Type B



Type C

1
2

472

6-3. Do-it-yourself maintenance

After a fuse is replaced

●

If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (

→P. 473)

●

If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.

■

If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.

WARNING

■

To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.

●

Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.

●

Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.

●

Do not modify the fuses or fuse boxes.

NOTICE

■

Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

473

6-3. Do-it-yourself maintenance

Mainten

ance an

d ca

re

Check the wattage of the light bulb to be replaced. (

→P. 550)

Light bulbs

You may replace the following bulbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.

For more information about replacing other light bulbs, contact
your Toyota dealer.

Preparing for light bulb replacement

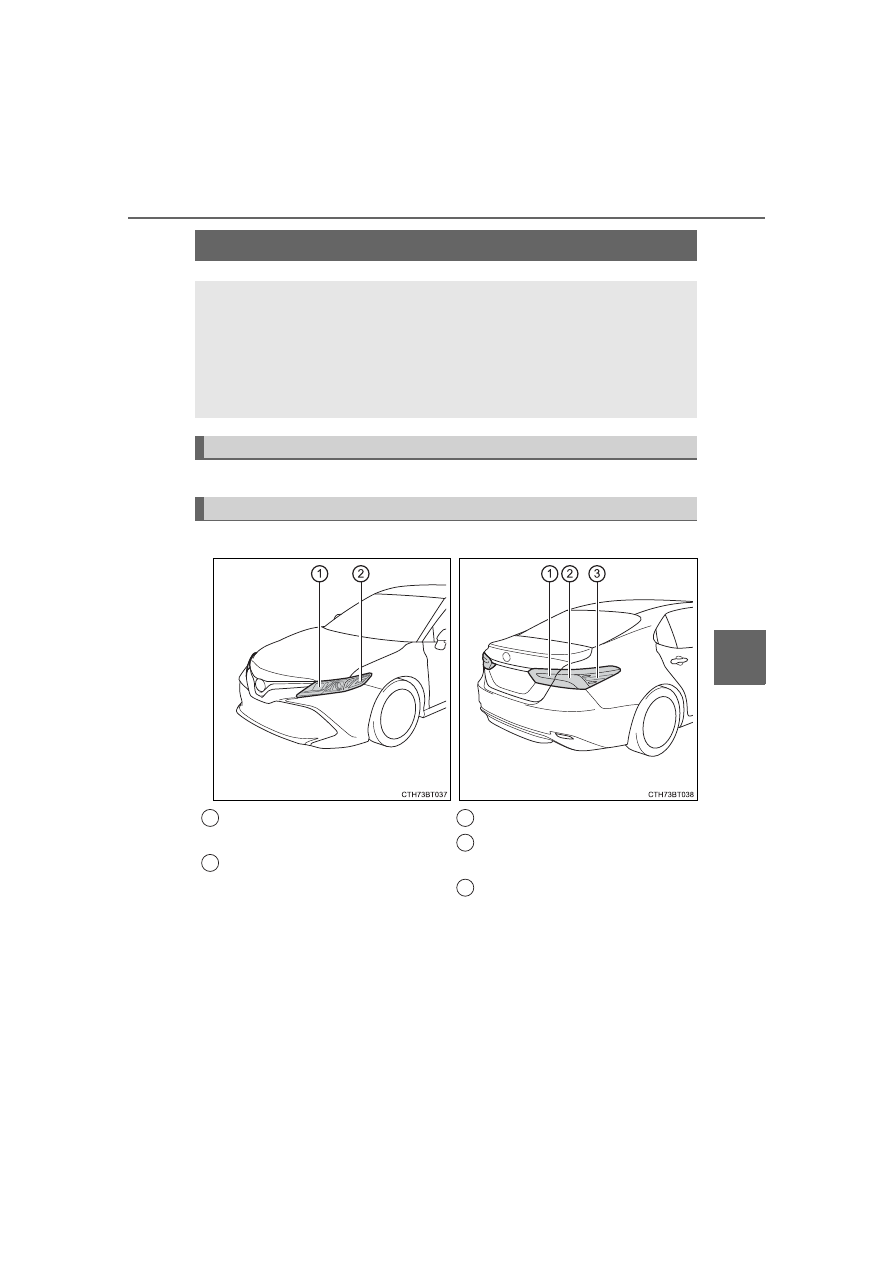

Bulb locations



Front



Rear

Front turn signal/parking lights
(bulb type)
Front side marker lights (bulb
type)

Back-up lights (bulb type)
Rear turn signal lights (bulb
type)
Rear side marker lights (bulb
type)

1

2

1
2

3
