Запчасти: BRAKE LINES (VOSS) для LPT 1618 ТС/52

BRAKE LINES (VOSS) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257342950177	ASSY. HOSE ( FRONT BRAKE CHAMBER LH/RH)
-	264342906801	T SOCKET (ON FRONT BRAKE CHAMBER)
-	264343709901	PRESSURE TEST CONNECTOR, (FOR STD FITTING)
-	276843700103	PURGE TANK
-	277043900105	ASSY. PIPE (SECOND PIPE ON COMPRESSOR)
-	280943900184	ASSY. NYLON TUBE SET COMPLETE CONSISTS
-	280943900185	ASSY. NYLON TUBE SET CHASSIS
-	280943900187	ASSY. METAL TUBE WITH CRIMPED HOSE (ON COMPRESSOR)
-	280943900191	ASSY. NYLON TUBE SET COMPLETE CONSISTS
-	280943900192	ASSY. NYLON TUBE SET CHASSIS
-	280943900194	ASSY. PIPE (THIRD PIPE ON COMPRESSOR)
-	280943900195	ASSY. NYLON TUBE SET CAB
-	283943900109	ASSY. METAL TUBE WITH CRIMPED HOSE
-	283943900126	ASSY. NYLON TUBE SET CAB

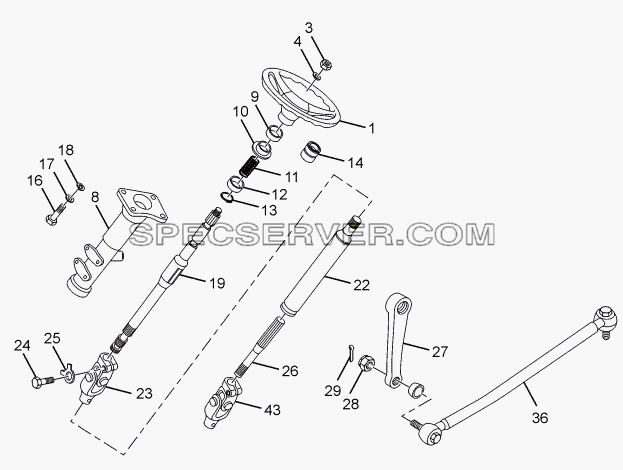

Запчасти: STEERING LINKAGE (TILT CAB) для LPT 1618 ТС/52

STEERING LINKAGE (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257346108002	HEX. SCREW (FOR MOUNTING G. BOX )
-	257346210116	ASSY. STEERING GEAR BOX (ZF)
-	280946100101	ASSY. BRACKET (STEERING GEAR BOX MOUNTING)
1	280946400101	ASSY. STEERING WHEEL (500 DIA.)
3	12080996029	HEX. THIN NUT M 14X1.5
4	12520696022	SPRING WASHER B 14
8	278346200105	ASSY. STEERING COLUMN
9	264146207920	SPACER
10	265446209915	SPRING SEAT
11	265446208711	COMPRESSION SPRING
12	265446208278	SPRING SEAT CUP
13	14550602009	CIRCLIP 20X1.2 N
14	264046203102	S.R.D.G. BALL BEARING
16	11323996042	HEX. SCREW M 10X28
17	12460501057	BRIGHT WASHER 10.5 ST.
18	12580801054	LOCK WASHER A 10.5
19	278346200104	ASSY. STEERING SPINDLE TOP
22	278246200106	ASSY. STEERING SPINDLE (MIDDLE) ( FOR M/S ZF)
23	265146600102	ASSY.UNIVERSAL JOINT
24	265146603201	BOLT
25	12580600849	TAB WASHER 8.4
26	278346207908	STEERING SPINDLE BOTTOM
27	206346305105	PITMAN ARM
28	12102296034	THIN CASTLE NUT M 36X1.5
29	13150611614	SPLIT PIN 6.3X63
36	280946600102	DRAG LINK (LHD)
43	257346200106	ASSY. U.J. STEERING ON GEAR BOX( FOR M/S ZF)
43	257346200108	ASSY. U.J. STEERING ON GEAR BOX( FOR M/S RANE)

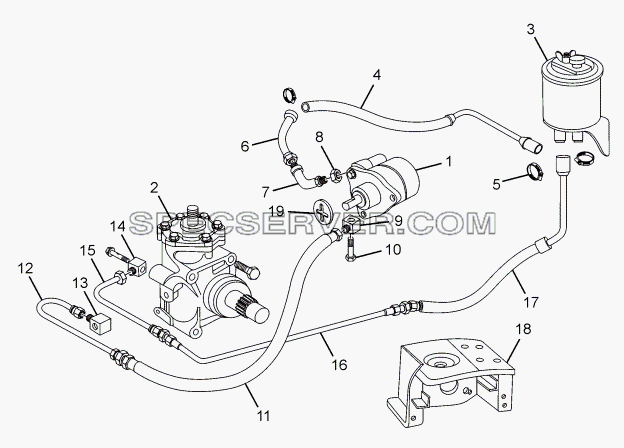

Запчасти: STEERING PIPE LINES для LPT 1618 ТС/52

STEERING PIPE LINES для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	16220710240	SEALING WASHER 16X20 CU
-	16420801509	COUPLING BODY L15
-	17050501205	O RING 25.0X2.65 (ON OIL PUMP INLET PORT)
1	275446600103	STEERING PUMP (DIRECT DRIVE) ( FOR M/S ZF)
2	257346210116	ASSY. STEERING GEAR BOX (ZF)
3	278244400101	HYDRAULIC TANK ( FOR M/S ZF)
4	280946800117	HOSE CRIMPED (HYD. TANK STEERING PUMP)
5	14280500306	HOSE CLAMP 30
6	262546800102	ASSY. PIPE (18 O.D.)
7	16502801809	BULK HEAD ELBOW L18
8	257443509201	SEALING RING (ON OIL PUMP INLET PORT)
9	257344106802	BANJO BODY (ON STRG GEAR BOX INLET PORT)
10	257344106803	BANJO
11	257446800104	"H.P.HOSE (3/8"") (FROM STG PUMP TO STG G. B.)"
12	280946800105	ASSY. PIPE (15 MM O.D.)(FROM STG PUMP TO STG G. B.)
13	257646806801	BANJO BODY (ON STRG GEAR BOX INLET PORT)
14	270046806802	BANJO
15	280946800107	ASSY. TUBE (15 MM O.D.)( FOR M/S ZF)
16	278246800120	ASSY. PIPE (15 MM O.D.)
17	280946800116	ASSY. HOSE CRIMPED(STG G. B. TO STG. TANK)
18	280946100101	ASSY. BRACKET (STEERING GEAR BOX MOUNTING)
19	275546604601	COUPLING (DRIVE)

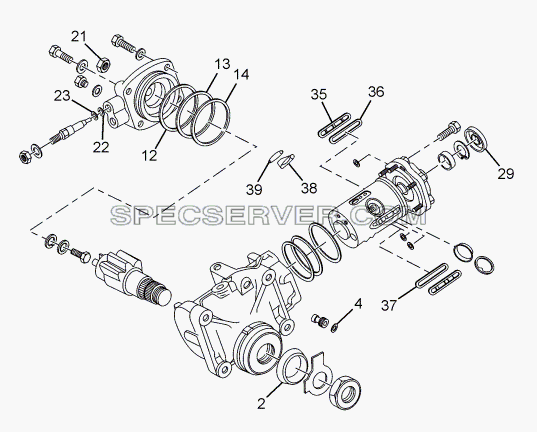

Запчасти: STEERING GEAR BOX (ZF-INDIA) для LPT 1618 ТС/52

STEERING GEAR BOX (ZF-INDIA) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257346210102	SEAL KIT (POWER STEERING GEAR BOX) CONSISTING OF :
-	257346210116	ASSY. STEERING GEAR BOX (ZF)
-	GASKET
-	GASKET
-	GASKET
-	SUPPORT RING
2	DUST SEAL
4	‘O’ RING
12	‘O’ RING
13	‘O’ RING
14	SEALING RING
21	SEALING NUT
22	‘O’ RING
23	‘O’ RING
29	PROTECTIVE CAP
35	GASKET
36	GASKET
37	GASKET
38	GASKET
39	GASKET
39	GASKET

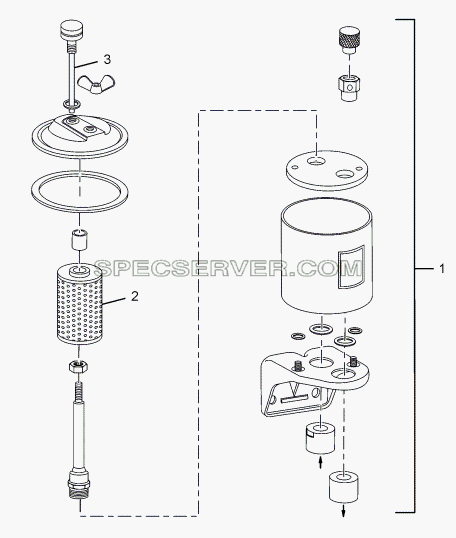

ASSY. TANK (ZF POWER STEERING) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	278244400101	HYDRAULIC TANK ( FOR M/S ZF)
2	257344400128	ASSY. FILTER
3	257344400126	DIPSTICK ASSY.

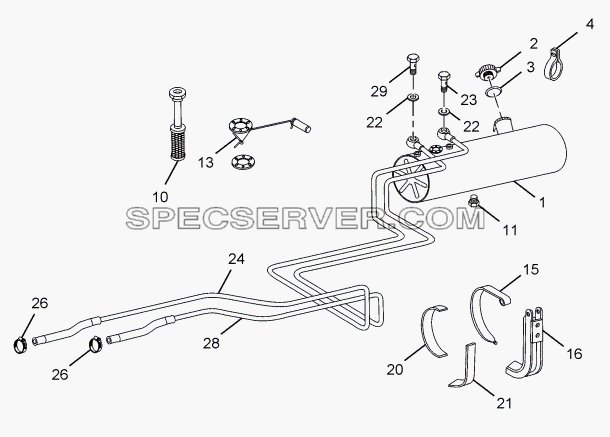

FUEL SYSTEM для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	278247100101	ASSY. FUEL TANK (350 LIT.)
2	0424700605J	ASSY. FUEL TANK CAP
3	0004710280J	RUBBER RING
4	0424700237J	ASSY. HANDLE
10	278247600106	ASSY. SUCTION TUBE (INSIDE FUEL TANK)
11	253401130111	MAGNETIC DRAIN PLUG
13	261854209904	TANK UNIT
15	278247500104	ASSY. SUPPORT STRAP
16	278247500103	ASSY. SUPPORT COMPLETE
20	278247507702	RUBBER PACKING
21	278247507701	RUBBER PACKING
22	16220710282	SEALING WASHER 18X22 CU
23	206847107202	BANJO BOLT (SUCTION PORT) RETURN LINE
24	280947600109	ASSY. SUCTION TUBE WITH CRIMPED RUBBER HOSE
26	14270202307	HOSE CLAMP 23
26	14270202307	HOSE CLAMP 23
28	280947600110	ASSY. RETURN TUBE WITH CRIMPED RUBBER HOSE
29	275147600103	ASSY. PIPE UNION BOLT

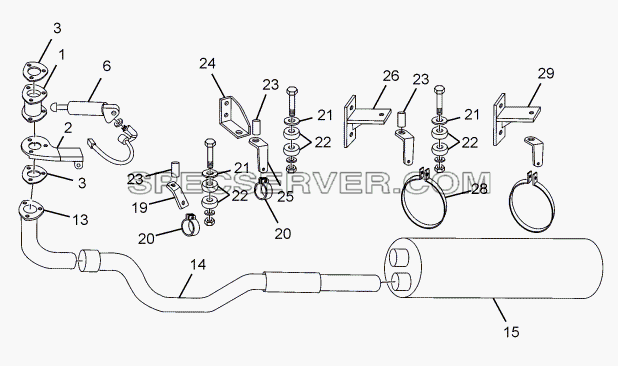

EXHAUST SYSTEM - 1 для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	284149104201	PIPE CLAMP
1	276349200123	ASSY. EXHAUST BRAKE UNIT
2	275449200103	ASSY. BRACKET (EXHAUST BRAKE UNIT)
3	276349205301	GASKET
6	277054249904	ASSY. MAGNETIC VALVE 24 V (EXHAUST BRAKE)
13	280949200106	ASSY. EXHAUST PIPE 1ST
14	280949200122	ASSY. EXHAUST PIPE 2ND
15	280949100103	ASSY. MUFFLER
19	280949203303	BRACKET
20	257649208205	PIPE CLAMP
20	257649208205	PIPE CLAMP
21	257649009202	WASHER
21	257649009202	WASHER
21	257649009202	WASHER
22	257649007502	RUBBER BUFFER
22	257649007502	RUBBER BUFFER
22	257649007502	RUBBER BUFFER
23	257649006902	TUBE
23	257649006902	TUBE
23	257649006902	TUBE
24	280949203301	BRACKET (EXHAUST -MTG.)
25	280949208223	PIPE CLAMP
26	288349200101	ASSY. BRACKET
28	284149204201	CLAMP (.ASSY. MUFFLER MTG.)
29	280949200104	ASSY. BRACKET

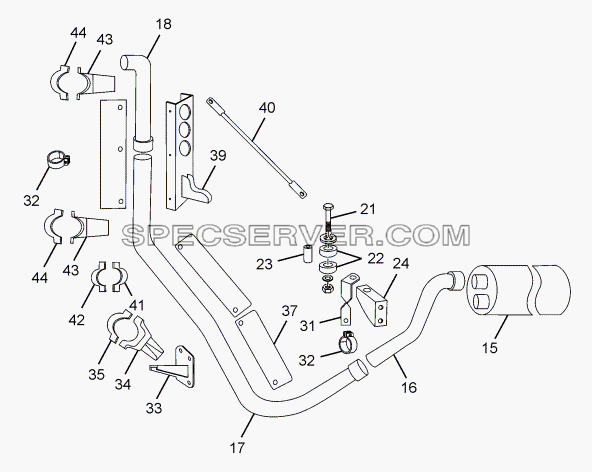

EXHAUST SYSTEM - 2 для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
15	280949100103	ASSY. MUFFLER
16	280949200115	ASSY INTERMEDIATE PIPE 3RD
17	280949200114	ASSY INTERMEDIATE PIPE 4TH
18	280949206908	TAIL PIPE MTG. OF INTERMEDIATE PIPE 3/4
21	257649009202	WASHER
21	257649009202	WASHER
22	257649007502	RUBBER BUFFER
22	257649007502	RUBBER BUFFER
23	257649006902	TUBE
23	257649006902	TUBE
24	280949203301	BRACKET (EXHAUST -MTG.)
31	280949208217	PIPE CLAMP
32	275249204201	PIPE CLAMP
32	275249204201	PIPE CLAMP
33	280949200120	ASSY. SUPPORT BRACKET
34	280949200119	ASSY. BRACKET
35	280949208237	CLAMP
37	280949208221	SHIELD ( INTERMEDIATE PIPE 4TH)
39	280949200117	ASSY. BRACKET (VERTICAL TAIL PIPE MTG.)
40	280949206002	TIE MEMBER (VERTICAL EXH. MTG.)
41	280949200116	ASSY. CLAMP (SHIELD MTG.)
42	280949208218	CLAMP(VERTICAL TAIL PIPE MTG.) VERTICAL - TAIL PIPE MTG.
43	280949200118	ASSY. CLAMP(VERTICAL TAIL PIPE MTG.)
44	280949208237	CLAMP

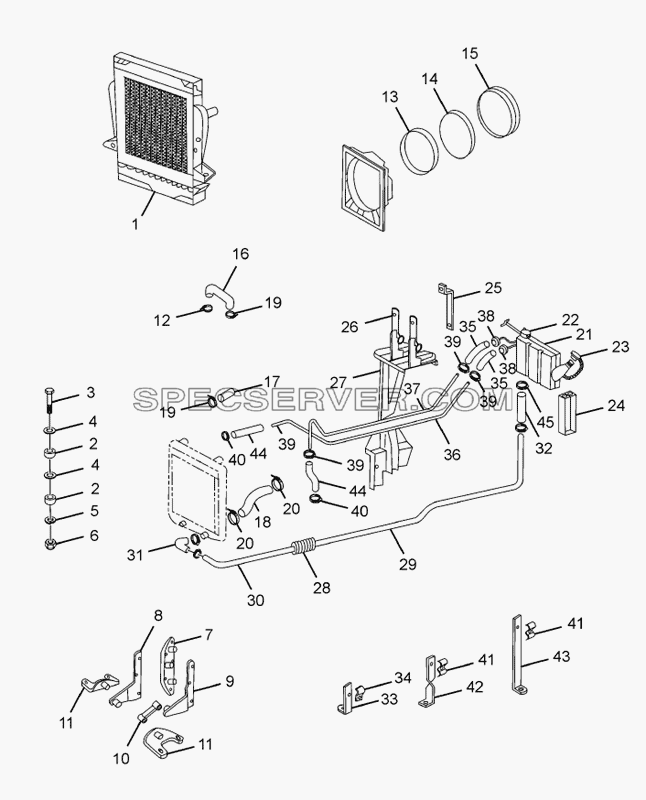

RADIATOR (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257450006904	SPACER TUBE ( 35 LONG )
-	257450009202	WASHER (47DIA)
1	278650100368	RADIATOR ASSY-TATA TOYO
2	257450006301	RUBBER BUFFER
3	11063898165	HEX. BOLT M 16X85
4	12460501707	BRIGHT WASHER 17
5	12520696031	SPRING WASHER B 16
6	12051596020	HEX. NUT M 16
7	278650000227	ASSY.BRACKET
8	278650100366	ASSY.BRACKET-RH.(RAD.FRAME SIDE MTG.)
9	278650100367	ASSY.BRACKET-LH.(RAD.FRAME SIDE MTG.)
10	278650000250	ASSY.RUBBER BUSH (RAD.FRAME SIDE MTG.)
11	278650000247	ASSY.BRACKET(ON LONG MEMBER)
12	278650506373	FAN SHROUD
13	278650507725	RUBBER RING(125MM)
14	252550504201	HOSE CLAMP (610)
15	278620143801	FAN SHROUD RING
16	278650116951	PIPE
17	278650105822	RUBBER HOSE
18	278650105871	RUBBER HOSE (RADIATOR TO WATER PUMP)
19	14280599302	HOSE CLAMP TB 36
20	14280598217	HOSE CLIP TB 54
21	278650100339	ASSY. AUX. WATER TANK(WITH METAL CAP)
22	252750108242	ASSY. PRESSURE VALVE CAP (7 PSI)
23	252750108243	ASSY. PRESSURE VALVE CAP (14 PSI)
24	252750109908	RUBBER STRAP
25	252750100214	CLAMP FRONT (AUX. TANK)
26	252750108225	CLAMP REAR (AUX TANK LPT 709)
27	278650010104	ASSY. BRACKET (AUX. WATER TANK MOUNTING)
28	278650005802	REDUCER HOSE (BETWEEN WATER FILL PIPE)
29	278650116928	WATER FILL PIPE (ON AUX.WATER TANK )
30	278650116929	WATER FILL PIPE (ON RADIATOR BOTTOM)
31	278650105898	RUBBER HOSE (WATER FILL PIPE TO RADIATOR BOTTOM)
32	278650105899	RUBBER HOSE(AUX TANK TO WATER FILL PIPE )
33	278650100317	ASSY. BRACKET (FOR WATER FILL PIPE)
34	278650100316	ASSY. CLAMP (FOR WATER FILL PIPE)
35	278650105890	RUBBER HOSE (FOR VENTING ON AUX. WATER TANK)
36	278650116962	VENT TUBE(RAD.TO AUX.TANK)
37	278650116961	VENT TUBE(ENG.TO AUX.TANK)
38	14280500306	HOSE CLAMP 30
39	14280500209	HOSE CLAMP 20
40	14270201700	HOSE CLIP 17
41	278650100314	ASSY. CLAMP WITH SLEEVE (FOR VENT TUBE)
42	278650100360	ASSY. BRACKET (FOR VENT. TUBE CLAMPING)
43	278650100319	ASSY. BRACKET WITH SLEEVE
44	278650105889	REDUCER HOSE (FOR ENGINE AND RADIATOR VENTING)
45	14280500454	HOSE CLAMP (45 DIA.)

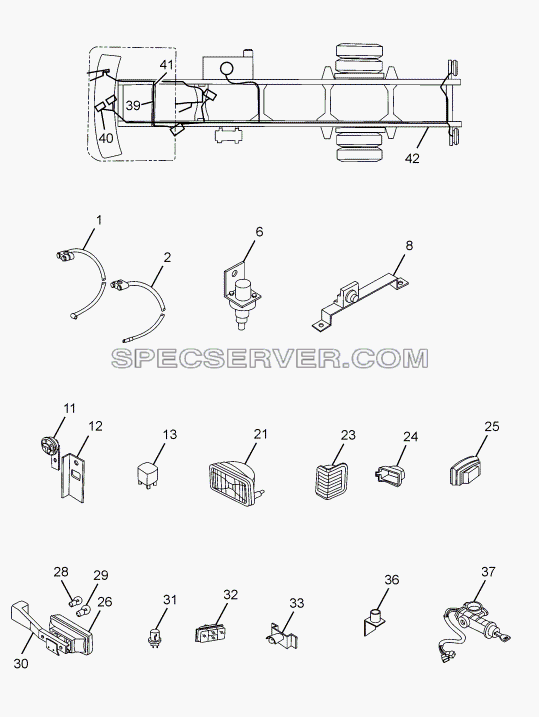

LIGHT AND SIGNAL (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257354100161	ASSY. BATTERY CABLE (LINK)
-	257454509953	MECH. STOP LIGHT SWITCH
-	275454200101	ASSY. BRACKET FOR STARTER RELAY
-	278054600113	WIRING HARNESS ROOF
-	280954620104	WIRING HARNESS PARKING SWITCH AND SEAT BELT SWITCH
1	257354100150	ASSY. BATTERY CABLE +VE CU
2	277054110101	ASSY. BATTERY CABLE -VE CU
6	270754244901	RELAY 24 V (FOR ACCESSORIES)
8	277054209906	ASSY. HIGH TEMP. SENSING BUZZER
11	261854249911	HORN (LOW TONE) 24 V
12	280954208202	ASSY. BRACKET (HORN MTG.)
13	260854549902	RELAY (WITH RESISTOR) 24 V
21	264154440121	ASSY. HEAD LAMP E-CERT. WBULBS RH,W/T LEV.MOTOR
21	264154440122	ASSY. HEAD LAMP E-CERT. WBULBS LH,W/T LEV.MOTOR
23	270754440114	BLINKER LAMP RH, 'E' CERTIFIED, 24 V
23	270754440115	BLINKER LAMP LH, 'E' CERTIFIED, 24 V
24	264181100178	ASSY HEAD LAMP DOME
24	264181100181	HEAD LAMP DOME RH
25	280954440107	ASSY CAB LAMP(24V,W/BULB,PIANO SW.)AUTOL
26	280954440101	FIVE CHAMBER TAIL LAMP (24 V) LH
26	280954440102	FIVE CHAMBER TAIL LAMP (24 V) RH
28	62120510105	LAMP 24V 10W M24/4 BA15S
29	62120520046	LAMP 24V, 21W D24/1 BA15S
30	280954400105	ASSY. TAIL LAMP BRACKET RH
30	280954400106	ASSY. TAIL LAMP BRACKET LH
31	283954440107	END OUTLINE MARKER LAMP(24V)
32	264154440134	ASSY. SIDE IND. LAMP RH WITH BULB
32	264154440135	ASSY. SIDE IND. LAMP LH WITH BULB
33	283954400102	ASSY. ENGINE LAMP 24V
36	265154504603	ELECTRONIC FLASHER KIT
37	264154500106	IGNITION CUM STEERING LOCK
39	280954620107	WIRING HARNESS MAIN
40	280954620108	WIRING HARNESS ENGINE
41	280954620106	WIRING HARNESS CONSOLE
42	280954620109	WIRING HARNESS TAIL
