SLACK ADJUSTER (FRONT AND REAR) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

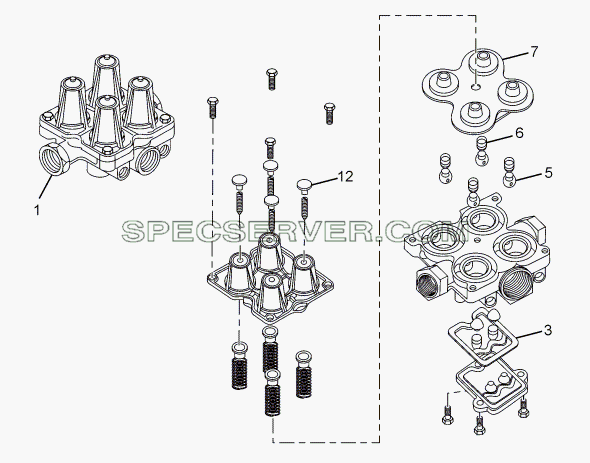

SYSTEM PROTECTION VALVE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		263243710104	SPARE KIT-FCPV (VOSS) (KB)
-		DIAPHRAGM
-		DIAPHRAGM PLATE
-		GASKET
-		GASKET
-		GREASE
-		GREASE NIPPLE
-		GROOVED RING
-		REPAIR KIT (SCL)
-		SPRING RETAINER
-		SUPPORT RING
-		VALVE ELEMENT
-		VALVE ELEMENT
-		VALVE HEAD
1		263243700155	4 CIR PROT VALV (AE4630-K003253) HI.PR.VOS
1		264143700141	SYSTEM PROTECTION VALVE (SCL), STD FITTING
3		GASKET
5		VALVE
6		SPRING
7		DIAPHRAGM
12		DUST COVER

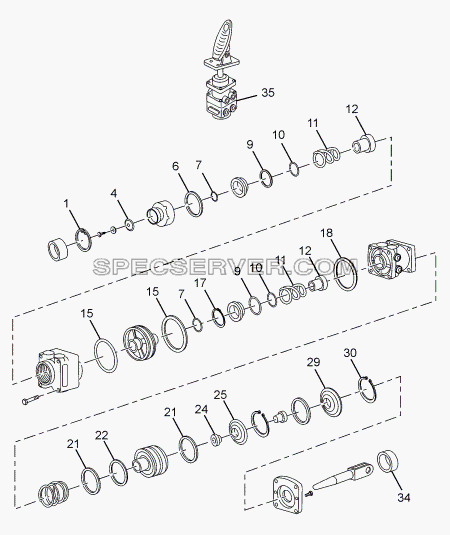

DUAL BRAKE VALVE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		CIRCLIP
-		GREASE SACHET
-		REPAIR KIT FOR DUAL BRAKE VALVE (SCL)
-		SEALING RING
-		SPLIT PIN
1		CIRCLIP
4		WASHER
6		SEALING RING
7		SEALING RING
9		SEALING RING
10		SEALING RING
11		SPRING
12		VALVE
15		SEALING RING
17		CIRCLIP
18		SEALING RING
21		GUIDE RING
22		O-RING
24		RUBBER SPRING
25		SPRING SEAT
29		BOOT
30		CIRCLIP
34		BOOT
35		263243700165	FOOT BRAKE VALVE VOSS 74.5MM
35		264143700130	DUAL BRAKE VALVE (KNORR BREMSE), FOR STD FITTING
35		264143700147	DUAL BRAKE VAVLE VOSS (SCL)
35		278243700159	DUAL BRAKE VALVE (SCL) FOR STD FITTING

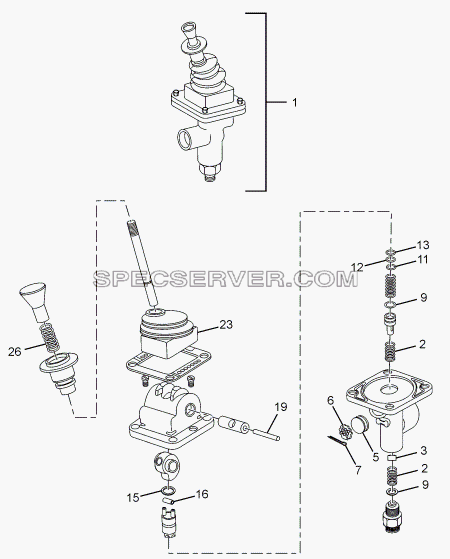

GRADUATED HAND BRAKE VALVE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		257342420101	REPAIR KIT GRADUATED HAND BRAKE VALVE (SCL)
-		GREASE SCHET
1		263243700112	GRADUATED HAND BRAKE VALVE GRADUATED HAND BRAKE VALVE (SCL) VOSS
1		288443700105	GRADUAT HAND CONTROL VALVE(VOSS&LP SWT)
2		SPRING
3		VALVE
5		FILTER
6		STRAINER PLATE
7		SPLIT PIN
9		SEALING RING
11		SHIM
12		SHIM.
13		SHIM
15		SEALING RING
16		ROLLER
19		TENSION PIN
23		GAITER
26		SPRING

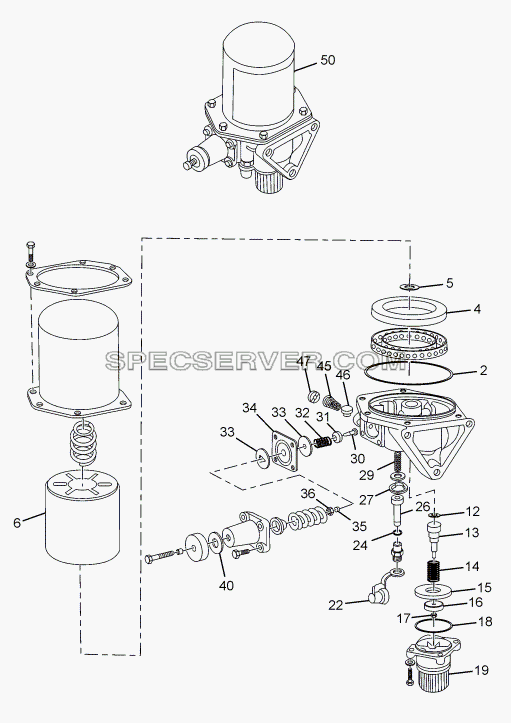

AIR DRYER/DRYING & DISTRIBUTION UNIT для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		264143700112	PLUNGER ASSY. CONSISTING OF :
-		264143700113	ASSY. DIAPHRAGM CONSISTS OF :
-		264143700123	REPAIR KIT (MAJOR) FOR AIR DRYER CONSISTS OF :
-		264143700134	REPAIR KIT (SCL) MINOR CONSISTS OF :
-		REPAIR ITEMS FOR AIR DRYER (SCL)
-		SILICON GREASE SACHET
-		SILICON GREASE SACHET
2		SEALING RING
2		SEALING WASHER
4		FILTER
5		SEALING RING
5		SEALING RING
6		DESICCANT CARTRIDGE
12		SEALING RING
12		SEALING RING
13		UNLOADER PLUNGER
14		COMPRETION SPRING
15		VALVE SEAT
16		VALVE
16		VALVE
16		VALVE
17		HEX. NYLOC NUT
17		HEX. NYLOC NUT
17		HEX. NYLOC NUT
18		SEALING RING
18		SEALING RING
19		SILENCER
22		DUST CAP
22		DUST CAP
24		SEALING RING
24		SEALING RING
26		VALVE
26		VALVE
27		SEALING WASHER
27		SEALING WASHER
29		SEALING WASHER
30		GOVERNOR PLUNGER
31		VALVE
31		VALVE
31		VALVE
32		SPRING
33		FOLLOWER
34		DIAPHRAM
34		DIAPHRAM
34		DIAPHRAM
35		SPRING WASHER
36		HEX NUT
40		EXHAUST FLAP
40		EXHAUST FLAP
45		CONICAL SPRING
46		NON RETURN VALVE
46		NON RETURN VALVE
47		VALVE STOP AND SPRING RETAINER
50		278243700141	AIR DRYER W/O HEATER (SCL) VOSS
50		278243700143	DRYING & DISTRIBUTION UNIT. HI PR VOSS (SCL)
50		278243700163	AIR DRYING & DISTRIBUTION UNIT. (SCL)
50		280943700101	AIR DRYER (KNORR BREMSE)

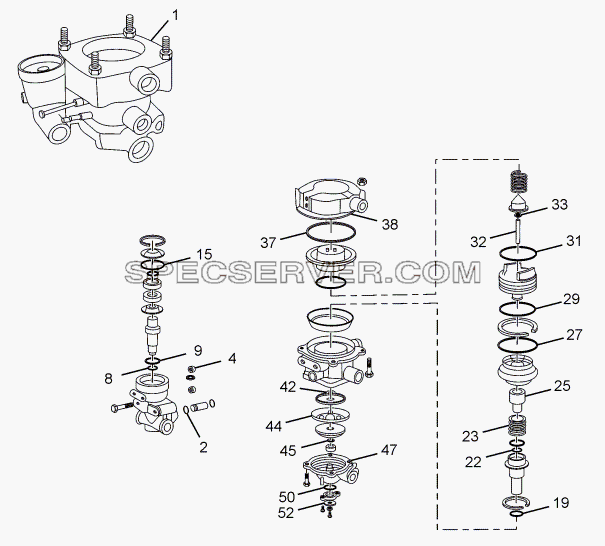

TRAILER CONTROL VALVE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		257643990169	REPAIR KIT FOR TRAILER CONTROL VALVE (SCL)
1		280943700130	TRAILER CONTROL VALVE ASSY.- VOSS (SCL)
2		O RING
4		SEALING RING
8		O RING
9		O RING
15		O RING
19		O RING
22		O RING
23		COMRESSION SPRING
25		VALVE
27		O RING
29		O RING
31		O RING
32		ADJUSTER SCREW ASSY.
33		O RING
37		O RING
38		O RING
42		SEALING RING
44		DIAPHRAM
45		O RING
47		O RING
50		O RING
52		WASHER

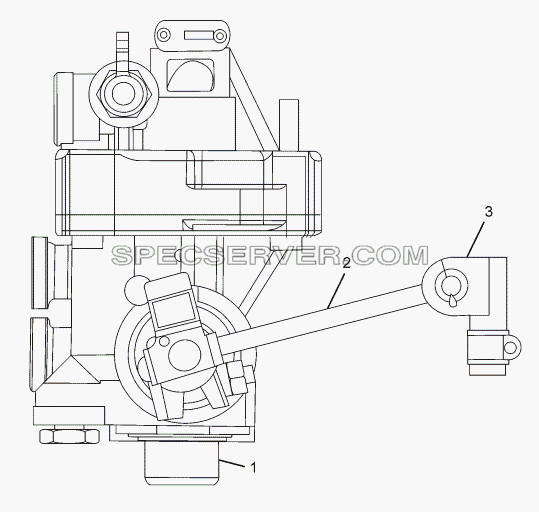

AUTOMATIC LOAD SENSING VALVE (LCRV) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		263142400101	ASSY. PULL ROD, (FOR KNORR BREMSE LCRV)
-		275442400101	ASSY. BRACKET (FOR KNORR BREMSE LCRV)
1		280943700128	AUTOMATIC LOAD SENSING VALVE (LCRV) (SCL), VOSS
2		276842400101	ASSY. PULL ROD
3		275442400102	ASSY. BRACKET

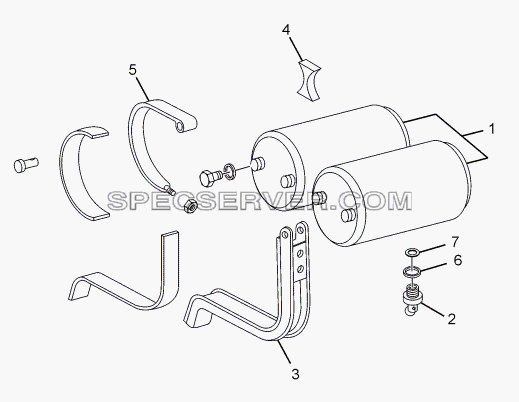

AIR TANK для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		264343709901	PRESSURE TEST CONNECTOR, (FOR STD FITTING)
1		263242900109	ASSY. AIR TANK (FOR STD FITTING)
1		263243200114	ASSY. AIR TANK (FOR VOSS)
2		257443790150	WATER DRAIN VALVE
3		257343200135	ASSY. SUPPORT, AIR TANK MTG (VOSS FITTING)
3		263242910108	ASSY. SUPPORT, AIR TANK MTG (STD FITTING)
4		257643208602	SPACER BLOCK
5		263242910107	ASSY. STRAP (METAL)
6		257643509201	THRUST RING
7		17050501175	'O' RING

QUICK RELEASE VALVE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		263243700182	QUICK RELEASE VALVE (KNORR BREMSE) VOSS
1		288443700104	QUICK RELEASE VALVE 3 PORT VOSS (SCL)

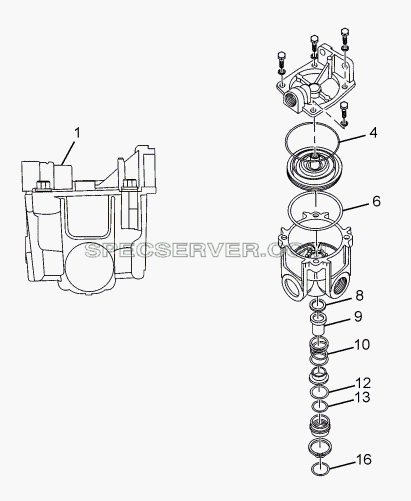

RELAY VALVE RG2 для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		278243700106	REPAIR KIT RELAY VALVE
-		GREASE SACHET
1		263243700150	RELAY VALVE (ALL VOSS PORTS), KNORR BREMSE
1		278243700147	RELAY VALVE (ALL VOSS PORTS)
1		278243700154	RELAY VALVE (STD FITTINGS), SCL
4		SEALING RING
6		SEALING RING
8		VALVE BODY
9		VALVE
10		VALVE SPRING
12		SEALING RING
13		SEALING RING
16		EXHAUST FLAP
