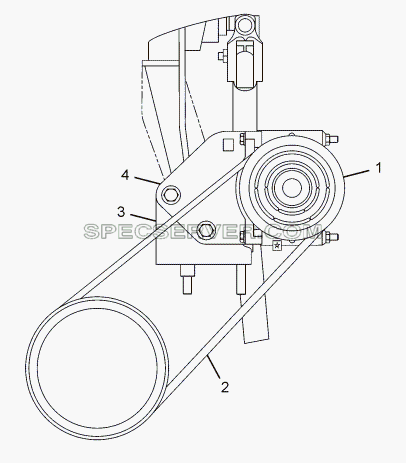

Запчасти: A/C COMP. FITMENT для LPT 1618 ТС/52

A/C COMP. FITMENT для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	278623120112	ASSY.A/C COMPRESSOR(SVL-LPT1618 LHD)
2	252520156310	V BELT (COGGED-1210 lg)
3	278623120109	BRACKET(A/C COMP MTG & BELT TENSIONER)
4	278623120111	BRACKET (A/C COMP MTG)

Запчасти: ENGINE SUSPENSION (TILT CAB) для LPT 1618 ТС/52

ENGINE SUSPENSION (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	207324200107	ASSY. RUBBER SUPPORT (REAR)
-	277024207145	BRACKET ON FLYWHEEL HSG. LH SIDE
1	276824105101	ENGINE MOUNTING ARM RH (FRONT)
2	276824105102	ENGINE MOUNTING ARM LH (FRONT)
4	257624100101	ASSY. RUBBER SUPPORT FRONT
5	3522420509	TORQUE SUPPORT
6	280924200104	ASSY. BRACKET (ENGINE MTG. REAR BOTTOM) LH
7	280924200103	ASSY. BRACKET (ENGINE MTG. REAR BOTTOM) RH
9	277024200120	ASSY. BRACKET RH (ENGINE MTG. REAR TOP)
9	278324200103	ASSY. BRACKET LH (ENGINE MTG. REAR TOP)
10	257624200118	ASSY. RUBBER SUPPORT (REAR)

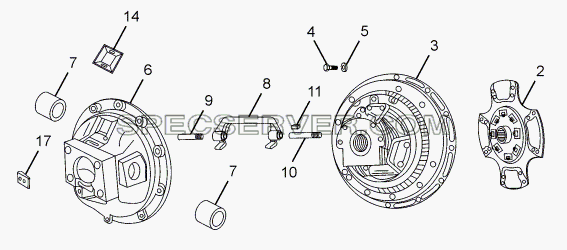

Запчасти: CLUTCH для LPT 1618 ТС/52

CLUTCH для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	275225400112	DRIVE STRAP KIT
-	275425200109	DISC FACING KIT
-	275425206303	DISC PAD KIT
-	275425400110	RELEASE LEVER REPAIR KIT
-	275425400111	PRESSURE SPRING REPAIR KIT
-	275425400112	RELEASE BEARING CASTING REPAIR KIT
-	275425400113	FULL RELEASE LEVER ASSY. REPAIR KIT
-	275425400114	PRESSURE PLATE AND NEEDLE ROLLER REPAIR KIT
-	275425400115	EYE BOLT AND NEEDLE ROLLER REPAIR KIT
-	275425400116	RELEASE SPIDER REPAIR KIT
-	275425400119	RELEASE SLEEVE REPAIR KIT
-	275425400120	HOLD DOWN BOLT KIT
-	275425400125	COVER SUB ASSY
-	275425400126	PRESSURE PLATE(WITH ROLL PIN)
-	275425408706	DIAPHRAGM AND SPIDER KIT
-	275425600102	RELEASE BEARING SUB
-	275425606701	WEAR PAD
-	ADJ.RING
-	ADJ.RING
-	ADJUSTING NUT
-	ASSY.(1.75"SPLINE)
-	BEARING
-	BEARING HOUSING
-	BEARING HOUSING
-	BOLT M 10X1.25
-	BOLT M 10X1.25
-	COTTER PIN
-	COTTER PIN
-	COVER PLATE
-	DIAPHRAGM AND SPIDER KIT
-	DISC PAD
-	DRIVE STRAP
-	EYE BOLT
-	EYE BOLT PIN
-	FACING CERAMIC
-	FACING RIVETS REPAIR KIT	FACING RIVETS REPAIR KIT (FOR M/S VALEO CLUTCH)
-	GREASE NIPPLE
-	GREASE NIPPLE
-	HOLD DOWN BOLT
-	LOCK NUT
-	LOCK NUT SLEEVE
-	LOCK NUT SLEEVE
-	LOCK NUT SLEEVE
-	NEEDLE BEARING
-	NEEDLE BEARING
-	NEEDLE BEARING
-	NUT M 10X1.25
-	NUT M 10X1.25
-	PRESS PLATE PIN
-	PRESSURE PLATE
-	PRESSURE PLATE (WITH ROLL PIN)
-	PRESSURE SPRING
-	PRESSURE SPRING
-	RELEASE BEARING HOUSING SUB ASSY.
-	RELEASE BEARING SUB ASSY.
-	RELEASE LEVER
-	RETAINER SPRING
-	RETRACTOR SPRING
-	RIVET
-	RIVET PAD
-	SHOULDER BOLT M 10X1.25
-	SHOULDER BOLT M 10X1.25
-	SLEEVE
-	SLEEVE BEARING
-	SLEEVE BUSHING
-	SLEEVE BUSHING
-	SNAP RING
-	SPIDER
-	SPIDER
-	SPRING WASHER
-	SPRING WASHER
-	WASHER
-	WASHER
-	WASHER M 10
-	WASHER M 10
-	WELDING W/BRG.HSG.WEAR PAD
-	WELDING W/BRG.HSG.WEAR PAD
2	275225200105	"352 DIA. CL. DISC ASSY. (1.75"" SPLINE)"
2	275225200106	"352 DIA. CL. DISC ASSY. (1.75"" SPLINE)"
3	275225400105	"352 DIA. CL. COVER ASSY (1.75"" SPLINE)"
3	275225400111	"352 DIA. CL. COVER ASSY (1.75"" SPLINE)"
4	275425408001	HEX SCREW
5	275425409201	FLAT WASHER CLUTCH HOUSING
6	269125100101	SUB. ASSY. CLUTCH HOUSING
7	275425103401	BUSH (CLUTCH HOUSING RELEASE SYSTEM)
8	275425605101	CLUTCH RELEASE YOKE
9	275425607901	CROSS SHAFT
10	275425607902	CROSS SHAFT
11	275425605901	KEY (CLUTCH RELEASE YOKE)
14	0422510004J	CLUTCH COVER HOUSING UPPER
17	269125108201	COVER REPAIR KIT (FOR M/S SETCO CLUTCH)

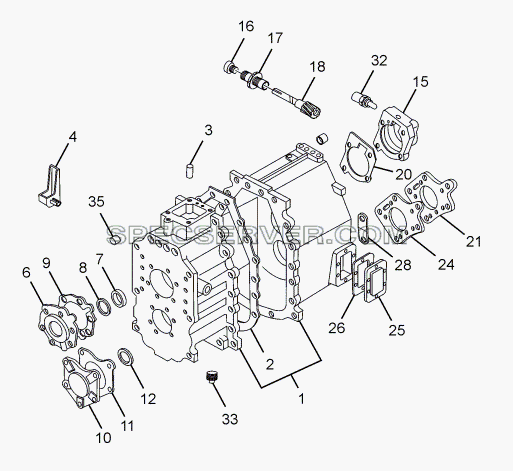

GEAR BOX, HOUSING AND COVERS для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	257428159901	BREATHER (MICO)
-	269126010190	ASSY. G600-6/6.58 W/150D C/FLG & 30D.SL.
-	269126108202	COVER (OIL CATCHER)
-	269126159901	ADAPTER (BREATHER)
-	269126207807	OIL RETAINER (DRIVE SHAFT)
-	269126208203	OIL SLINGER (REAR COVER UPPER)
-	269126208203	OIL SLINGER (REAR COVER UPPER)
-	269126258203	OIL DAM (FRONT COVER)
-	269126258205	OIL SLINGER (FRONT COVER)
1	269126100106	ASSY. HOUSING FRONT+REAR HALF (OVER DRIVE)
2	269126105303	GASKET (HOUSING FRONT & REAR)
3	269126106701	PIN (GEAR BOX HOUSING)
4	269126106301	OIL CATCHER
6	269126253704	FRONT COVER (UPPER)
7	269126257808	OIL SEAL (CR SEALS)
8	269126208301	SHIM (0.5 THICK)
8	269126208302	SHIM (0.25 THICK)
8	269126208303	SHIM (0.125 THICK)
8	269126208304	SHIM (0.05 THICK)
9	269126255302	GASKET (FRONT COVER UPPER)
10	269126303703	FRONT COVER (LOWER)
11	269126255303	GASKET (FRONT COVER LOWER)
12	269126308305	SHIM (0.5 THICK)
12	269126308306	SHIM (0.25 THICK)
12	269126308307	SHIM (0.125 THICK)
12	269126308308	SHIM (0.05 THICK)
15	269126203710	REAR COVER (UPPER)
16	250626207804	ROTARY SHAFT OIL SEAL
17	269126203426	SPEEDO ADAPTER
18	269126200166	SPEEDO PINION
20	269126205302	GASKET (REAR COVER UPPER)
21	269126303702	REAR COVER (GEAR BOX HOUSING COVER -LOWER)
24	269126305301	GASKET (REAR COVER LOWER)
25	269126358202	COVER (R.I. GEAR)
26	269126355302	GASKET (R.I. GEAR COVER)
28	269126357101	LOCKING PLATE (R.I. SHAFT)
32	270254509950	REVERSE LIGHT SWITCH
33	250626107203	MAGNETIC DRAIN PLUG (HEX HEAD TYPE)
35	269126108201	PLUG (SHIFTER SHAFT REAR)

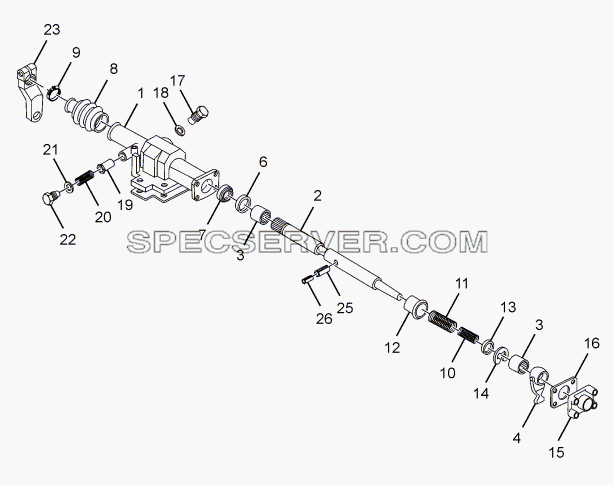

TOP COVER для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	251626715303	GASKET UPPER HALF GEAR CASE COVER TOP
1	251626713705	COVER TOP (UPPER)
2	269126707906	SELECTOR AND SHIFTER SHAFT
3	250726713105	NEEDLE BEARING
4	269126715101	SHIFTER FINGER
6	17061602518	OIL SEAL
7	250726717803	SCRAPER RING
8	250526717701	BELLOW
9	14270202501	HOSE CLIP 25
10	251626718705	COMPRESSION SPRING (INNER)
11	251626718707	COMPRESSION SPRING (OUTER)
12	251626718201	CUP
13	251626718601	SPACER
14	14550801206	CIRCLIP 12X1.3
15	269126713802	COVER (SIDE)
16	251626715302	GASKET (SIDE COVER)
17	16081001603	SEALING PLUG AM 16X1.5
18	251626718602	CRINKLED WASHER
19	251626716705	PRESSURE PIECE
20	251626718704	COMPRESSION SPRING
21	251626718603	CRINKLED WASHER
22	251626717201	SEALING PLUG
23	250526706009	SHIFTING LEVER
25	13120512409	DOWEL SLEEVE HEAVY 10X40
26	13120510406	DOWEL SLEEVE HEAVY 6X40

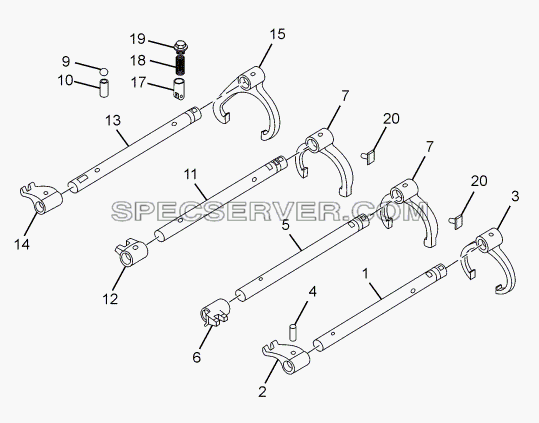

SHIFTER SHAFT AND FORK для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	269126517907	SHIFTER SHAFT (5TH / 6TH SPEED)
2	269126515123	SHIFTER DOG (5TH / 6TH SPEED)
3	269126515120	SHIFTER FORK (5TH / 6TH SPEED)
4	269126516706	SPIRAL PIN 8X36
4	269126516706	SPIRAL PIN 8X36
4	269126516706	SPIRAL PIN 8X36
4	269126516706	SPIRAL PIN 8X36
5	269126517910	SHIFTER SHAFT (3/4 SPEED)
6	269126515116	SHIFTER DOG (3RD / 4TH SPEED)
7	269126515125	SHIFTER FORK (1/2, 3/4 SPEED)
7	269126515125	SHIFTER FORK (1/2, 3/4 SPEED)
9	15950400177	BALL 13.49 DIA.
10	269126516703	INTERLOCK PIN
11	269126517908	SHIFTER SHAFT (1ST / 2ND SPEED)
12	269126515115	SHIFTER DOG (1ST / 2ND SPEED)
13	269126517909	SHIFTER SHAFT (REVERSE)
14	269126515118	SHIFTER DOG (REVERSE)
15	269126515113	SHIFTER FORK (REVERSE)
17	269126510120	ASSY. DETENT
18	269126518703	COMPRESSION SPRING (DETENT)
19	269126107202	SEALING PLUG (DETENT)
20	269126519901	BRASS PAD

DRIVE SHAFT для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	269126250135	ASSY. DRIVE SHAFT (RATIO 6.58)
3	269126203103	TAPER ROLLER BEARING (CLUTCH SIDE)

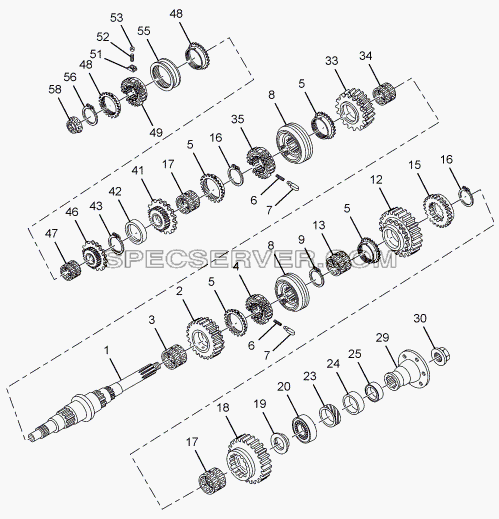

MAIN SHAFT AND GEAR для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	269126207911	MAIN SHAFT (6 SPEED)
2	269126205437	2ND SPEED GEAR[M/SHAFT](LOOSESYN.RING)
3	269126203120	NEEDLE CAGE DOUBLE ROW
4	269126204641	ENGAGING GEAR(1ST/2ND) LOOSE SYN.RING.
5	269126204650	SYNCHROCONE (1/2 -3/4) (CARBON)
5	269126204650	SYNCHROCONE (1/2 -3/4) (CARBON)
6	250726208705	COMPRESSION SPRING
6	250726208705	COMPRESSION SPRING
7	250726206702	RETENTION PIN
7	250726206702	RETENTION PIN
8	269126204618	SHIFTER SLEEVE (1ST / 2ND / 3RD / 4TH)
8	269126204618	SHIFTER SLEEVE (1ST / 2ND / 3RD / 4TH)
9	269126204313	CIRCLIP (2.3 THICK)
9	269126204314	CIRCLIP (2.4 THICK)
9	269126204315	CIRCLIP (2.6 THICK)
9	269126204316	CIRCLIP (2.6 THICK)
9	269126204317	CIRCLIP (2.7 THICK)
12	269126205436	1ST SPEED GEAR[M/SHAFT](LOOSE SYN.RING)
13	269126203111	NEEDLE CAGE 1ST SPEED
15	269126204616	ENGAGING GEAR (REVERSE)
16	269126204301	CIRCLIP (1.8 THICK)
16	269126204301	CIRCLIP (1.8 THICK)
16	269126204302	CIRCLIP (1.9 THICK)
16	269126204302	CIRCLIP (1.9 THICK)
16	269126204303	CIRCLIP (2.0 THICK)
16	269126204303	CIRCLIP (2.0 THICK)
16	269126204304	CIRCLIP (2.1 THICK)
16	269126204304	CIRCLIP (2.1 THICK)
16	269126204305	CIRCLIP (2.2 THICK)
16	269126204305	CIRCLIP (2.2 THICK)
16	269126204310	CIRCLIP (2.3 THICK)
16	269126204310	CIRCLIP (2.3 THICK)
16	269126204311	CIRCLIP (2.4 THICK)
16	269126204311	CIRCLIP (2.4 THICK)
17	269126203106	NEEDLE CAGE (REVERSE / 4TH GEAR)
17	269126203106	NEEDLE CAGE (REVERSE / 4TH GEAR)
18	269126205413	REVERSE GEAR (MAIN SHAFT)
19	269126208612	SPACER (MAIN SHAFT) (11.4 THICK)
19	269126208613	SPACER (MAIN SHAFT) (11.3 THICK)
19	269126208614	SPACER (MAIN SHAFT) (11.2 THICK)
19	269126208615	SPACER (MAIN SHAFT) (11.1 THICK)
19	269126208616	SPACER (MAIN SHAFT) (11.0 THICK)
19	269126208617	SPACER (MAIN SHAFT) (10.9 THICK)
19	269126208618	SPACER (MAIN SHAFT) (10.8 THICK)
19	269126208619	SPACER (MAIN SHAFT) (10.7 THICK)
19	269126208620	SPACER (MAIN SHAFT) (10.5 THICK)
19	269126208624	SPACER (MAIN SHAFT) (11.6 THICK)
19	269126208625	SPACER (MAIN SHAFT) (11.5 THICK)
19	269126208626	SPACER (MAIN SHAFT) (10.5 THICK)
19	269126208627	SPACER (MAIN SHAFT) (10.4 THICK)
20	269126203103	TAPER ROLLER BEARING (CLUTCH SIDE)
23	268826205407	SPEEDO GEAR (MAIN SHAFT)
24	269126208601	SPACER (COUPLING FLANGE)
25	269126207814	OIL SEAL (MAIN SHAFT)
29	269126200173	ASSY. COUPLING FLANGE
30	268826206501	LOCK NUT (COUPLING FLANGE)
33	269126205438	3RD SPEED GEAR[M/SHAFT](LOOSE SYN.RING)
34	269126203124	NEEDLE CAGE (1ST / 2ND / 3RD GEAR)
35	269126204642	ENGAGING GEAR(3RD/4TH) LOOSE SYN.RING.
41	269126205442	4TH SPEED GEAR(6.58 RATIO-LOOSE SYNRING)
42	269126208628	SPACER (MAIN SHAFT)
43	269126204306	CIRCLIP (2.4 THICK)
43	269126204307	CIRCLIP (2.5 THICK)
43	269126204308	CIRCLIP (2.6 THICK)
43	269126204309	CIRCLIP (2.7 THICK)
43	269126204312	CIRCLIP (2.8 THICK)
46	269126200171	ASSY ENGAGING GEAR(5TH/DS)
47	269126203105	NEEDLE CAGE
48	269126204651	SYNCHRO CONE (5 / 6 CARBON)
49	269126204640	ENGAGING GEAR (5TH / 6TH SPEED)
51	268826209901	CARRIER
52	3219930701	COMPRESSION SPRING
53	268826206702	RETENTION PIN (3/4)
55	268826204608	SHIFTER SLEEVE (5TH / 6TH SPEED)
56	251526204312	CIRCLIP 2.5 THICK
56	251526204313	CIRCLIP 2.54 THICK
56	251526204314	CIRCLIP 2.58 THICK
56	251526204315	CIRCLIP 2.62 THICK
56	251526204316	CIRCLIP 2.66 THICK
56	251526204333	CIRCLIP 2.7 THICK
56	251526204334	CIRCLIP 2.8 THICK
56	251526204335	CIRCLIP 2.75 THICK
58	269126253113	ROLLER (FOR DRIVE SHAFT)

COUNTER SHAFT, GEARS AND REVERSE IDLER для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	269126307904	COUNTER SHAFT (6 SPEED)
3	269126305414	OVER DRIVE GEAR (C/SHAFT)
4	269126305413	CONSTANT MESH GEAR(C/SHAFT)
5	269126303104	TAPER ROLLER BEARING
6	269126355403	REVERSE IDLER GEAR
7	269126357902	REVERSE IDLER SHAFT
8	269126358601	SPACER (REVERSE IDLER SHAFT)
9	251626356102	THRUST WASHER (REVERSE IDLER GEAR)
10	269126353104	ROLLER RING (REV. IDLER GEAR)
11	269126305424	3RD GEAR (COUNTER SHAFT)
12	269126305428	4TH GEAR (COUNTER SHAFT)

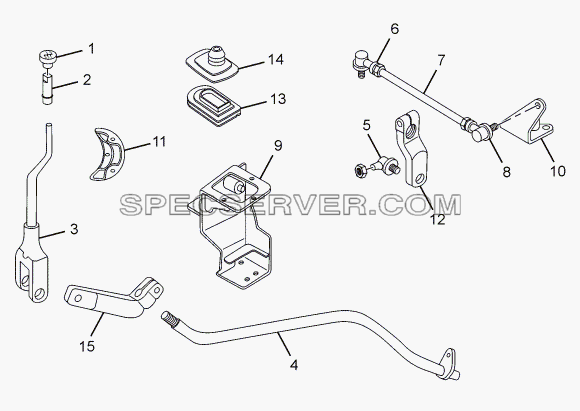

GEAR SHIFT LINGAGES для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	263026806703	PIN
-	263026808601	SPACER
-	265146603401	NEEDLE BUSH
-	265146607702	SEALING RING
-	276326800118	ASSY. CARRIER (FOR GEAR SHIFT LEVER)
-	276326807703	FLAP
-	276326808201	ANCHOR PLATE (FOR GEAR SHIFT LEVER)
1	275126800134	ASSY. GEAR SHIFT LEVER KNOB
2	276326800113	ASSY. SPACER
3	280826809901	GEAR SHIFT LEVER
4	280926800106	ASSY. TURNING TUBE (WITHOUT BALL JOINT)
5	250726700140	SUB. ASSY. BALL AND SOCKET JOINT BIG
5	250726700152	SUB. ASSY. BALL AND SOCKET JOINT BIG
6	264126800187	ASSY. BALL JOINT, RH THREADS
6	264126800191	ASSY. BALL JOINT, RH THREADS
7	264126807925	LINK ROD
8	264126800192	ASSY. BALL JOINT, LH THREADS
8	264126800193	ASSY. BALL JOINT, LH THREADS
9	280926810103	ASSY. BRACKET(G.S.L.MTG.)(ON ENGINE)
10	269126710121	ASSY. BRACKET(ON GEAR BOX)
11	276326806304	LOCATOR
12	250526706009	SHIFTING LEVER
13	276326807704	RUBBER BELLOW (INNER) (FOR GEAR SHIFT LEVER)
14	276326807705	RUBBER BELLOW (OUTER) (FOR GEAR SHIFT LEVER)
15	257326805101	SELECTOR & SHIFTER YOKE
