Запчасти: WIPER MOTOR AND LINKAGES (TILT CAB) для LPT 1618 ТС/52

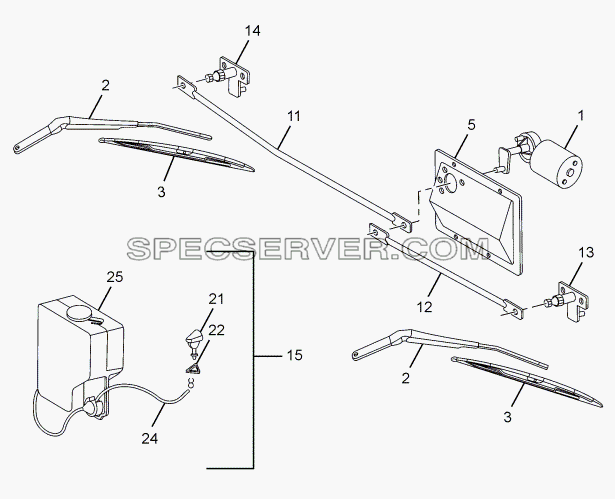

WIPER MOTOR AND LINKAGES (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264182400141	KIT FOR WIPER MOTOR CONSISTING OF :
-	264182407501	GASKET (BRACKET TO FIRE WALL)
-	CAP NUT (13 A/F)
-	CAPTIVE SCREW
-	CLIP
-	HOUSING (TERMINALS)
-	NUT (24 A/F)
-	OMEGA CLIP
-	UNIT CONST. OF: ASSY. TWIN JET NOZZLE
1	264182409950	17W -HI -POWER WIPER MOTOR(24V-2SPEED)
2	264182400116	ASSY. WIPER ARM
3	264182400163	ASSY. WIPER BLADE
5	264182408201	ASSY. BRACKET (WIPER MOTOR MTG.)
11	ASSY. LINK (792 MM LONG)
12	ASSY. LINK (183 MM LONG)
13	ASSY. WHEEL BOX (CO-DRIVER)
14	ASSY. WHEEL BOX (DRIVER)
15	264182400143	KIT FOR ELEC. WIND SCREEN WASHER
15	264182400145	KIT FOR ELEC. WIND SCREEN WASHER
21	TWIN JET NOZZLE
22	NOZZLE ADAPTOR
24	TUBE (1750 MM LONG)
25	TANK

Запчасти: AC AND HEATING SYSTEM для LPT 1618 ТС/52

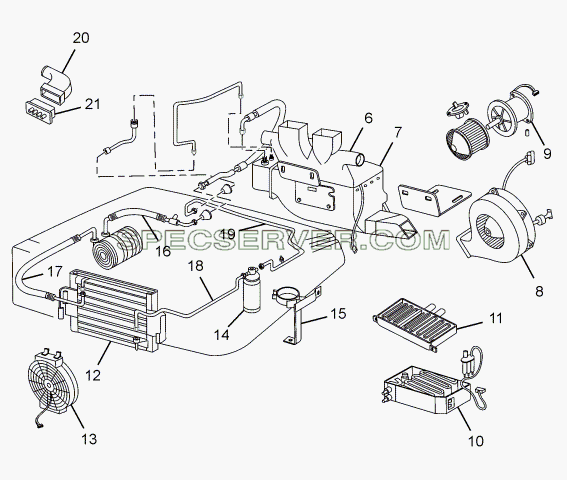

AC AND HEATING SYSTEM для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264168900188	ASSY BRACKET (REAR DEFROST)
-	264183100134	ASSY DUCT (HVAC TO DEFROST)
-	265183100166	ASSY.DEFROST DUCT COMPLETE
-	267883400117	ASSY WATER VALVE
-	269668900108	ASSY VENT HOSE
-	269854709902	DUAL PRESSURE SWITCH
-	269883400180	ASSY. AIR DISTRIBUTION BOX
-	269883406307	GROMMET FOR HEATER PIPES ON FIRE WALL
-	269883406308	GROMMET FOR DRAIN HOSE
-	269883406312	HOSE DRAIN HVAC UNIT
-	269883410186	ASSY BLOCK VALVE COMPLETE
-	269883410187	ASSY.THERMOSTAT
-	269883500104	ASSY HEATER DAMPER
-	274783108201	BRACKET CONDENSER MTG.(CR MEMBER)
-	274783108202	BRACKET CONDENSER MTG.(FOOT STEP
-	274783108203	BRACKET CONDENSER MTG.(FOOT STEP VERTICAL)
-	274783300101	ASSY.H.V.A.C. CONTROL COMPLETE
-	274783300101	ASSY.H.V.A.C. CONTROL COMPLETE
-	274783400114	ASSY. FRESH AIR VALVE (WITH DAMPER)
-	274783400115	ASSY BRACKET HVAC MTG. ON CR MEMBER
-	274783400116	ASSY BRACKET HVAC MTG. ON TUNNEL
-	274783400117	ASSY BRACKET HVAC MTG. ON FIRE WALL
-	274783500102	RUBBER HOSE(HEATER INLET)
-	274783500103	HOSE(THERMOSTATE TO WATER VALVE)
-	274783500104	RUBBER HOSE (HEATER OUTLET)
6	274783400121	ASSY.H.V.A.C. UNIT COMPLETE
7	269883406313	HOUSING H.V.A.C. UNIT
8	269883400181	ASSY. BLOWER WITH RIS
9	269883400182	ASSY. BLOWER MOTOR
10	269883410190	ASSY. EVAPORATOR COIL
11	269883500107	ASSY HEATER COIL
12	274783400122	ASSY.CONDENSER COMPL.
13	274783400108	ASSY.CONDENSER SHROUD WITH FAN
14	269883410118	ASSY.TANK RECEIVER DRIER
15	274783400109	ASSY. RECEIVER DRIER MTG.BRACKET
16	274783400110	ASSY HOSE SUCTION
17	274783400111	ASSY HOSE DISCHARGE
18	274783400112	ASSY TUBE LIQUID RD INLET
19	264183500114	ASSY TUBE LIQUID RD OUTLET
20	265183106336	ELBOW DUCT (FOR VENT NOZZLE)
21	264168910103	ASSY VENTILATION NOZZLE

Запчасти: BUMPER, FENDER (TILT CAB) для LPT 1618 ТС/52

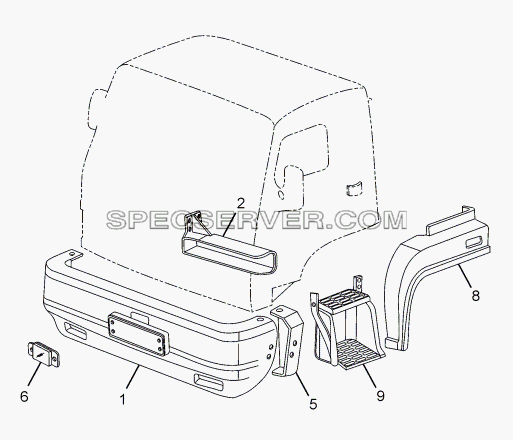

BUMPER, FENDER (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	274766610108	ASSY. STEP COMPLETE(BUMPER)
-	274781106323	COVER REAR MOUNTING LH
-	274781106324	COVER REAR MOUNTING RH
-	274788503305	BRACKET SIDE BUMPER MTG.
1	274788500119	ASSY. BUMPER COMPLETE
2	274788500116	ASSY. SUPPORT LH (BUMPER MTG.)
2	274788500117	ASSY. SUPPORT RH (BUMPER MTG.)
5	274788506302	END COVER LH
5	274788506303	END COVER RH
6	257354410137	ASSY. REFLEX REFLECTOR
8	274788200101	ASSY. FENDER LH
8	274788200102	ASSY. FENDER RH
9	274766600101	ASSY. STEPWELL LH
9	274766600102	ASSY. STEPWELL RH

Запчасти: CAB MOUNTING (FRONT) (TILT CAB) для LPT 1618 ТС/52

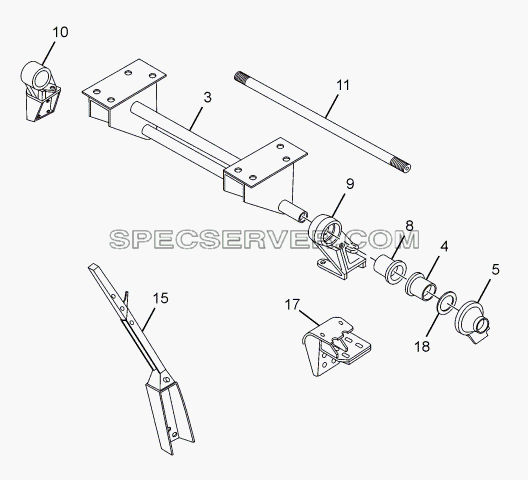

CAB MOUNTING (FRONT) (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	264189108004	SPECIAL BOLT (FOR ADJUSTER)
3	274789100105	ASSY.CROSS TUBE (FRONT MOUNTING)
4	264189103404	SPACER BUSH
5	264189103703	ADJUSTER RH (TORSION BAR)
8	264189100154	ASSY. RUBBER BUSH (FRONT MTG.)
9	274789100134	ASSY. CAB MTG. FRONT LH
10	274789103702	MOUNTING BRACKET BOTTOM RH
11	264189107903	TORSION BAR
15	274789100161	ASSY. STAY COMPLETE
17	274789100191	ASSY. CAB MTG. FRONT RH
18	274789108242	SHIM

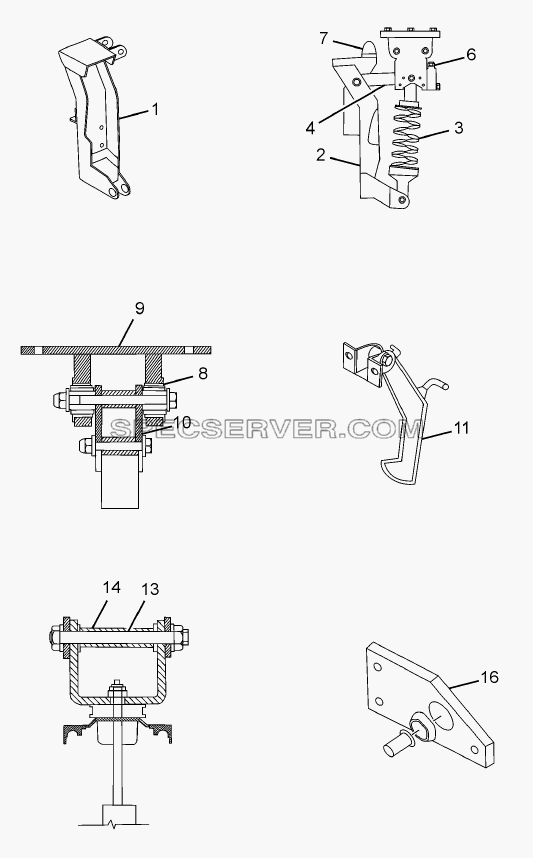

CAB MOUNTING - REAR (COIL & DAMPER) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	274789100191	ASSY. CAB MTG. FRONT RH
-	274789106312	BALATA PACKING
-	274789106706	PIN (DAMPER & SHOCK ABSORBER )
-	274789106707	CLEVIS PIN (LINK MOUNTING)
-	274789106708	PIN (DAMPER & SHOCK ABSORBER MTG.)
-	274789106709	PIN (CYL.MTG.ON CAB)
-	274789108601	SPACER
-	274789109201	STEP WASHER
-	274789110118	ASSY.PIN SUPPORT COMPL.LH
-	274789120103	ASSY.TIE MEMBER (CAB REAR MTG)
-	278232300102	ASSY.SHOCK ABSORBER FRONT
1	274789110112	ASSY.CAB MTG.BRACKET REAR COMPL.LH(CH.SIDE)
2	274789110113	ASSY.CAB MTG.BRACKET REAR COMPL.RH(CH.SIDE)
3	274789110173	ASSY.SHOCK ABSORBER CAB MTG.(NON SLEEPER)
4	274789110145	ASSY.LEVER DAMPER GUIDE COMPLETE
6	274789110177	ASSY.LATCH WITH LATCH CYL.RH.
7	265432110128	ASSY.RUBBER STOPPER(BUMP)
8	274789110141	ASSY.SLEEVE & BUSH(CAB LATCH MTG.)
9	274789110142	ASSY.SIDE BRACKET LATCH MOUNTING
10	264189100134	ASSY. CONNECTING LINK LH
11	274789110101	ASSY.SECONDARY LOCK (LOCK MECH.)
13	274789103202	STEP PIN (STRIKER MOUNTING)
14	274789103407	SLEEVE (LOCK SEATING)
16	274789110160	ASSY.BRACKET CYL.MTG.BOTTOM(ON FRAME)

CAB MOUNTING - REAR (HYDRAULIC CYL. & PIPES) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	274789900113	ASSY METAL PIPE (PUMP TO 3-WAY BEFORE.CYL)
2	274789900116	ASSY METAL PIPE (3-WAY TO HOSE)
3	274789900115	ASSY METAL PIPE (PUMP TO HOSE BEFORE.CYL.)
4	274789900114	ASSY METAL PIPE (AFTER 3-WAY TO HOSE)
5	274789900117	ASSY METAL PIPE(3-WAY TO LHS LATCH HOSE)
6	274789900118	ASSY METAL PIPE(3-WAY TO RHS LATCH HOSE)
7	274789900119	ASSY METAL PIPE(3-WAY TO RHS LATCH HOSE)
8	265142806803	THREE WAY CONNECTOR
9	274789900109	ASSY.HOSE (CYLINDER TO 3 WAY UNION)TUBE TO CYL.
11	274789900108	ASSY.HOSE (LATCH TO 3 WAY UNION)LATCH TO TUBE LH/RH
12	274789110153	HYD.CYLINDER CAB TILTING)
13	274789110154	ASSY. HYDRAULIC PUMP
14	274789110109	ASSY.LATCH WITH LATCH CYL.LH
14	274789110126	ASSY.LATCH WITH LATCH CYL.LH

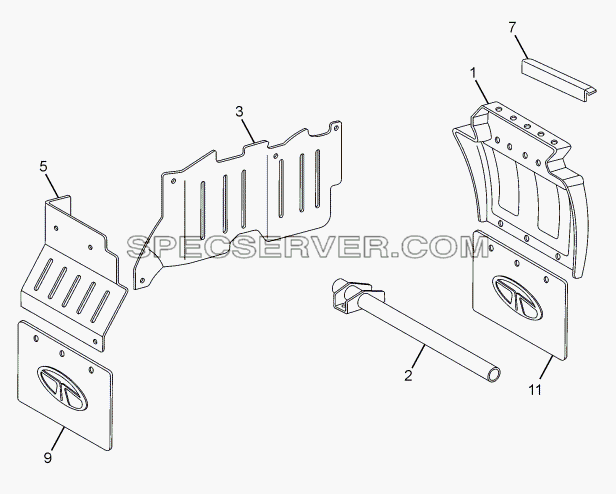

MUD GUARD AND MUDGLAP (TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	274789106333	MUDGUARD LH (SPRAY SUPPRESION)
-	274789106334	MUDGUARD RH (SPRAY SUPPRESION)
-	274789110189	ASSY. MUDGUARD MOUNTING BRACKET LH
-	274789110190	ASSY. MUDGUARD MOUNTING BRACKET RH
1	274789106338	MUDGUARD LH
1	274789106339	MUDGUARD RH
2	274789110178	ASSY. SUPPORT FRONT (MUDGUARD MTG.)
3	264189106312	MUDFLAP MIDDLE INNER LH
3	264189106313	MUDFLAP MIDDLE INNER RH
5	274789110181	ASSY. MUDFLAP FRONT INNER LH
5	274789110182	ASSY. MUDFLAP FRONT INNER RH
7	264189106307	SEALING (REAR MUDGUARD)
9	274789100193	ASSY. ARRESTOR (SPRAY SUPPRESION)
11	274789100171	ASSY.MUDFLAP FRONT OUTER-LH
11	274789100172	ASSY.MUDFLAP FRONT OUTER-RH

SEATS AND SEAT BELTS(TILT CAB) для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	274791100110	ASSY. SEAT BOX COMPLETE (DRIVER SEAT)
-	ASSY. SEAT BELT WITH BUCKLE
-	ASSY. SEAT BELT WITH TONGUE RH
1	264191000122	ASSY. SEAT W/T HEADREST RH
2	264191100112	ASSY. SEAT BOX COMPLETE (RH SEAT)
4	264191000123	ASSY. DRIVER’S SEAT LH
7	264191500112	SEAT BELT (DRIVER SIDE)
10	264191500165	ASSY. SEAT BELT KIT CO DRIVER (RH SIDE)

ENGINE для LPT 1618 ТС/52 (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	278601010156	ASSY.ENGINE COMPLETE 6BTAA,180 HP 24 V,EURO II,ENGINE W/O CLUTCH AND CLUTCH HSG.
-	278601990117	ASSY. LONG BLOCK (EURO II)
