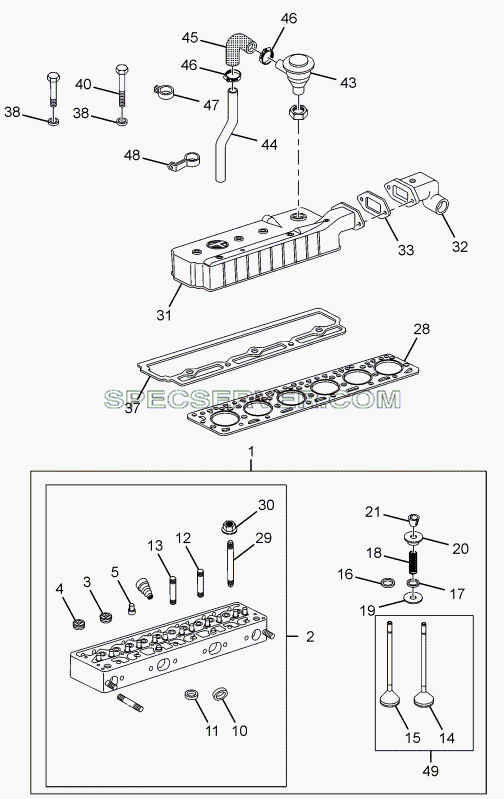

Запчасти: CYLINDER HEAD AND COVER для LPT 613 Euro-III

CYLINDER HEAD AND COVER для LPT 613 Euro-III (список запасных частей)

CYLINDER HEAD AND COVER для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 252501158803 HEX.FLANGE BOLT (FOR AL COVER)
- 252501158805 HEX.FLANGE BOLT (FOR AL COVER)
- 252701159903 STRAIGHT REDUCER
- 253401150177 ASSY. ISOLATOR
- 253405158702 VALVE SPRING (OUTER)
- 885401172525 SET OF VALVE SEAT RINGS (STD)
1 252501150190 ASSY.CYL.HEAD WITH VALVES (60 DEG)-BS-III
2 252501150191 ASSY.CYL.HEAD WITHOUT VALVES (60 DEG)
3 16081803009 PLUG MC 30X15
4 16081802401 PLUG MC 24X15
5 253401153204 SEAT PLUG
10 VALVE SEAT RING INLET STD
11 VALVE SEAT RING EXHAUST STD
12 253405153402 VALVE GUIDE INLET STD.
13 253405153415 VALVE GUIDE EXHAUST STD.
14 VALVE-INLET
15 VALVE-EXHAUST
16 253405159909 VALVE GUIDE SEAL (INLET)
17 253405159910 VALVE GUIDE SEAL (EXHAUST)
18 253405158701 VALVE SPRING (INNER)
19 3529902040 VALVE SPRING WASHER
20 252505155102 LOCK RETAINER VALVE SPRING
21 3120530127 VALVE SPRING LOCK HALF
28 252501155336 GASKET(CYL.HEAD TO CYL.CRANKCASE)EUROIII
29 252501159912 HEX.COLLAR BOLT W/ RELIEF GROOVE FOR CYL. HEAD
29 3229900505 STUD BOLT CYL CRANKCASE
30 3150380072 HEX NUT
31 252501153884 CYL.HEAD COVER (INJ. OUTSIDE REAR ENTRY)
32 252501153882 AIR INTAKE ELBOW
33 252501155344 GASKET (FOR FLANGE CONNECTION)
37 252501155348 GASKET (CYLINDER HEAD COVER)
38 253401159201 WASHER (CYL. HEAD COVER MTG.)
40 253401158808 HEX FLANGE BOLT (M8X147L)
43 252301170196 ASSY OIL SEPARATOR (ON CYL.HEAD COVER)
44 252301176941 TUBE
45 252501175812 HOSE (OIL SEPERATOR)
46 14280500357 HOSE CLAMP 35
47 252301174217 CLAMP UPPER
48 252301174219 CLAMP LOWER
49 885401182525 SET INLET & EXHAUST VALVE






Запчасти: MOVING PARTS для LPT 613 Euro-III

MOVING PARTS для LPT 613 Euro-III (список запасных частей)

MOVING PARTS для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 252503138201 OIL SLINGER
- 885403082525 KIT, CRANKSHAFT SEALING RING WITH LOCATING PINS CONSISTING OF :
- BEARING HALF (UPPER & LOWER) RS I
- BEARING HALF (UPPER & LOWER) RS II
- BEARING HALF (UPPER & LOWER) RS III
- BEARING HALF (UPPER & LOWER) STD
- CON. ROD BUSH STD
1 252503107956 CRANK SHAFT STD.
2 252503110138 ASSY. FLYWHEEL WITH RING GEAR
3 3520321105 RING GEAR
4 3129900301 BOLT
5 3129940232 LOCKING PLATE
6 253403103102 BALL BEARING
7 3120310533 LOCKING RING (IN CRANKSHAFT TO FIX THE BEARING)
8 3520520003 CRANK SHAFT GEAR
9 13650510091 WOODRUFF KEY 8X13
10 252503138603 SPACER
11 3520303103 ASSY. VIBRATION DAMPER (DOUBLE GROOVE)
12 252303138603 THRUST SPACER
13 252303133202 LOCK (V. DAMPER)
14 252503107802 SEALING RING HALF
14 SEALING RING HALF
15 1869910055 PIN MAIN BEARING SET
15 LOCATING PIN
16 885403762525 THRUST WASHER SET (STD)
16 885403772525 THRUST WASHER SET (RS I)
16 885403782525 THRUST WASHER SET (RS II)
17 BEARING UPPER HALF STD
18 BEARING LOWER HALF STD
19 THRUST WASHER LOWER HALF (116 MM DIA.) RS I
19 THRUST WASHER LOWER HALF (116 MM DIA.) RS II
19 THRUST WASHER LOWER HALF (116 MM DIA.) STD
20 THRUST WASHER UPPER HALF (116 MM DIA.) RS I
20 THRUST WASHER UPPER HALF (116 MM DIA.) RS II
20 THRUST WASHER UPPER HALF (116 MM DIA.) STD
21 252503120161 MAIN BEARING SET (STD)
22 252503990161 SET OF BARE PISTON STD, BS III
23 PISTON
24 PISTON PIN
25 CIRCLIP
26 252503990164 SET OF PISTON RING BS III STD
27 DOUBLE TRAPEZ RING (GR I)
28 COMPRESSION RING (GR II)
29 ASSY.OIL CONTROL RING (GR III)
30 252503150107 ASSY. CON. ROD SERRATED (STD) WITH BUSH
30 252503150125 ASSY. CON. ROD (STD) WITH BUSH
31 885403682525 CON. ROD BUSH SET STD
33 13050507143 PIN CYLINDRICAL 6X14
35 252503153205 SCREW CON. ROD CONNECTING ROD BEARING SET
37 885403622525 BEARING SET FOR CON. ROD (STD) CONSISTING OF
37 885403642525 BEARING SET FOR CON. ROD. RS I CONSISTING OF
37 885403652525 BEARING SET FOR CON. ROD. RS II CONSISTING OF
37 885403662525 BEARING SET FOR CON. ROD. RS III CONSISTING OF
37 885403672525 BEARING SET FOR CON. ROD. RS IV CONSISTS OF

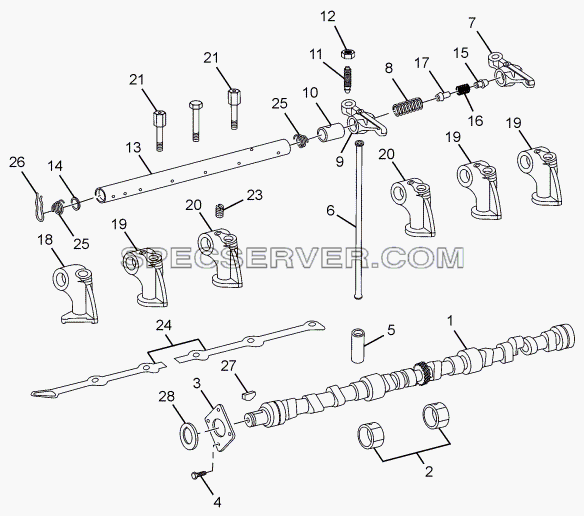

ENGINE TIMING (CAMSHAFT AND COMPONENTS) для LPT 613 Euro-III (список запасных частей)

ENGINE TIMING (CAMSHAFT AND COMPONENTS) для LPT 613 Euro-III (список запасных частей)

ENGINE TIMING (CAMSHAFT AND COMPONENTS) для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 252305140102 ASSY ROCKER ARM SHAFT WITH BUSH FRONT
- 252305140103 ASSY ROCKER ARM SHAFT WITH BUSH REAR
- BEARING NO. 1
- BEARING NO. 2, 3 AND 4
1 252505100140 CAMSHAFT WITH CYLINDER PIN STD
2 885405042525 SET OF BEARINGS CAMSHAFT CONSISTING OF :
3 3520520762 THRUST WASHER (CAMSHAFT TO CYL. BLOCK)
4 3129900004 HEX SCREW (TO THRUST WASHER)
5 253405139902 VALVE TAPPET
6 3520540205 PUSH ROD
7 3520501033 ROCKER ARM LEFT WITH BUSH
8 3129930701 SPRING (LONG)
9 3520500634 ROCKER ARM RIGHT WITH BUSH
10 3120550050 BUSH
11 252305146701 BALL END TAPPET ADJUSTER
12 3129900251 HEX. NUT (BALL PIN)
13 3120500231 ROCKER ARM SHAFT
14 17071001407 SEALING CAP
15 3120550653 CONNECTING NIPPLE, INNER
16 3129934701 SPRING, CONNECTING NIPPLE
17 3120550553 CONNECTING NIPPLE, OUTER
18 3520550610 ROCKER ARM SUPPORT NO. 1
19 3520550410 ROCKER ARM SUPPORT NO. 2, 5, 6
20 3520550510 ROCKER ARM SUPPORT NO. 3, 4
21 3120550171 BOLT (TO ROCKER ARM BRACKETS)
23 11433206101 GRUB SCREW AM 6X10, (ROCKER ARM SUPPORT TO ROCKER ARM SHAFT)
25 3129930005 SPRING (SHORT)
26 3129930025 SPRING CLIP (TO SPRINGS AND ROCKER ARM SHAFT)
27 252305105901 PARALLEL KEY
28 3520510062 BUTTING RING (TIMER TO CAMSHAFT)






INJECTION TIMER для LPT 613 Euro-III (список запасных частей)

INJECTION TIMER для LPT 613 Euro-III (список запасных частей)

INJECTION TIMER для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
2 252707135401 DRIVE GEAR, FIP EURO II
5 252305105901 PARALLEL KEY
8 3520510062 BUTTING RING (TIMER TO CAMSHAFT)
10 252705115403 GEAR CAMSHAFT EURO II
11 3520750071 PIN (TIMER MOUNTING)

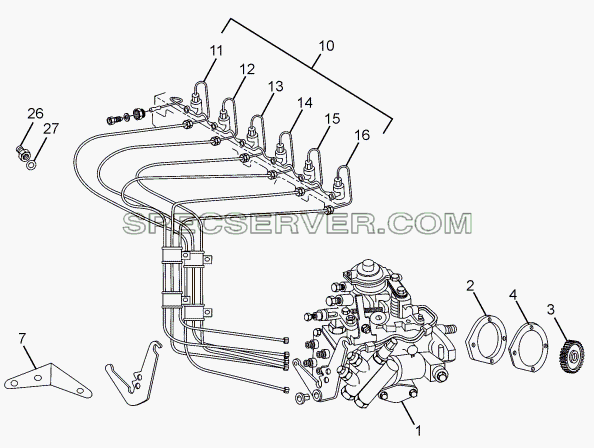

FUEL INJECTION EQUIPMENT для LPT 613 Euro-III (список запасных частей)

FUEL INJECTION EQUIPMENT для LPT 613 Euro-III (список запасных частей)

FUEL INJECTION EQUIPMENT для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 0120700066J ASSY. CLAMP LOWER
- 0120780085J CLAMP UPPER
- 13650505063 WOODRUFF KEY 4X6.5
- 252507145802 HOSE (REDUCER FOR LEAKAGE):L=300MM
- 252707125301 GASKET (FOR SUPPORT INJ.PUMP):EURO II KIT H.P.LINES (ROTARY FIP)
- 254707129201 HARDENED WASHER EURO II
1 252507120147 ASSY. FIP (ROTARY) EURO III
2 252707123702 SUPPORT(FOR FUEL INJECTION PUMP):E-III
3 252707135402 INJECTION PUMP GEAR EURO II
4 252707125302 GASKET, SUPPORT EURO II
7 252507123302 REAR SUPPORT BRACKET(FIP TO BLOCK)E-III
10 252507140167 KIT H.P.LINES (ROTARY FIP)
11 HIGH PRESSURE LINE 1ST CYL.
12 HIGH PRESSURE LINE 2ND CYL.
13 HIGH PRESSURE LINE 3RD CYL.
14 HIGH PRESSURE LINE 4TH CYL.
15 HIGH PRESSURE LINE 5TH CYL.
16 HIGH PRESSURE LINE 6TH CYL.
26 252007144203 SEAL CLAMP
27 252007148001 HOLLOW SCREW






INJECTOR для LPT 613 Euro-III (список запасных частей)

INJECTOR для LPT 613 Euro-III (список запасных частей)

INJECTOR для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 252501169902 NOZZLE 697 EURO III NORMAL INJ.TYPE MICO
- 252501169903 NOZZLE 697 EURO III NBFI TYPE MICO
- 252701163202 BANJO BOLT
- 252701169203 SEALING WASHER
- 252707144203 WASHER
- 253401169913 NOZZLE HOLDER NORMAL 4SP/497 NORMAL INJ.
- 253401169915 NOZZLE HOLDER 4SP/497 BS-III(NBFE INJECR
1 252501160128 ASSY.INJECTOR NBEF TYPE 697 E III MICO
2 252701163807 CONNECTOR ONE TUBE(MIM)
3 252501160127 ASSY.INJECTOR NORMAL 697 EURO III MICO
4 252701163808 CONNECTOR TWO TUBES(MIM)






FLAME START для LPT 613 Euro-III (список запасных частей)

FLAME START для LPT 613 Euro-III (список запасных частей)

FLAME START для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 254707144201 CLAMP (INJECTOR OVERFLOW TUBE)
1 252507153303 BRACKET-ELECTROMAGNETIC VALVE(24V)MTG.
2 264354249904 ELECTROMAGNETIC VALVE 24V
3 264354249909 FLAME GLOW PLUG (24V)-M/S.BERU
4 16220710380 SEALING WASHER 24X29 CU
5 252507150103 ASSY.CONNECTING PIPE
6 252507155803 RUBBER HOSE (400L)
8 252507150102 ASSY.PIPE UNION (FLAME START)
9 264354200120 ASSY BRACKET (BLOCK HEATER CONTROL MTG.)

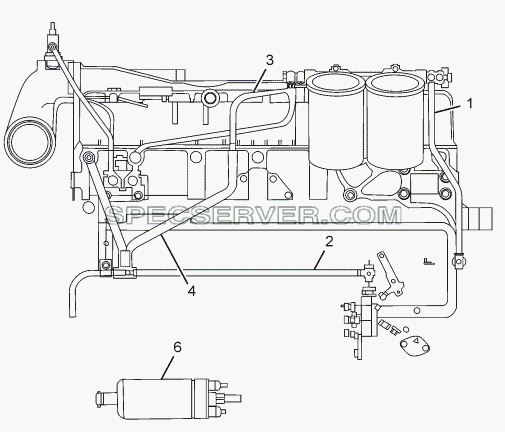

FUEL FEED AND LEAKAGE LINE для LPT 613 Euro-III (список запасных частей)

FUEL FEED AND LEAKAGE LINE для LPT 613 Euro-III (список запасных частей)

FUEL FEED AND LEAKAGE LINE для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 14280500128 HOSE CLAMP 12
1 252509120204 ASSY.FUEL LINE (FUEL FILTER TO FIP)
2 252509120224 ASSY.OVERFLOW LINE (WITH OVERFLOW CONN)
3 252509120225 ASSY. OVERFLOW LINE (FROM FUEL FILTER)
4 252509125812 HOSE (FOR ASSY.OVERFLOW LINE)
6 252707100189 ELECTRIC FUEL FEED PUMP






FUEL FILTER для LPT 613 Euro-III (список запасных частей)

FUEL FILTER для LPT 613 Euro-III (список запасных частей)

FUEL FILTER для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
1 252509120213 ASSY.FUEL FILTER & OVER FLOW VALVE
3 2916710609 SEALING RING
4 0004770015J FILTER INSERT STAGE I
5 252509120215 ASSY.OVERFLOW VALVE
6 252509113711 BRACKET FUEL FILTER BS II






AIR FILTER CHASSIS TYPE: 381226 для LPT 613 Euro-III (список запасных частей)

AIR FILTER CHASSIS TYPE: 381226 для LPT 613 Euro-III (список запасных частей)

AIR FILTER CHASSIS TYPE: 381226 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 14280598144 HOSE CLAMP TB-126
- 14280598209 HOSE CLAMP TB 112
- 252509145802 HOSE (ON TC INLET).
- 278609135826 HOSE (102 ID X 120 L) (ON AIR FILTER OUTLET)
1 278609130333 ASSY.AIR INLET DUCT (SIDE ENTRY)
2 278609130322 ASSY.BRACKET (AIR INLET DUCT MTG.TOP)
3 278609130289 ASSY.BRACKET (AIR INLET DUCT MTG.BOTTOM)
4 252509148255 BRACKET-LH (FOR SNORKEL PIPE MTG)
5 252509148256 BRACKET-RH(FOR SNORKEL PIPE MTG)
6 252509145824 RUBBER BELLOW (AIR INLET SNORKEL TO PIPE
7 252509140201 ASSY. AIR INTAKE PIPE (SNORKEL TO AIR FILTER)
8 252509145826 HOSE (ON AIR FILTER INLET) (114 IDX130L)
10 252509133818 AIR INTAKE PIPE (AIR FILTER TO TC)
13 252509140175 ASSY.AIR FILTER
15 278609139910 AIR FILTER ELEMENT-PRIMARY
16 278609139911 AIR FILTER ELEMENT-SAFETY
17 278609139901 ADAPTER(FOR SERVICE INDICATOR)
18 277054509901 ELECT.SERVICE IND.SWITCH
20 252509140174 SUPPORT(AIR FILTER)
21 252509140161 ASSY.AIR FILTER MTG.BRACKET
22 278509130101 ASSY.STRAP WITH SHACKLE
23 252509139934 RUBBER STRAP
