CAB MOUNTING (FRONT) CHASSIS TYPE: 381313 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

CAB MOUNTING (REAR) CHASSIS TYPE: 381313 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		264189100140	ASSY. FINAL LINK (LOCKING MECHANISM)
-		264189100151	ASSY. SECONDARY LOCK (LOCKING MECHANISM)
-		264189100194	ASSY. TIE MEMBER (REAR MOUNTING)
-		264189106314	RUBBER MOUNTING (UPPER)
-		264189106705	PIN (LOCK MECHANISM)
-		264189106913	SPACER (REAR MOUNTING)
-		264189108270	MOUNTING CUP (CAB LOCKING MECHANISM)
-		264189108272	PLATE (CAB LOCKING MECHANISM)
-		264189108703	TORSION SPRING (LOCKING MECHANISM)
1		264189100147	ASSY. HOUSING BRACKET COMPLETE LH
1		264189100148	ASSY. HOUSING BRACKET COMPLETE RH
10		264189100146	ASSY. HANDLE MOUNTING (CAB LOCKING MECHANISM) CONSISTS OF :
20		264189100134	ASSY. CONNECTING LINK LH
21		264189100135	ASSY. CONNECTING LINK RH
23		264189100136	ASSY. LEVER (SECONDARY LOCK)
26		264189108704	TORSION SPRING (SECONDARY LOCK)
27		264189100141	ASSY. MOUNTING BRACKET LH (CHASSIS SIDE)
27		267389100106	ASSY. MOUNTING BRACKET RH (CHASSIS SIDE)
31		274789100129	ASSY.MTG.HOOK (CAB LOCKING MECHANISM)
34		264189100115	ASSY. RUBBER MOUNTING (LOWER)
38		12460501707	BRIGHT WASHER 17
39		12520698025	SPRING WASHER B 8
40		12140601606	NYLOC NUT M 16X1.5
41		264189100182	ASSY. BRACKET UPPER (CHASSIS SIDE)
42		264189100184	ASSY. MOUNTING PAD (CAB LOCKING MECHANISM)

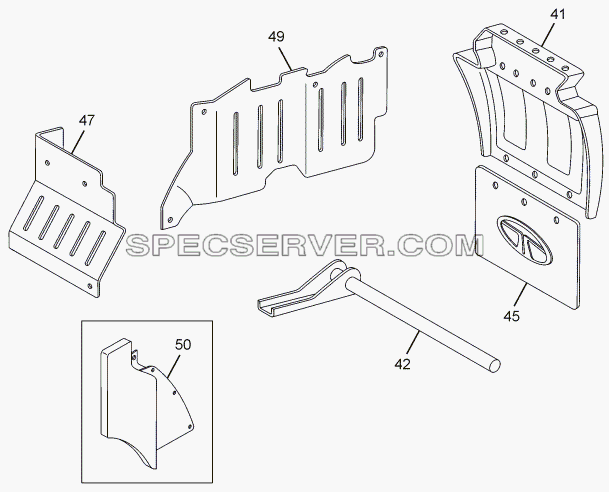

MUDGUARD AND MUDFLAP CHASSIS TYPE: 381313 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		264189106307	SEALING (REAR MUDGUARD)
-		264189108257	CLAMP REAR MUDGUARD MOUNTING
41		264189106305	MUD GUARD LH
41		264189106306	MUD GUARD RH
42		264189100165	ASSY. SUPPORT (BOTTOM) LH
42		264189100166	ASSY. SUPPORT (BOTTOM) RH
45		264081100102	ASSY. MUD FLAP REAR
47		264189110123	ASSY.MUDFLAP FRONT INNER LH
47		264189110124	ASSY.MUDFLAP FRONT INNER RH
49		274789100171	ASSY.MUDFLAP FRONT OUTER-LH
49		274789100172	ASSY.MUDFLAP FRONT OUTER-RH
50		264189110170	ASSY.MUDFLAP MIDDLE INNER W/EXTN.COMP-LH
50		264189110171	ASSY.MUDFLAP MIDDLE INNER W/EXTN.COMP-RH

COWL MOUNTING CHASSIS TYPE: 381226 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		0428910413J	PLATE
-		257389109201	WASHER
-		264189100189	ASSY.TIE MEMBER REAR MTG.)LHD COWL
-		264189108006	STUD
-		265170906305	PACKING
1		264189100177	ASSEMBLY MTG. BRACKET FRONT LH-LHD.
2		264189100175	ASSY MTG BRACKET FRONT RH LHD
5		264189100171	ASSY MTG BRACKET REAR [CHASSIS SIDE]
6		264189106910	SPACER TUBE
7		264189108266	PROTECTION CAP
9		0008910597J	RUBBER MOUNTING UPPER
10		12650601309	WASHER A13
11		0008910201J	RUBBER MOUNTING
12		11063896413	HEX BOLT M12X100
13		12140501202	NYLOCK NUT M 12

SEAT AND SEAT BELTS CHASSIS TYPE: 381226 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		264191500110	SEAT BELT (MIDDLE PASSENGER)
-		264191500111	SEAT BELT (CO - DRIVER SIDE)
1		264191000149	ASSY DRIVER SEAT COMPL.WITH HD.REST-LHD
3		264191500109	ASSY. SEAT BELT KIT COMPLETE (‘E’ CERTIFIED) CONSISTING OF :
5		264191500112	SEAT BELT (DRIVER SIDE)

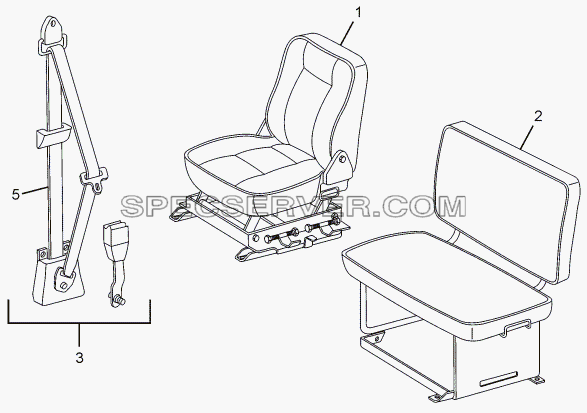

SEAT AND SEAT BELTS CHASSIS TYPE: 381313 для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		264191500110	SEAT BELT (MIDDLE PASSENGER)
-		264191500111	SEAT BELT (CO - DRIVER SIDE)
1		264191000149	ASSY DRIVER SEAT COMPL.WITH HD.REST-LHD
2		264194000117	ASSY. CO-DRIVER’S SEAT
3		264191500109	ASSY. SEAT BELT KIT COMPLETE (‘E’ CERTIFIED) CONSISTING OF :
5		264191500112	SEAT BELT (DRIVER SIDE)

ENGINE для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		252501600398	ASSY.ENG COMPL.-130PS E-III WITH FLAME 24V, ROTARY FIP,POWER STEERING,TILT CAB,FLAME START

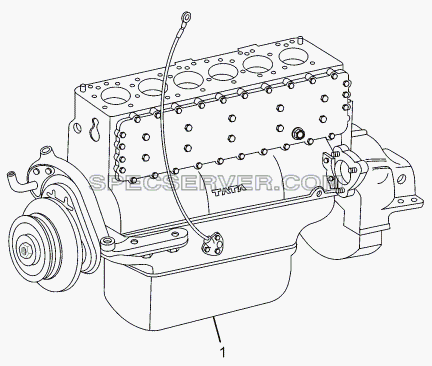

HALF BLOCK AND LONG BLOCK для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		252501990243	LONG BLOCK LP/LPT 613E-III(24V)
1		252501990241	HALF BLOCK, LP/LPT 613 E-III(24V)

ENGINE OVERHAULING GASKET KIT для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		252501990221	ENGINE OVERHAUL GASKET KIT (BS III)
-		885401162525	DECARBONISING GASKET KIT 697TCIC BS-III
-		GASKET
-		GASKET
-		GASKET
-		GASKET
-		GASKET
-		GASKET
-		GASKET
-		GASKET
-		GASKET (94 DIA. A/C HEAD)
-		GASKET (PUSH ROD CHAMBER COVER)
-		GASKET (TIMING GEAR HOUSING)
-		GASKET, CYLINDER HEAD
-		GASKET, CYLINDER HEAD (NON RETORQUE)
-		GASKET, CYLINDER HEAD COVER
-		GASKET, CYLINDER HEAD COVER
-		GASKET, CYLINDER HEAD COVER (TOP ENTRY) TO ELBOW
-		GASKET, EXHAUST MANIFOLD
-		GASKET, EXHAUST MANIFOLD
-		GASKET, EXHAUST PIPE
-		GASKET, FIP TO SUPPORT BS II
-		GASKET, OIL COOLER
-		GASKET, OIL SUMP
-		GASKET, SUPPORT (FIP) BS II
-		GASKET, TMING GEAR HOUSING COVER
-		GASKET, TURBO CHARGER
-		GASKET, WATER PUMP
-		GASKET, WATER PUMP
-		GASKET, WATER PUMP
-		SEALING RING HALF
-		SEALING WASHER
-		SEALING WASHER
-		SEALING WASHER 10X14
-		SEALING WASHER 12X15.5
-		SEALING WASHER 14X18
-		SEALING WASHER 14X20
-		SEALING WASHER 16X20
-		SEALING WASHER 16X20
-		SEALING WASHER 16X22
-		SEALING WASHER 18X22
-		SEALING WASHER 22X27
-		SEALING WASHER 24X29
-		SEALING WASHER 8X11.5
-		SEALING WASHER 8X14
-		SEALING WASHER A14X20

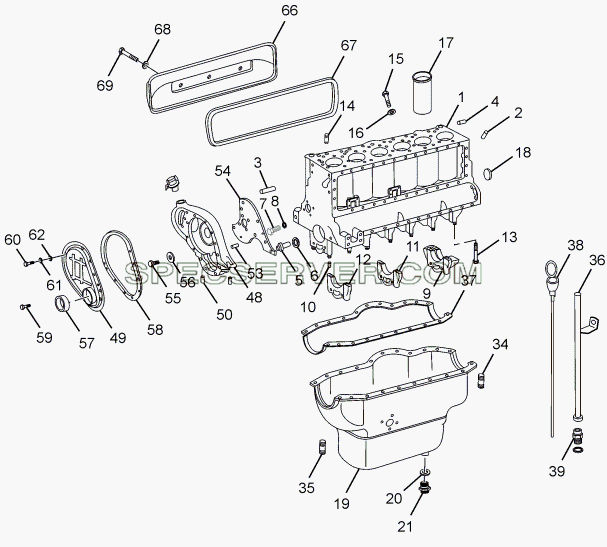

CYLINDER BLOCK для LPT 613 Euro-III (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		17050500101	O’ RING 6X1.80 (FOR DIPSTICK)
-		253401140119	ASSY. PLUG (TIMING GEAR HOUSING)
1		252501100298	ASSY.CYL.BLOCK WITH LINER
2		3121881135P	SLEEVE
3		3219920025	SLEEVE, CLAMPING
4		13050910304	PIN CYLINDRICAL 12X30 (TO LOCATE CLUTCH HOUSING)
5		3520110335	SCREW PLUG
6		16220710282	SEALING WASHER 18X22 CU
7		16081001603	SEALING PLUG AM 16X1.5
8		16220710258	SEALING WASHER A 16X22 CU
9		MAIN BEARING CAP NO. 7
10		13050508166	PIN CYLINDRICAL 8 M 6X16
11		MAIN BEARING CAP NO. 4
12		MAIN BEARING CAP NO. 1, 2, 3, 5 & 6
13		252501159910	HEX. HEAD SCREW (FOR MAIN BEARING CAP)
14		3129910260	PIN CYLINDRICAL (TO LOCATE CYL. HEAD ON BLOCK)
15		252301107201	SEALING PLUG
16		16220710282	SEALING WASHER 18X22 CU
17		252701103727	LINER
18		3219970020	LOCKING COVER (FOR CAMSHAFT BORE)
19		252501130158	ASSY. OIL SUMP
20		16220710282	SEALING WASHER 18X22 CU
21		253401130111	MAGNETIC DRAIN PLUG
34		11632496011	STUD BM 8X20 (ON FRONT & LAST HOLES OF OIL SUMP GASKET)
35		252301130114	ASSY. COMBI SCREW
36		252501170235	ASSY. TUBE DIPSTICK (330 LONG)
37		252501130172	ASSY GASKET OIL SUMP TO CYL. BLOCK
38		252501170236	ASSY. DIPSTICK
39		254701179901	DIPSTICK TUBE ADAPTER
48		252701140117	ASSY. TIMING GEAR HOUSING
49		252701143706	COVER, TIMING GEAR (FRONT), W/O OIL HOLE
50		13050508166	PIN CYLINDRICAL 8 M 6X16
53		13050909250	PIN CYLINDRICAL (ON CYL. BLOCK MTG. FACE)
54		252501145305	GASKET (T.G. HSG.)
55		11323998045	SCREW M 10X25
56		3129940310	LOCKING PLATE
57		252501147701	PTFE SEAL-CRANKSHAFT
58		3120150580	GASKET (T.G.H. COVER)
59		11323998061	SCREW M 6X12
60		11063806601	BOLT M 6X60
61		12520698017	SPG. WASHER B 6
62		12650600647	WASHER A 6.4 (COVER TO T.G. HSG.)
66		252501140114	ASSY. COVER (PUSH ROD CHAMBER)
67		252501146307	GASKET PRC COVER
68		16220710096	SEALING WASHER 8X11.5 CU
69		11323908453	SCREW M 8X45
