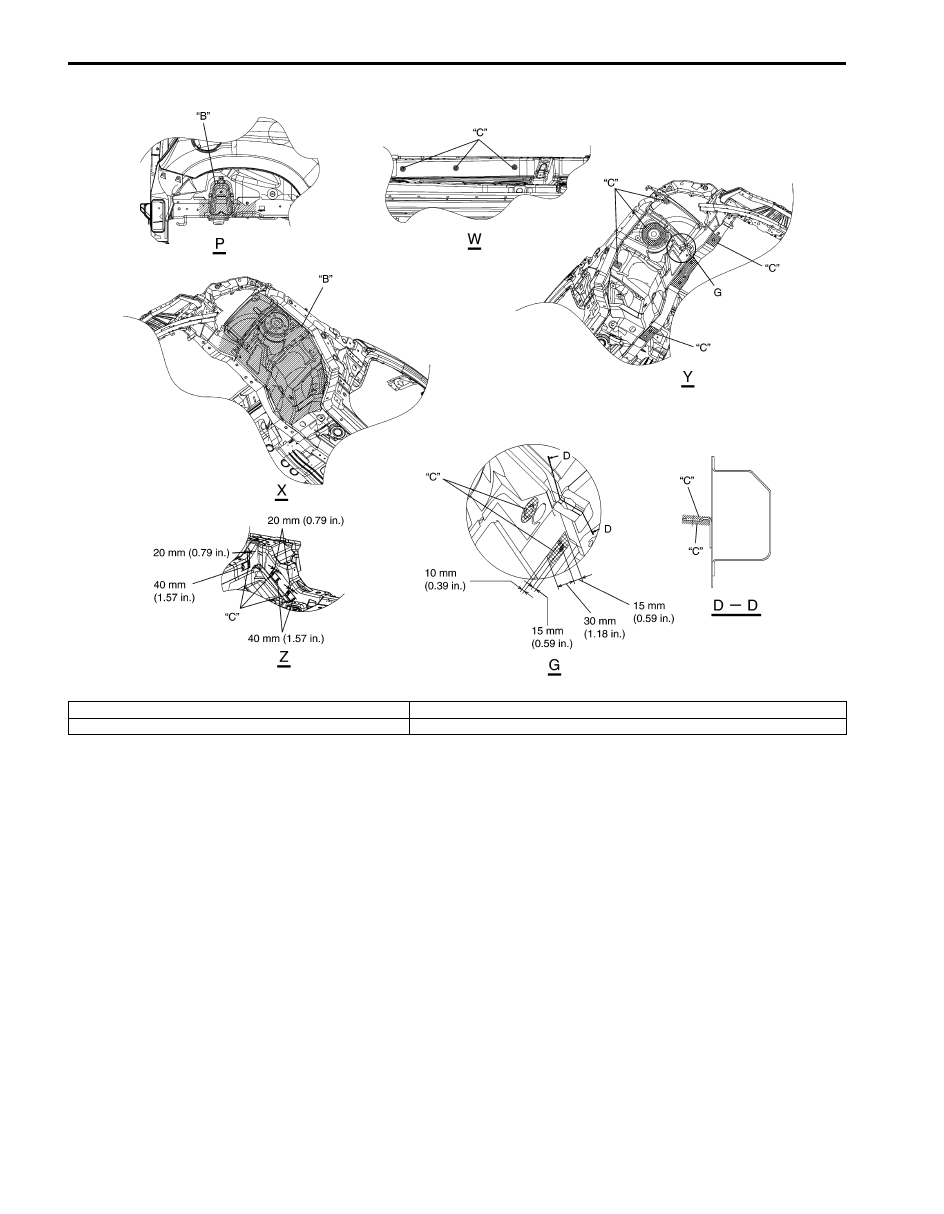

9L-15 Paint / Coatings:

I5JB0A9C0014-01

“A”: Apply undercoating (PVC, 400

µm or more).

“C”: Do not apply undercoating.

“B”: Apply black painting.

Paint / Coatings:  9L-16

Anti-Corrosion Compound Application Area

S6JB0A9C03003

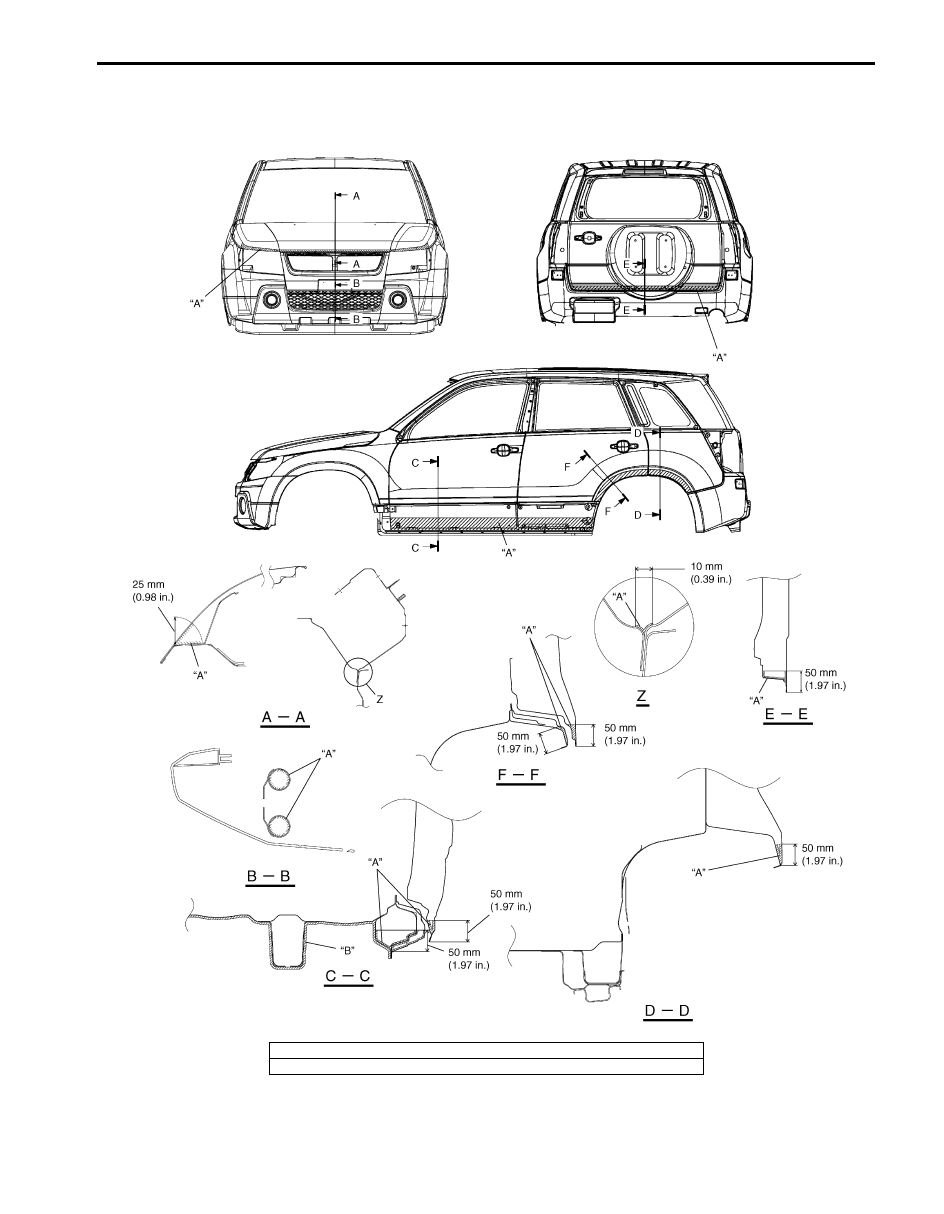

5 Door Model

I5JB0A9C0015-01

“A”: Apply rust proof wax (hot wax 50

µm or more).

“B”: Apply rust proof wax (high viscosity wax 50

µm or more).

9L-17 Paint / Coatings:

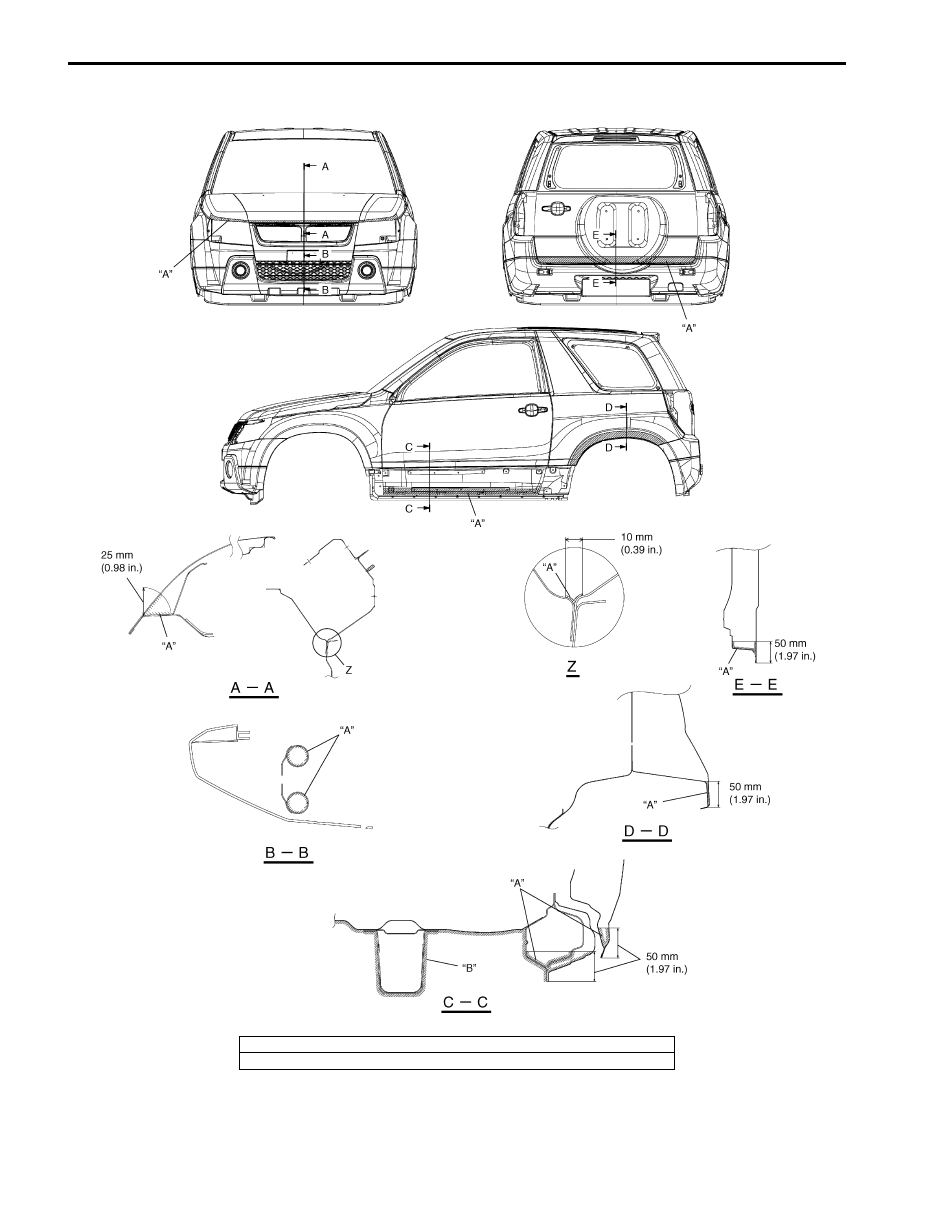

3 Door Model

I5JB0A9C0016-01

“A”: Apply rust proof wax (hot wax 50

µm or more).

“B”: Apply rust proof wax (high viscosity wax 50

µm or more).

Exterior Trim:  9M-1

Body, Cab and Accessories

Exterior Trim

Repair Instructions

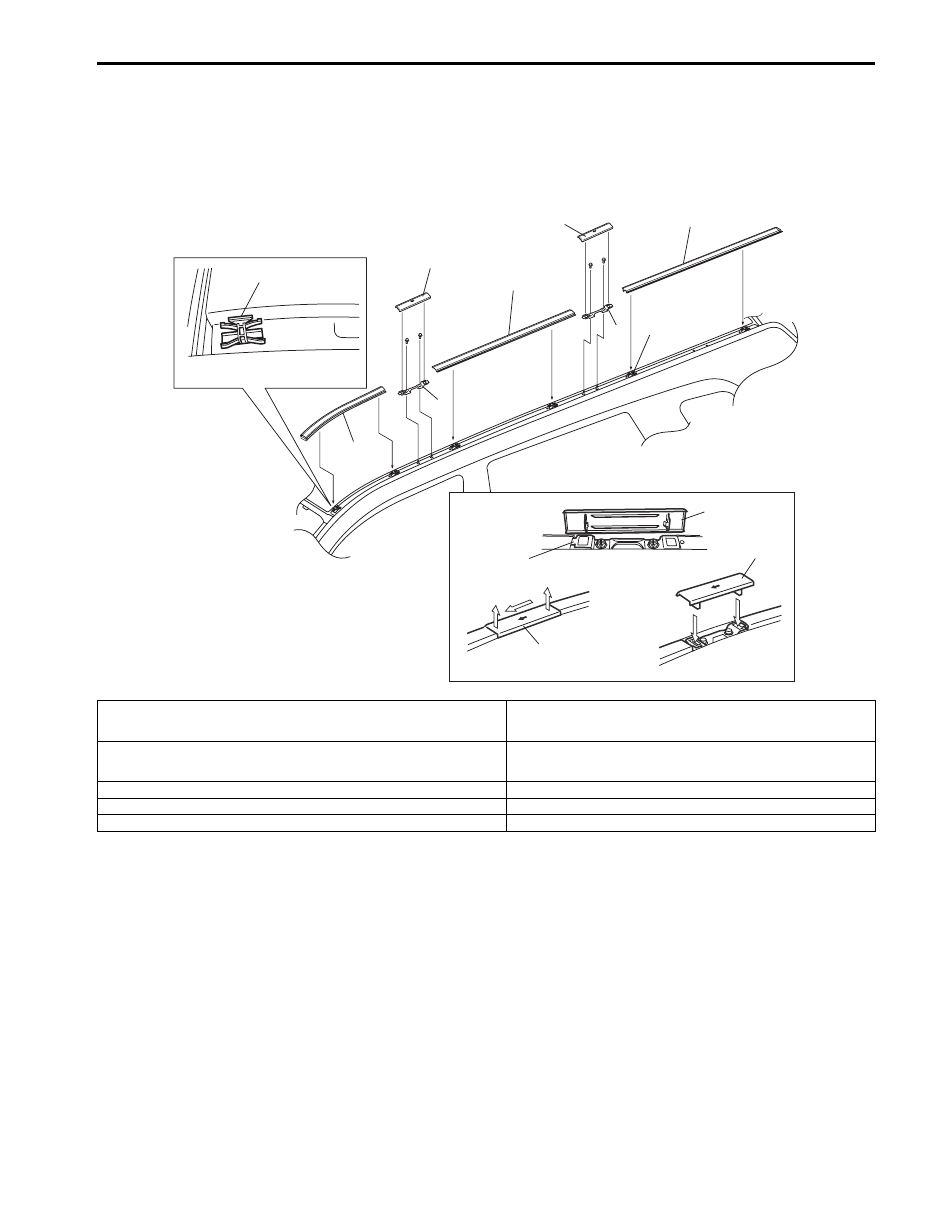

Roof Drip Molding Removal and Installation (If Equipped)

S6JB0A9D06001

*

1

3

2

4

4

6

5

5

[A]

[B]

a

a

b

b

c

5

5

5

4

I5JB0A9D0001-02

[A]: Molding Cap Removal

Remove cap by pushing in arrow direction shown on cap and then pulling in
alphabetical order indicated in figure.

4. Roof carrier bracket

[B]: Molding Cap Installation

Be sure to direct arrow mark of left side molding cap to vehicle forward and
arrow mark of right side molding cap to vehicle rearward.

5. Roof drip molding cap

1. Roof drip front molding

6. Roof drip molding clip (Push-in type)

2. Roof drip center molding

*: 5 door model only

 3. Roof drip rear molding
