9L-7 Paint / Coatings:

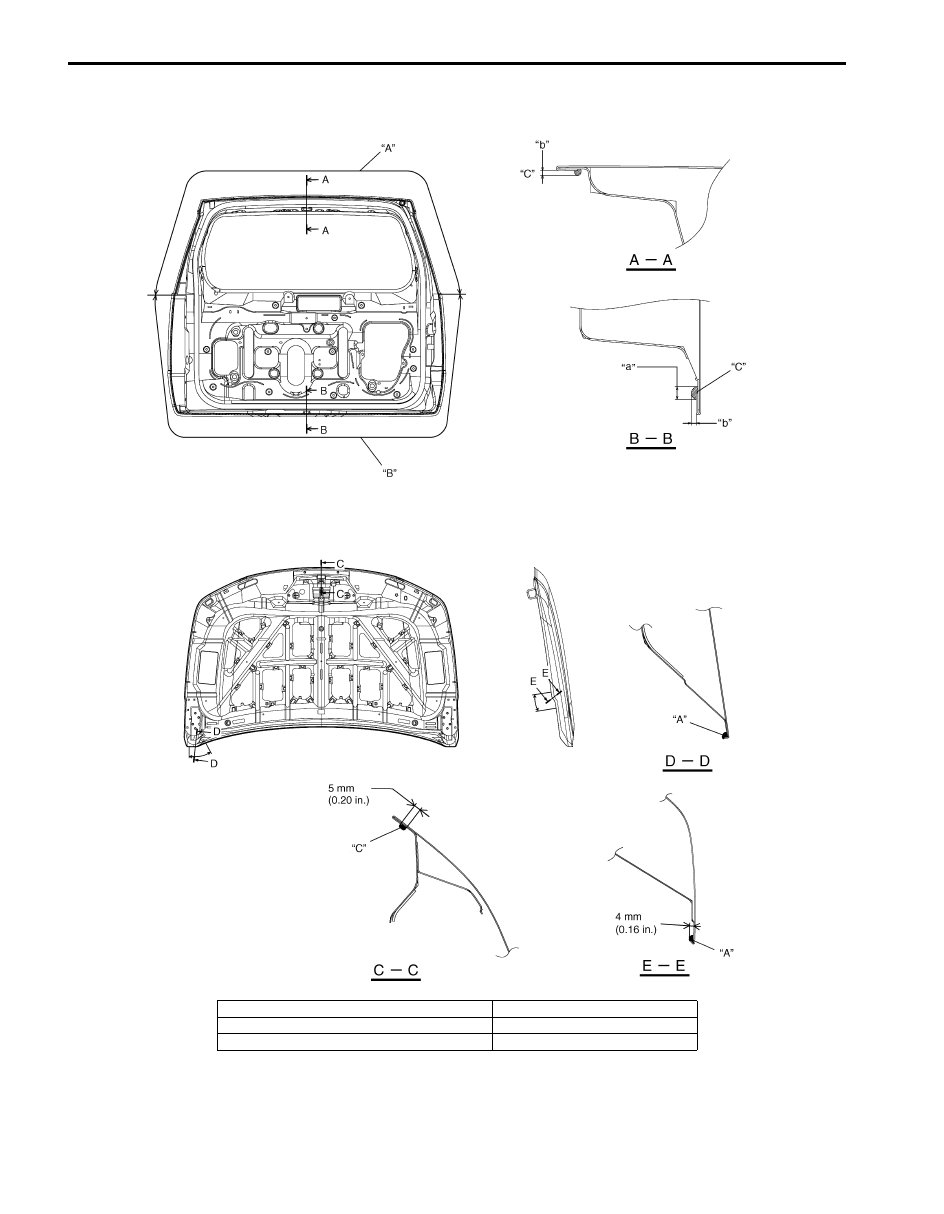

Rear End Door Panel and Hood Panel

I5JB0A9C0006-02

“A”: Apply sealant.

“a”: Min. 6 mm (0.24 in.)

“B”: Apply wide sealant.

“b”: Max. 3 mm (0.12 in.)

“C”: Apply sealant covering flange end.

Paint / Coatings:  9L-8

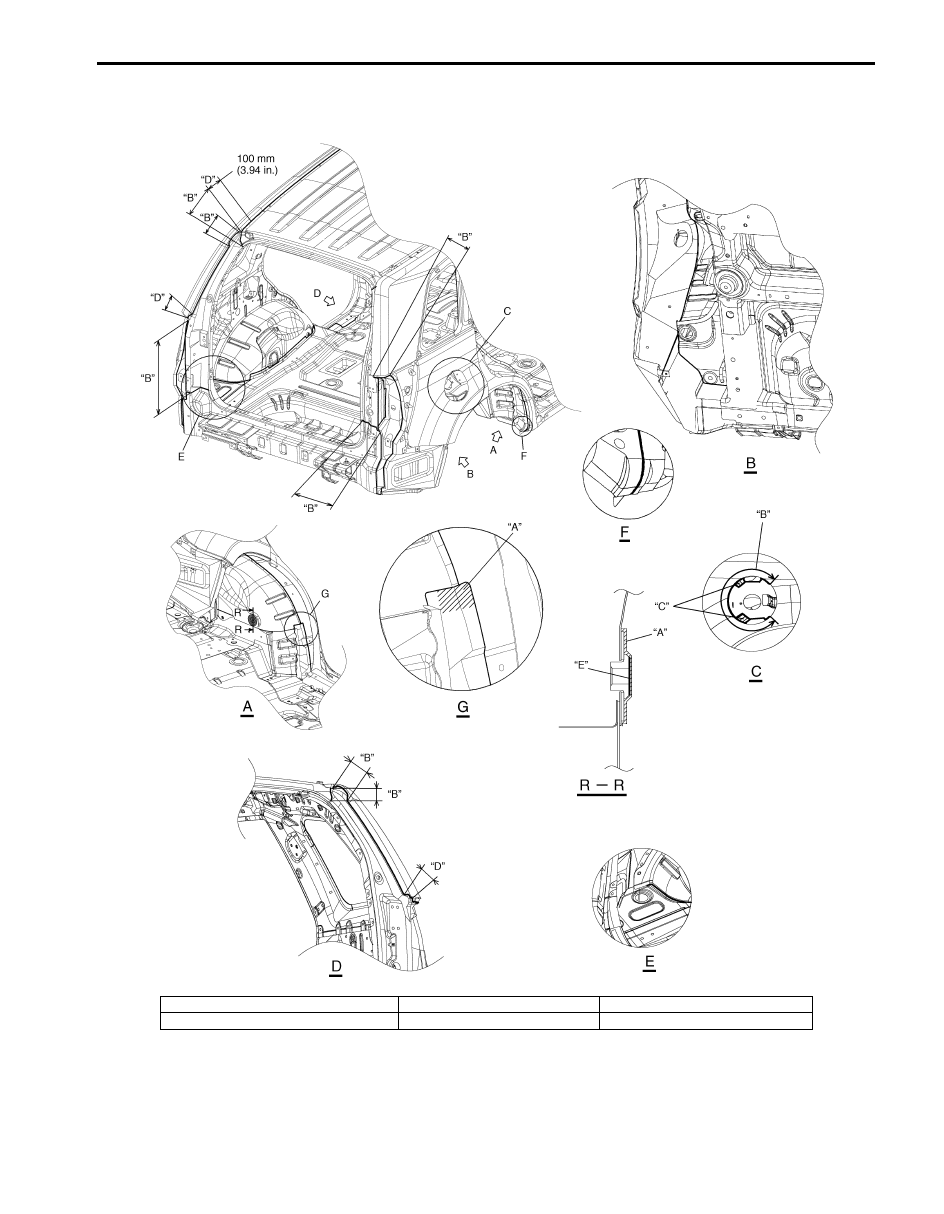

Rear Structure Panel (5 Door Model)

I5JB0A9C0007-04

“A”: Apply sealant.

“C”: Do not apply sealant.

“E”: Apply masking tape.

“B”: Smooth out sealant with a brush.

“D”. Flatten sealant.

9L-9 Paint / Coatings:

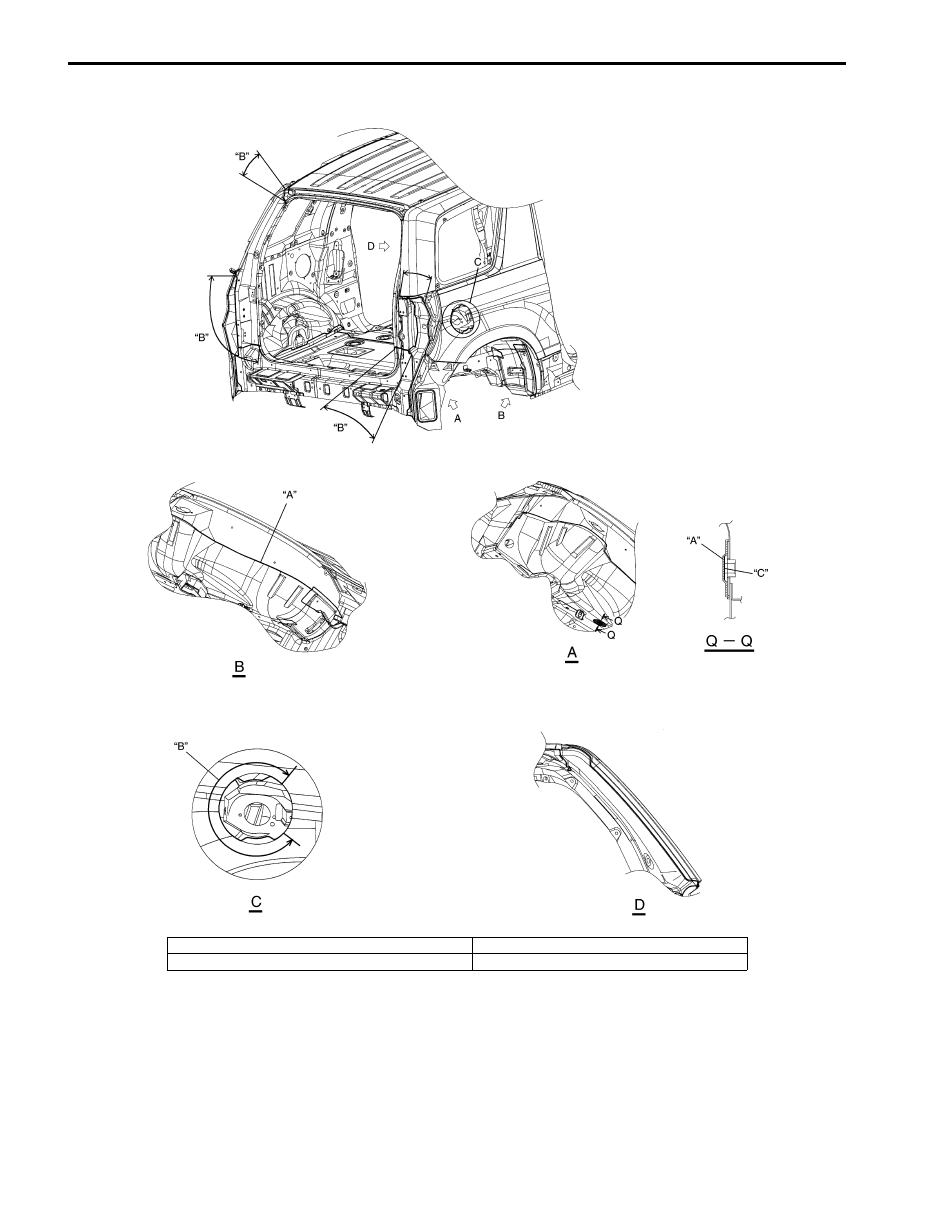

Rear Structure Panel (3 Door Model)

I5JB0A9C0008-02

“A”: Apply sealant.

“C”: Do not apply sealant.

“B”: Smooth off sealant with a brush.

Paint / Coatings:  9L-10

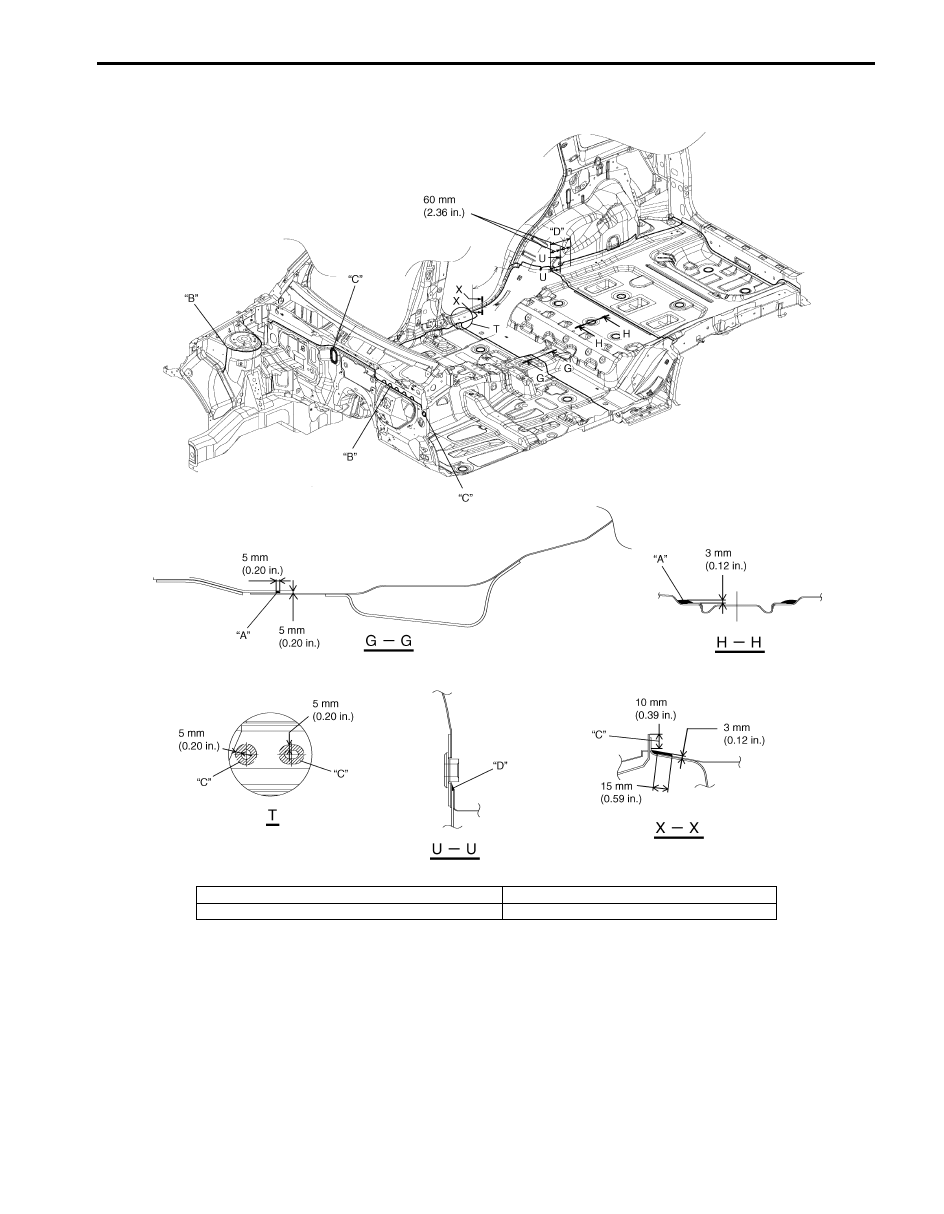

Floor Panel (5 Door Model)

I5JB0A9C0009-01

“A”: Apply sealant.

“C”: Do not apply sealant.

“B”: Smooth off sealant with a brush.

“D”: Flatten sealant.
