8B-21 Air Bag System:

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

“AIR BAG” Warning Lamp Does Not Come ON

S6JB0A8204008

Wiring Diagram
Refer to ““AIR BAG” Warning Lamp Comes ON Steady”.

CAUTION

Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.

Flow Test Description
Step 1: Check combination meter power feed circuit.
Step 2: Check “AIR BAG” warning lamp circuit.

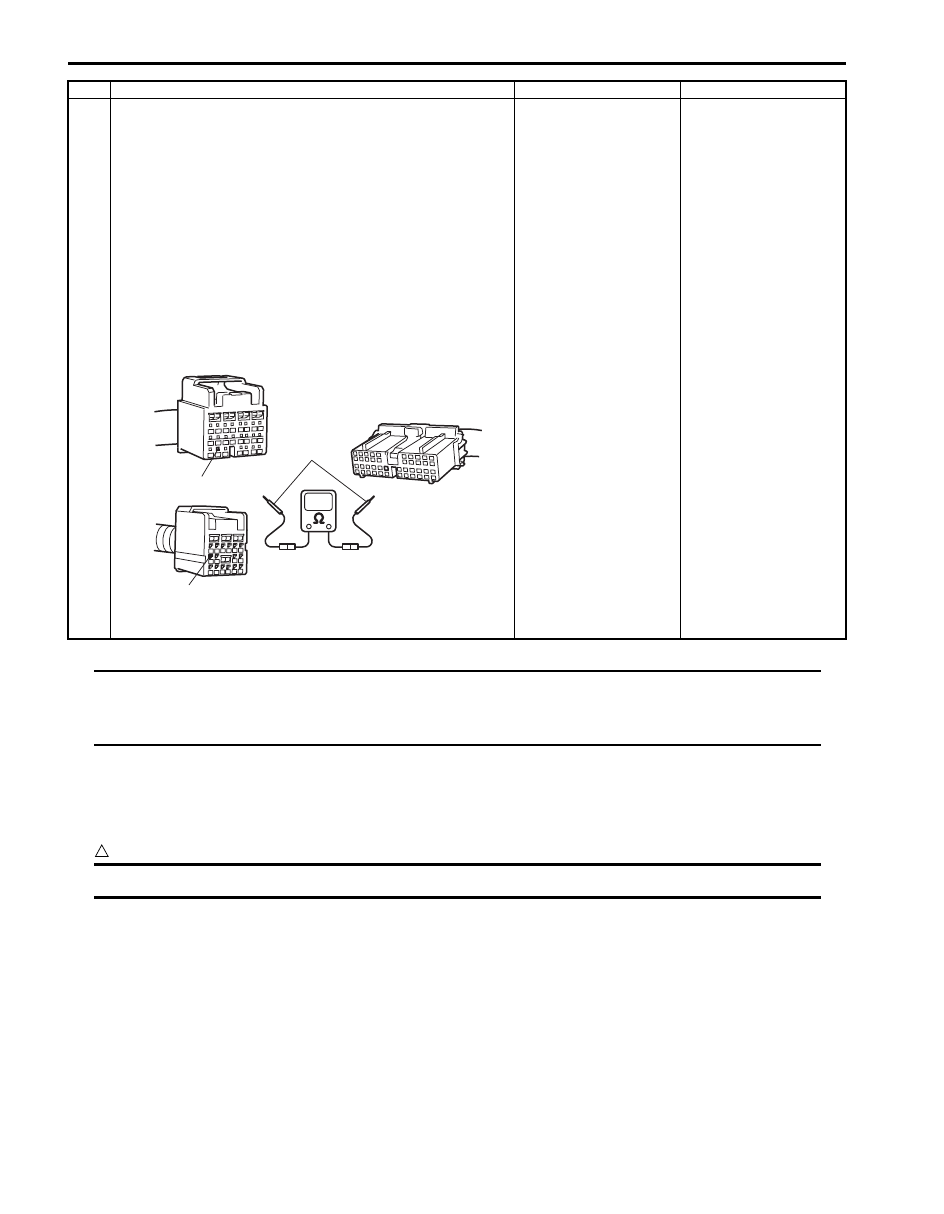

1) Disconnect combination meter connector “G28” referring

to “Combination Meter Removal and Installation in
Section 9C”.

2) Check proper connection to combination meter at “YEL/

BLK” terminal for “AIR BAG” warning lamp and to SDM
at terminal “G47-18” or “G46-7”.

3) If OK, then check resistance between “YEL/BLK” wire

terminal of combination meter connector “G28” and
“G47-18” terminal [A] or “G46-7” terminal [B] of SDM
connector.

Special tool
(A): 09932–76010

Is resistance 1

Ω

or less?

Substitute a known-
good SDM and recheck.
If “AIR BAG” warning
lamp remain lighting,
replace combination
meter.

“YEL/BLK” wire
(between combination
meter and SDM
connector) open or
short to ground.

Step

Action

Yes

(A)

[A]

[B]

“G47-18”

“G46-7”

I5JB0A820019-01

Air Bag System: 8B-22

Troubleshooting

“AIR BAG” Warning Lamp Flashes

S6JB0A8204009

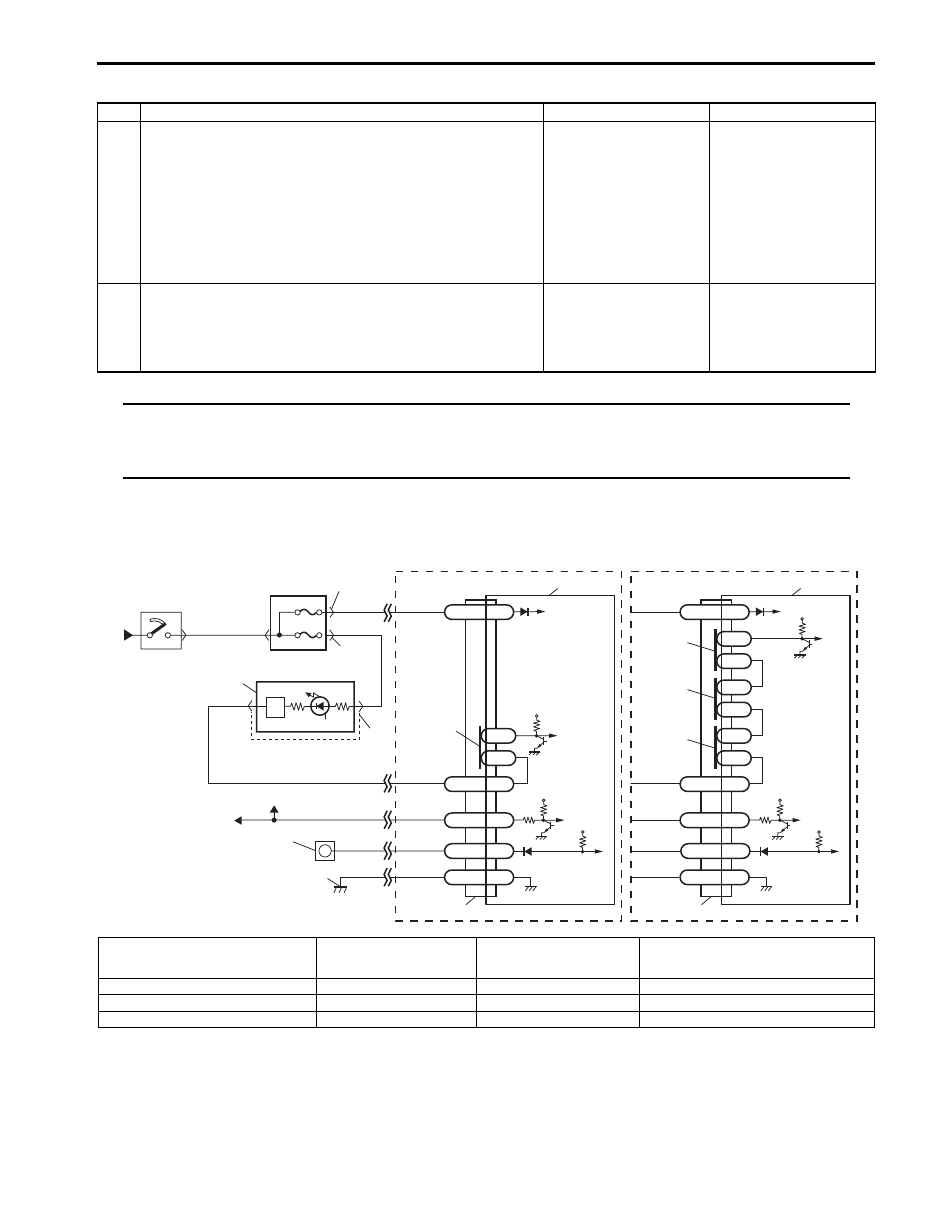

Wiring Diagram

Step

Action

Yes

1) Set parking brake.
2) Note combination meter when ignition switch is turned

ON.

Does the “BRAKE” indicator (warning lamp) come ON?

Go to Step 2.

Check and correct the
following possible
cause.

• Open circuit in

“BLK/YEL” or “PPL/
RED” wire.

• Short

circuit between “BLK/
YEL” or “PPL/RED” and
ground.

• “METER” fuse

blown.

1) Disconnect SDM connector “G46” or “G47”.
2) Note combination meter when ignition switch is turned

ON.

Does the “AIR BAG” warning lamp come ON?

Substitute a known-
good SDM and recheck.

“YEL/BLK” circuit
shorted to power circuit.
If OK, replace
combination meter.

G47-14 DNS

BLK

G47-18

G47-20

GND

“G47”

12V

RED

PPL/RED

BLK/YEL

YEL/BLK

“G01”

“G28”

“G03”

G47-16

[A]

G46-7

G46-16

GND

“G46”

12V

G46-11

[B]

PPL/WHT

PPL

BLK

RED

YEL/BLK

PPL/WHT

PPL

“G34”

G46-9

G47-13

12V

G46-12 DNS

I5JB0A820020-01

[A]: Without side-air bag and curtain-air

bag

3. Junction block assembly

7. Lamp driver

11. To ECM, TCM, BCM, ABS hydraulic unit /

control module assembly and 4WD
control module

[B]: With side-air bag and curtain-air bag

4. “A/B” fuse

8. “AIR BAG” warning lamp

12. “AIR BAG” monitor coupler (if equipped)

1. From main fuse

5. “METER” fuse

9. Connection detection pin

13. SDM

2. Ignition switch

6. Combination meter

10. To DLC

14. Ground for air bag system

8B-23 Air Bag System:

CAUTION

Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.

Flow Test Description
Step 1: Check that vehicle is equipped with or without “AIR BAG” monitor connector.
Step 2: Check “AIR BAG” monitor coupler.
Step 3, 4: Check for short circuit between diagnosis switch circuit and ground.

Troubleshooting

“AIR BAG” Warning Lamp Cannot Indicate Flashing Pattern of DTC (If Equipped with “AIR BAG”
Monitor Coupler)

S6JB0A8204010

Wiring Diagram
Refer to ““AIR BAG” Warning Lamp Flashes”.

CAUTION

Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.

Flow Test Description
Step 1: Check “AIR BAG” monitor coupler.
Step 2: Check for open circuit in air bag diagnosis switch circuit.

Step

Action

Yes

Is vehicle equipped with “AIR BAG” monitor connector?

Go to Step 2.

Go to Step 3.

Check “AIR BAG” monitor coupler.

Is the diagnosis switch terminal in “AIR BAG” monitor
coupler connected to body ground with service wire?

Remove service wire.

Go to Step 3.

1) With ignition switch OFF, disconnect SDM connector

“G47” or “G46”.

2) Check “G47-14” or “G46-12” terminal of SDM connector.

Is it shorted to ground terminal or harness?

Clean up terminal or
harness.

Substitute a known-
good SDM and recheck.

Air Bag System: 8B-24

Troubleshooting

DTC B1013: SDM fault

S6JB0A8204011

DTC Will Set when
An internal SDM fault is detected by SDM.

NOTE
DTC B1013 can never be cleared once it has been set.

DTC Troubleshooting

1) Turn ignition switch OFF.
2) Replace SDM.
3) Repeat “Air Bag Diagnostic System Check”.

Step

Action

Yes

Inspect connection between diagnostic switch terminal on
“AIR BAG” monitor coupler and body ground with service
wire.

Are they connected securely with service wire?

Go to Step 2.

Properly connect
diagnostic switch
terminal on “AIR BAG”
monitor coupler and
body ground with
service wire.

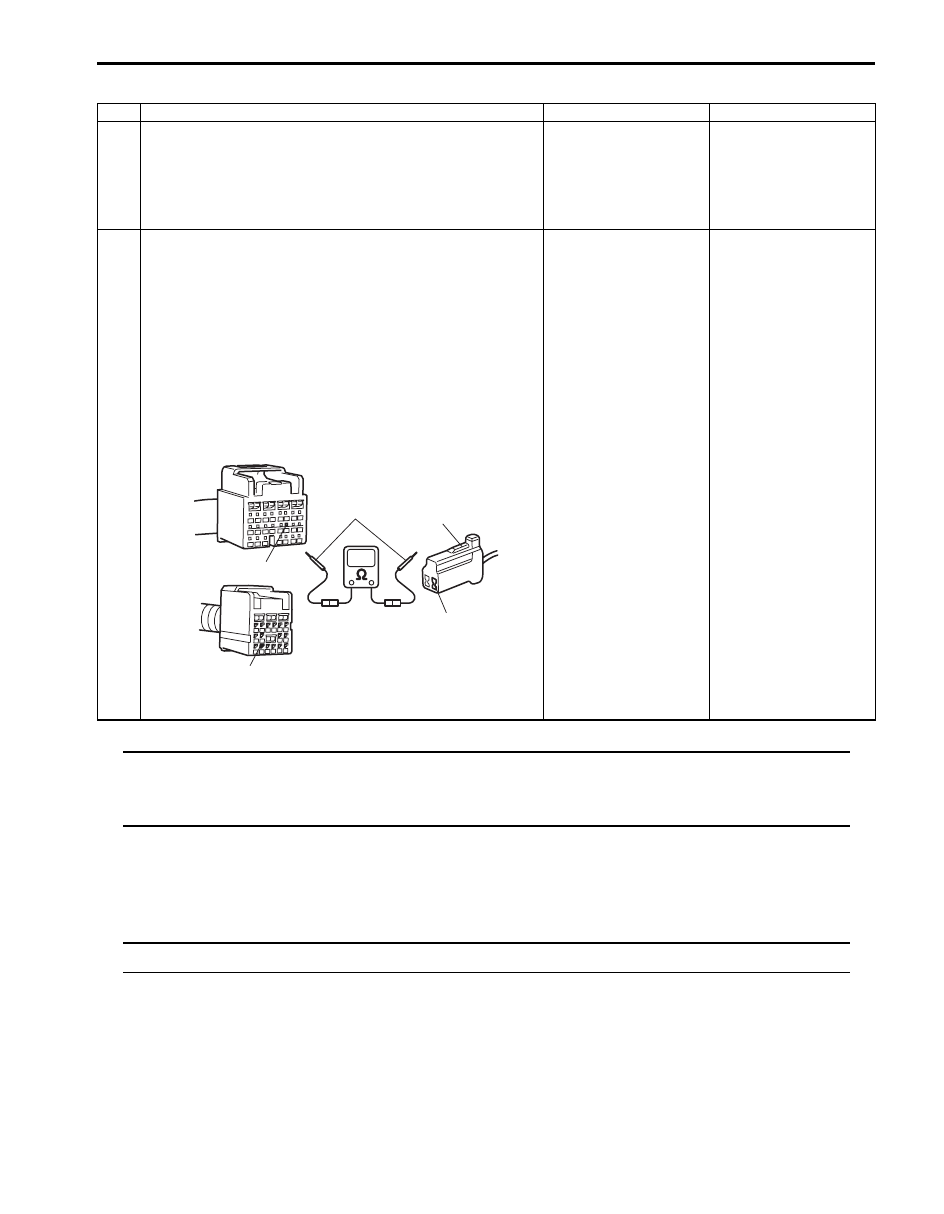

1) Disconnect SDM connector from SDM.
2) Check for proper connection at “PPL” wire (“G47-14”

terminal or “G46-12” terminal of SDM connector and
“G34-2” terminal of “AIR BAG” monitor coupler (1))
terminals.

3) If OK, then measure resistance between “G47-14”

terminal [A] or “G46-12” terminal [B] and “G34-2”
terminal.

Special tool
(A): 09932–76010

Is resistance 1

Ω

or more?

Check “PPL” wire
terminals. If OK, repair
high resistance or open
in “PPL” wire circuit.

Substitute a known
good SDM and recheck.

[A]

[B]

(A)

“G47-14”

“G46-12”

“G34-2”

I5JB0A820021-02
