Suzuki Grand Vitara JB416 / JB420 / JB419. Manual - part 260

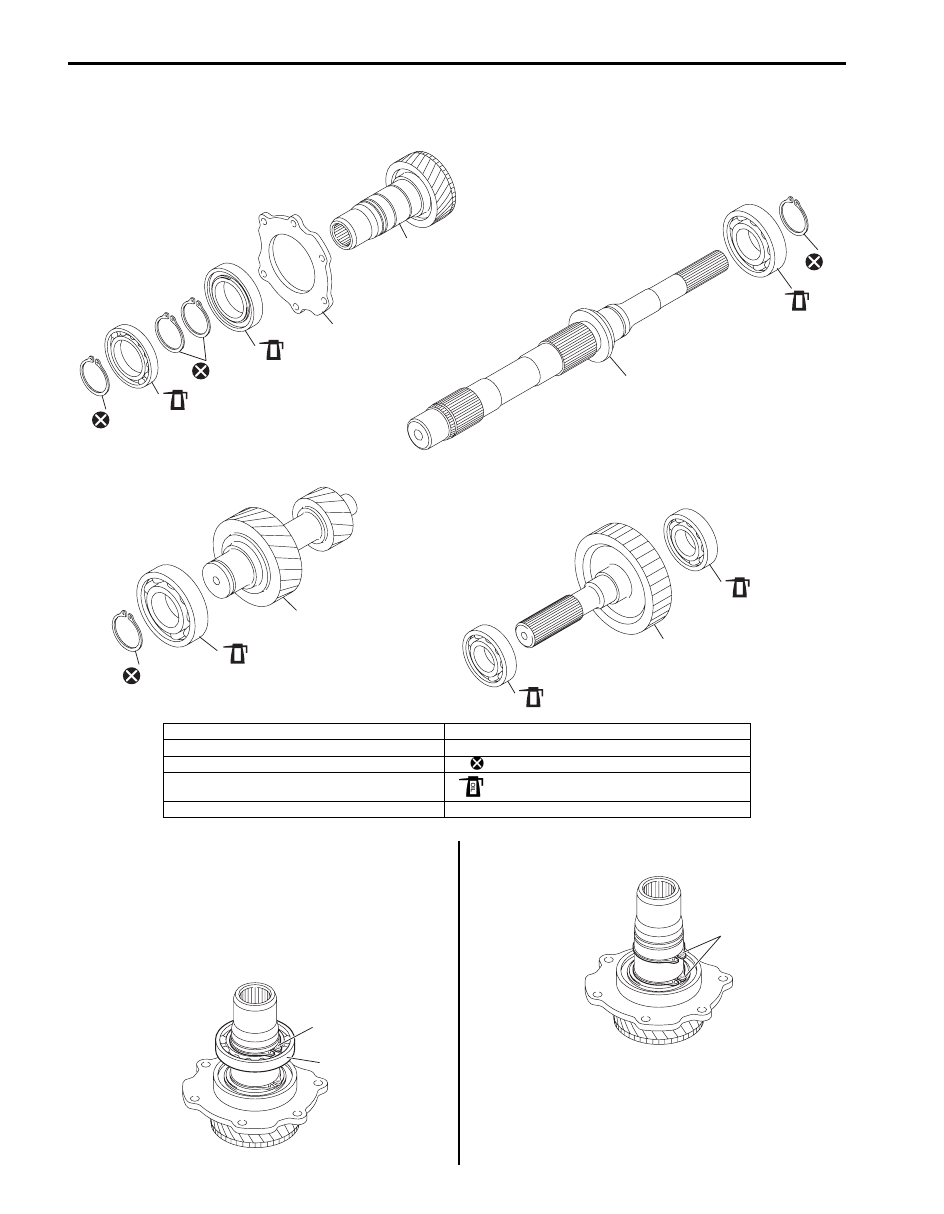

3C-71 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

Input Gear Assembly, Counter Gear Assembly, Front Output Shaft Assembly and Rear Output Shaft
Assembly Components

S6JB0A3316011

Input Gear Assembly Disassembly and
Reassembly

S6JB0A3316012

Disassembly

1) Remove snap ring (1) from input gear, and then

remove bearing (2).

2) Remove snap rings (1).

4

3

2

5

6

7

OIL

2

OIL

2

OIL

2

OIL

2

OIL

1

1

1

1

2

OIL

I5JB0A331061-02

1. Snap ring

6. Counter gear

2. Bearing

7. Front output shaft

3. Input gear plate

: Do not reuse.

4. Input gear

: Apply transfer oil.

5. Rear output shaft

1

2

I5JB0A331062-01

1

I5JB0A331063-01

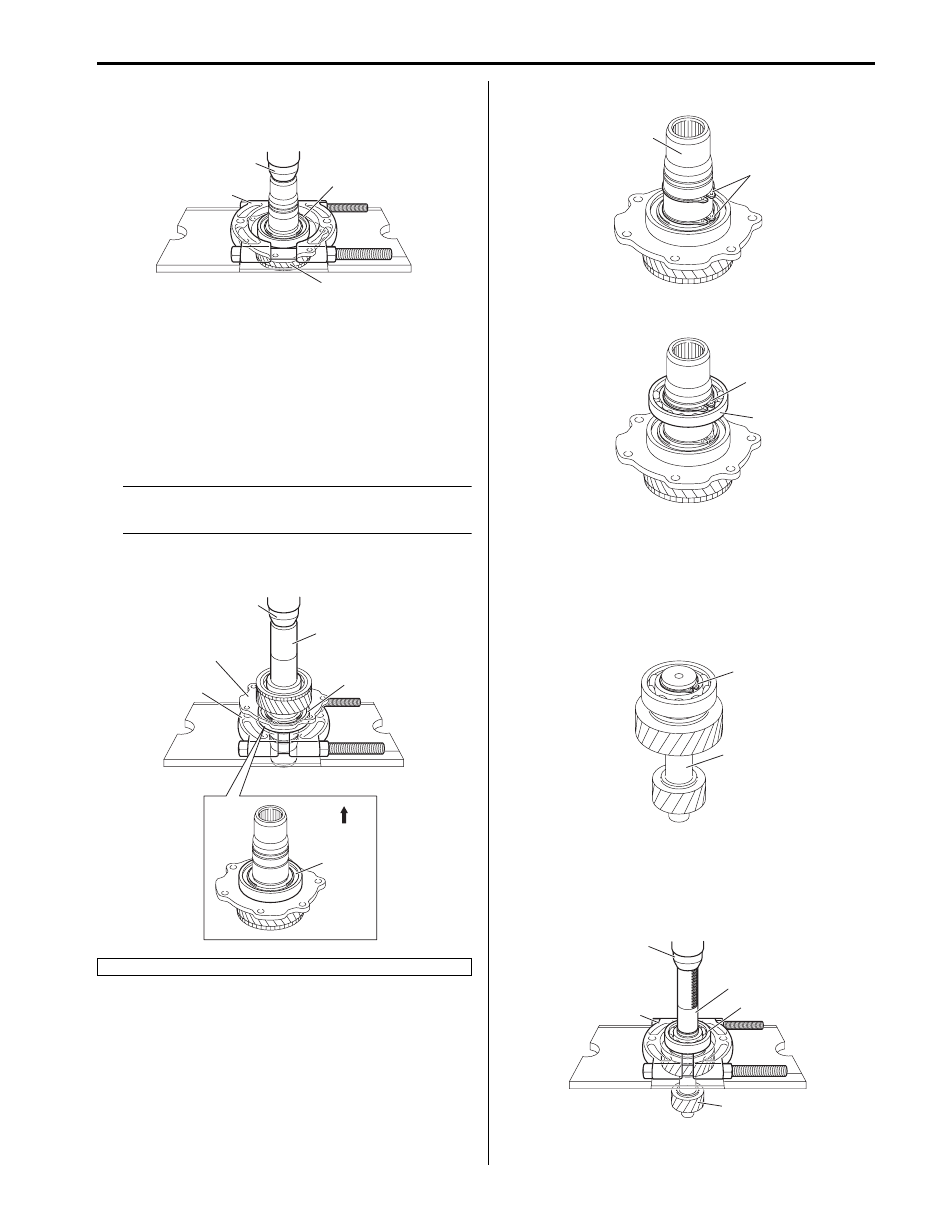

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-72

3) Remove bearing (1) from input gear (2) using

bearing puller (3) and press (4), and then remove
input gear plate.

Reassembly

1) Clean all components thoroughly, inspect them for

any abnormality and replace with new ones as
necessary.

2) Install input gear plate (1), and then press-fit bearing

(2) using special tool, bearing puller (3) and press
(4).

NOTE
Assemble bearing so that seal side (5) may
come to the front side.



Special tool
(A):  09913–85210

3) Install snap rings (1) to input gear (2).

4) Install bearing (1) and snap ring (2).

Counter Gear Assembly Disassembly and
Reassembly

S6JB0A3316013

Disassembly

1) Remove snap ring (1) from counter gear (2).

2) Remove bearing (1) from counter gear (2) using

special tool, bearing puller (3) and press (4).

Special tool
(A):  09913–80113

[A]: Front side

1

2

3

4

I5JB0A331064-01

(A)

2

3

1

4

5

[A]

I5JB0A331065-02

1

2

I5JB0A331066-01

2

1

I5JB0A331067-01

1

2

I5JB0A331068-01

2

1

(A)

3

4

I5JB0A331069-02

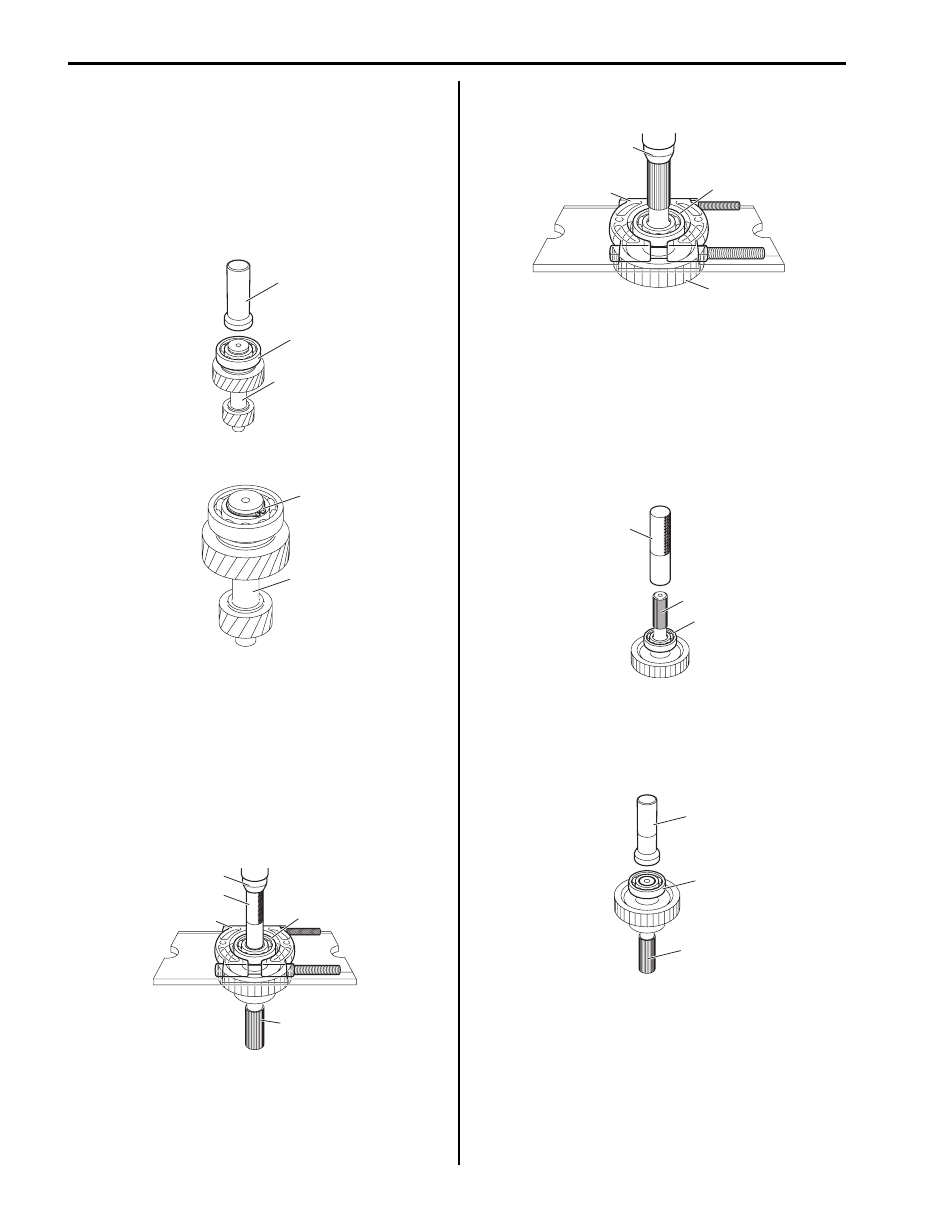

3C-73 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

Reassembly

1) Clean all components thoroughly, inspect them for

any abnormality and replace with new ones as
necessary.

2) Press-fit bearing (1) to counter gear using special

tool and press.

Special tool
(A):  09913–70123

3) Install snap ring (1) to counter gear (2).

Front Output Shaft Assembly Disassembly and
Reassembly

S6JB0A3316014

Disassembly

1) Remove bearing (1) from front output shaft (2) using

special tool, bearing puller (3) and press (4).

Special tool
(A):  09925–98221

2) Remove bearing (1) from front output shaft (2) using

bearing puller (3) and press (4).

Reassembly

1) Clean all components thoroughly, inspect them for

any abnormality and replace with new ones as
necessary.

2) Press-fit bearing (1) to front output shaft using

special tool and press.

Special tool
(A):  09913–84510

3) Press-fit bearing (1) to front output shaft using

special tool and press.

Special tool
(A):  09913–76010

(A)

1

2

I5JB0A331070-01

1

2

I5JB0A331068-01

1

2

(A)

4

3

I5JB0A331071-01

1

2

3

4

I5JB0A331072-01

1

2

(A)

I5JB0A331073-01

(A)

1

2

I5JB0A331074-01

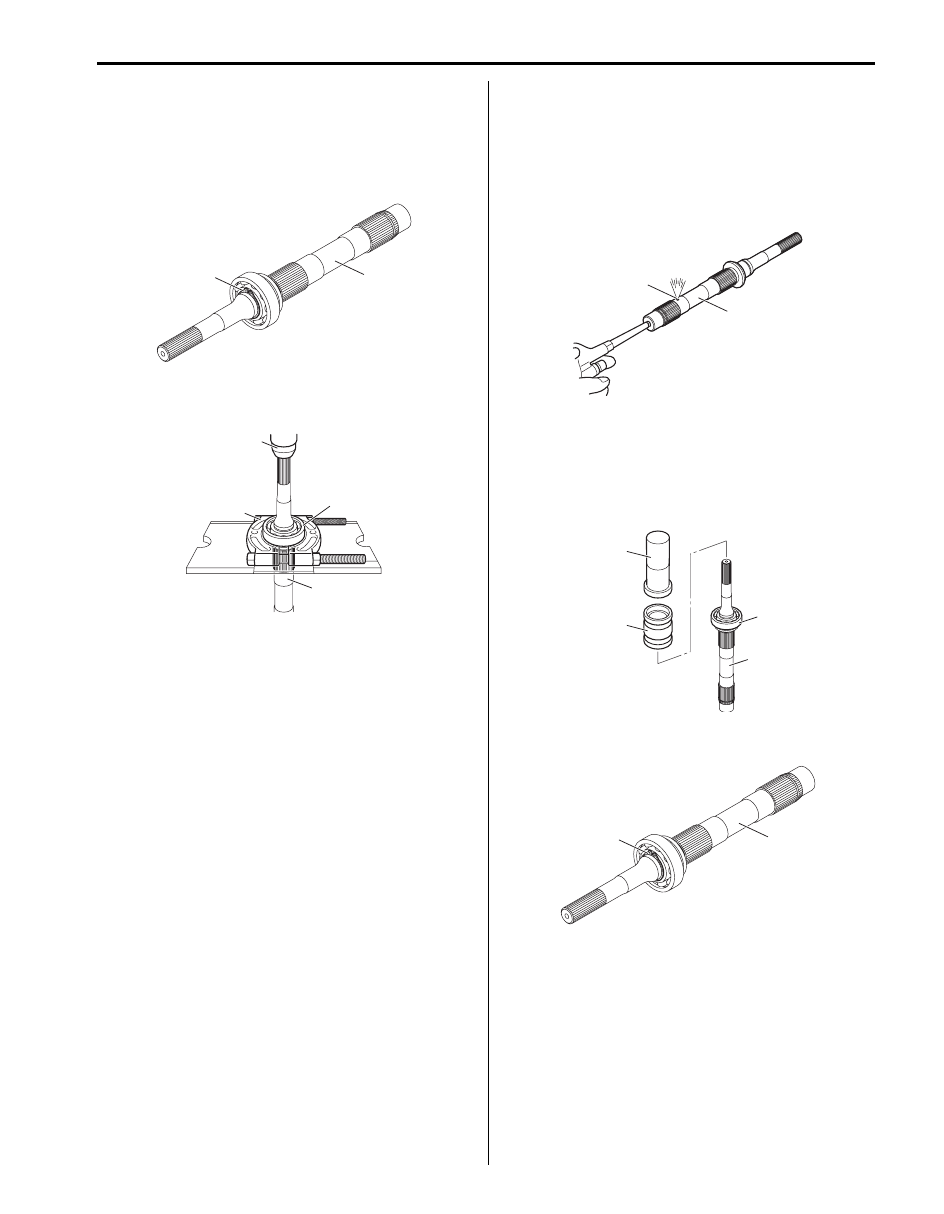

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-74

Rear Output Shaft Assembly Disassembly and
Reassembly

S6JB0A3316015

Disassembly

1) Remove snap ring (1) from rear output shaft (2).

2) Remove bearing (1) from rear output shaft (2) using

bearing puller (3) and press (4).

Reassembly

1) Clean all components thoroughly, inspect them for

any abnormality and replace with new ones as
necessary.

2) To ensure lubrication of rear output shaft (1), air blow

oil holes (2) and make sure that they are free from
any obstruction.

3) Press-fit bearing (1) to rear output shaft using

special tools and press.

Special tool
(A):  09913–85210
(B):  09940–54910

4) Install snap ring (1) to rear output shaft (2).

2

1

I5JB0A331075-01

1

3

4

2

I5JB0A331076-01

1

2

I5JB0A331077-01

1

2

(B)

(A)

I5JB0A331078-01

2

1

I5JB0A331075-01
