2C-3 Rear Suspension:

Lower arm adjustment

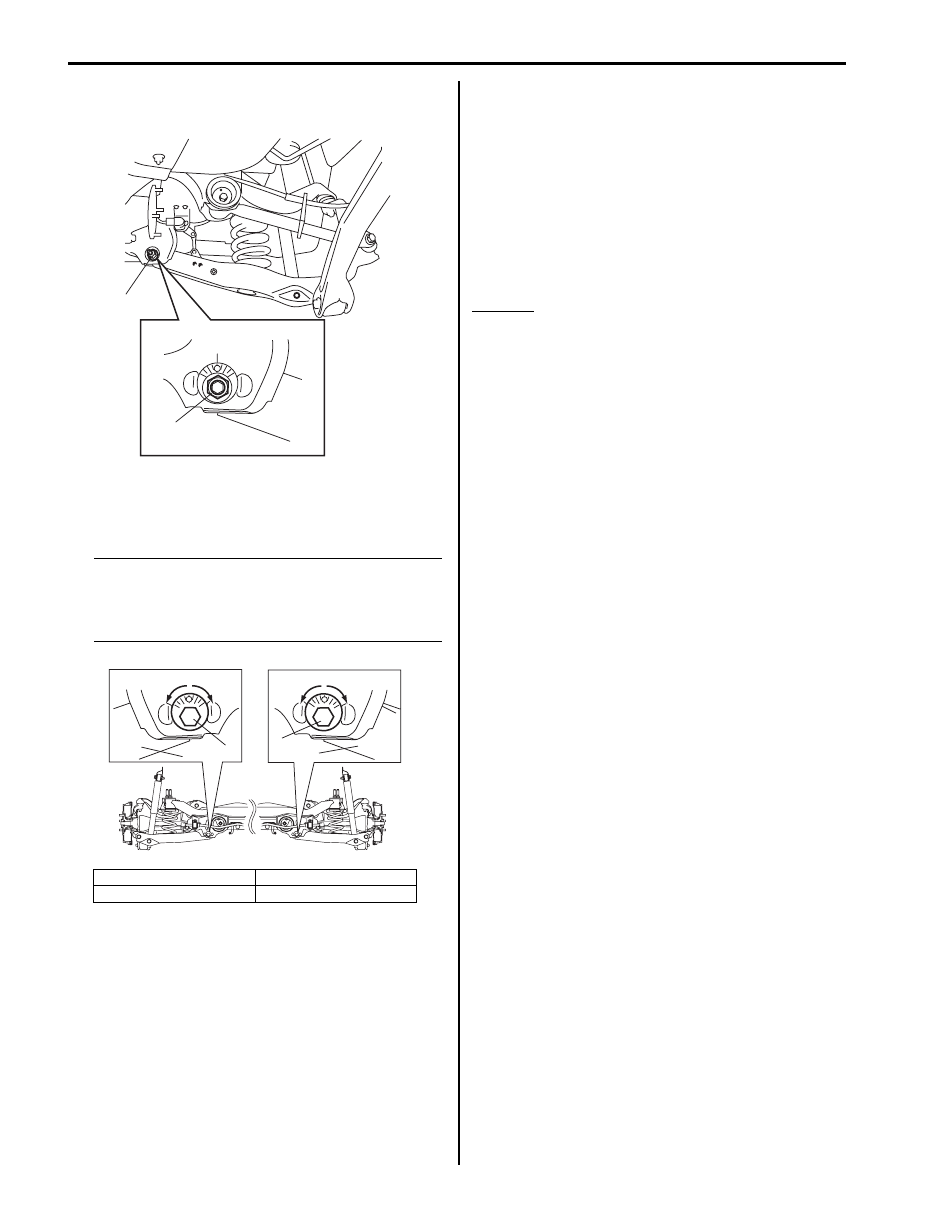

1) Loosen right and left lower arm mount nuts (1).

2) Adjust toe and camber to satisfy the specification by

turning right and left lower arm inner bolts (cam
bolts) (1) with same amount.

NOTE
When bolt is turned a-direction, camber
becomes “+” and toe becomes “OUT”. When
bolt is turned b-direction, camber becomes
“–” and toe becomes “IN”.



3) After adjustment, tighten right and left nuts to

specified torque while holding cam bolt with another
wrench to prevent it from turning.

Tightening torque
Lower arm mount nut:  135 N·m (13.5 kgf-m, 98.0
lb-ft)

Reference Information
Side slip
When checked with side slip tester, side slip should
satisfy following specification.

Side slip
IN 7.5 mm/m (IN 0.2953 in/3.3 ft)
If side slip is greatly different, toe and/or camber
may be correct.

[A]: Left side

2. Lower arm

[B]: Right side

1

1

I5JB0A230004-01

[A]

[B]

a

a

b

b

1

2

1

2

I5JB0A230005-01

Rear Suspension:  2C-4

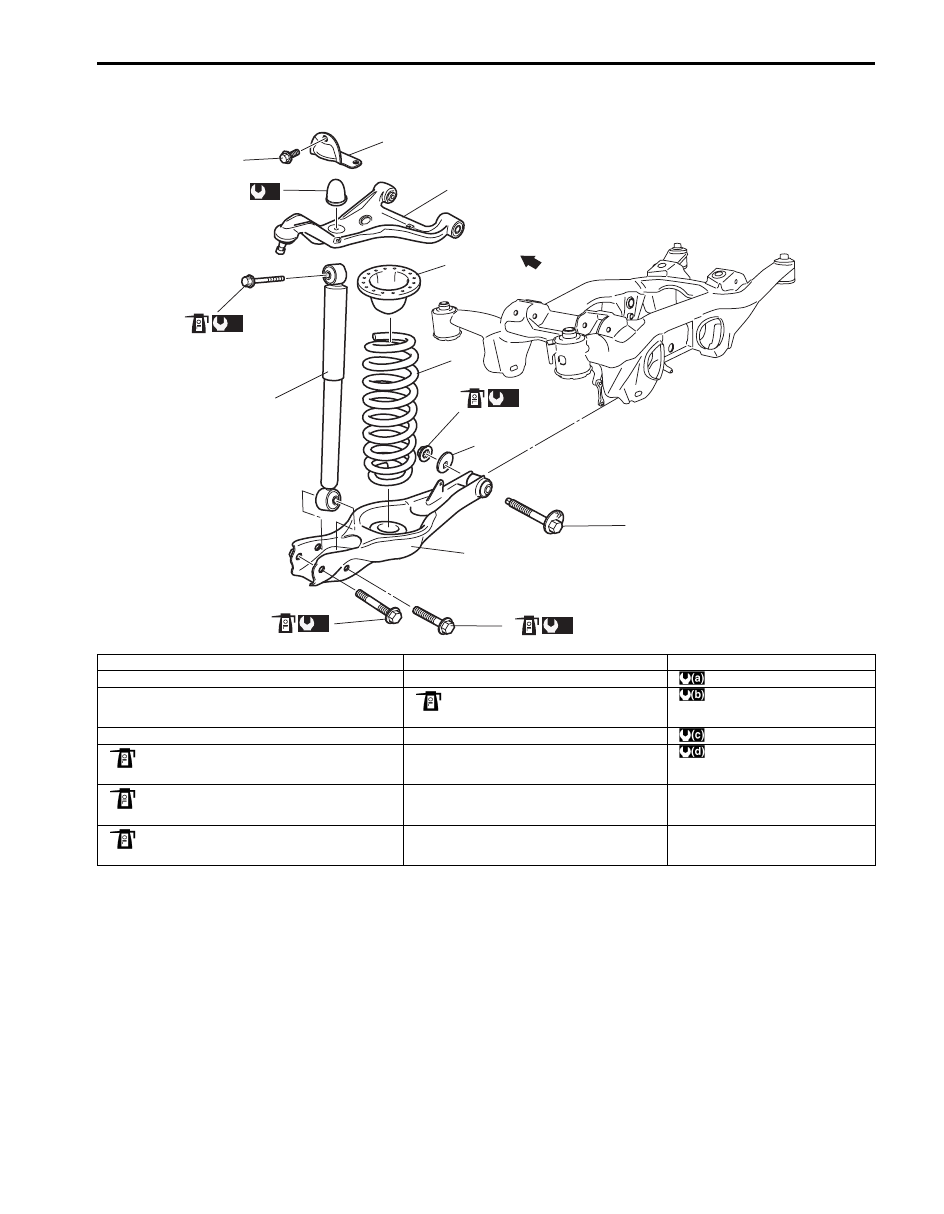

Rear Shock Absorber and Rear Coil Spring Components

S6JB0A2306002

13

11

12

3

2

9

8

4

1

(b)

(b)

10

7

F

14

(a)

5

(c)

6

(d)

I6JB0A230002-01

1. Rear shock absorber

8. Lower arm inner bolt

F: Forward

2. Rear coil spring

9. Lower arm washer

: 60 N

⋅m (6.0 kgf-m, 43.5 lb-ft)

3. Coil spring rubber seat

10. Lower arm mount nut

: If reuse nut, apply engine oil to thread
and bearing.

: 135 N

⋅m (13.5 kgf-m, 98.0 lb-ft)

4. Lower arm

11. Upper arm

: 90 N

⋅m (9.0 kgf-m, 65.0 lb-ft)

5. Shock absorber upper bolt

: If reuse bolt, apply engine oil to thread, bearing and
trunk surface.

12. Bump stopper

: 50 N

⋅m (5.0 kgf-m, 36.5 lb-ft)

6. Shock absorber lower bolt

: If reuse bolt, apply engine oil to thread, bearing and
trunk surface.

13. Bump stopper upper seat

7. Lower arm outer bolt

: If reuse bolt, apply engine oil to thread, bearing and
trunk surface.

14. Bump stopper upper seat bolt

2C-5 Rear Suspension:

Rear Shock Absorber Removal and Installation

S6JB0A2306003

Removal

1) Hoist vehicle, allowing rear suspension to hang free.
2) Remove wheel.

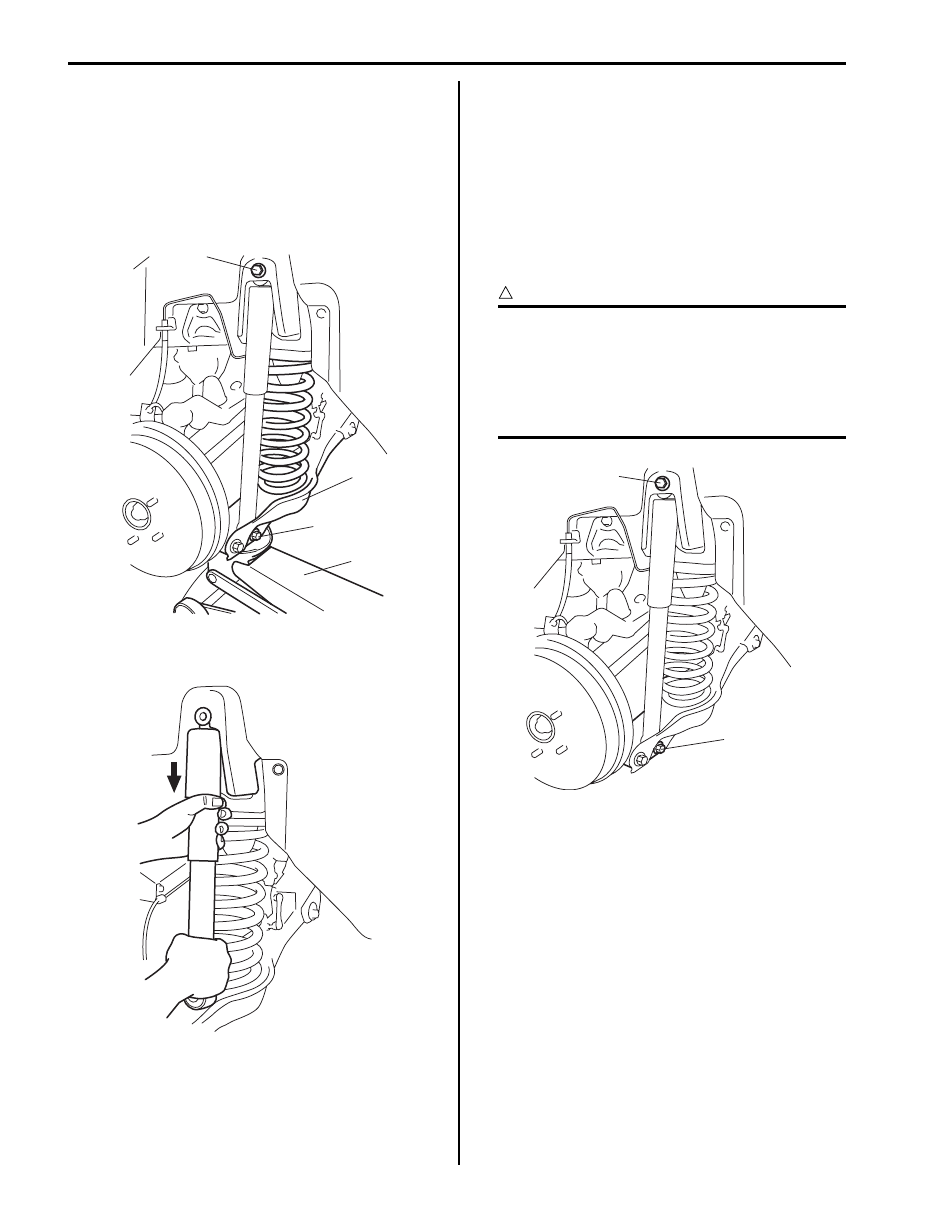

3) Support lower arm (1) with jack (2) and remove

shock absorber bolts (3).

4) Compress the shock absorber enough to remove it

from body.

Installation
Install shock absorber by reversing removal procedure,
noting the following instructions.
• Tighten all fasteners to specified torque.

Tightening torque
Shock absorber upper bolt (a):  60 N·m (6.0 kgf-m,
43.5 lb-ft)
Shock absorber lower bolt (b):  90 N·m (9.0 kgf-m,
65.0 lb-ft)
Wheel nut:  100 N·m (10.0 kgf-m, 72.5 lb-ft)

CAUTION

!



• If shock absorber bolts are reused, apply

engine oil to thread, bearing and trunk
surface.

• It is the most desirable to have vehicle off

hoist and in non-loaded condition when
tightening them.



1

2

3

3

I5JB0A230007-01

I5JB0A230008-01

(a)

(b)

I5JB0A230081-01

Rear Suspension:  2C-6

Shock Absorber Check

S6JB0A2306004

• Inspect for deformation or damage.
• Inspect bushings for wear or damage.
• Inspect for evidence of oil leakage.
Replace any defective part.

WARNING

!



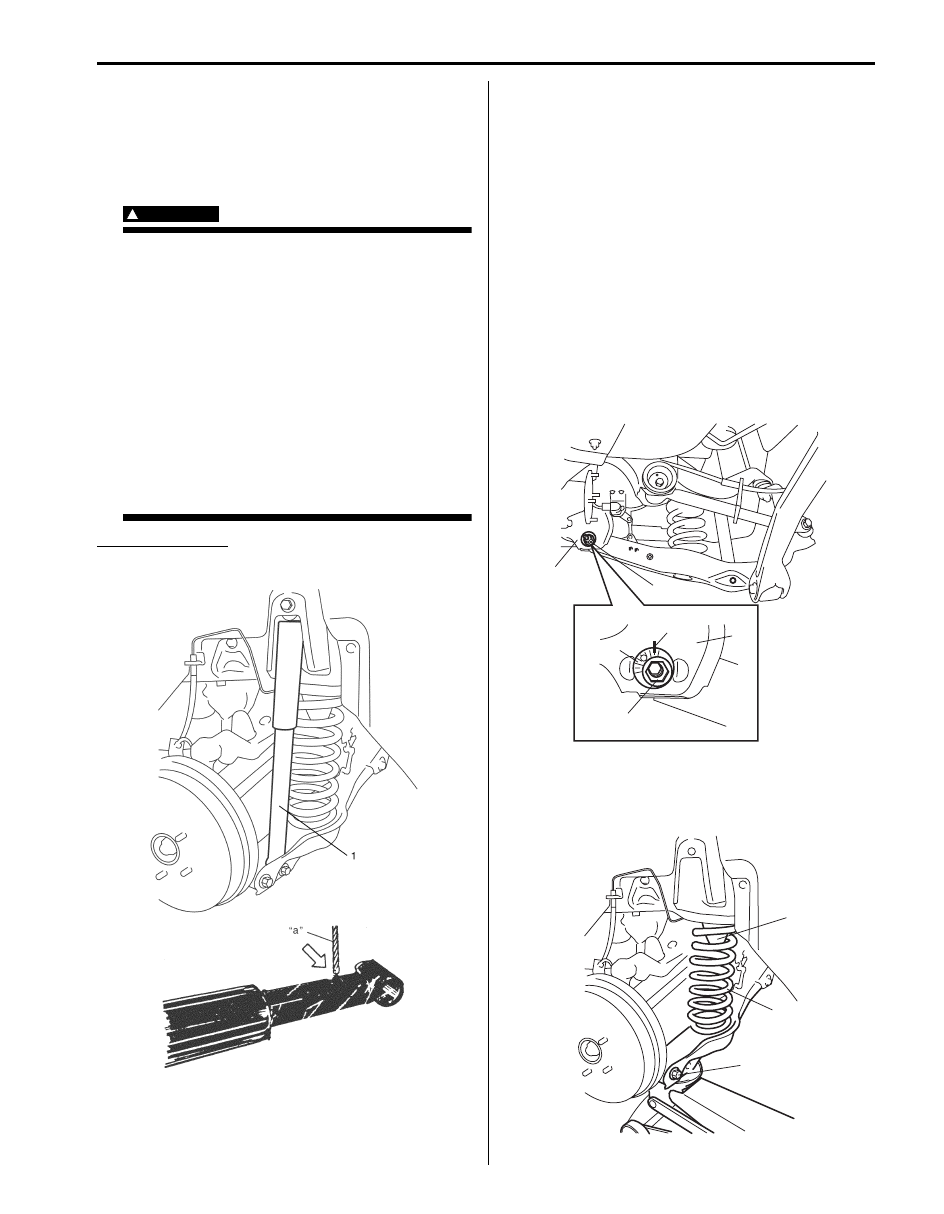

When handling rear shock absorber (1) in
which high-pressure gas is sealed, make
sure to observe the following precautions.
• Don’t disassemble it.
• Don’t put it into the fire.
• Don’t store it where it gets hot.
• Before disposing it, be sure to drill a hole

in it where shown by an arrow in the figure
and let gas and oil out. Lay it down
sideways for this work.

• The gas itself is harmless but it may issue

out of the hole together with chips
generated by the drill. Therefore, be sure
to wear goggle.



Drill hole diameter
“a”: Approx. 3 mm (0.12 in.)

Rear Coil Spring and Bump Stopper Removal
and Installation

S6JB0A2306005

Removal

1) Hoist vehicle, allowing rear suspension to hang free.
2) Remove rear wheels.
3) Disconnect rear height sensor link (if equipped) from

lower arm for left side referring to “Height Sensor
Removal and Installation (If Equipped) in Section
9B”.

4) Remove rear shock absorber referring to “Rear

Shock Absorber Removal and Installation”.

5) Put match marks (1) on lower arm washer (2) and on

suspension frame (3) to install the bolts correctly in
position.

6) Loosen lower arm mount nut (4).

7) Remove lower arm outer bolt (1).
8) Lower jack and then remove rear coil spring (2) and

coil spring rubber seat (3).
