4E-13 ABS:

ABS Warning Light Does Not Come ON at Ignition Switch ON

S6JB0B4504008

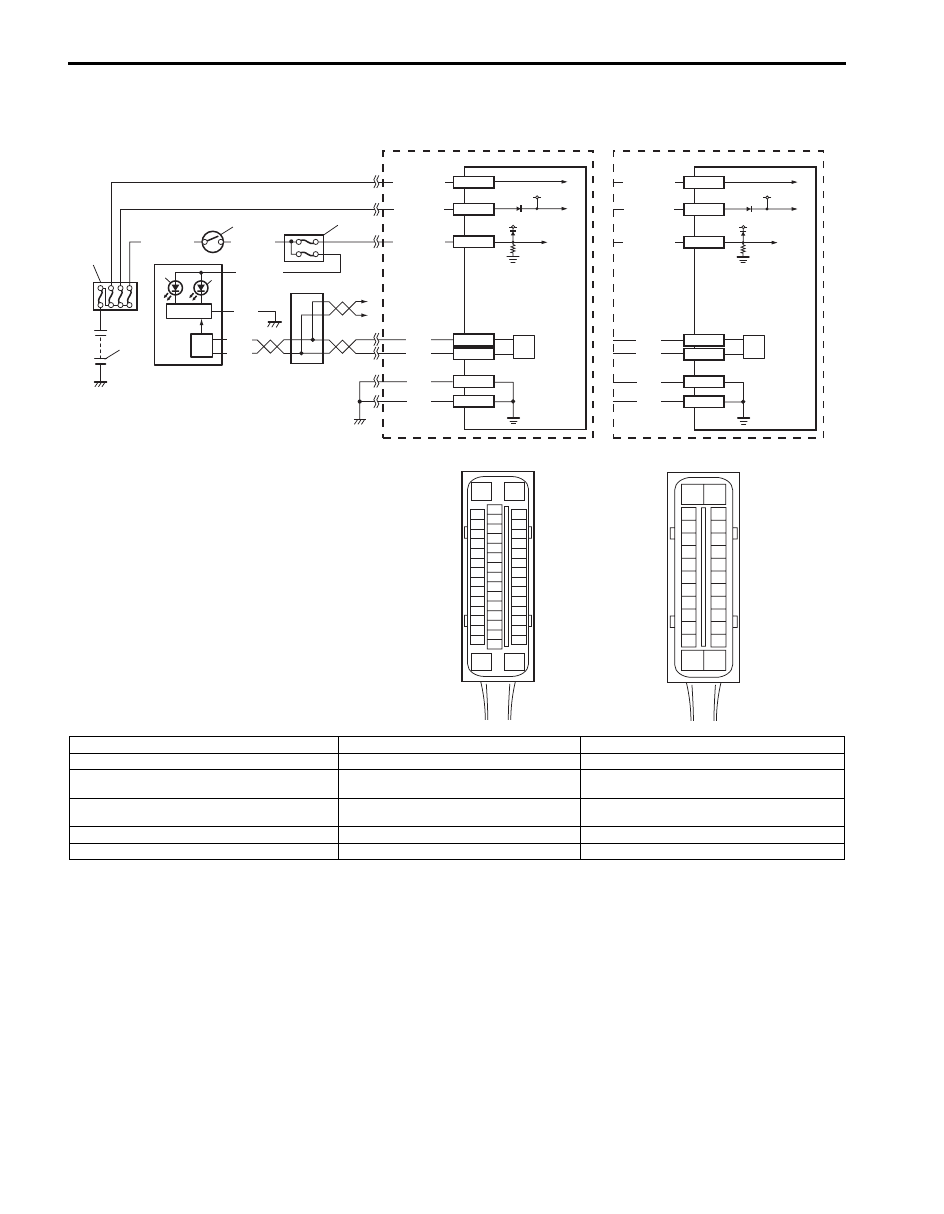

Wiring Diagram

3

4

2

1

[C]

E53-16

E53-47

12V

12V

E53-32

E53-1

E53-35

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

BLK

BLK

BLK

RED

WHT

RED

WHT

E53-13
E53-44

11

10

5

7

8

6

9

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

E03-13

E03-26

12V

12V

E03-1

E03-14

E03-7

GRN/ORN

WHT/RED

WHT/BLU

BLK

BLK

RED

WHT

E03-12
E03-6

13

9

[D]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

9

12

[A]

[B]

I6JB01450005-01

[A]: ESP

® model

3. Ignition switch

9. CAN driver

[B]: Non-ESP

® model

4. Circuit fuse (in junction block assembly)

10. CAN junction

[C]: ESP

® hydraulic unit / control module connector

(viewed from terminal side)

5. Combination meter

11. To TCM, BCM, 4WD control module, keyless

start control module and steering angle sensor

[D]: ABS hydraulic unit / control module connector

(viewed from terminal side)

6. ABS warning light

12. ESP

® hydraulic unit / control module assembly

1. Battery

7. EBD warning light (Brake warning light)

13. ABS hydraulic unit / control module assembly

2. Main fuse box

8. Light driver module

ABS: 4E-14

Circuit Description
Operation (ON/OFF) of ABS warning light is controlled by ABS (ESP

®) control module through light driver module in

combination meter.
If the antilock brake system is in good condition, ABS (ESP

®) control module turns ABS warning light ON at the

ignition switch ON, keeps it ON for 2 seconds and then turns it OFF. If an abnormality in the system is detected, ABS
warning light is turned ON continuously by ABS (ESP

®) control module. Also, it is turned ON continuously by light

driver module when the connector of ABS (ESP

®) control module is disconnected.

Troubleshooting

Step

Action

Yes

No

1

1) Turn ignition switch to ON position.

Do other warning lights come ON?

Go to Step 2.

Go to Step 3.

2

1) Connect scan tool to DLC with ignition switch turned

OFF.

2)  Turn ignition switch to OFF position and check DTC.

Is there DTC U1073?

Go to “DTC U1073:
Control Module
Communication Bus
Off”.

Substitute a known-
good combination meter
and recheck. If ABS
warning light remains
OFF, substitute a
known-good ABS
(ESP

®) hydraulic unit /

control module
assembly and recheck.

3

Is Circuit fuse for combination meter in good condition?

Go to Step 4.

Replace fuse and check
for short circuit to
ground.

4

Check CAN communication circuit between combination
meter and ABS (ESP

®) hydraulic unit / control module

referring to “DTC U1073: Control Module Communication
Bus Off”.

Is CAN communication circuit in good condition?

Go to Step 5.

Repair or replace.

5

1) Remove combination meter with ignition switch turned

OFF.

2) Check for proper connection to “PPL/RED” and “BLK”

wire of combination meter connector.

3) If OK, turn ON ignition switch and measure voltage at

“PPL/RED” wire of combination meter connector and
vehicle body ground.

Is it 10 – 14 V?

Go to Step 6.

Repair power supply
circuit for combination
meter.

6

1) Measure resistance between “BLK” wire of combination

meter connector and vehicle body ground.

Is resistance less than 2

Ω

?

Replace combination
meter.

“BLK” circuit open or
high resistance.

4E-15 ABS:

ABS Warning Light Comes ON Steady

S6JB0B4504009

Wiring Diagram
Refer to “ABS Warning Light Does Not Come ON at Ignition Switch ON”.

Circuit Description
Operation (ON/OFF) of ABS warning light is controlled by ABS (ESP

®) control module through light driver module in

combination meter.
If the Antilock brake system is in good condition, ABS (ESP

®) control module turns ABS warning light ON at the

ignition switch ON, keeps it ON for 2 seconds and then turns it OFF. If an abnormality in the system is detected, ABS
warning light is turned ON continuously by ABS (ESP

®) control module. Also, it is turned ON continuously by light

driver module when the connector of ABS (ESP

®) control module is disconnected.

Troubleshooting

Step

Action

Yes

No

1

1) Perform diagnostic trouble code check.

Is there any DTC(s)?

Go to Step 7 of “ABS
Check”.

Go to Step 2.

2

Are main fuses for ABS pump motor and ABS solenoid in
good condition?

Go to Step 3.

Replace fuse and check
circuit for short to
ground.

3

1) Turn ignition switch to OFF.
2) Disconnect ABS (ESP

®) hydraulic unit / control module

connector.

3) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module connector at terminals “E03-7”,
“E03-13” and “E03-26” (or “E53-16”, “E53-35” and “E53-
47”.)

4) If OK then turn ignition switch to ON position and

measure voltage between terminal “E03-7” (or “E53-35”)
and vehicle body ground.

Is it 10 – 14 V?

Go to Step 4.

“GRN/ORN” circuit
open.

4

1) Turn ignition switch to OFF position.
2) Check for proper connection to ABS (ESP

®) hydraulic

unit / control module connector at terminals “E03-1” and
“E03-14” (or “E53-1”, “E53-32”).

3) If OK then turn ignition switch to ON position and

measure voltage between each terminal of “E03-1”,
“E03-14” (or “E53-1”, “E53-32”) and vehicle body
ground.

Are they 10 – 14 V?

Go to Step 5.

“WHT/RED” and/or
“WHT/BLU” circuit
open.

5

1) Turn ignition switch to OFF and measure resistance

between each terminal of “E03-13”, “E03-26” (or “E53-
16”, “E53-47”) and vehicle body ground.

Is resistance less than 2

Ω

?

Go to Step 6.

Ground circuit for ABS
(ESP

®) hydraulic unit /

control module open or
high resistance.

6

Check CAN communication circuit between combination
meter and ABS (ESP

®) hydraulic unit / control module

referring to “DTC U1073: Control Module Communication
Bus Off”.

Is CAN communication circuit in good condition?

Substitute a known-
good combination meter
and recheck. If ABS
warning light remains
ON, substitute a known-
good ABS (ESP

®)

hydraulic unit / control
module assembly and
recheck.

Repair or replace.

ABS: 4E-16

EBD Warning Light (Brake Warning Light) Comes ON Steady

S6JB0B4504010

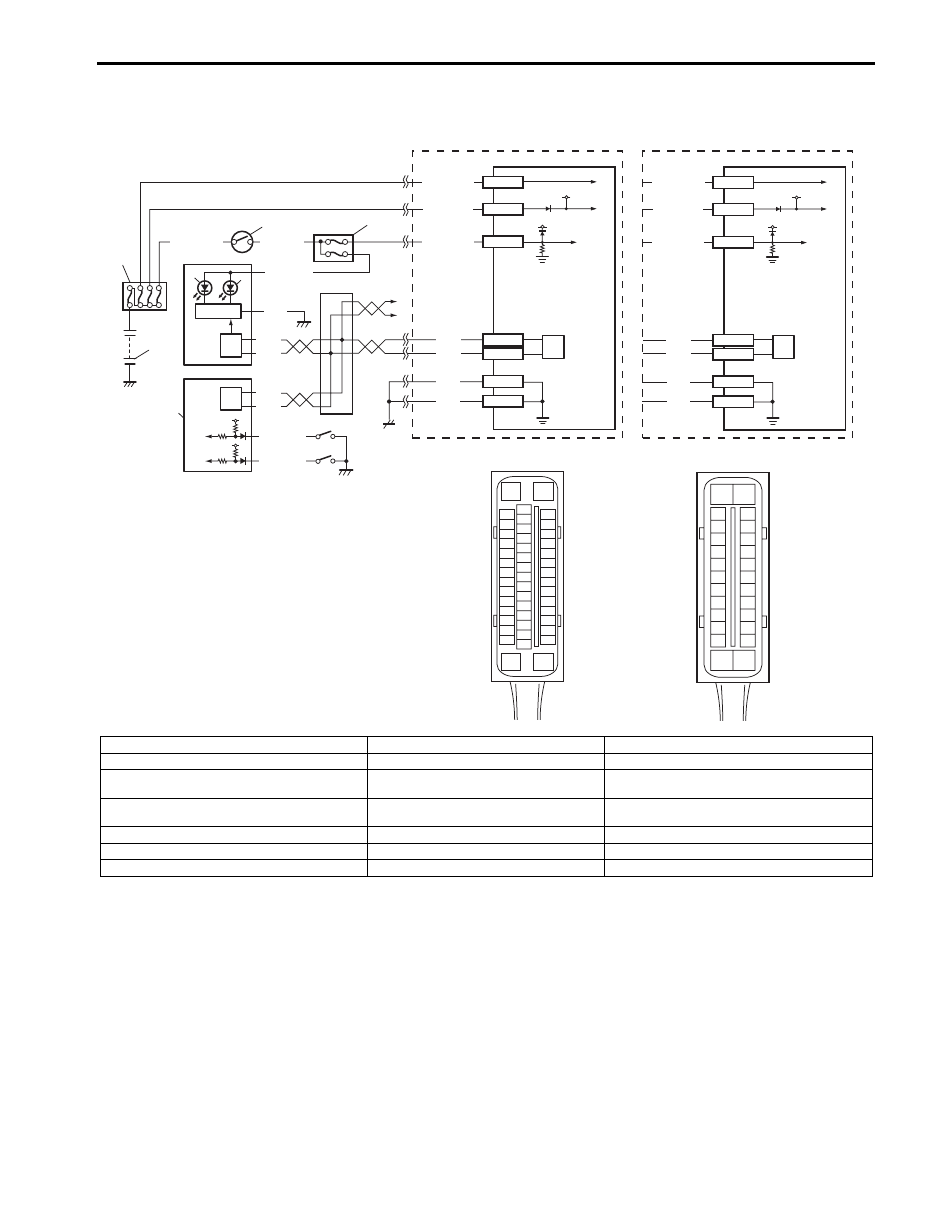

Wiring Diagram

Circuit Description
EBD warning light (brake warning light) is controlled by parking brake switch, brake fluid level switch and ABS (ESP

®)

hydraulic unit / control module assembly through light driver module in combination meter.
EBD warning light turns ON when parking brake switch is ON and/or brake fluid level is lower than minimum level.
The information of parking brake switch and brake fluid level are transmitted from BCM to light driver module in
combination meter through CAN communication line.

3

4

2

1

[C]

E53-16

E53-47

12V

12V

E53-32

E53-1

E53-35

GRN/ORN

PPL/RED

BLK/YEL

WHT/GRN

WHT/RED

WHT/BLU

BLK

BLK

BLK

RED

WHT

RED

WHT

E53-13
E53-44

15

16

10

5

7

8

6

9

E53

16

1

15

2

3

4

5

6

7

8

9

10

11

12

13

14

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

E03-13

E03-26

12V

12V

E03-1

E03-14

E03-7

GRN/ORN

WHT/RED

WHT/BLU

BLK

BLK

RED

WHT

E03-12
E03-6

13

9

[D]

E03

15
16
17
18
19
20
21
22
23
24
25

2
3
4
5
6
7
8
9

10
11
12

1

13

14

26

9

RED

WHT

9

12

11

[A]

[B]

RED/BLK

12V

12V

RED/BLK

14

I6JB01450006-02

[A]: ESP

® model

4. Circuit fuse (in junction block assembly)

11. Parking brake switch

[B]: Non-ESP

® model

5. Combination meter

12. Brake fluid level switch

[C]: ESP

® hydraulic unit / control module connector

(viewed from terminal side)

6. ABS warning light

13.  CAN junction

[D]: ABS hydraulic unit / control module connector

(viewed from terminal side)

7. EBD warning light (Brake warning light)

14. To TCM, 4WD control module and keyless start

control module

1. Battery

8. Light driver module

15. ESP

® hydraulic unit / control module assembly

2. Main fuse box

9. CAN driver

16. ABS hydraulic unit / control module assembly

3. Ignition switch

10. BCM
