– Roads are slippery.
– The tire air pressure is not cor-
rect.
– The tires have become worn.
– Tire chains are installed.
– Tires which are not the desig-
nated size are installed.
– Emergency repairs were per-
formed using a puncture repair kit.
– The suspension was modified.
– Vehicle driving is unstable due to
accident or malfunction.
– The brake warning light is illumi-
nated.

Sonar Audible Alarm Func-
tion

When Reverse Automatic Braking (RAB)
system is in operation, an audible warning
beeps will sound in 3 levels to warn the
driver of a potential collision.

NOTE

It may take time to display the wall and
sound warning beeps after the object
was recognized by the Sonar Audible
Alarm.

Guideline of detecting range

Alert level

Range of detected object*

Distance indicator

Alarm pattern

Long proximity (ob-
ject detected)

35 in (90 cm) or more

Green

No warning sound

Medium proximity
alert (approaching the
object)

28 to 35 in (70 to 90 cm)

Yellow

Short beeps

Short proximity alert
(approaching closer
to the object)

20 to 28 in (50 to 70 cm)

Orange

Rapid short beeps

Closest proximity
alert (too close to the
object)

20 in (50 cm) or less

Red

Continuous beep

*: Range of detection may vary depending on the environmental condition.

Reverse Automatic Braking (RAB) System

422

(425,1)

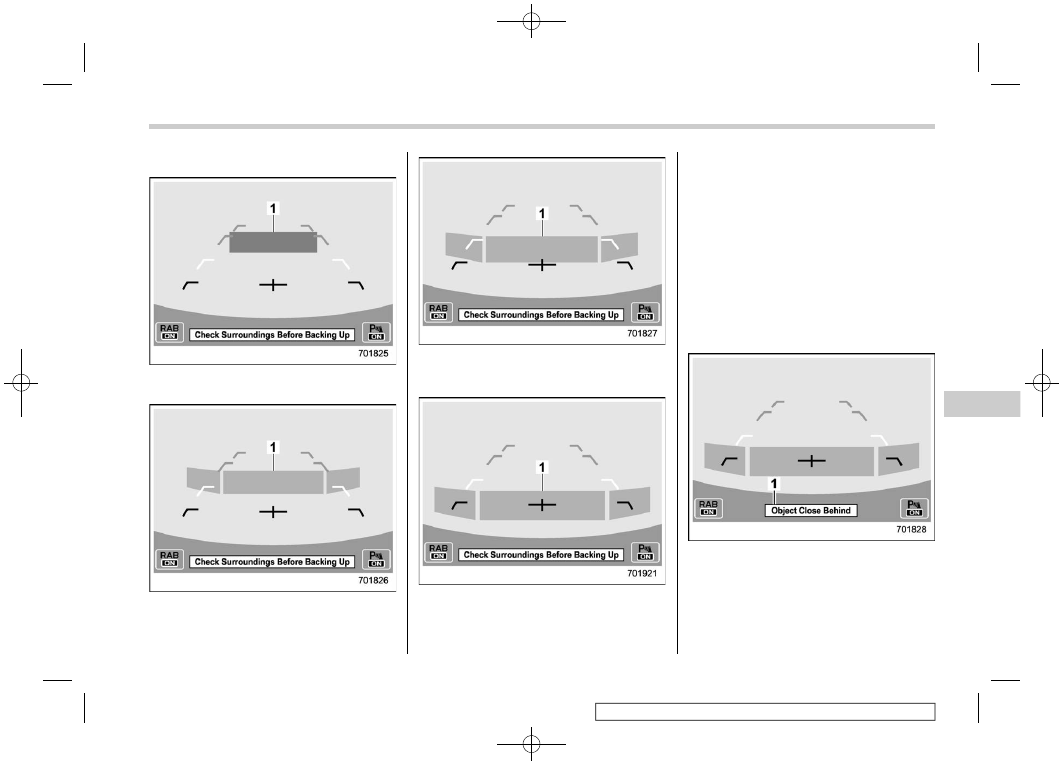

Obstacle detected and alert level

Long proximity alert (object detected)

35 in (90 cm) or more

Medium proximity alert (approaching the
object)

Yellow: 28 to 35 in (70 to 90 cm)

Short proximity alert (approaching the
object closer)

Orange: 20 to 28 in (50 to 70 cm)

Closest proximity alert (too close to the
object)

Red: 20 in (50 cm) or less

When an object is detected in the rever-
sing direction, the range of detected object
will be shown on the center information
display.
A warning alarm will sound and, depend-
ing on the speed, either torque control to
generate engine braking or automatic
braking will be applied.

Automatic Braking Function
Operation

Object close behind warning

Automatic braking warning

Warning message

If the system determine the risk of collision
with the object. Short warning beeps or
continuous warning beeps will sound and
either strong automatic braking or torque

– CONTINUED –

Reverse Automatic Braking (RAB) System

423

Starting

and

Operating

(426,1)

control will be applied to prevent collision.
At this time, a warning message is also
displayed on the combination meter dis-
play (color LCD).

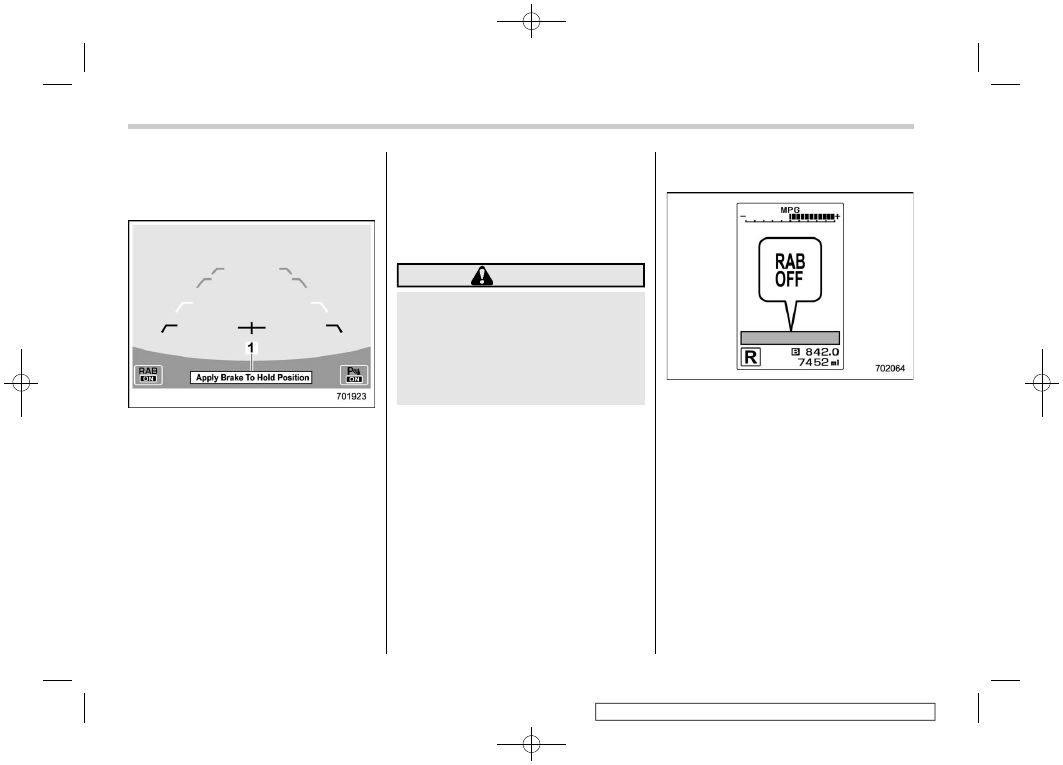

Depress brake pedal warning

Warning message

Make sure to depress the brake pedal
once the vehicle has been stopped by
automatic braking. Until the brake pedal is
depressed, a message will be displayed
on the center information display and the
continuous beep will remain sounding.
At this time, a warning message is also
displayed on the combination meter dis-
play (color LCD).

NOTE

The Sonar Audible Alarm function and
Automatic Braking function are differ-
ent in operation conditions. Therefore
there are cases in which only one of
these functions will activate.

WARNING

Depress the brake pedal immedi-
ately after the system stops the
vehicle by automatic braking. De-
pending on the conditions of the
road surface and tires, the vehicle
may not remain stopped, possibly
leading to an accident.

After the vehicle is stopped by the
system

After the brake pedal is depressed, the
RAB OFF indicator will illuminate and the
system will temporarily stop operating.
The RAB OFF indicator will turn off when
the select lever is shifted to a position other
than the “R” position.
The system will operate again the next
time the select lever is shifted to the “R”
position.

NOTE

In the following cases, after the

vehicle has been stopped by the Re-
verse Automatic Braking (RAB) sys-
tem, brake control is released and the
electronic parking brake operates. For
details about releasing the parking

Reverse Automatic Braking (RAB) System

424

(427,1)

brake, refer to “Electronic Parking
Brake”

�

P388.

– When 2 minutes pass after the
vehicle is stopped
– When any door is opened

The Reverse Automatic Braking

(RAB) system may stop operating tem-
porarily in the following cases and the
RAB OFF indicator will illuminate.

– Ice, snow or mud is adhered to
the sonar sensors or the rear bum-
per near the sonar sensor
– Objects are too close to the rear
bumper when the select lever is set
to the “R” position
– The system detects sounds of a
similar frequency to the RAB sonar

Canceling the Reverse Auto-
matic Braking (RAB) System
Operation

The Reverse Automatic Braking (RAB)
system can be temporarily canceled by
any of the following operation.

While the vehicle is stopped by the

operation of automatic braking, the brake
pedal is depressed.

While the vehicle is stopped by the

operation of automatic braking, the accel-
erator pedal is depressed.

The accelerator pedal is depressed

continuously (In this case, limited accel-
eration will be canceled and the vehicle will
continue reversing.)

The select lever is shifted to a position

other than the “R” position.

NOTE

The system will be canceled if the
object is no longer detected.

Reverse Automatic Braking
(RAB) System ON/OFF
Setting

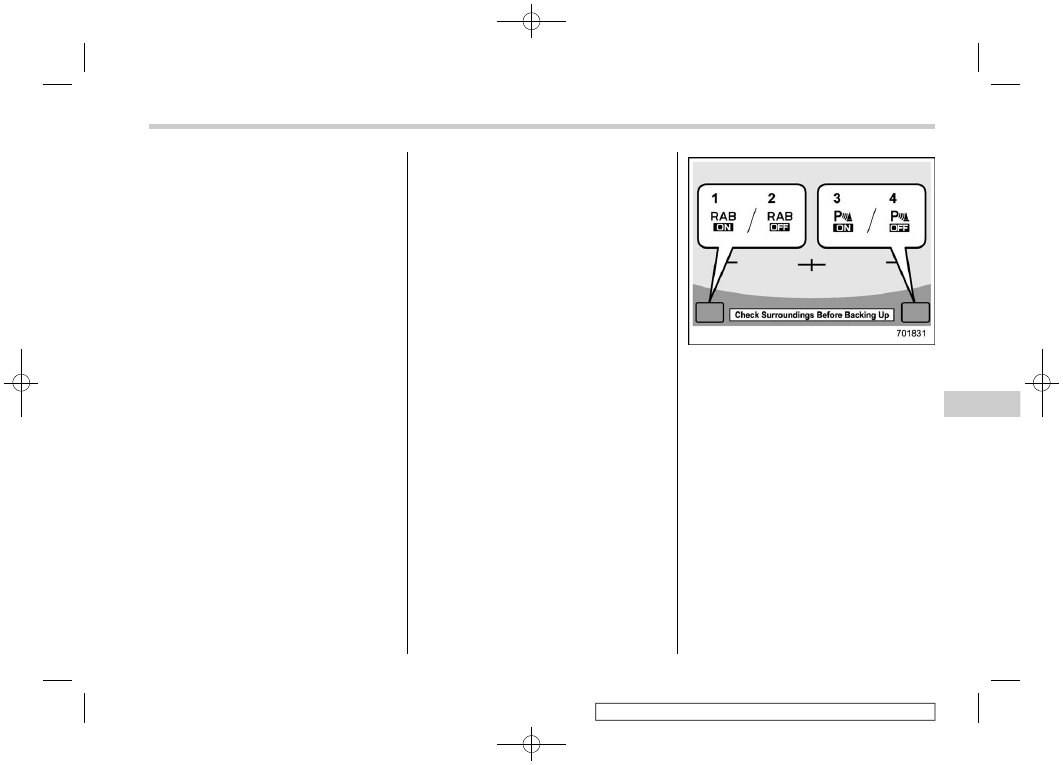

While the select lever is shifted to the “R”
position, the below functions of the Re-
verse Automatic Braking (RAB) system
can be set by operating the center in-
formation display.

ON setting key of Automatic Braking
function

OFF setting key of Automatic Braking
function

ON setting key of the Sonar Audible
Alarm function

OFF setting key of the Sonar Audible
Alarm function

When the ON setting key is shown, the
corresponding setting is ON.
Touch and hold the ON setting key to turn
the setting OFF.
When the OFF setting is shown, the
corresponding setting is OFF.
Touch and hold the OFF setting key to turn
the setting ON.

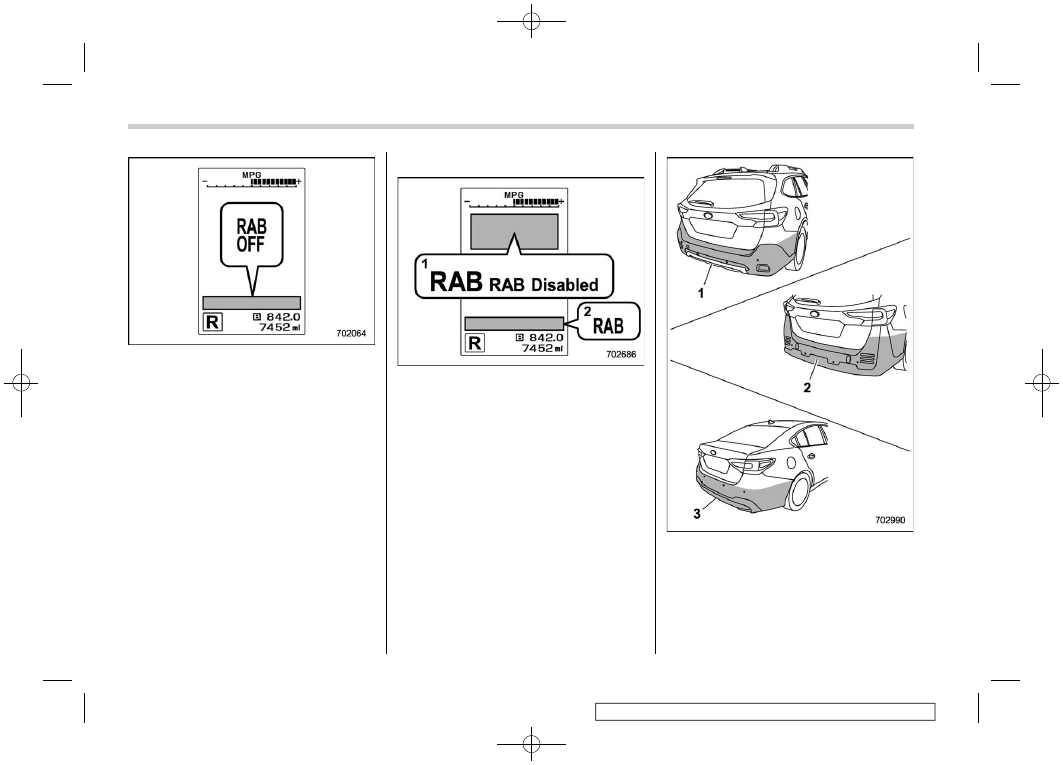

When the Automatic Braking function is
turned OFF, the following indicator(s) will
illuminate.

– CONTINUED –

Reverse Automatic Braking (RAB) System

425

Starting

and

Operating

(428,1)

The RAB OFF indicator will turn off when
the corresponding function is turned ON.

NOTE

When the settings cannot be changed,
the ON/OFF setting key will be grayed
out.

Also, the following settings can be chan-
ged by operating the center information
display.

Warning Volume

Sonar Audible Alarm

For details, refer to “Car settings”

�

P226.

RAB Warning Indicator

RAB malfunction message

RAB warning indicator

If the Reverse Automatic Braking (RAB)
system malfunctions, the above indicator
illuminates on the combination meter.
Contact the nearest SUBARU dealer for
details.

Handling of the Sonar Sen-
sors

The 4 sonar sensors are located in the rear
bumper. To ensure the proper operation of
the Reverse Automatic Braking (RAB)
system, observe the following precau-
tions.

Outback

Subaru Outback Wilderness

Legacy

Do not affix any stickers or other items

on the sonar sensor or the bumper surface
near the sonar sensors.

Reverse Automatic Braking (RAB) System

426

(429,1)

Always keep the sonar sensor and the

rear bumper surface near the sonar
sensors clean.

Do not modify rear bumper.

Do not paint the bumper near the sonar

sensors.

Do not apply high pressure water to the

sonar sensors with a high pressure car-
washing machine.

Do not apply strong impacts to the rear

bumper near the sonar sensors. If a sensor
becomes misaligned, a system malfunc-
tion may occur, including inability to detect
objects in the reversing direction. If any
strong impact is applied to the rear
bumper, contact a SUBARU dealer to
have the system inspected.

Do not disassemble the sonar sensors.

NOTE

If the sonar sensors require repair or
replacement, or if the area of the rear
bumper near the sonar sensors re-
quires repair, paintwork or replace-
ment, contact your SUBARU dealer for
assistance.

7-22. Driver Monitoring Sys-
tem (If Equipped)

Driver Monitoring System is introduced as
DriverFocus in some countries.
The Driver Monitoring System monitors
possible cases when the driver is not
paying attention to the forward direction,
and also recognizes individual users.
This system warns the driver of inattentive/
drowsy driving, and can support safe and
comfortable driving by automatically re-
trieving the following settings.
– Driver’s position
– Climate control setting
– Meter setting
– Center information display setting

When a user is registered, various settings
are automatically retrieved when the user
enters the vehicle.

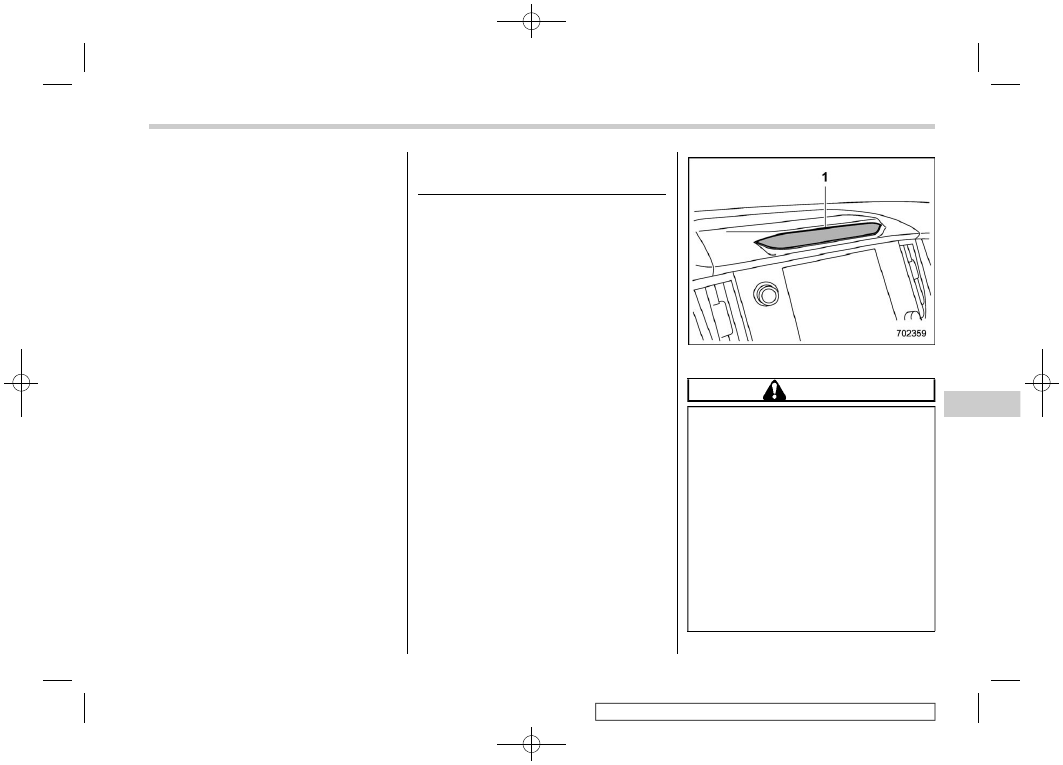

Camera

CAUTION

Always use the utmost care in

driving

– Overconfidence because you

are driving a vehicle with the
Driver Monitoring System
could easily lead to a serious
accident.

This system cannot detect if the

driver is feeling drowsy or is
concentrating on safe driving.

It cannot judge if the driver is

awake or asleep, if their driving
abilities have diminished, or if
they are concentrating on safe

– CONTINUED –

Driver Monitoring System

427

Starting

and

Operating

(430,1)

driving.

In some circumstances, the sys-

tem may not be able to correctly
detect the driver state.

NOTE

The user recognition camera does

not save images, audio, or video.

The Driver Monitoring System may

not operate correctly when sunlight is
shining into the vehicle in the following
ways.

– Sunlight is shining directly (or
through glass) onto the user recog-
nition camera.
– There are shadows on the dri-
ver’s face caused by sunlight (or
any light with a strong infrared
component).
– There are large momentary fluc-
tuations in the strength of the sun-
light (or any light with a strong
infrared component) shining on the
face.

Correct detection may not be possi-

ble when a device that includes an
infrared light source (such as a com-
mercially available Driver Monitoring
System) is installed in the vehicle
interior.

The Driver Monitoring System may

not operate correctly at the following
times when the driver is wearing
glasses or sunglasses.

– The sunglasses do not allow the
easy passage of infrared light.
– The surrounding scenery is re-
flected strongly in the lenses of the
glasses or sunglasses.
– The eyes are hidden by the frame
of the glasses and the user recogni-
tion camera cannot detect the eyes.
– The light from an infrared light
source (LED) is reflected in the
lenses of the glasses or sunglasses.
– The driver is wearing an eye-
patch.
– The driver is wearing a hat set
deeply over the eyes.

Depending on the type of mask,

correct detection of inattentive/drowsy
driving may not be possible.

Correct user recognition is not pos-

sible if the eyes, nose, or mouth is
covered with a mask, muffler, sun-
glasses, or other item.

The Driver Monitoring System may

not operate correctly when the eye-
brows, eyes, nose, or mouth is hidden
due to item that is between the face and
the system.

If a thick cover is attached to the

steering wheel, then depending on the
position set for the tilt/telescopic steer-
ing wheel, the cover may block the
system’s view of the face, and the
system and the Driver Monitoring Sys-
tem may not operate correctly.

Do not attach any stickers to the

user recognition camera or the infrared
light source (LED). If the user recogni-
tion camera or infrared light source
(LED) is covered by an obstruction, it
will not be possible to correctly monitor
the driver.

If an accessory is hung from the

inside mirror, correct detection may not
be possible.

Do not touch the user recognition

camera or the infrared light source
(LED) directly with your fingers. If there
is dirt or a fingerprint on these parts, it
will not be possible to correctly monitor
the driver. If there is dirt or a fingerprint
on these parts, either wipe them with a
soft dry cloth, or wipe gently with a
damp cloth after first firmly wringing
the water out.

If the surface of the user recognition

camera or the infrared light source
(LED) becomes scratched, correct de-
tection may not be possible. Be careful
that hard objects do not contact these
parts.

Driver Monitoring System

428

(431,1)

If there is condensation on the user

recognition camera or the infrared light
source (LED), correct detection may
not be possible. If there is condensa-
tion on these parts, wipe it away with a
soft dry cloth.

When registering a user for user

recognition, avoid closing your eyes
as much as possible.

If the user recognition success rate

is low, it is possible that the user is not
correctly registered. Delete the regis-
tered data and perform registration
again.

If a user frequently drives both with

glasses and contact lenses, it is re-
commended that registration be per-
formed both when wearing glasses and
when wearing contact lenses.

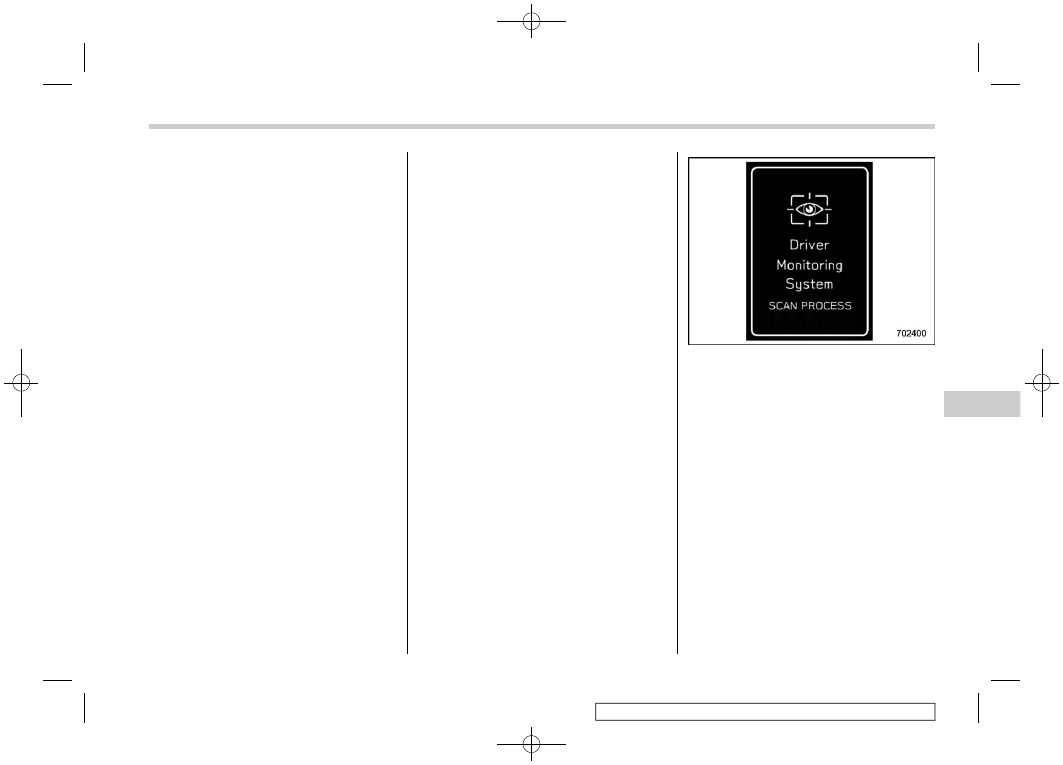

User recognition starts immediately

after entering the vehicle, however if
the user looks downward or at the
driver side mirror for a long time, the
user may not be recognized.

When one person among twins or

another pair of persons with similar
facial features is registered, the other
person may be incorrectly recognized
as the registered user when entering
the vehicle.

If the person in the passenger’s seat

leans into the driver’s seat, or in other
cases when there are two or more faces

near the driver’s seat, the system may
not operate correctly.

There are cases when the system

concludes that the user’s eyes are
closed when the user is looking down-
ward during driving, such as when
checking instruments or the navigation
screen. In such cases, the drowsy
driving warning buzzer may sound or
the system may otherwise not operate
correctly.

If the eyes are narrowed when laugh-

ing or when there is a dazzling outside
light, the system may judge that the
eyes are closed and the drowsy driving
warning buzzer may sound or the
system may otherwise not operate
correctly.

The drowsy driving or asleep warn-

ing states are recognized from the
length of time and percentage of time
that the eyes are closed. The drowsy
driving warning buzzer will not sound
simply when the driver feels sleepy or
yawns.

Even when the driver does not feel

sleepy, if his or her eyes are closed or if
he or she blinks frequently, the drowsy
driving warning buzzer may sound.

The inattentive driving warning buz-

zer may sound if the driver leans
forward or puts his or her head out of
the window while driving.

The inattentive driving warning buz-

zer will not sound when the vehicle is
stopped or travelling at slow speed
even if the driver is not looking ahead.

The Driver Monitoring System col-

lects and stores data regarding drivers’
facial features. Facial recognition data
is stored locally and does not leave the
vehicle. It is not transmitted to or stored
by SUBARU or anyone else. The Driver
Monitoring System may be disabled
and any stored driver data may be
deleted by following the instructions
below. If the Driver Monitoring System
is disabled, it will be unable to provide
any of its safety or convenience func-
tions.

– CONTINUED –

Driver Monitoring System

429

Starting

and

Operating

(432,1)

The functions which are available vary depending on the Driver Monitoring System
setting and the user recognition function setting.

Available functions

Driver Monitoring System*

OFF

User recognition
function*

Inattentive/drowsy
driving warning

Available

Not available

User recognition
function

Available

Not available

OFF

Inattentive/drowsy
driving warning

Available

Not available

User recognition
function

Not available

Driver Monitoring System

430

(433,1)

Available function items

Driver Monitoring System*

OFF

User recognition

function*

Available

Not available

Delete User

Available

Not available

Delete All Users

Available

Not available

Update Seat and

Mirror Position

Available

Not available

Delete Driver Posi-

tion

Available

Not available

OFF

Not available

Delete User

Available

Not available

Delete All Users

Available

Not available

Update Seat and

Mirror Position

Not available

Delete Driver Posi-

tion

Not available

*1: The system can be turned ON/OFF with the center information display. Refer to “Car settings”

�

P226.

*2: The function can be turned ON/OFF in the center information display customization settings.

Refer to “Car settings”

�

P226.

The functions which are available vary depending on whether or not the user is
registered.

Available functions

The user is registered.

The user is not registered.

User recognition function

Available

Not available

User Recognition Function

WARNING

Perform registration, retrieving, or
delete of the seat position and out-
side mirror angle before beginning
driving. There is the risk of an
accident if registration, retrieving,
or delete is performed while driving.

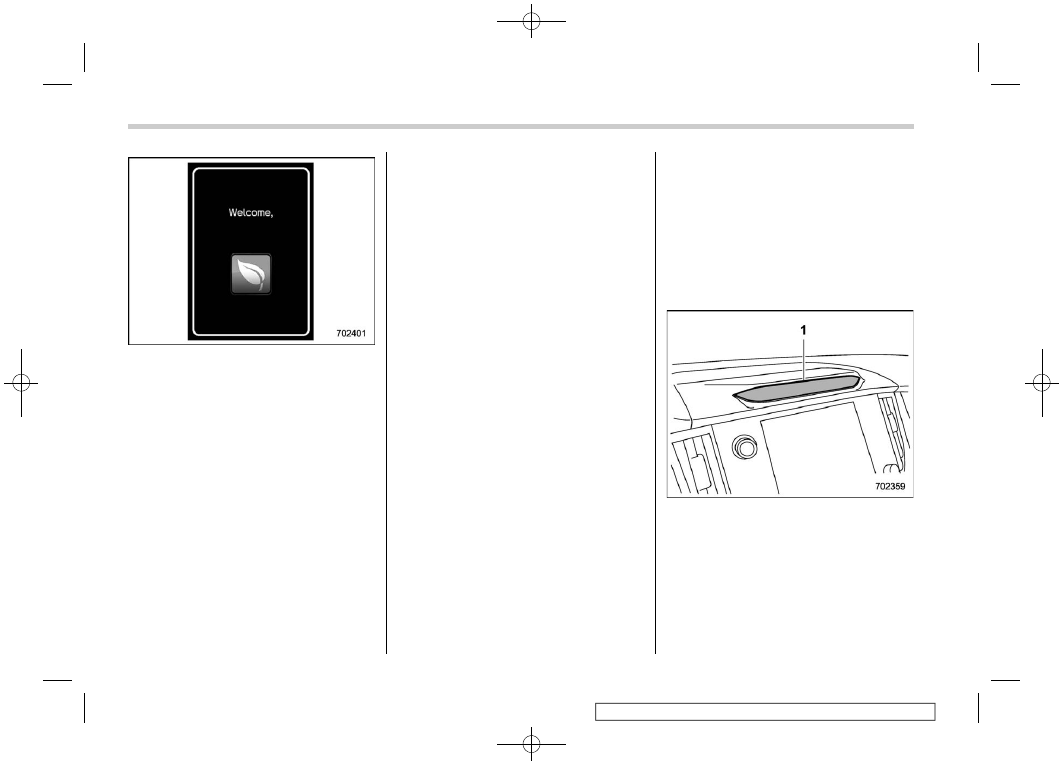

When a user is registered, it is possible to
retrieve the following settings.

Driver position personalization

Seat position and outside mirror angle

Retrieves the registered seat position and
outside mirror angle.

Reverse tilt angle

Retrieves the registered reverse tilt-down
outside mirror angle.

Meter personalization

Combination meter display (color LCD)

basic screen
Displays the screen which the user had
selected at the time when he/she last
exited the vehicle.

– CONTINUED –

Driver Monitoring System

431

Starting

and

Operating

(434,1)

Center information display perso-
nalization

Center information display basic

screen
Displays the screen which the user had
selected at the time when he/she last
exited the vehicle.

Fuel consumption screen

Displays the average fuel economy for
past driving by that user.

Climate control personalization

Climate control settings

Retrieves the preferred interior tempera-
ture, airflow mode selection, and other
settings which the user had selected at the
time when he/she last exited the vehicle.

NOTE

When a recognized user exits the
vehicle while the Max A/C mode is on
and the push engine switch is turned
off, the system stores the setting con-
figured before Max A/C mode was
turned on.

Driver Monitoring System ON/OFF
status

Retrieves the Driver Monitoring System
ON/OFF status which the user had se-
lected at the time when he/she last exited
the vehicle.

Changing the personalization settings

Item

Driver’s position personaliza-
tion

Seat position/outside mirror
angle

Change the setting by using the
center information display cus-
tomization function. Refer to
“Car settings”

�

P226.

Reverse tilt-down outside mir-
ror angle

Meter personalization*

Combination meter display
(color LCD) basic screen

When the customization screen
linked with the synchronized
user function is selected and
the setting is changed, it is
automatically stored.

Center information display
personalization*

Center information display ba-
sic screen

Driver Monitoring System ON/OFF status

*: When the Driver Monitoring System is OFF, the Driver Monitoring System continues to store the

conditions from immediately before the Driver Monitoring System was turned OFF even if the
screen was selected and the setting was changed.

Driver Monitoring System

432

(435,1)

Inattentive/Drowsy Driving
Warning

While driving, the Driver Monitoring Sys-
tem monitors possible cases of driver
inattention or drowsiness and warns the
driver.
When the inattentive/drowsy driving warn-
ing activates, the buzzer sounds and an
interrupt display appears.

NOTE

The inattentive/drowsy driving warn-

ing operates regardless of the status of
the user recognition function.

The inattentive driving warning does

not activate when the turn signal is
operating or when the select lever is in
the “R” position.

When the pre-collision brake system

OFF indicator is illuminated on the
combination meter display (color
LCD), the inattentive driving warning
activates at the same timing as usual
even when a vehicle ahead or obstacle
is detected. For details about the
EyeSight system, refer to the Owner’s
Manual supplement for the EyeSight
system.

Inattentive driving warning

When the system monitors that the driver
may be inattentive, it warns the driver.
When the inattentive driving warning acti-
vates, the buzzer sounds and an interrupt
display appears on the combination meter
display (color LCD).
When the EyeSight system has detected a
vehicle ahead or obstacle in the forward
direction, the inattentive driving warning
may activate at earlier timing than usual.
Refer to the Owner’s Manual supplement
for the EyeSight system.

– CONTINUED –

Driver Monitoring System

433

Starting

and

Operating

(436,1)

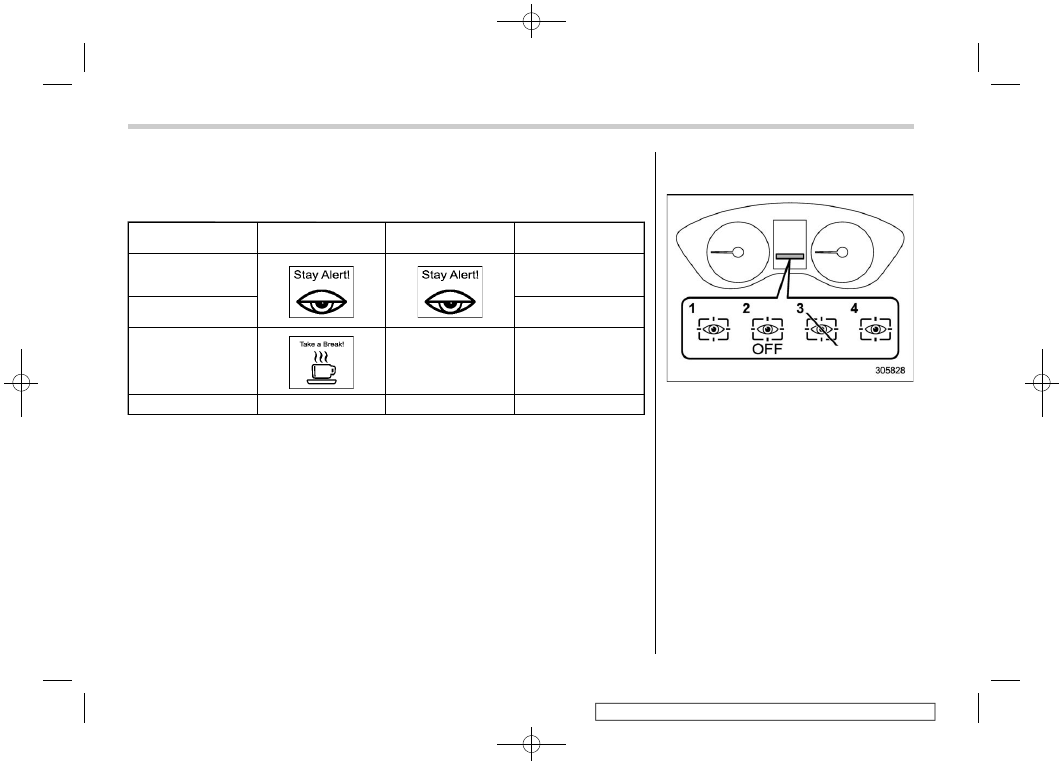

Drowsy driving warning

Possible drowsiness is detected from the amount of driver eyelid closure, and a warning
is given to the driver. When the drowsy driving warning activates, the buzzer sounds and
an interrupt display appears.

Combination meter
display (color LCD)

Center information

display

Warning chime

Drowsy driving

Beep, beep... (Con-

tinues until the driver’s

eyes open.)

Very drowsy

Beep, beep, beep,

beep, beep (5 times)

Slightly drowsy

—

Beep

Not drowsy

—

Driver Monitoring System In-
dicator/Warning

Driver Monitoring System operation in-
dicator light (green)

Driver Monitoring System OFF indicator
light

Driver Monitoring System temporary stop
indicator light

Driver Monitoring System warning light
(yellow)

The Driver Monitoring System indicator/
warning indicates the status of the Driver
Monitoring System on the combination
meter display (color LCD).

NOTE

When the Driver Monitoring System
OFF indicator, Driver Monitoring Sys-
tem temporary stop indicator, or Driver
Monitoring System warning is illumi-

Driver Monitoring System

434

(437,1)

nated, the Driver Monitoring System
function cannot be used. In addition,
the following items cannot be selected.

Register User

Delete User

Delete All Users

Update Seat and Mirror Position

Delete Driver Position

Automatically Retract Seat on Entry

Driver Monitoring System operation
indicator light (green)

This indicator illuminates when the Driver
Monitoring System is operating.

Driver Monitoring System OFF in-
dicator light

This indicator illuminates when the user
has turned off the Driver Monitoring
System and the Driver Monitoring System
is not operating.

Driver Monitoring System tempor-
ary stop indicator light

This indicator illuminates when the Driver
Monitoring System is temporarily stopped.

NOTE

The Driver Monitoring System stops
temporarily in the following circum-
stances.

When the temperature of the main

unit of the Driver Monitoring System is

high or low.

When the Driver Monitoring System

cannot monitor the driver’s eye move-
ment.

When the Driver Monitoring System

cannot monitor the driver’s eyebrows,
eyes, nose or mouth.

When the camera and the infrared

light source (LED) are covered and the
Driver Monitoring System cannot moni-
tor the driver correctly.

Driver Monitoring System warning
light (yellow)

This warning illuminates when there is a
problem with the Driver Monitoring Sys-
tem. Contact a SUBARU dealer to have
the system inspected.

Using the Driver Monitoring
System

User recognition

When a user is registered with the user
recognition function, the Driver Monitoring
System performs the following.

1. When the door is opened and the
push-button ignition switch is OFF, the
user recognition screen appears and the
Driver Monitoring system starts user re-
cognition.
The user recognition screen may not
appear when the door is opened in some
cases, such as when only a short time has
passed after the push-button ignition
switch was turned OFF. In such cases,
user recognition starts when the door is
closed however the user recognition
screen does not appear.

– CONTINUED –

Driver Monitoring System

435

Starting

and

Operating

(438,1)

2. Sit in the driver’s seat and face forward
for a few moments.
3. When user recognition is completed,
the Hello screen appears on the center
information display.

At this time, the seat position, outside
mirror angle, climate control settings,
combination meter display (color LCD)
basic screen and center information dis-
play basic screen will all change based on
the user information.

NOTE

When a center information display

operation switch is pressed, the user
recognition screen is canceled, how-
ever user recognition continues.

When the select lever is not in the

“P” position, the seat position will not
change even when user recognition is
completed.

If user recognition fails, perform

recognition again following the instruc-
tions, refer to “When a user is not
recognized”

�

P436.

User recognition is not performed

while driving.

If the seat position or outside mirror

angle are in motion at the time when
user recognition is completed, then it is
not possible to retrieve the seat posi-
tion, outside mirror angle, or reverse
tilt-down outside mirror angle.

If any of the following operations is

performed while retrieving of the seat
position or outside mirror angle, re-
trieving of the seat position and outside
mirror angle is canceled.

– The power seat adjustment
switch was operated.
– The outside mirror adjustment
switch was operated.
– The “SET” button was pressed.
– The “1” or “2” button was
pressed.
– The select lever was moved to a
position other than “P” position.

When a user is not recognized

In the following case, user recognition may
not be possible and “User recognition
stopped” may be displayed.

There is an object blocking the camera.

Remove the obstacle and follow the
reference procedure to perform user re-
cognition again. Refer to “Driver Monitor-
ing System”

�

P233.

Camera

NOTE

User recognition may not be possi-

ble when there is dirt or fingerprints on
the user recognition camera. To clean,
either wipe using a soft cloth or else
wipe gently using a moistened cloth
that has been thoroughly wrung out.

Driver Monitoring System

436

(439,1)

When the synchronized user func-

tion is turned OFF, manual repeat facial
scan is not possible.

Registering and Deleting a
User

Users can be registered in the Driver
Monitoring System, and registered users
can be deleted. For the user registration
and delete procedures, refer to “Driver
Monitoring System”

�

P233.

NOTE

When the Driver Monitoring System

OFF indicator, Driver Monitoring Sys-
tem temporary stop indicator, or Driver
Monitoring System warning is illumi-
nated, the following items cannot be
selected.

– Register User
– Delete User
– Delete All Users

User information can also be deleted

by resetting the center information dis-
play to the factory default settings.
When the settings are reset to the
factory default settings, all user infor-
mation is deleted. The settings cannot
be reset to the factory default settings
when the Driver Monitoring System is
OFF.

Registering and Deleting Dri-
ver Position Personalization

At the time when a user is registered, the
seat position, outside mirror angle, and
reverse tilt-down outside mirror angle are
registered at the same time. To change the
setting for the seat position, outside mirror
angle, or reverse tilt-down outside mirror
angle, refer to “Driver Monitoring System”

�

P233.

NOTE

Start the user registration after ad-

justing the seat position, outside mirror
angles, and reverse tilt-down outside
mirror angle. If they are adjusted during
user registration, it may be disrupted.
Refer to “Power Seat”

P32 or “Out-

If the ignition switch is turned to the

“OFF” position before user registration
is complete, the information of the
adjusted seat position, outside mirror
angle, and reverse tilt-down outside
mirror angle will not be saved.

When the user recognition setting is

OFF, or when the Driver Monitoring
System OFF indicator, Driver Monitor-
ing System temporary stop indicator, or
Driver Monitoring System warning is
illuminated, the following items cannot
be selected.

– Update Seat and Mirror Position
– Delete Driver Position

The driver position can be registered

or deleted only when a registered user
is sitting in the driver’s seat and user
recognition is completed.

Driver Monitoring System
ON/OFF Settings

NOTE

When the Driver Monitoring System

is turned OFF after user recognition
was completed, the user recognition
function stores the Driver Monitoring
System ON/OFF state.

Even when the Driver Monitoring

System is set to OFF, the Driver Mon-
itoring System automatically turns ON
once the driver’s door is opened and
closed while the vehicle is stopped.
This only occurs when the user recog-
nition setting is ON. The system then
reverts automatically to the OFF state.

After the Driver Monitoring System

was turned OFF, if the Driver Monitoring
System is turned ON while the driver’s
door is open, user recognition may not
occur correctly.

– CONTINUED –

Driver Monitoring System

437

Starting

and

Operating

Content .. 25 26 27 28 ..
