One-touch lane changer

To flash the turn signal and turn signal
indicator light three times, push the turn
signal lever up or down slightly and
immediately release it.

NOTE

T h e o p e r a t i o n a l / n o n - o p e r a t i o n a l
setting of the one-touch lane changer
can be changed by a SUBARU dealer.
Contact the nearest SUBARU dealer for
details. The setting can also be chan-
ged by operating the combination me-
ter display (color LCD). For details,
refer to “Vehicle Setting”

P196.

3-16. Wiper and washer

WARNING

In freezing weather, do not use the
windshield washer until the wind-
shield is sufficiently warmed by the
defroster.

Otherwise the washer fluid can
freeze on the windshield, blocking
your view.

CAUTION

.

Do not operate the washer con-

tinuously for more than 10 sec-
onds, or when the washer fluid
tank is empty. This may cause
overheating of the washer motor.
Check the washer fluid level fre-
quently, such as at fuel stops.

.

Do not operate the wipers when

the windshield or rear window is
dry. This may scratch the glass,
damage the blade rubbers and
might cause the wiper motor to
fail. Before operating the wiper
on a dry windshield or rear win-
dow, always use the windshield
washer.

.

In freezing weather, be sure that

the blade rubbers are not frozen
to the windshield or rear window
before switching on the wipers.
Attempting to operate the wiper
with the blades frozen to the
window glass could cause not
only the blade rubbers to be
damaged but also might cause
the wiper motor to fail. If the blade
rubbers are frozen to the window
glass, be sure to operate the
defroster, windshield wiper dei-
cer (if equipped) or rear window
defogger before turning on the
wiper.

.

If the wipers stop during opera-

tion because of ice or some other
obstruction on the window, this
might cause the wiper motor to
fail even if the wiper switch is
t u r n e d o f f . I f t h i s o c c u r s ,
promptly stop the vehicle in a
safe place, turn the ignition
switch to the “LOCK”/“OFF” po-
sition and clean the window glass
to allow proper wiper operation.

.

Use clean water if windshield

washer fluid is unavailable. In
areas where water freezes in
winter, use SUBARU Windshield
Washer Fluid or the equivalent.

– CONTINUED –

Wiper and washer

237

3

Instruments

and

controls

(240,1)

Refer to “Windshield washer
fluid”

P473.

.

Do not clean the blade rubbers

with gasoline or a solvent, such
as paint thinner or benzine. This
will cause deterioration of the
blade rubbers.

NOTE

.

The windshield wiper motor is pro-
tected against overloads by a circuit
breaker. If the motor operates con-
tinuously under an unusually heavy
load, the circuit breaker may trip to
stop the motor temporarily. If this
happens, park your vehicle in a safe
place, turn off the wiper switch, and
wait for approximately 10 minutes.
The circuit breaker will reset itself,
and the wipers will again operate
normally.

.

Clean your blade rubbers and win-
dow glass periodically with a washer
solution to prevent streaking, and to
remove accumulations of road salt
or road film. Operate the windshield
washer for at least 1 second so that
washer solution will be sprinkled all
over the windshield or rear window.

.

Grease, wax, insects, or other mate-
rial on the windshield or the wiper

blade results in jerky wiper opera-
tion and streaking on the glass. If
you cannot remove the streaks after
operating the windshield washer or
if the wiper operation is jerky, clean
the outer surface of the windshield
and rear window using a sponge or
soft cloth with a neutral detergent or
mild-abrasive cleaner. Do not, how-
ever, use detergent to clean the
blade rubbers. Use only a sponge
or soft cloth (and no neutral deter-
gent or mild abrasive cleaner) when
you clean the blade rubbers. If you
wipe the rubber of the blade
strongly, the black coating compo-
nent will peel off, which will cause
the wiper to judder. Also, after wip-
ing it off, check that the rubber has
not come loose. After cleaning the
window glass and wiper blade rub-
bers, be sure to rinse them with
clean water. Rinse the window until
the water does not form beads on the
glass. This indicates that the glass is
clean.

.

If you cannot eliminate the streaking
even after following this procedure,
replace the blade rubbers with new
ones. For replacement instructions,
refer to “Replacement of wiper
blades”

P474.

.

If the wipers do not operate when the
wiper switch is in the “Lo” position,
turn the wiper switch to the “High”
position.

In these cases, we recommend that you
contact your SUBARU dealer.

&

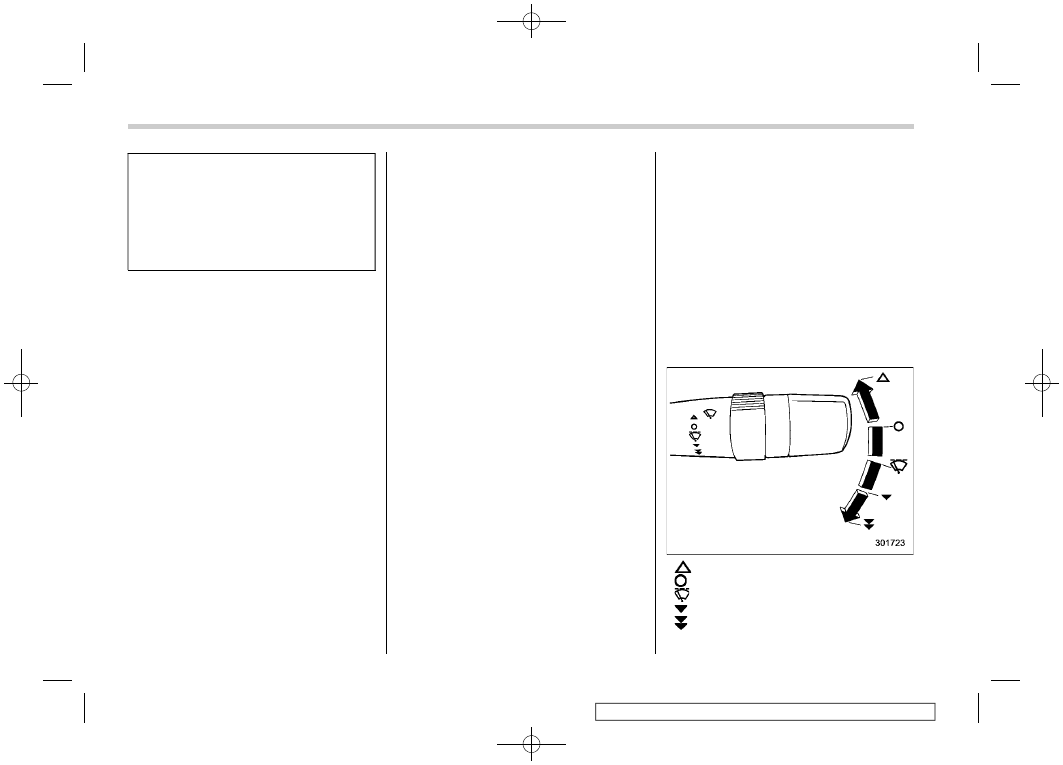

Windshield wiper and washer
switches

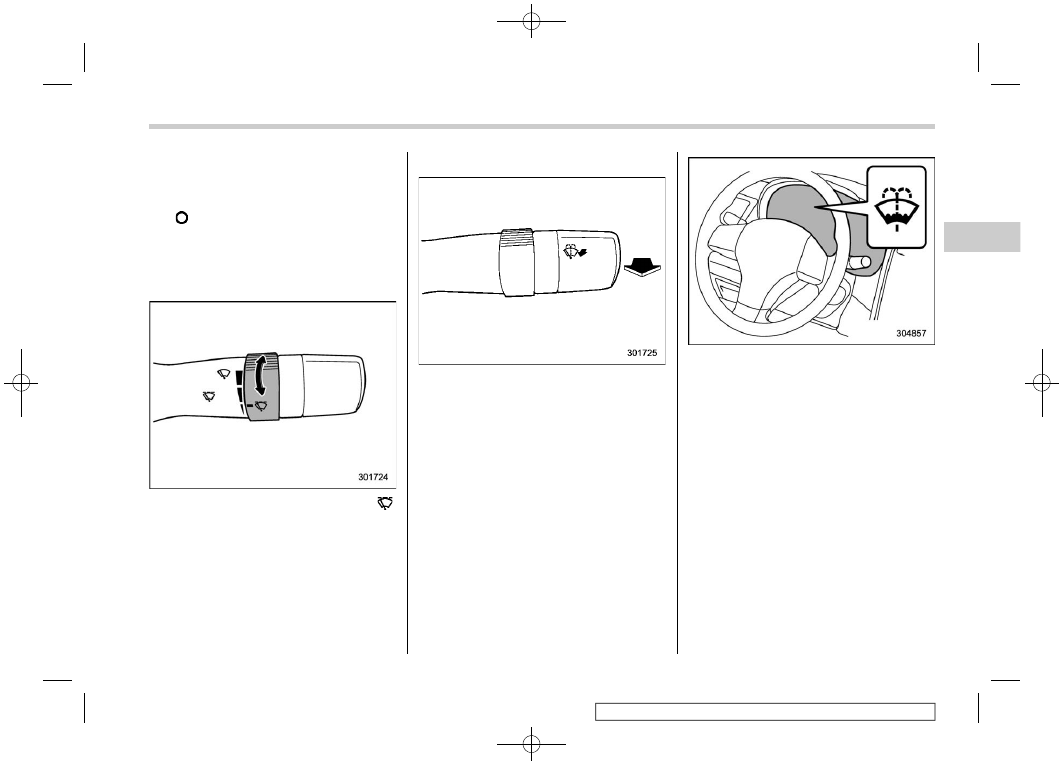

The wiper operates only when the ignition
switch is in the “ON” or “ACC” position.

!

Windshield wipers

: Mist (for a single wipe)

: Off

: Intermittent

: Low speed
: High speed

Wiper and washer

238

(241,1)

To turn the wipers on, push the wiper
control lever down.

To turn the wipers off, return the lever to
the “ ” position.

For a single wipe of the wipers, push the
lever up. The wipers operate until you
release the lever.

!

Wiper intermittent time control

When the wiper switch is in the “

position, turn the dial to adjust the operat-
ing interval of the wiper. The operating
interval can be adjusted in several steps
from the shortest interval to the longest.

!

Windshield washer

To wash the windshield, pull the wiper
control lever toward you. The washer fluid
sprays until you release the lever. The
wipers operate while you pull the lever.

Windshield washer fluid warning light

NOTE

The windshield washer fluid warning
light illuminates when the washer fluid
level in the tank has dropped to the
lower limit. If the warning light illumi-
nates, refill the tank with fluid. For the
refilling procedure, refer to “Wind-
shield washer fluid”

P473.

– CONTINUED –

Wiper and washer

239

3

Instruments

and

controls

(242,1)

&

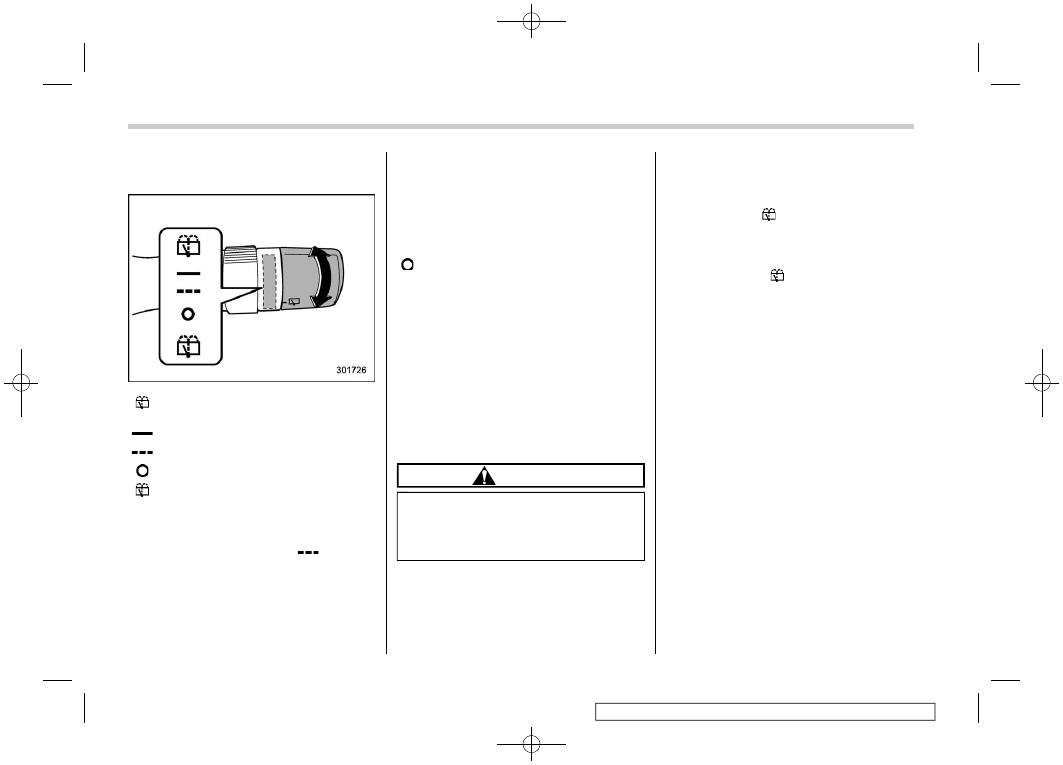

Rear window wiper and
washer switch

: Washer operation (accompanied by

wiper operation)

: Continuous operation

: Intermittent operation

: Off

: Washer operation (accompanied by

wiper operation)

!

Rear wiper

With the switch turned to the “

” position,

the rear wiper will operate intermittently at
intervals corresponding to the vehicle
speed. In this position, when you move
the select lever to the “R” position, the rear
wiper will switch to continuous operation.

When you move the select lever from the
“R” (reverse) position to another position,
the rear wiper will return to intermittent
operation.

Reverse gear interlocked rear wiper:

Even if the rear wiper switch is in the off
“ ” position, if the front windshield wiper is
operating continuously, the rear wiper will
operate intermittently when you move the
select lever to the “R” (reverse) position.

The factory setting (default setting) of the
reverse gear interlocked rear wiper is as
follows.

.

U.S.-spec. models: Non-operational

.

Other models: Operational

This setting can be changed by a SUBARU
dealer. Consult your SUBARU dealer for
details.

CAUTION

Do not attach anything that disturbs
the rear wiper operation on the rear
gate. Doing so may damage the rear
wiper when it operates.

!

Washer

To wash the rear window while the rear
wiper is operating, turn the knob switch
upward to the “

” position. The washer

fluid sprays until you release the knob.
To wash the rear window when the rear
wiper is not in use, turn the knob switch
downward to the “

” position. The washer

fluid sprays and the wiper operates until
you release the knob.
The rear view camera washer also oper-
ates while the rear window washer is
operating.

Wiper and washer

240

(243,1)

3-17. Mirrors

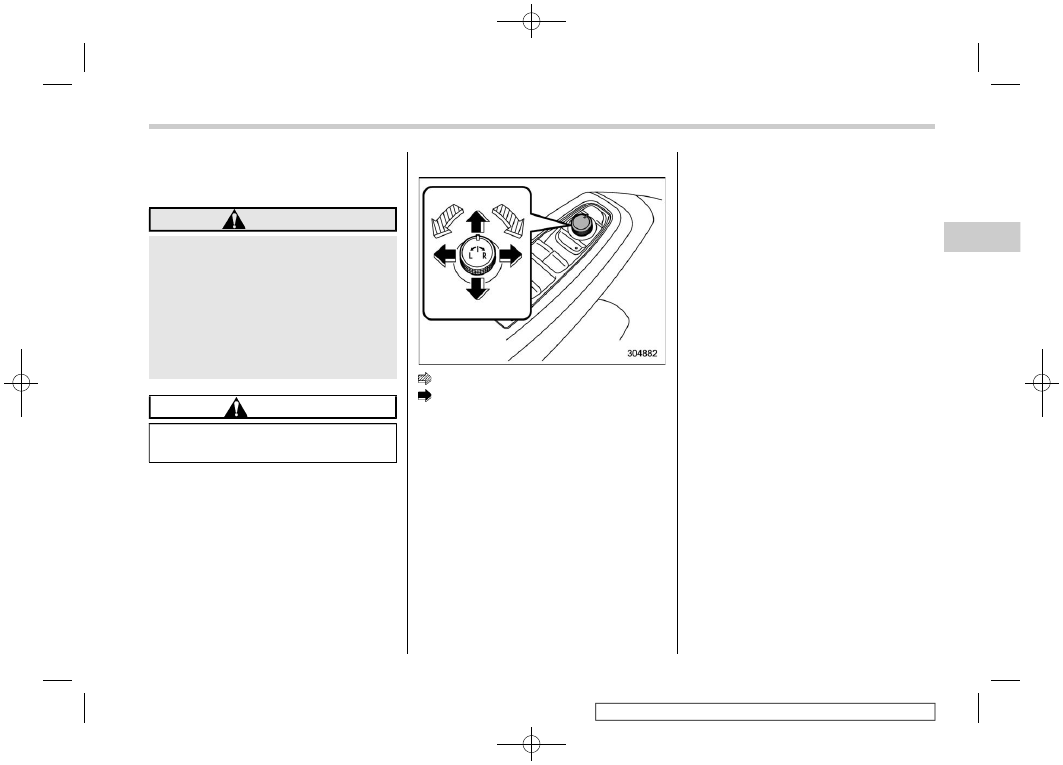

Always check that the inside and outside
mirrors are properly adjusted before you
start driving.

&

Inside mirror

1

Normal position

2

Anti-glare position

Push the tab on the mirror for normal use.
To reduce glare from the headlights of the
vehicle behind you, pull the tab to the anti-
glare position.

&

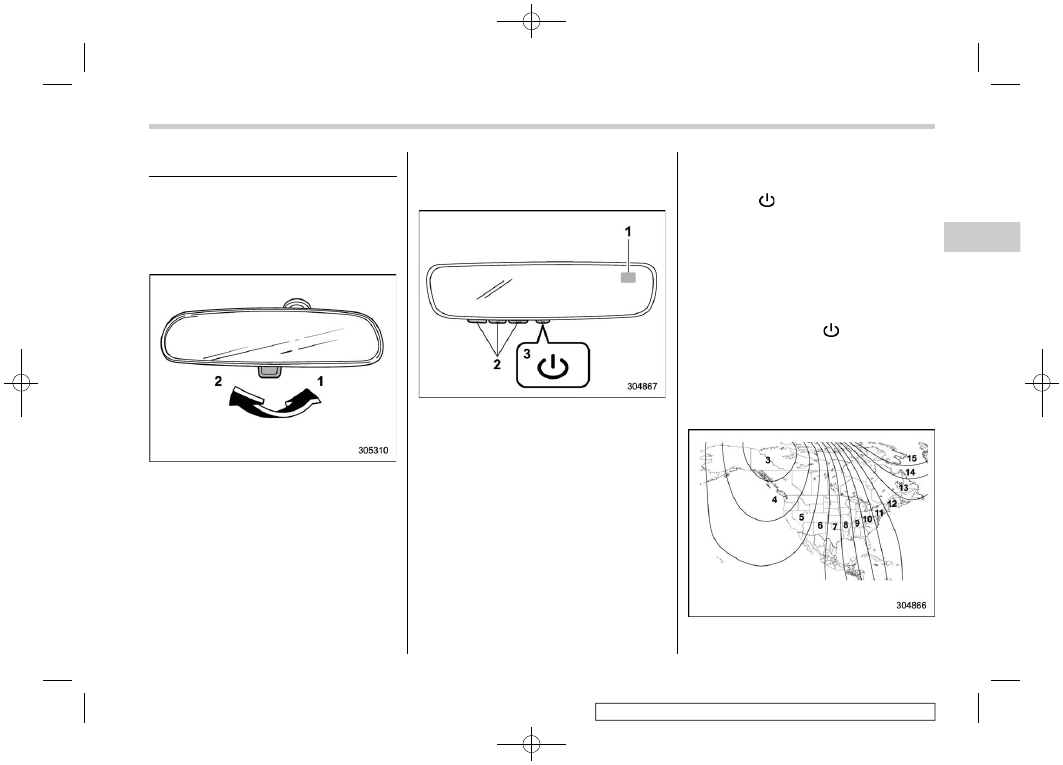

Auto-dimming mirror/com-
pass with HomeLink

®

(if

equipped)

1

Compass

2

HomeLink buttons

3

Switch

During nighttime driving, the auto-dimming
feature senses distracting glare from
vehicle headlights behind you and auto-
matically dims to eliminate the glare and
preserve your vision.

!

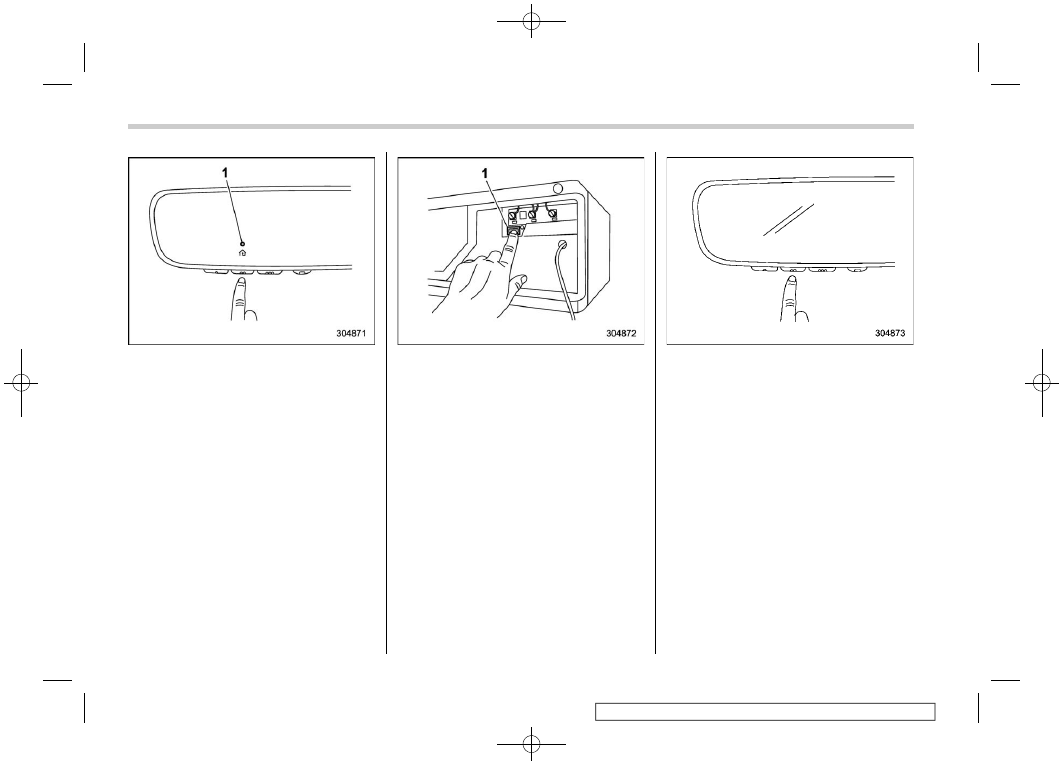

To Operate the Auto-Dimming Fea-
ture

Press the “

” switch to turn the auto-

dimming feature on/off. The auto-dimming
feature is enabled when the switch’s green
LED indicator is on. The auto-dimming
feature will default to on with each ignition
cycle.

!

To Operate the Compass Feature

1. To turn the compass feature on/off,

press and hold the “

” switch for more

than 3 seconds or until the display
turns on/off. The compass feature will
default to on with each ignition cycle.

2. If the display reads “C”, slowly drive the

vehicle in circles until compass is
calibrated.

Compass calibration zones

– CONTINUED –

Mirrors

241

3

Instruments

and

controls

(244,1)

3. To adjust for compass zone variance:

(1) Find your current location and

zone number on the map.

(2) Press and hold the “

” switch for

more than 6 seconds or until a
zone number appears in the dis-
play.

(3) Once the zone number appears in

the display, toggle the “

” switch

again until your current location
zone number appears. After you
stop pressing the switch, your new
zone number will be saved. Within
a few seconds, the display will
show a compass direction.

4. If the vehicle’s magnetics have chan-

ged or if the compass appears inaccu-
rate, recalibrate the compass. Press
and hold the “

” switch for more than

9 seconds or until a “C” appears in the
display. Once a “C” appears in the
display, slowly drive the vehicle in
circles until compass is calibrated.

!

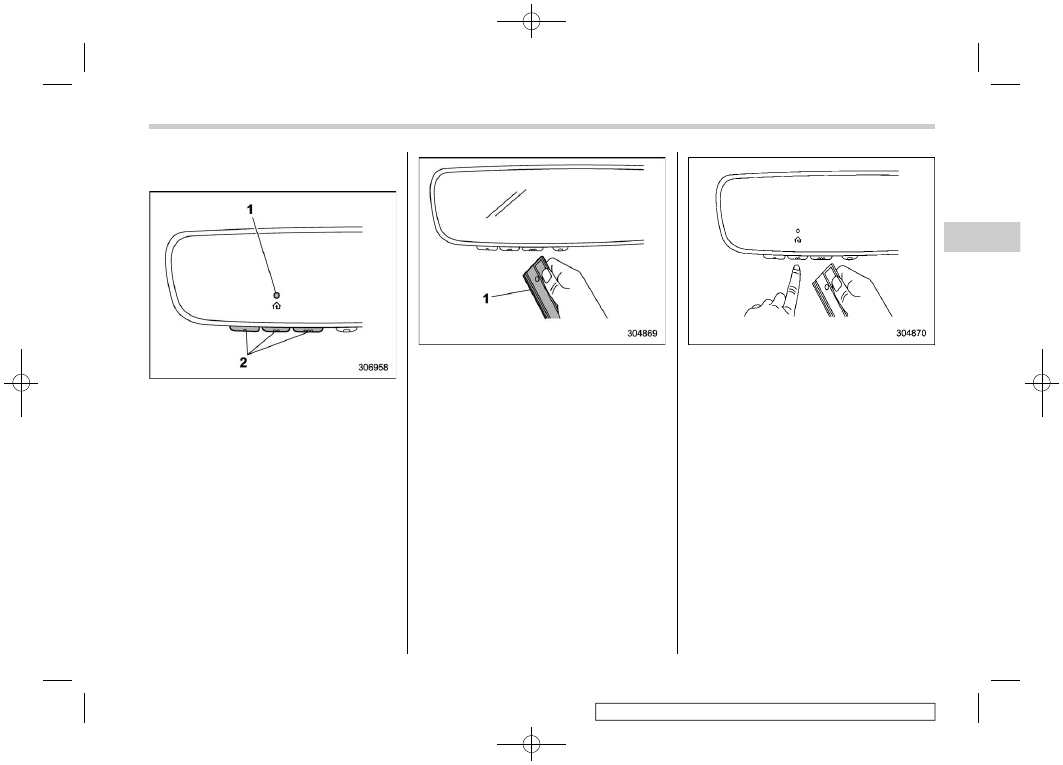

HomeLink

®

Wireless Control Sys-

tem

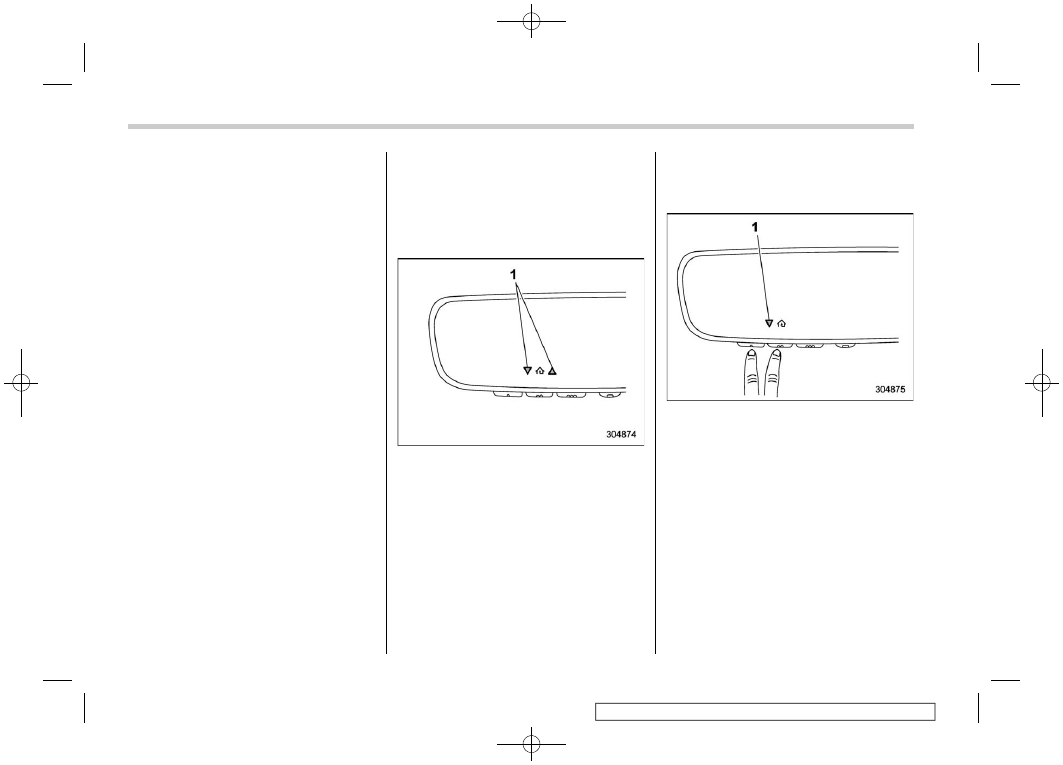

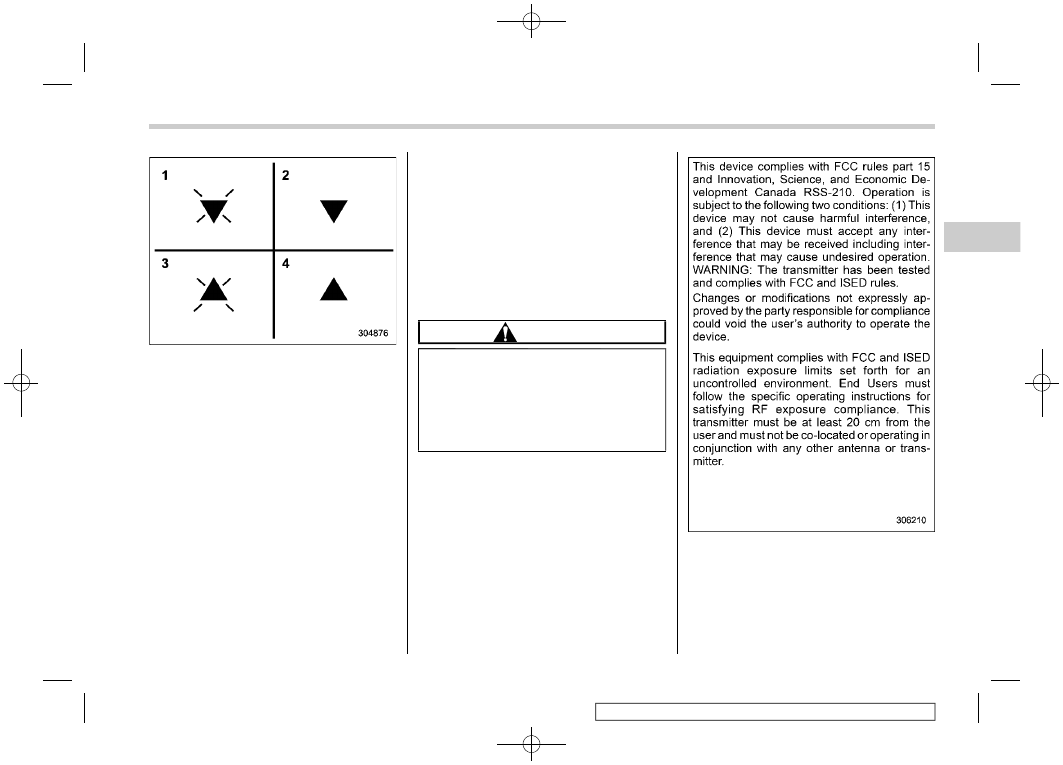

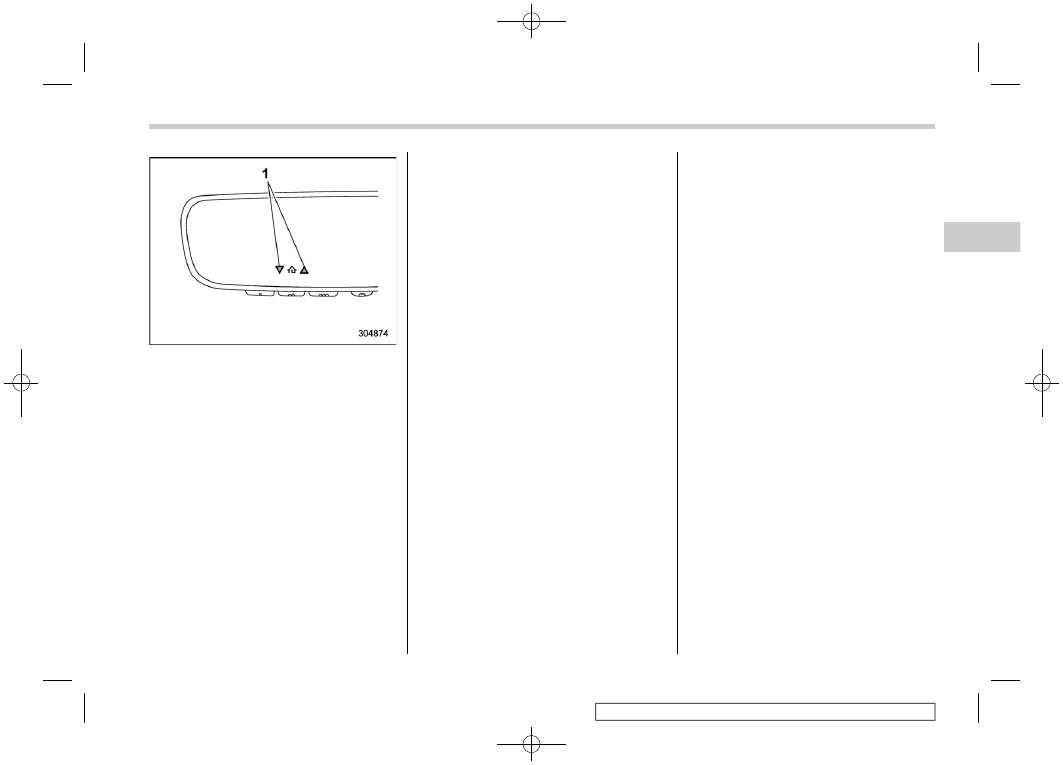

The HomeLink

®

Wireless Control System

provides a convenient way to replace up to
three hand-held radio-frequency remotes
used to activate devices such as gate
operators, garage door openers, entry
door locks, security systems, and even
home lighting. The below steps are gen-
eric programming instructions; for Genie
and Sommer garage door openers, please
go directly to the HomeLink website.
Additional information and programming
videos can be found at
www.HomeLink.com and
www.youtube.com/HomeLinkGentex.

CAUTION

.

Before programming HomeLink

to a garage door opener or gate
operator, make sure that people
and objects are out of the way of
the device to prevent potential
harm or damage.

.

When programming a garage

door opener, it is advised to park
outside of the garage.

.

Do not use HomeLink with any

garage door opener that lacks
safety stop and reverse features,
as required by U.S. federal safety

standards (this includes any gar-
age door opener model manufac-
tured before April 1, 1982). A
garage door that cannot detect
an object signaling the door to
stop and reverse does not meet
current U.S. federal safety stan-
dards.

.

It is also recommended that a new

battery be placed in the hand-
held remote (garage door opener
remote) of the device for quicker
and more accurate training.

.

Some vehicles may require the

ignition switch to be turned to the
“ON” or “ACC” position for pro-
gramming and/or operation of
HomeLink.

.

Keep the hand-held remote (gar-

age door opener remote) of the
device you are programming for
use in other vehicles as well as
for future HomeLink program-
ming. It is also suggested that
upon the sale of the vehicle, the
programmed HomeLink buttons
be erased for security purposes.
Refer to “Erasing HomeLink But-
tons”

P245.

Mirrors

242

(245,1)

!

Programming a New HomeLink
Button

1

Indicator Light

2

HomeLink buttons

1. Press and release the HomeLink but-

ton that you would like to program. The
HomeLink indicator light will flash
orange slowly (if not, refer to “Erasing
HomeLink Buttons”

P245).

1

Garage door opener remote

2. Position the hand-held remote (garage

door opener remote) 1 to 3 inches (2 to
8 cm) away from the HomeLink button
that you would like to program.

NOTE

Some hand-held remotes (garage door
opener remotes) may actually train
better at a distance of 6 to 12 inches
(15 to 30 cm). Keep this in mind if you
have difficulty with the programming
process.

3. While the HomeLink indicator light is

flashing orange, press and hold the
hand-held remote button. Continue
pressing the hand-held remote button
until the HomeLink indicator light
changes from orange to green. You
may now release the hand-held remote
button.

NOTE

Some devices may require you to re-
place this “Programming a New
HomeLink Button” step 3 with proce-
dures noted in the “Gate Operator/
Canadian Programming” section. Refer
to “Gate Operator/Canadian Program-
ming”

P245.

– CONTINUED –

Mirrors

243

3

Instruments

and

controls

(246,1)

1

Indicator light

4. Press the HomeLink button that you

would like to program and observe the
indicator light.

.

If the indicator light remains constant
green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.

.

If the indicator light rapidly flashes
green, firmly press, hold for two
seconds and release the HomeLink
button up to three times to complete
the programming process. At this
point if your device operates, pro-
gramming is complete. If the device
does not operate, continue with the
next step of the programming in-
structions.

1

“Learn” button

5. At the garage door opener motor,

(security gate motor, etc.) locate the
“Learn”, “Smart”, or “Program” button.
This can usually be found where the
hanging antenna wire is attached to
the motor-head unit (see the device’s
manual to identify this button). The
name and color of the button may vary
by manufacturer.

NOTE

A ladder and/or second person may
simplify the following steps.

6. Firmly press and release the “Learn”,

“Smart”, or “Program” button. You now
have 30 seconds in which to complete
step 7.

7. Return to the vehicle and firmly press,

hold for two seconds and release the
HomeLink button up to three times. At
this point programming is complete
and your device should operate when
the HomeLink button is pressed and
released.

Mirrors

244

(247,1)

1

Status indicators

8. If status indicator arrows appear next

to the indicator light, please refer to
“Garage Door Two-Way Communica-
tion”

P246.

In the event that there are still program-
ming difficulties or questions, additional
HomeLink information and programming
videos can be found at
www.HomeLink.com and
www.youtube.com/HomeLinkGentex. For
Genie and Sommer garage door openers
please go directly to the HomeLink web-
site.

!

Gate Operator/Canadian Pro-
gramming

Canadian radio-frequency laws require
transmitter remote signals to “time-out”
(or quit) after several seconds of transmis-
sion, which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.
The indicator LED on the hand-held
remote will go off when the device times
out, indicating that it has finished transmit-
ting.

If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the program-
ming procedures, replace “Programming a
New HomeLink Button” step 3 with the
following:

While the HomeLink indicator light is
flashing orange, press and release (“cy-
cle”) your device’s hand-held remote every
two seconds until the HomeLink indicator
light changes from orange to green. You
may now release the hand-held remote
button.

NOTE

If programming a garage door opener
or gate operator, it is advised to unplug
the device during the “cycling” process
to prevent possible overheating.

Proceed with “Programming a New
HomeLink Button” step 4 to complete.

!

Using HomeLink

To operate, simply press and release the
programmed HomeLink button. Activation
will now occur for the trained device (i.e.
garage door opener, gate operator, secur-
ity system, entry door lock, home/office
lighting, etc.). For convenience, the hand-
held remote of the device may also be
used at any time.

!

Erasing HomeLink Buttons

To erase programming from the three
buttons (individual buttons cannot be
erased but can be “reprogrammed” as
outlined below), follow the step noted:

Press and hold the two outer HomeLink
buttons for at least 10 seconds. The LED
indicator will change from continuously lit
to rapidly flashing. Release both buttons.
Do not hold for longer than 20 seconds.
HomeLink is now ready to be programmed
at any time beginning with “Programming a
New HomeLink Button” - step 1.

– CONTINUED –

Mirrors

245

3

Instruments

and

controls

(248,1)

!

R e p r o g r a m m i n g a S i n g l e
HomeLink Button

To program a previously trained button,
follow these steps:
1. Press and hold the desired HomeLink

button. DO NOT release the button.

2. The indicator light will begin to slowly

flash orange after 20 seconds. The
HomeLink button can be released at
this point. Proceed with “Programming
a New HomeLink Button” - step 3.

3. If you do not complete the program-

ming of a new device to the button, it
will revert to the previously stored
programming.

!

Garage Door Two-Way Commu-
nication

HomeLink has the capability of commu-
nicating with your garage door opener.
HomeLink can receive and display “clos-
ing” or “opening” status messages from
compatible garage door opener systems.
At any time, HomeLink can also recall and
display the last recorded status commu-
nicated by the garage door opener to
indicate your garage door being “closed”
or “opened”.

HomeLink has the capability of receiving
this communication from the garage door
opener at a range up to 820 feet (250 m).

Range may be reduced by obstacles such
as houses or trees. You may have to slow
your vehicle speed to successfully receive
the garage door opener communication.

!

Programming Two-Way Commu-
nication

1

Status indicators

Within five seconds after programming a
new HomeLink button, both of HomeLink’s
garage door status indicators will flash
rapidly green indicating that the garage
door two-way communication has been
enabled. If your garage door status in-
dicators flashed, two-way communication
programming is complete.

If the garage door status indicators do not
flash, additional HomeLink information
and programming videos can be found

online at www.HomeLink.com and
www.youtube.com/HomeLinkGentex.

!

Using Two-Way Communication

1

Status indicators

Recall and display (at any time) the last
recorded garage door status message
communicated to HomeLink by simulta-
neously pressing HomeLink buttons 1 and
2 for two seconds. HomeLink will display
the last recorded status for three seconds.

Mirrors

246

(249,1)

1

Garage door opener CLOSING (blinking
orange)

2

Garage door opener CLOSED (solid
green)

3

Garage door opener OPENING (blinking
orange)

4

Garage door opener OPENED (solid
green)

If two-way communication programming is
successful, HomeLink will display the
status of your garage door opener with
arrow indicators.

!

Certification

In the event that there are still program-
ming difficulties or questions, additional
HomeLink information and programming
videos can be found at
www.HomeLink.com,
www.youtube.com/HomeLinkGentex, or
by calling the toll-free HomeLink-hotline
at 1-800-355-3515.

.

U.S.-spec. models

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

– CONTINUED –

Mirrors

247

3

Instruments

and

controls

(250,1)

.

Canada-spec. models

HomeLink

®

and the HomeLink

®

house are

registered trademarks of Gentex Corpora-
tion.

WARNING

.

W h e n

p r o g r a m m i n g

t h e

HomeLink

®

Wireless Control Sys-

tem, you may be operating a
garage door opener or other
device. Make sure that people
and objects are out of the way of
the garage door or other device
to prevent potential harm or da-
mage.

.

Do not use the HomeLink

®

Wire-

less Control System with a gar-
age door opener that lacks the
safety stop and reverse feature
as required by applicable safety
standards. A garage door opener
which cannot detect an object,
signaling the door to stop and
reverse, does not meet these
safety standards. Using a garage
door opener without these fea-
tures increases risk of serious
injury or death. For more infor-
mation, consult the HomeLink

®

website at www.homelink.com or
call 1-800-355-3515.

Mirrors

248

(251,1)

&

Outside mirrors

!

Convex mirror (passenger side)

WARNING

Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use the
convex mirror to judge the distance
of vehicles behind you when chan-
ging lanes. Use the inside mirror (or
glance backwards) to determine the
actual size and distance of objects
that you view in convex mirror.

CAUTION

Make sure to adjust the mirrors
before driving.

!

Remote control mirror switch

: Select side to adjust
: Direction control

The remote control mirrors operate only
when the ignition switch is in the “ON” or
“ACC” position.
1. Turn the control switch to the side that

you want to adjust. “L” is for the left
mirror, “R” is for the right mirror.

2. Move the control switch in the direction

you want to move the mirror.

3. Return the control switch to the neutral

position to prevent unintentional op-
eration.

The mirrors can also be adjusted manu-
ally.

NOTE

For models with memory function:

.

The outside mirror can be adjusted
for approximately 45 seconds after
the following conditions are met.

– The ignition switch is turned to

the “OFF” position.

– The door is unlocked using the

access key fob.

.

The outside mirror angle can be
registered with button “1”, “2” or
each of the key fobs.

For details, refer to “Memory function
(driver’s seat – if equipped)”

P35.

.

The outside mirror angle can also be
retrieved with the Driver Monitoring
System user information. To do so,
perform user registration in the
Driver Monitoring System settings.
Refer to “Driver Monitoring System
settings”

P214.

!

Reverse tilt-down feature (if
equipped)

When backing up the vehicle, the front
passenger’s side outside mirrors will turn
downward automatically to provide better
rear visibility.
1. Push the ignition switch to the ON

position.

2. Move the select lever to the R (Re-

– CONTINUED –

Mirrors

249

3

Instruments

and

controls

(252,1)

verse) position.

3. The outside mirror angle moves down-

ward.

The outside mirror angle will return to its
original position when the following condi-
tion are met.

.

After approximately 9 seconds from the
select lever is moved to any position
other than R (Reverse).

.

The ignition switch is turned to the
“OFF” position.

.

The vehicle is running.

NOTE

.

The reverse tilt-down mirror angle
can be registered with button “1”,
“2” or each of the key fobs. For
details, refer to “Memory function
(driver’s seat – if equipped)”

P35.

.

The reverse tilt-down mirror angle
can also be retrieved with the Driver
Monitoring System user informa-
tion. To do so, perform user registra-
tion in the Driver Monitoring System
settings. Refer to “Driver Monitoring
System settings”

P214.

.

The operational/non-operational
setting can be changed by operating
the combination meter display (col-
or LCD). For details, refer to “Vehicle
Setting”

P196.

.

The factory setting (default setting)
for this function is set as the front
passenger’s side mirror. The setting
of the right and left side mirror/front
passenger’s side mirror operation
can be changed by a SUBARU deal-
er. Contact your SUBARU dealer for
details.

CAUTION

Depress the brake pedal during the
reverse tilt-down mirror angle ad-
justment.

To adjust the reverse tilt-down mirror
angle, adjust the outside mirror using the
remote control mirror switch while the
reverse tilt-down operates. For details
about how to adjust the outside mirror
angle, refer to “Remote control mirror
switch”

P249.

Memory function:

The angle of the reverse tilt-down mirror
can be registered. Register the position
with button “1”, “2” or each of the access
key fobs and retrieve the position.
For details about registration or retrieval of
a position, refer to “Memory function
(driver’s seat – if equipped)”

P35.

NOTE

If the seat is moved forward or back-
ward 1.18 in (30 mm) or more, the
reverse tilt-down will move to the
factory default position or the last
position hold.

Hold last position function:

The angle of the reverse tilt-down mirror
can be set to the latest adjusted angle.
The hold last position function operates
when the following condition are met.

.

The memory function is not used.

.

The seat is moved forward or backward
1.18 in (30 mm) or more.

NOTE

.

The factory setting (default setting)
for this function is set as “non-
operational”. This setting can be
c h a n g e d t o “ o p e r a t i o n a l ” a t
SUBARU dealers. For more details,
contact a SUBARU dealer.

.

If the hold last position function
setting is “non-operation”, the re-
verse tilt-down will move to the
factory default position.

Mirrors

250

(253,1)

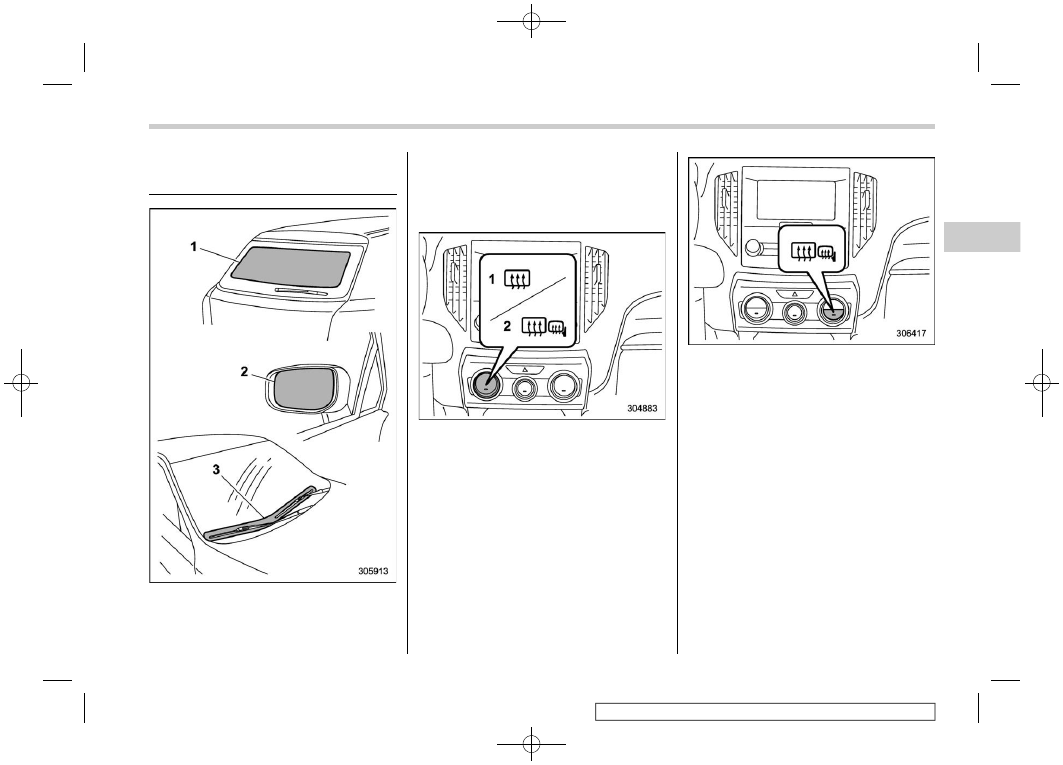

3-18. Defogger and deicer (if
equipped)

1

Rear window defogger

2

Outside mirror defogger (if equipped)

3

Windshield wiper deicer (if equipped)

The vehicle is equipped with the defogger
and the deicer (if equipped) system. The
defogger and deicer system is activated
only when the ignition switch is in the “ON”
position.

Climate control panel type A

1

Models without outside mirror defogger

2

Models with outside mirror defogger

Climate control panel type B and C

To activate simultaneously the rear win-
dow defogger, outside mirror defogger (if
equipped) and windshield wiper deicer (if
equipped), press the control switch that is
located on the climate control panel. The
indicator light on the control switch illumi-
nates while the defogger and deicer
system is activated.

To turn them off, press the control switch
again. They also turn off when the ignition
switch is turned to the “ACC” or “LOCK”/
“OFF” position.

The defogger and deicer system will
automatically shut off after approximately
15 minutes. If the rear window and the
outside mirrors have been cleared and the
windshield blade rubbers have been

– CONTINUED –

Defogger and deicer

251

3

Instruments

and

controls

(254,1)

deiced completely before that time, press
the control switch to turn them off.

It is possible for the defogger and deicer
system to be set to continuous operation
mode by a SUBARU dealer. Consult your
SUBARU dealer for details. Also, it is
possible to set the defogger and deicer
system for the continuous operation mode.
For details, refer to “Vehicle Setting”

P196.

CAUTION

.

To prevent the battery from being

discharged, do not operate the
defogger and deicer system con-
tinuously for any longer than
necessary.

.

Do not use sharp instruments or

window cleaner containing abra-
sives to clean the inner surface of
the rear window. They may da-
mage the conductors printed on
the window.

NOTE

.

Turn on the defogger and deicer
system if the wipers are frozen to
the windshield.

.

If the windshield is covered with
snow, remove the snow so that the
windshield wiper deicer works effec-
tively.

.

While the defogger and deicer sys-
tem is in the continuous operation
mode:

– If the vehicle speed remains at 9

mph (15 km/h) or lower for 15
minutes, the windshield wiper
deicer system automatically
stops operating. However, the
rear window defogger system
and outside mirror defogger sys-
tem maintain continuous opera-
tion in this condition.

– If the vehicle battery voltage

drops below the permissible le-
vel, continuous operation of the
defogger system and deicer sys-
tem is canceled and the system
stops operating.

3-19. Tilt/telescopic steering
wheel

WARNING

.

Do not adjust the steering wheel

tilt/telescopic position while driv-
ing. This may cause loss of
vehicle control and result in per-
sonal injury.

.

If the lever cannot be raised to the

fixed position, adjust the steering
wheel again. It is dangerous to
drive without locking the steering
wheel. This may cause loss of
vehicle control and result in per-
sonal injury.

Tilt/telescopic steering wheel

252















Content      ..     13      14      15      16     ..
